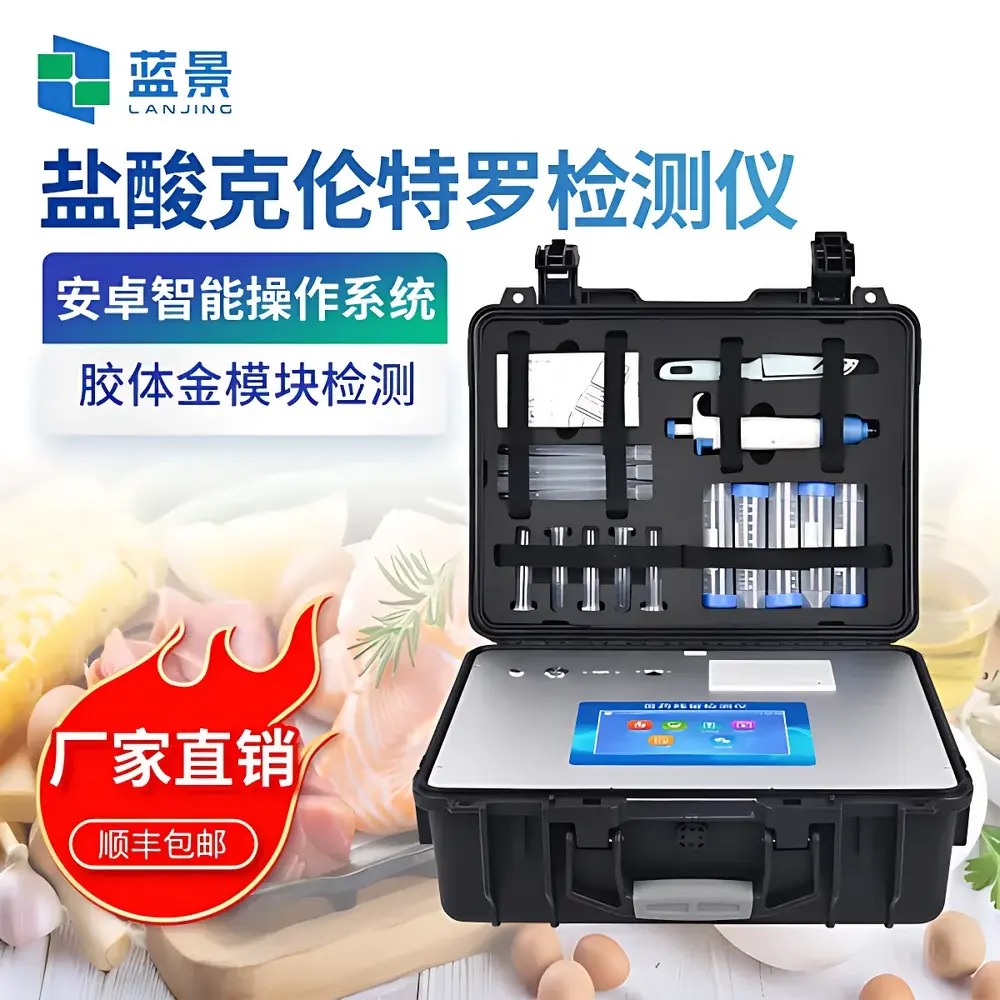

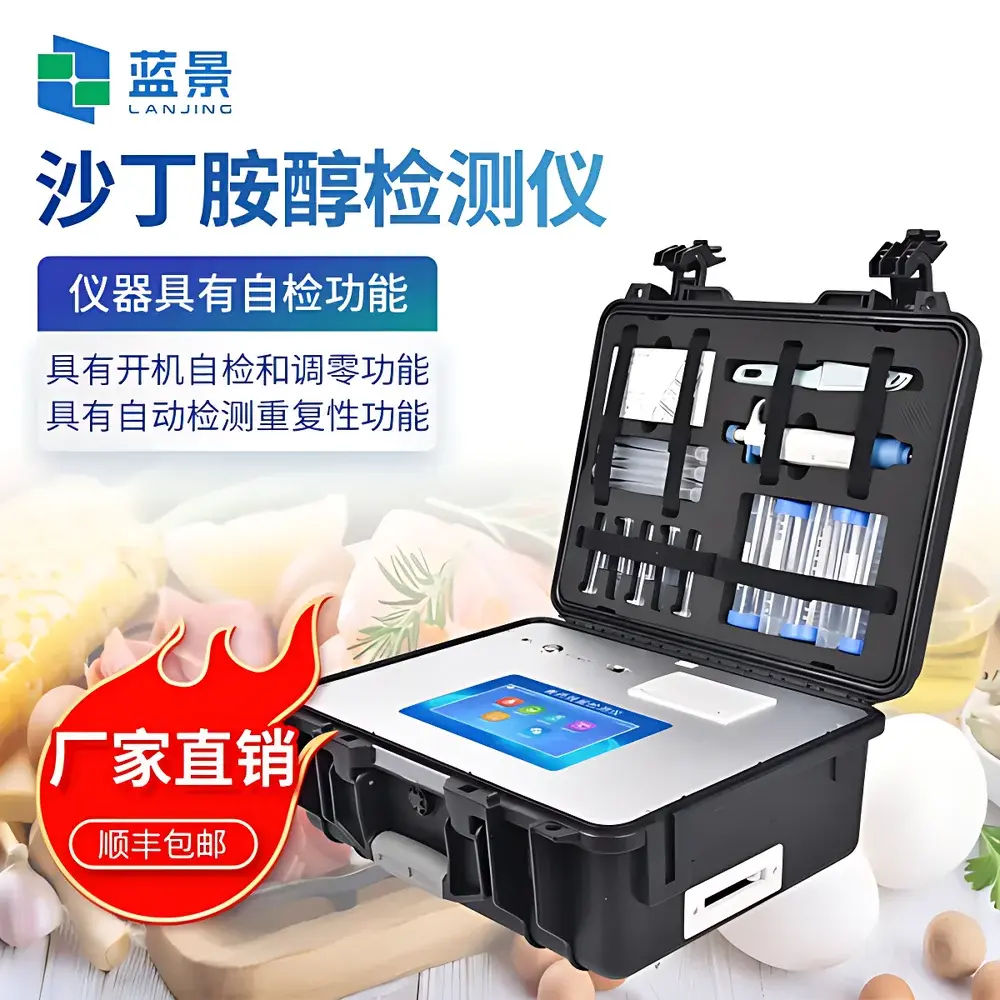

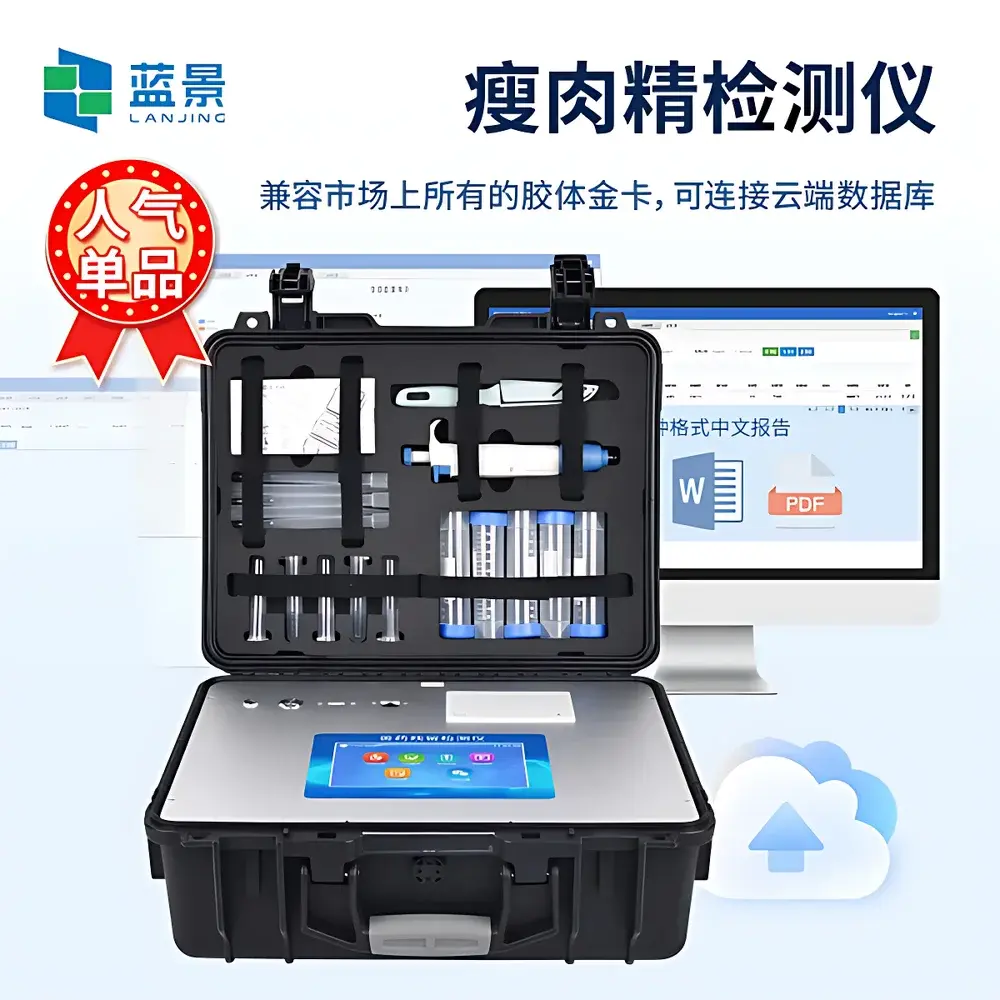

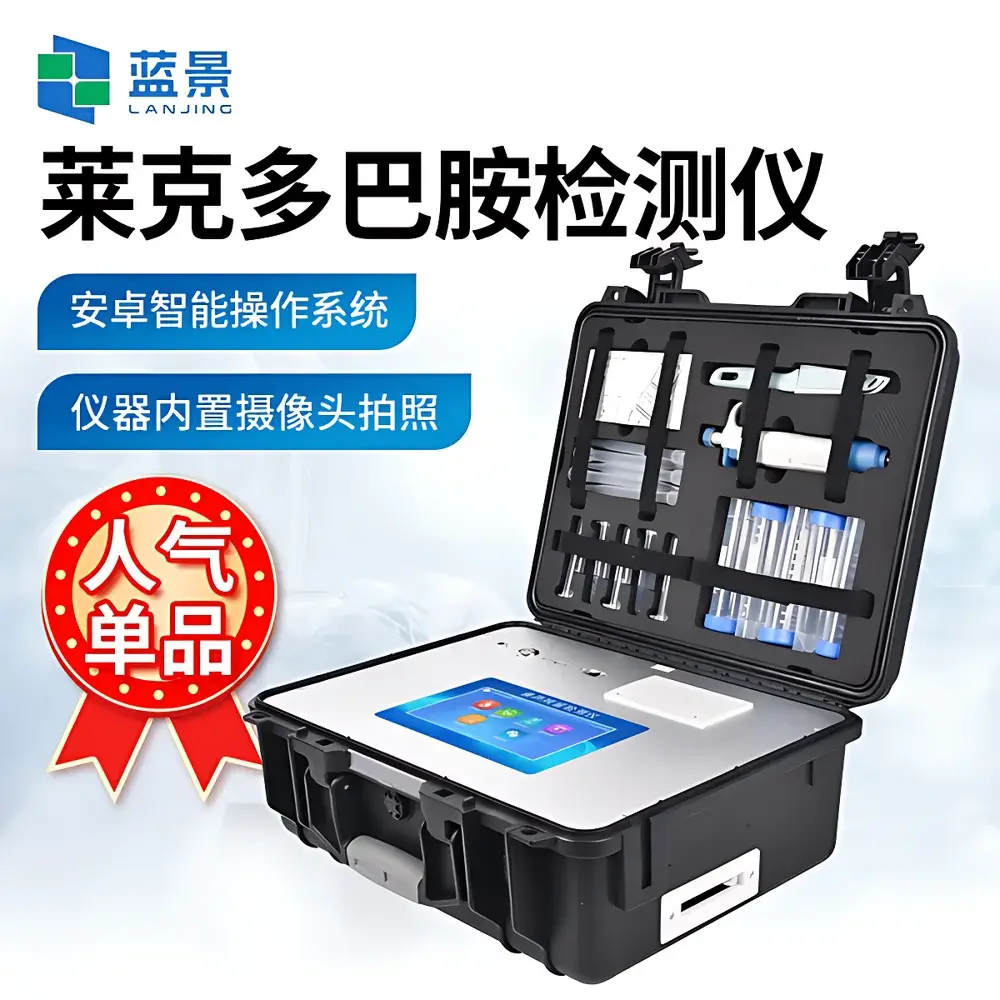

Lanjing LJ-SSJ Multi-Residue Rapid Immunoassay Analyzer for β-Agonists (Clenbuterol, Ractopamine, Salbutamol) and Veterinary Drug Residues

Overview

The Lanjing LJ-SSJ is a field-deployable, quantitative lateral flow immunoassay analyzer engineered for rapid, on-site detection of β-adrenergic agonist residues—including clenbuterol hydrochloride, ractopamine, salbutamol, diethylstilbestrol, and quinolone antibiotics—in animal-derived food matrices. It operates on the principle of colloidal gold immunochromatography coupled with high-resolution optical densitometry: the device scans test strips via a precision rail-driven transport system, captures real-time digital images of the C (control) and T (test) lines using an integrated CMOS camera, and applies algorithmic CT-line intensity quantification to deliver semi-quantitative or quantitative results (ng/mL or µg/kg) based on calibrated standard curves. Designed for regulatory compliance workflows, it supports routine screening in decentralized environments—such as slaughterhouses, cold-chain logistics hubs, border inspection posts, and mobile food safety units—where laboratory infrastructure is unavailable or impractical.

Key Features

• ARM Cortex-A7 RK3288 quad-core processor (1.88 GHz) ensures deterministic real-time image processing and multi-channel assay execution.
• 7-inch capacitive touchscreen with intuitive Chinese/English bilingual UI; fully operable with gloved hands in field conditions.
• Dual-power architecture: DC 12 V input (compatible with vehicle power systems) + optional 6 Ah rechargeable Li-ion battery for >8 hours continuous operation.
• Auto-calibrating optical module with intelligent ambient light compensation and thermal drift suppression—maintains photometric stability across 0–40 °C operating range.
• Integrated thermal printer with QR-code generation: automatically outputs traceable, timestamped reports compliant with GLP documentation requirements.
• Multi-modal connectivity: Wi-Fi, 4G LTE, GPRS, and Ethernet—enabling secure data transmission to centralized food safety surveillance platforms (e.g., national SAMR monitoring systems).
• Open cartridge architecture: fully compatible with third-party colloidal gold test kits—no vendor lock-in for consumables.
• On-device database management: stores sample names, analyte targets, submitting entities, and regulatory thresholds; supports CSV/Excel export via USB 2.0 port.

Sample Compatibility & Compliance

The LJ-SSJ accepts liquid extracts from muscle tissue, liver, urine, feed, and meat products following standardized pre-treatment protocols (e.g., solvent extraction, centrifugation, filtration). It conforms to method validation frameworks outlined in GB/T 22286–2008 (detection of β-agonists in animal tissues) and aligns with analytical performance criteria referenced in ISO/IEC 17025:2017 for rapid screening devices. While not a primary reference method, its output serves as a validated triage tool under China’s Food Safety Law (Article 112) and supports risk-based decision-making in accordance with FAO/WHO Codex Alimentarius guidelines for veterinary drug residue monitoring. Data audit trails—including operator ID, calibration logs, and result timestamps—meet baseline requirements for regulatory traceability.

Software & Data Management

The embedded Android-based OS hosts a purpose-built Lateral Flow Analysis Suite supporting batch testing, customizable reporting templates, and role-based access control (admin/user/operator profiles). All measurement metadata—including raw pixel intensity values, CT-ratio calculations, and pass/fail determinations against configurable MRL thresholds—are stored locally with AES-256 encryption. Data synchronization employs TLS 1.2–secured HTTPS endpoints; uploaded records integrate natively with provincial food safety cloud platforms via RESTful API. Firmware updates are delivered over-the-air (OTA) with cryptographic signature verification to ensure integrity. The system retains full audit capability: every calibration event, user login, and result modification is time-stamped and immutable.

Applications

• Routine surveillance at abattoirs and meat processing facilities to verify absence of unauthorized growth promoters prior to distribution.
• Field verification by municipal food and drug administration (CFDA/SAMR) inspectors during unannounced inspections of livestock farms and feed mills.
• Quality assurance screening in cold-chain logistics—detecting adulteration incidents before retail distribution.
• Method development support in academic and governmental research labs evaluating novel immunoassay formats for emerging veterinary contaminants.
• Integration into HACCP plans as a Critical Control Point (CCP) monitor for residue hazards in farm-to-fork supply chains.

FAQ

What regulatory standards does the LJ-SSJ support for β-agonist detection?
It implements national maximum residue limits (MRLs) per GB 31650–2019 and dynamically updates threshold libraries via firmware patches.
Can the instrument quantify analytes beyond qualitative yes/no results?
Yes—it provides semi-quantitative concentration estimates (ng/mL) derived from CT-line optical density ratios calibrated against internal reference standards.
Is remote software update capability available?
Yes: authenticated OTA updates preserve configuration settings while deploying new assay protocols or regulatory threshold revisions.
Does the device meet electromagnetic compatibility (EMC) requirements for field use?
It complies with GB/T 18268.1–2010 (IEC 61326-1) for industrial, scientific, and medical (ISM) equipment in non-residential environments.
How is data integrity ensured during network transmission?
All uploads utilize certificate-pinned HTTPS with client-side authentication; local storage includes write-once logging for forensic auditability.
