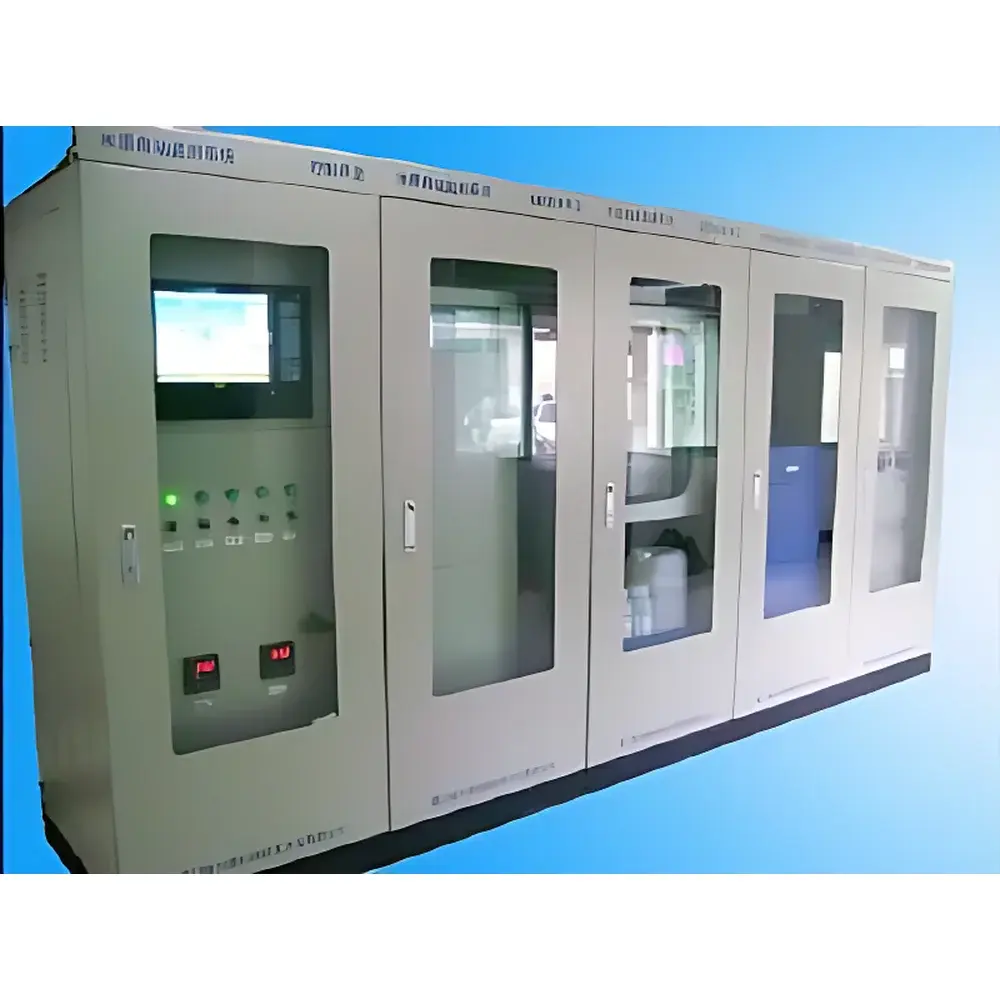

LawLink Online Automatic Water Quality Monitoring System
| Origin | Fujian, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (PRC) |
| Model | LawLink |
| Pricing | Available Upon Request |
Overview
The LawLink Online Automatic Water Quality Monitoring System is an integrated, turnkey environmental monitoring platform engineered for continuous, unattended measurement of key water quality parameters at industrial discharge points, municipal wastewater outfalls, and surface water bodies. Built upon a modular architecture grounded in ISO 5667-22 (water quality — sampling — guidance on monitoring of wastewater discharges) and aligned with EPA Method 1664, USP , and China’s HJ 353–2019 technical specifications for online water quality monitoring systems, the system employs standardized analytical modules—including spectrophotometric, electrochemical, and optical sensor-based detection—to deliver high reproducibility and long-term stability under field conditions. Its core function is to support regulatory compliance reporting by capturing real-time, audit-ready data streams for parameters such as COD, NH₃-N, TP, TN, pH, conductivity, turbidity, dissolved oxygen, and heavy metal ions (e.g., Cr(VI), As(III)), where configured with certified analyzers from OEM partners including WTW, Hach, and Endress+Hauser.
Key Features
- Engineered for operational continuity: Dual-redundant power supply inputs, UPS-integrated backup, and automatic fault recovery ensure >95% system uptime across 12-month deployment cycles.
- Robust hydraulic design: All wetted components conform to ASTM D1586 standards for corrosion resistance; pressure-regulated sample intake with self-cleaning filtration prevents clogging in high-sediment environments.
- Fail-safe protection architecture: Integrated overpressure relief valves, dry-run detection for peristaltic pumps, thermal cutoffs on heater elements, and leak-sensing mats mitigate electrical, mechanical, and fluidic hazards.
- Human-centered interface: Local control panel features five tactile push-button actuators enabling manual override of discrete unit operations—sampling, calibration, cleaning, analysis, and purge—without software navigation.
- Space-optimized footprint: Standard 19-inch rack-mount chassis (1200 mm × 600 mm × 600 mm) accommodates full system integration—including pre-treatment, analyzer modules, PLC controller, and telemetry hardware—in single enclosure or climate-controlled kiosk configurations.
Sample Compatibility & Compliance
The LawLink system accepts raw influent samples from open channels, pressurized pipes, and submerged intakes with suspended solids ≤ 100 mg/L and temperature range 0–40 °C. Pre-treatment modules include mechanical screening (100 µm mesh), sedimentation tanks, and optional UV sterilization to preserve sample integrity prior to analysis. All analyzer outputs comply with China’s HJ 354–2019 validation protocol and meet EU WFD (2000/60/EC) reporting requirements when paired with certified instruments. Data acquisition adheres to HJ 212–2017 communication protocols and supports seamless integration with national-level platforms including China’s National Surface Water Monitoring Network (NSWMN) and provincial ECMS portals.
Software & Data Management
The system runs LawLink Control Suite v4.2—a Windows-based SCADA application compliant with IEC 62443-3-3 for industrial cybersecurity. It provides real-time visualization of sensor status, alarm thresholds (configurable per parameter), calibration logs, and maintenance schedules. Audit trails record all user actions—including method changes, zero/span adjustments, and data exports—with immutable timestamps meeting GLP/GMP documentation standards. Data export supports CSV, XML, and Modbus TCP formats; secure transmission occurs via TLS 1.2-encrypted MQTT or HTTPS to central servers. Remote diagnostics and firmware updates are supported through authenticated SSH tunnels, with full traceability required under FDA 21 CFR Part 11 for regulated users.
Applications
- Regulatory compliance monitoring at Class I–III industrial discharge outlets (e.g., chemical, pharmaceutical, textile manufacturing)
- Real-time early-warning surveillance for drinking water source protection zones (e.g., reservoirs, river intakes)
- Performance verification of wastewater treatment plant effluent prior to release
- Long-term trend analysis for ecological assessment in sensitive watersheds (e.g., Taihu Lake Basin, Wei River Basin)
- Supporting third-party environmental auditing and ESG reporting frameworks
FAQ
Does the LawLink system support integration with existing municipal SCADA infrastructure?
Yes—via Modbus RTU/TCP, OPC UA, or custom API endpoints, subject to protocol mapping and security review.
What is the typical commissioning timeline after site delivery?
Standard commissioning requires 10–14 working days, including hydraulic validation, analyzer calibration against NIST-traceable standards, and 72-hour stability testing.
Are spare parts and consumables stocked regionally?
Yes—regional service hubs maintain inventory of critical spares (pump tubing, filters, electrodes) and consumables (reagents, calibration standards) with ≤48-hour dispatch guarantee.
How is data integrity ensured during network outages?
Local edge storage retains ≥30 days of raw and processed data in encrypted SQLite databases; synchronization resumes automatically upon connection restoration.
Is remote software update capability available without on-site technician intervention?
Yes—firmware and application updates are delivered over secure channels with rollback functionality and pre-update health checks.
