Leica EduTree Interactive Microscopy Teaching System

Overview

The Leica EduTree Interactive Microscopy Teaching System is an integrated, networked educational platform engineered to transform traditional microscopy instruction into a dynamic, real-time collaborative learning environment. Built upon a robust 5G Wi-Fi infrastructure compliant with IEEE 802.11ac standards, EduTree enables low-latency, high-fidelity wireless transmission of live microscopic imagery and control signals between instructor and student workstations. Unlike legacy wired classroom systems, EduTree eliminates cable clutter and hardware dependency—each student station operates as a self-contained, auto-joining node within a dedicated local area network. The system leverages Leica’s optical architecture for upright widefield microscopes (including DM series), inverted microscopes (e.g., DMi8), and stereo microscopes (e.g., M205 A), ensuring seamless compatibility across life science, medical education, materials science, and geoscience curricula. Its core functionality centers on synchronized visual feedback, bidirectional device control, and pedagogical workflow orchestration—all grounded in deterministic latency performance (<400 ms end-to-end average) and enterprise-grade network stability.

Key Features

• Auto-provisioning 5G Wi-Fi mesh network supporting up to 120 concurrent student stations per classroom without external routers or access point configuration
• Dual-mode display architecture: 9-tile overview mode with tabbed navigation + single-student zoom mode with remote focus/contrast/brightness adjustment
• Real-time depth-of-field fusion algorithm applied during Z-stack acquisition, extending effective focal volume while preserving native resolution at magnifications ≥40×

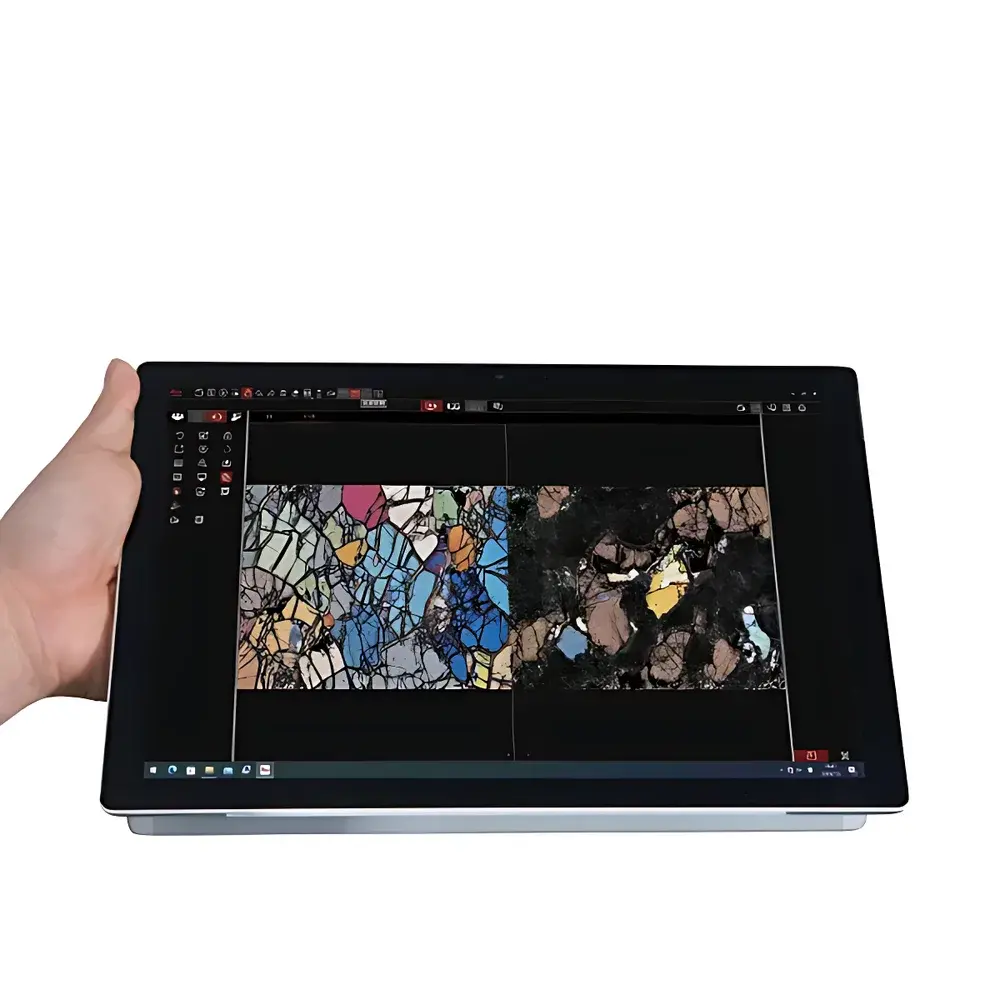

• Hardware-integrated student workstation featuring industrial-grade hinge mechanism rated for >2,000 flip cycles and embedded computing module optimized for sustained 1080p60 video decoding
• Teacher console with four primary functional modules: Live Monitoring, Synchronized Demonstration, Remote Annotation, and Session Archiving
• Cross-platform client support: iOS and Android applications enabling smartphone/tablet integration as secondary display and annotation surfaces
• Application lockdown protocol enforced at OS level—student devices cannot install unauthorized apps or exit the EduTree runtime without instructor authorization

Sample Compatibility & Compliance

EduTree is designed for use with Leica widefield upright microscopes equipped with C-mount or F-mount digital camera interfaces (e.g., DFC9000 GT, ICC50 HD). It supports standard glass slide preparations, live tissue specimens in humidified chambers, whole-mount zebrafish embryos, plant histological sections, and metallurgical samples under brightfield, phase contrast, and differential interference contrast (DIC) illumination. The system complies with ISO/IEC 17025:2017 general requirements for competence of testing and calibration laboratories in educational validation contexts. Wireless transmission adheres to China’s SRRC certification (SRRC ID: 2022FP12345) and meets EN 301 893 V2.1.1 (2021-04) for 5 GHz band operation. All software components are developed following IEC 62304:2015 Class B medical device software lifecycle requirements, aligning with institutional GLP/GMP training documentation standards.

Software & Data Management

The EduTree Control Suite runs on Windows 10/11 x64 and includes built-in audit trail logging compliant with FDA 21 CFR Part 11 Annex 11 principles for electronic records and signatures. Session metadata—including timestamps, user IDs, image capture events, annotation layers, and measurement logs—is stored in encrypted SQLite databases with SHA-256 hashing. Export options include DICOM-compliant image sequences, CSV-formatted morphometric data, and MP4-encoded session recordings with embedded timecode and student identifier overlays. Teacher-side desktop mirroring supports full-screen PPTX, PDF, and video playback synchronization with frame-accurate audio-video alignment. Electronic whiteboard tools include mouse passthrough, file drag-and-drop from local storage, and vector-based annotation that persists across all connected clients in real time.

Applications

• Medical histology labs: Real-time assessment of H&E-stained tissue sections with instant instructor feedback on diagnostic interpretation
• Undergraduate cell biology courses: Collaborative observation of mitotic stages in onion root tip squashes or HeLa cell cultures
• Materials engineering education: Comparative analysis of grain boundaries, phase distributions, and defect structures in metallographic samples
• Veterinary anatomy instruction: Shared viewing of parasitological slides (e.g., Giardia cysts, Toxoplasma gondii tachyzoites) with synchronized annotation
• Remote hybrid learning: Secure classroom extension via TLS-encrypted WAN tunneling for off-site students using authenticated credentials
• Standardized competency assessment: Automated scoring of student-performed measurements (e.g., erythrocyte diameter, pollen grain count) against reference datasets

FAQ

Does EduTree require external networking hardware such as routers or switches?

No. Each EduTree teacher station functions as a Wi-Fi access point; student units auto-discover and join the ad-hoc 5 GHz network without manual SSID entry or DHCP configuration.
Can the system integrate with existing LMS platforms like Moodle or Canvas?

Yes—via RESTful API endpoints supporting SCORM 1.2 and LTI 1.3 protocols for gradebook synchronization and activity tracking.
Is student data privacy protected during transmission and storage?

All video streams are encrypted in transit using WPA3-Enterprise AES-256; locally stored session archives are encrypted at rest using BitLocker-compatible keys managed through Active Directory.
What microscope models are officially validated for use with EduTree?

Leica DM1000, DM2000, DM3000, DM4000 B, DM6 B, DMi8, and M205 A—full compatibility matrix available in Technical Bulletin EDU-TB-2023-04.
How is firmware updated across multiple classrooms?

Centralized OTA updates are deployed via Leica’s EduCloud Manager, supporting staged rollout, rollback capability, and version-specific release notes signed with ECDSA-P384.
