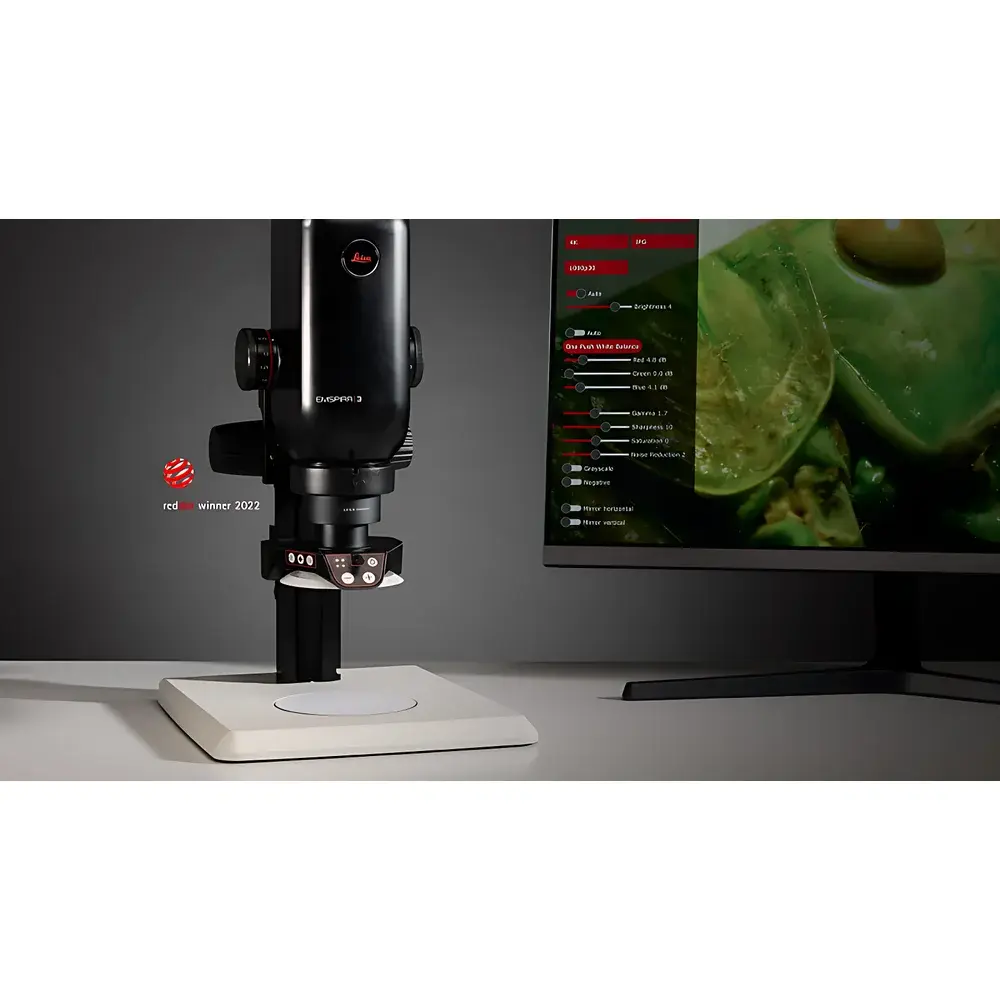

Leica Emspira 3 Digital Microscope

Overview

The Leica Emspira 3 Digital Microscope is an industrial-grade, all-in-one optical inspection system engineered for precision, repeatability, and operational independence in demanding production, quality control, and failure analysis environments. Unlike traditional compound or stereo microscopes requiring eyepieces and external computing infrastructure, the Emspira 3 integrates high-resolution optics, a calibrated 12-megapixel CMOS sensor, real-time 4K imaging, on-device measurement and annotation tools, and networked data management into a single robust platform. Its core optical architecture employs a PlanApo 1.0× objective combined with an 8:1 encoded zoom system—ensuring traceable magnification scaling across the full 0.75× to 6.0× range. This encoding eliminates operator-induced magnification drift, directly supporting metrological integrity in visual inspection workflows compliant with ISO/IEC 17025, ASTM E29, and internal QA/QC procedures.

Key Features

• Fully encoded 8:1 zoom optics with eight discrete, user-selectable magnification stops—enabling rapid, repeatable setup for standardized inspection routines.
• Real-time 4K (3840 × 2160 px) HDMI output at up to 60 fps—delivering fluid, low-latency visualization essential for dynamic sample assessment and operator ergonomics.
• On-screen display (OSD) interface with intuitive touchscreen, mouse, keyboard, or footswitch operation—eliminating dependency on external PCs for routine tasks.
• Integrated measurement engine supporting length, angle, area, and profile analysis directly on live or captured images—with accuracy certified at ±1% (0.75×) and ±0.5% (6.0×) per Leica calibration protocols.
• Dual illumination architecture: standard LED2000 incident light stand plus optional LED3000 coaxial ring light—providing flexible contrast enhancement for reflective, translucent, or topographically complex specimens.
• IP21-rated enclosure with AgTreat™ antimicrobial surface treatment (ISO 22196 validated)—ensuring durability and hygiene in shared laboratory or cleanroom-adjacent manufacturing settings.

Sample Compatibility & Compliance

The Emspira 3 accommodates a broad spectrum of industrial samples—from printed circuit boards (PCBs), machined metal components, and polymer assemblies to biological tissue sections and coated substrates—without requiring sample sectioning or conductive coating. Its extended working distance (19–303 mm) and large field of view (up to 76.1 mm × 42.8 mm) support both macro-level defect screening and micron-scale feature verification. The system complies with IEC 61000-6-2 (immunity) and IEC 61000-6-4 (emissions), and its sealed mechanical design meets IP21 requirements for protection against vertically falling drips and solid objects ≥12.5 mm. For regulated industries, audit-ready metadata—including timestamped measurements, user ID, magnification, lighting configuration, and image provenance—is embedded in every saved file, facilitating alignment with FDA 21 CFR Part 11 electronic record requirements when deployed with networked storage and access controls.

Software & Data Management

All core functionality—including image capture, annotation, comparative overlay (reference image or custom mask), report generation, and measurement export—is executed natively on the microscope’s embedded Linux-based OS. Captured images (TIFF/JPEG) and measurement logs are stored locally on internal flash memory or exported automatically to configurable network shares (SMB/CIFS) or USB devices. Email integration enables one-touch transmission of annotated reports with embedded measurement data. No proprietary desktop software installation is required for basic operation; however, optional Leica Application Suite (LAS) X modules can be deployed on connected workstations for advanced batch analysis, statistical process control (SPC) charting, and LIMS integration via standardized APIs (REST/JSON).

Applications

• Automotive and aerospace component inspection—verifying solder joint integrity, surface finish anomalies, and dimensional conformity against GD&T callouts.
• Electronics manufacturing—identifying bridging, tombstoning, pad cratering, and conformal coating uniformity on SMT assemblies.
• R&D failure analysis—documenting fracture surfaces, delamination, corrosion patterns, and thermal damage without vacuum chamber constraints.
• Medical device quality assurance—assessing laser marking legibility, edge burr presence, and polymer weld seam continuity.
• Educational and training labs—supporting collaborative, posture-optimized visual learning with minimal procedural overhead.

FAQ

Does the Emspira 3 require a computer to perform measurements?

No. All measurement functions—including length, angle, area, and profile analysis—are executed directly on the microscope using the built-in OSD interface.
Can measurement data be exported in CSV or Excel format?

Yes. Measurement results and associated metadata can be exported as CSV files via USB or network share for downstream SPC or reporting.
Is the system compatible with existing lab networks and cybersecurity policies?

Yes. It supports static/dynamic IP assignment, domain authentication (LDAP), encrypted SMB file transfers, and TLS-enabled email submission—aligning with enterprise IT governance frameworks.
What calibration documentation is provided?

Each unit ships with a factory calibration certificate traceable to national standards, covering magnification linearity, depth of field, and measurement accuracy across the zoom range.
Can third-party lighting systems be integrated?

While optimized for Leica’s LED2000 and LED3000 modules, the Emspira 3 features programmable GPIO and TTL trigger outputs to synchronize with externally controlled illumination sources.
