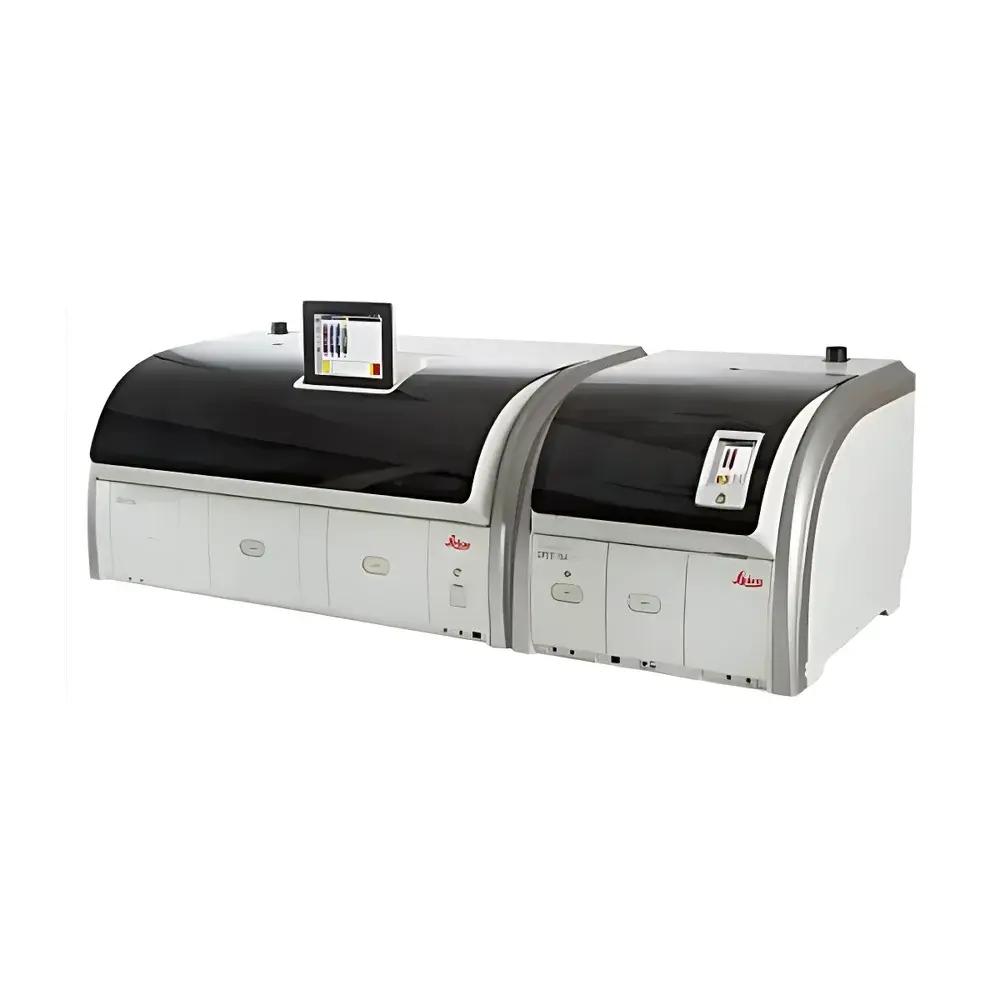

Leica HistoCore SPECTRA Coverslipper Workstation
| Brand | Leica |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | HistoCore SPECTRA Workstation |
| Pricing | Upon Request |
Overview
The Leica HistoCore SPECTRA Coverslipper Workstation is an integrated, fully automated staining and coverslipping platform engineered for high-volume histopathology laboratories. It operates on a dual-robotic-arm architecture combined with precision fluid handling, real-time optical monitoring, and RFID-enabled consumables tracking to deliver reproducible, GLP-compliant slide preparation. Unlike standalone stainers or coverslippers, the SPECTRA workstation unifies hematoxylin and eosin (H&E) staining, special stains (e.g., IHC, PAS, trichrome), and automated coverslipping—including mounting medium application, coverslip placement, and edge-sealing—within a single, footprint-optimized system. Its design adheres to core principles of laboratory workflow optimization: minimizing manual intervention, eliminating cross-contamination risks through segregated reagent zones, and ensuring traceability from slide loading to final output.
Key Features
- Dual robotic arms with synchronized motion control enable parallel processing of staining and coverslipping tasks, reducing cycle time without compromising positional accuracy.
- Proprietary fill-level scanning technology continuously monitors reagent volumes in real time using optical liquid-level detection—preventing underfilling, overflow, or air bubble formation during dispensing.
- Integrated glass fragment sensor detects microfractures or debris on slides prior to coverslip application, triggering automatic rejection and logging to prevent compromised diagnostics.
- Color-coded slide rack system—validated per Leica’s rack identification protocol—ensures unambiguous recognition upon insertion; each rack type (e.g., H&E, IHC, decalcified) auto-loads its corresponding validated protocol without user selection.
- RFID-tagged consumables (staining trays, coverslip cassettes, mounting media cartridges) provide automated inventory tracking, expiration date enforcement, and usage-based reagent replacement alerts aligned with ISO 15189 and CAP checklist requirements.
- Touchscreen interface with role-based access control (RBAC) supports multi-user operation while maintaining audit trails compliant with FDA 21 CFR Part 11 for electronic records and signatures.
Sample Compatibility & Compliance
The HistoCore SPECTRA accommodates standard 1″ × 3″ (25 × 75 mm) glass slides, including charged, APES-coated, and polymer-coated variants. It processes both routine formalin-fixed paraffin-embedded (FFPE) sections and delicate frozen sections, with programmable temperature control (room temperature to 70°C) across all staining modules. All Leica-validated protocols are developed and tested per CLSI EP28-A3 and ISO/IEC 17025 guidelines, with documented inter-laboratory reproducibility data available upon request. The system meets CE IVD marking requirements (Class B) and complies with electrical safety standards IEC 61010-1 and electromagnetic compatibility per IEC 61326-1.
Software & Data Management
Running Leica’s proprietary STARMATIC™ software v4.2+, the workstation provides full lifecycle data management: slide-level metadata capture (including stain lot numbers, operator ID, start/end timestamps), automated QC flagging for out-of-spec parameters (e.g., dwell time deviation > ±5 sec), and exportable CSV/XML reports compatible with LIS/HIS integration via ASTM E1384-compliant HL7 messaging. Audit logs record all user actions, protocol modifications, and hardware events with immutable timestamps—supporting internal QA reviews and external inspections under CAP, COLA, or CLIA frameworks. Optional secure cloud backup (AES-256 encrypted) enables remote monitoring and historical trend analysis of throughput, reagent consumption, and failure rates.
Applications
- Routine diagnostic H&E staining with in situ dehydration, clearing, and coverslipping—achieving up to 570 dried slides/hour at full capacity.
- High-multiplex immunohistochemistry workflows requiring precise antigen retrieval timing, antibody incubation gradients, and sequential chromogen development.
- Special stain automation for microbiology (Gram, AFB), connective tissue (Masson’s trichrome, van Gieson), and neurohistology (Bielschowsky, Bodian).
- Research-grade batch processing where staining consistency across hundreds of serial sections is critical for digital pathology image analysis pipeline calibration.
- Reference lab environments requiring full traceability from specimen accession to slide release, including integration with barcode-driven sample tracking systems.
FAQ
Does the HistoCore SPECTRA support third-party reagents or only Leica-validated kits?
Leica recommends exclusive use of Leica-validated reagents and consumables to ensure protocol integrity, regulatory compliance, and warranty coverage. While open reagent ports exist, deviation voids IQ/OQ validation documentation and may impact stain reproducibility metrics.
Can the system be integrated into an existing LIMS without custom middleware?
Yes—the workstation supports native HL7 v2.5.1 ADT and ORU messages for bidirectional communication with major LIMS platforms (e.g., Sunquest, Cerner CoPath, Orchard Harvest) using standard DICOM-SR and ASTM E1384 mapping templates.
What is the minimum slide batch size for optimal throughput efficiency?
The system achieves rated throughput (>500 slides/hour) with batches of ≥40 slides; smaller batches (<15 slides) maintain full protocol fidelity but reduce average hourly output due to fixed overhead cycles (rack initialization, cleaning sequences).
Is remote diagnostics and software update capability included in the base configuration?
Remote connectivity for firmware updates, error log retrieval, and technician-assisted troubleshooting is enabled by default, subject to customer-configured network security policies and TLS 1.2+ encryption settings.
