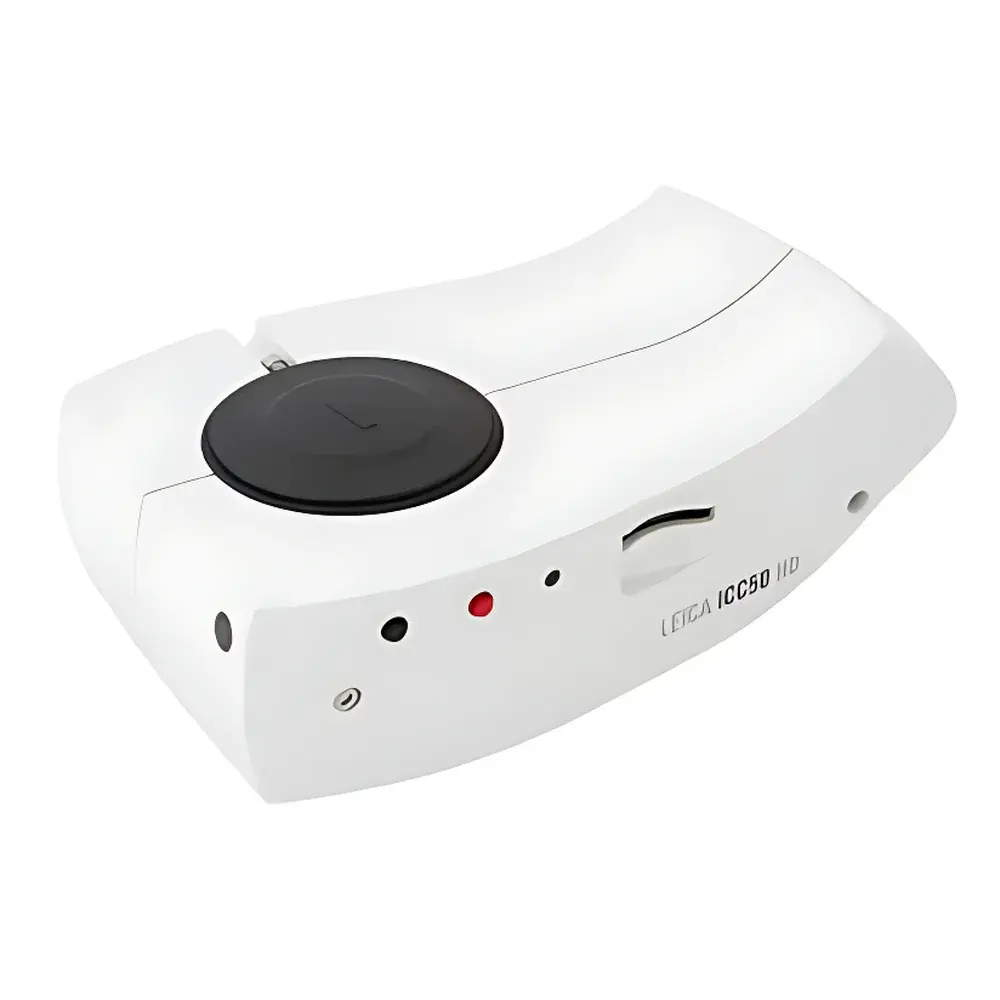

Leica ICC50 HD High-Definition Digital Microscope Camera System

Overview

The Leica ICC50 HD is a purpose-engineered high-definition digital microscope camera system designed for seamless integration with Leica DM-series upright and inverted manual microscopes—including the DM500 and DM750 platforms. Built on a CMOS image sensor architecture, it delivers real-time, low-latency imaging at up to 30 frames per second in VGA mode, with native 3-megapixel (2048 × 1536) resolution for static documentation. Unlike generic industrial cameras, the ICC50 HD is optically calibrated to match Leica’s infinity-corrected optical path, minimizing chromatic aberration and ensuring faithful color reproduction across the visible spectrum (400–700 nm). Its USB 2.0 interface enables plug-and-play operation without external power supplies—power is drawn directly from the host PC or laptop—making it suitable for regulated laboratory environments where cable clutter and peripheral dependencies must be minimized.

Key Features

• Native 3 MP resolution (2048 × 1536) progressive-scan CMOS sensor optimized for brightfield, phase contrast, and polarized light microscopy
• Real-time preview at 30 fps in VGA (640 × 480) mode; full-resolution capture in single-frame or burst mode
• Integrated SD card slot supporting Class 10 UHS-I cards (up to 32 GB) for standalone image acquisition—ideal for teaching labs or field deployments without immediate PC access
• C-mount mechanical interface with optional Leica-specific adapters (e.g., DM-adapter kits) ensuring precise back-focal plane alignment and parfocality
• USB 2.0 bus-powered design compliant with IEC 62366-1 usability engineering standards for medical device interfaces
• Built-in gamma correction, white balance presets (incandescent, fluorescent, daylight), and exposure auto-lock for consistent inter-session reproducibility

Sample Compatibility & Compliance

The ICC50 HD supports standard transmitted-light microscopy modalities used in life science, materials science, and quality control applications—including hematology slide review, metallurgical grain analysis, polymer morphology assessment, and botanical specimen documentation. It is fully compatible with Leica’s GLP/GMP-aligned documentation workflows when paired with LAS X software featuring audit trail logging, electronic signatures (in accordance with FDA 21 CFR Part 11), and secure user role management. While not classified as an in vitro diagnostic (IVD) device under EU IVDR or FDA regulation, its hardware and firmware meet EN 61326-1 (EMC) and EN 61010-1 (safety) requirements for laboratory equipment. Calibration certificates traceable to NIST standards are available upon request for metrological validation.

Software & Data Management

The ICC50 HD operates natively with Leica’s LAS EZ software—a lightweight, intuitive application enabling one-click capture, basic annotation (arrows, scale bars, text overlays), and geometric measurement (length, angle, area) with pixel-to-micron calibration. For advanced workflows, it integrates into the full Leica Application Suite (LAS X), supporting multi-focus stacking (Z-stack acquisition), fluorescence intensity profiling, region-of-interest (ROI) time-lapse, and export to TIFF, JPEG2000, or lossless PNG formats. All metadata—including objective magnification, illumination intensity, exposure time, and timestamp—are embedded in EXIF headers. Data export complies with DICOM Supplement 145 (for pathology imaging archives) and supports automated folder structuring via configurable naming templates aligned with ISO/IEC 17025 documentation protocols.

Applications

• Academic teaching laboratories: Real-time projection of live microscopy sessions onto large-format displays for classroom instruction
• QC/QA in pharmaceutical manufacturing: Documentation of filter membrane inspections, tablet surface defect analysis, and excipient particle characterization
• Materials engineering labs: Grain boundary mapping in metallographic samples, coating thickness verification via edge-detection measurements
• Histopathology training: Capture and annotation of H&E-stained tissue sections with embedded scale references for standardized competency assessments
• Museum conservation: Non-invasive surface examination of archival documents and pigment layers using reflected-light imaging

FAQ

Is the ICC50 HD compatible with non-Leica microscopes?
Yes—when equipped with appropriate C-mount adapters and optical relay lenses, it can be mounted on Olympus BX, Nikon Eclipse, and Zeiss Axio systems; however, color fidelity and parfocality are guaranteed only on Leica DM-series platforms.
Does the camera support RAW image output?
No—the ICC50 HD outputs processed 24-bit RGB data only; RAW Bayer data is not accessible via the USB interface or SDK.
Can multiple ICC50 HD units be operated simultaneously on one PC?
Yes, provided the host system meets minimum USB bandwidth requirements (two units require separate USB 2.0 controllers or a powered USB hub meeting USB-IF compliance).
Is firmware update capability available?
Yes—Leica provides periodic firmware updates via the LAS software suite, addressing driver stability, color profile refinements, and compatibility with newer OS versions.
What is the maximum recommended cable length between camera and host?
For stable USB 2.0 operation, Leica specifies a maximum of 3 meters using certified shielded cables; active extension solutions may be deployed but are not validated by Leica Microsystems.
