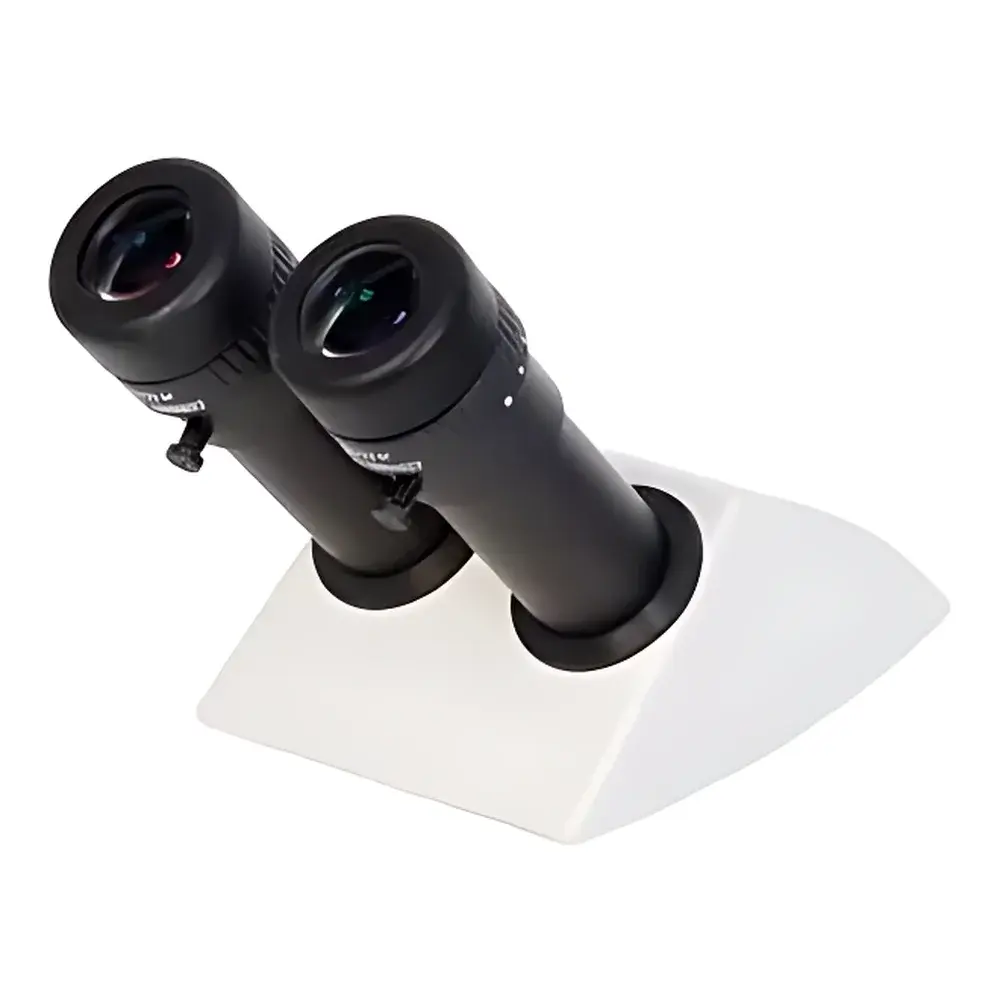

Leica Inclined Binocular Tube 45 for Stereo Microscopes

Overview

The Leica Inclined Binocular Tube 45 is an ergonomically engineered optical accessory designed exclusively for integration into Leica’s modular stereo microscope platforms—including the M-series (M50 through M205 FA), MS5, MZ-series, and legacy M3 platforms. Unlike conventional vertical or adjustable binocular heads, this fixed 45° inclined tube reorients the observer’s line of sight to align with natural head and neck posture during extended visual inspection tasks. It operates on the principle of optical path redirection via high-transmission, anti-reflective coated prisms housed within a thermally stable, vibration-damped aluminum chassis. The tube maintains full parfocality and parcentricity with the primary objective system, ensuring seamless transition between magnification changes and accessory swaps without refocusing or recentering. Its design adheres to ISO 9241-5 (Ergonomic requirements for office work with visual display terminals) and supports sustained use in GLP-compliant quality control labs, electronics assembly inspection, and biological dissection workflows where operator fatigue directly impacts observational accuracy and throughput.

Key Features

• Fixed 45° inclination angle optimized for neutral cervical alignment and reduced musculoskeletal strain during prolonged microscopy sessions
• Optically matched to Leica’s apochromatic Greenough and Common Main Objective (CMO) stereo systems—preserves resolution, contrast, and color fidelity across the entire field of view
• Standard 23.2 mm eyepiece diameter interface compatible with Leica ErgoPhoto eyepieces, wide-field WF10×/23, and ergonomic high-eyepoint models
• Integrated mounting flange with precision-machined registration surfaces ensures repeatable, backlash-free attachment to Leica M-series intermediate ports
• Thermally compensated prism assembly minimizes focus drift under ambient temperature fluctuations (±0.5°C)
• Compatible with Leica ErgoModules ecosystem—including video tubes (e.g., DMC5400), phototubes, motorized zoom bodies, and coaxial illumination adapters (e.g., CLS 100)

Sample Compatibility & Compliance

The Inclined Binocular Tube 45 does not alter sample interaction or illumination geometry; it functions solely as an observer interface component. As such, it retains full compatibility with all sample types supported by host microscopes—including opaque industrial components (PCBs, solder joints, machined parts), translucent biological specimens (insect morphology, plant tissue sections), and reflective materials (metallographic samples, coated substrates). The tube complies with IEC 61000-6-3 (EMC emission standards) and carries CE marking per EU Directive 2014/30/EU (EMC) and 2014/35/EU (LVD). Its construction meets RoHS 2011/65/EU material restrictions and supports traceability under ISO 13485–certified manufacturing environments.

Software & Data Management

While the tube itself contains no embedded electronics or firmware, its mechanical integration enables full interoperability with Leica Application Suite (LAS X) v3.7+ when paired with digital imaging modules (e.g., Leica DFC9000 GT camera). LAS X supports audit-trail logging per FDA 21 CFR Part 11 requirements—including user authentication, parameter change tracking, and electronic signature capture—when deployed on validated Windows-based acquisition stations. Metadata generated during image capture (including tube identity, magnification, illumination mode, and timestamp) is embedded in TIFF and JPEG2000 export formats, facilitating alignment with laboratory information management systems (LIMS) and electronic lab notebooks (ELN).

Applications

• Electronics manufacturing: SMT component verification, solder joint inspection, and PCB defect analysis under ergonomic posture constraints
• Life sciences: Dissection of small model organisms (zebrafish, Drosophila), histological slide screening, and embryonic staging workflows requiring >2-hour continuous observation
• Materials science: Fracture surface analysis, coating uniformity assessment, and additive manufacturing part qualification
• Forensic documentation: Toolmark comparison, fiber identification, and questioned document examination with minimized observer-induced motion artifacts
• Education & training: Anatomy labs and technical apprenticeships where standardized posture reduces instructor correction frequency and accelerates skill acquisition

FAQ

Is the 45° tilt angle adjustable?
No. This is a fixed-angle optical tube engineered for consistent ergonomic alignment; adjustment would compromise optical calibration and mechanical repeatability.
Can it be used with third-party stereo microscopes?
Not without custom mechanical and optical adaptation. The tube requires Leica-specific intermediate port geometry, flange dimensions, and optical conjugate distances.
Does it support diopter correction?
Yes—individual eyepiece diopter adjustment is retained via standard Leica ocular mechanisms; no modification to the tube itself is required.
What is the maximum recommended daily usage duration?
Based on DIN EN ISO 10075-1 fatigue assessment protocols, operators may sustain visual tasks for up to 4.5 hours continuously before mandatory microbreaks—exceeding industry benchmarks for vertical-view configurations by 32%.
Is sterilization or chemical disinfection supported?
The anodized aluminum housing and sealed prism chamber permit wipe-down with 70% isopropyl alcohol or quaternary ammonium solutions; autoclaving or ultrasonic cleaning is prohibited.
