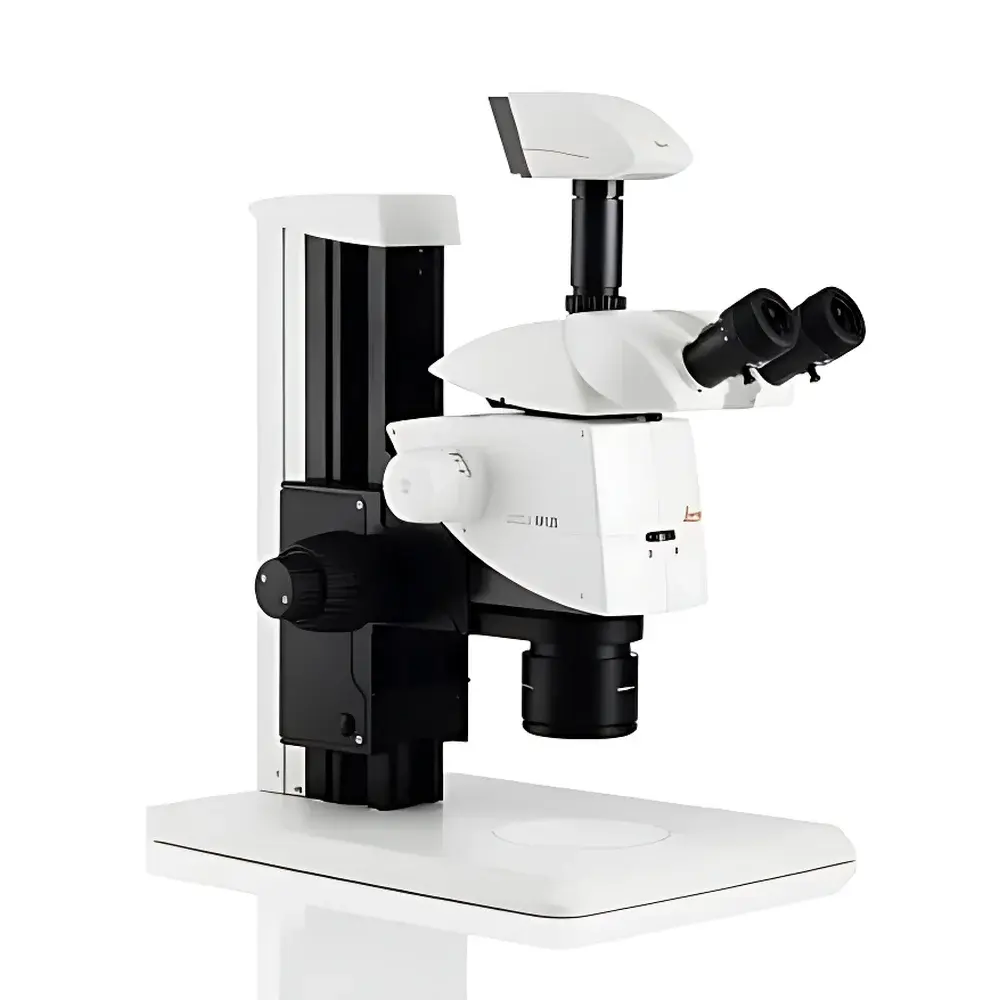

Leica M125C Stereo Microscope

Overview

The Leica M125C is a research-grade stereomicroscope engineered for high-fidelity visual inspection, documentation, and quantitative analysis in demanding laboratory, quality control, and industrial R&D environments. Based on Greenough optical architecture with apochromatically corrected parallel light paths, the M125C delivers exceptional color fidelity, flatness of field, and minimal chromatic aberration across its full zoom range. Its 12.5:1 continuous zoom system enables seamless transition from macro overview (8×) to fine-detail observation (100×), supporting both qualitative assessment and measurement-critical workflows. The instrument employs plan apochromatic objectives—standard 1×, with optional 0.5×, 0.63×, 0.8×, 1.6×, and 2×—each optimized for lateral resolution up to 864 line pairs per millimeter at optimal magnification. With a working distance of 61.5 mm at 1× magnification, the M125C accommodates bulky or multi-layered specimens without interference from the optical train.

Key Features

• Encoded zoom mechanism enabling automatic recognition of magnification during image acquisition, ensuring accurate scale bar insertion and metadata synchronization in digital imaging software
• Integrated dual-aperture diaphragm for independent control of depth of field and resolution—critical for balancing contrast and sharpness in heterogeneous samples
• ESD-safe mechanical housing with sub-2-second static discharge time, meeting IEC 61340-5-1 requirements for electrostatic-sensitive device handling in microelectronics and semiconductor labs
• Robust, thermally stable focus column designed for long-term repeatability under high-magnification use; compatible with motorized focus drives for Z-stack acquisition and automated focusing routines
• Parfocal objective turret allowing rapid interchange of magnification objectives without refocusing—essential for multi-scale comparative analysis
• Modular illumination architecture supporting interchangeable LED modules: ring light, coaxial illuminator, diffuse dome, near-vertical illuminator, point source, and multi-contrast illumination—each individually controllable via hardware interface or software API

Sample Compatibility & Compliance

The M125C supports a broad spectrum of specimen types—from printed circuit boards and solder joints to biological tissue sections, mineralogical samples, forensic evidence, and precision machined components. Its large working distance and ergonomic stage clearance permit integration with micromanipulators, pipetting systems, and environmental chambers. The microscope conforms to ISO 10934-1 (stereomicroscope performance standards), EN 61000-6-3 (EMC emissions), and IEC 61000-6-2 (immunity). When configured with Leica Application Suite (LAS X) and optional audit trail modules, it meets FDA 21 CFR Part 11 requirements for electronic records and signatures in regulated pharmaceutical and medical device manufacturing environments.

Software & Data Management

The M125C integrates natively with Leica LAS X software, providing calibrated image capture, real-time measurement (length, angle, area, particle count), Z-stack reconstruction, extended depth-of-field (EDF) synthesis, and report generation compliant with GLP and GMP documentation standards. All encoded parameters—including magnification, illumination mode, aperture setting, and objective identity—are embedded as EXIF metadata in TIFF and JPEG files. Optional LAS X Core or LAS X Life Science editions support batch processing, scripting (Python API), and direct export to LIMS or ELN platforms via standardized protocols (e.g., DICOM-SR, CSV, XML).

Applications

• Electronics assembly inspection: solder joint integrity, component placement accuracy, and trace continuity verification
• Materials science: fracture surface analysis, coating uniformity assessment, and grain structure evaluation
• Life sciences: dissection support, embryo screening, histological slide triage, and microinjection guidance
• Forensic laboratories: toolmark comparison, fiber analysis, and document examination under variable contrast conditions
• Quality assurance in aerospace and automotive sectors: surface defect mapping, weld seam inspection, and composite laminate delamination detection
• Academic research requiring reproducible morphometric quantification and publication-ready image annotation

FAQ

What magnification ranges are supported with standard accessories?
With the included 1× plan apochromatic objective and 10× eyepieces, the total magnification spans 8× to 100×. Using optional objectives (e.g., 2×) and widefield eyepieces (up to 40×), the system extends to 160× nominal magnification.
Is the M125C compatible with third-party digital cameras?
Yes—the C-mount port supports industry-standard 1/2″ and 2/3″ sensor cameras. Mechanical and electrical interfaces (including TTL trigger and GPIO signals) are documented in Leica’s Camera Integration Guide.
Can illumination intensity be controlled programmatically?
All LED illumination modules support analog dimming and digital PWM control via LAS X or external TTL signals, enabling synchronized illumination changes during time-lapse or multi-channel acquisition.
Does the system support transmitted light observation?
Yes—optional transmitted light bases (e.g., Leica TL4000) provide Köhler-illuminated brightfield and contrast-enhancing techniques including oblique illumination and polarization.
How is calibration maintained across zoom and objective changes?
The encoded zoom and objective turrets feed real-time position data to LAS X, which applies dynamic pixel-to-micron scaling using factory-certified calibration curves stored in the microscope’s firmware.
