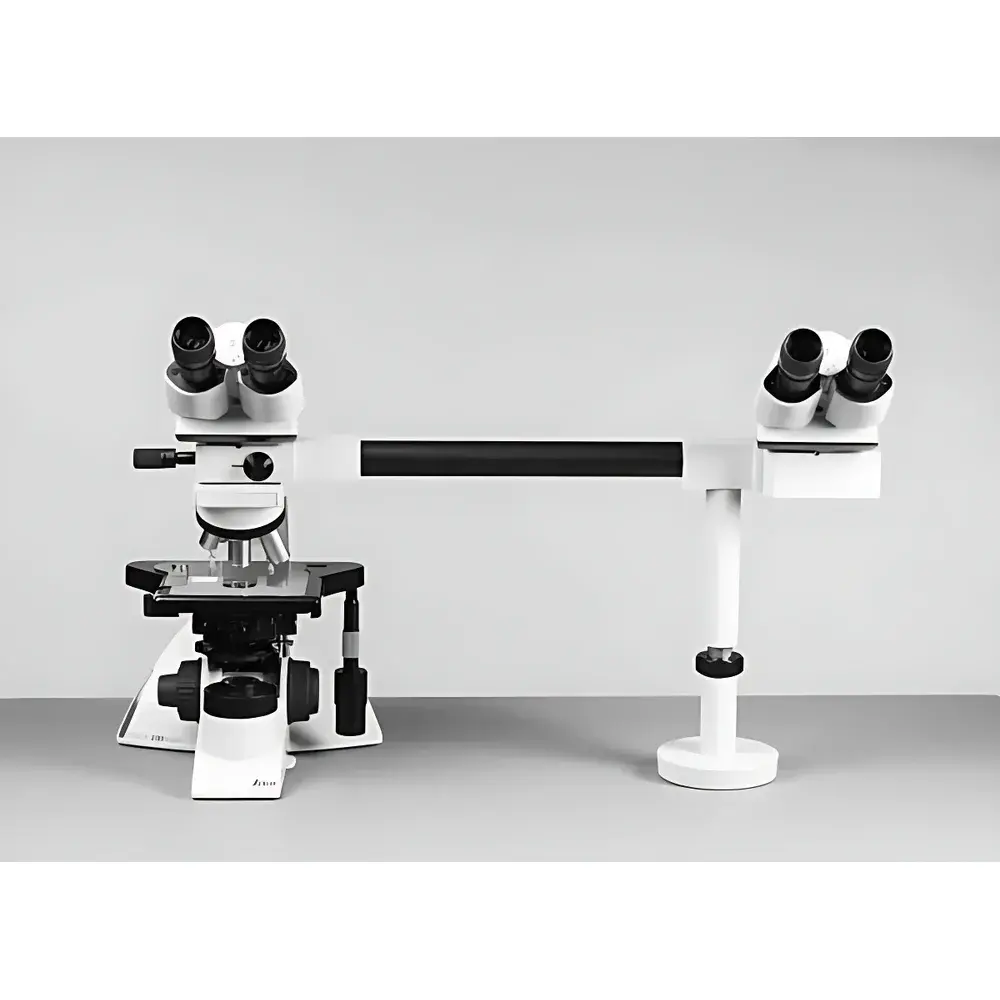

Leica Multiviews Multi-User Biological Microscopy System

Overview

The Leica Multiviews is an engineered multi-user upright biological microscope system developed by Leica Microsystems for collaborative life science research, clinical education, and diagnostic training. Unlike conventional single-user microscopes, the Multiviews employs a precision optical beam-splitting architecture based on high-transmission, anti-reflective coated glass optics to distribute identical, parfocal, and color-accurate image paths to multiple observation stations. Each workstation receives a full-resolution, real-time optical signal—preserving native contrast, chromatic fidelity, and depth perception—without digital interpolation or latency. This analog-optical distribution method ensures zero frame delay and eliminates synchronization artifacts common in networked digital sharing solutions. The system is purpose-built for histopathology review, surgical pathology training, cytology education, and live tissue observation where spatial awareness, stereo cues, and simultaneous visual consensus are critical.

Key Features

• Optical Beam Distribution Architecture: Utilizes custom-designed, multi-port optical couplers with broadband AR-coated fused silica prisms and achromatic lens groups to maintain MTF performance across all viewing positions.
• Scalable User Capacity: Standard configurations support 2, 3, 4, 5, or 10 simultaneous observers; extended setups accommodate up to 20 independent eyepiece stations via modular optical expansion units.
• Stable Mechanical Platform: Heavy-duty cast-aluminum base and reinforced steel column ensure minimal vibration transmission and long-term optical alignment stability—even during prolonged teaching sessions or multi-hour diagnostic reviews.
• White LED Illumination System: Integrated cold-white (6000 K) LED source with uniform Köhler illumination, adjustable intensity control per station, and >50,000-hour rated lifetime—eliminating filament replacement and thermal drift concerns.
• Modular & Future-Ready Design: All optical, mechanical, and electronic subsystems follow Leica’s standardized interface protocols (e.g., HCX, DMI mounting interfaces), enabling seamless integration of fluorescence modules, motorized stages, or digital camera adapters without retrofitting.
• Ergonomic Workstation Flexibility: Individual observer stations feature independently adjustable interpupillary distance, diopter compensation, and height-adjustable armrests—validated per ISO 9241-5 and ANSI/HFES 100 ergonomic guidelines.

Sample Compatibility & Compliance

The Leica Multiviews accommodates standard 1–2 mm thick glass slides, live specimen chambers (e.g., 35 mm Petri dishes, perfusion chambers), and whole-mount tissue sections mounted on standard microscope slides. It is fully compatible with brightfield, phase contrast, differential interference contrast (DIC), and polarized light techniques. While not inherently fluorescence-capable in base configuration, it accepts Leica’s DMi8-compatible fluorescence turret and filter cubes when upgraded. The system meets CE marking requirements under Directive 2014/30/EU (EMC) and 2014/35/EU (LVD). When operated with Leica LAS X software in validated mode, it supports 21 CFR Part 11 compliance—including electronic signatures, audit trails, and user-access controls—for regulated environments (e.g., CLIA-certified labs, pharmaceutical QC, academic GLP studies).

Software & Data Management

The Multiviews functions as a hardware platform optimized for interoperability—not a standalone imaging computer. It natively integrates with Leica LAS X (v3.7+), enabling synchronized annotation, measurement, and metadata tagging across all connected workstations. Image capture is performed via Leica DFC series cameras (e.g., DFC9000 GT) or third-party GigE Vision/USB3 Vision devices. All acquired data adhere to DICOM-SR and TIFF/OME-TIFF standards. Optional Leica Application Suite (LAS) Server enables centralized storage, role-based access control, and versioned image archiving compliant with ISO 15189 and CAP accreditation requirements. Audit logs record operator ID, timestamp, exposure parameters, and annotation history—traceable to individual viewing stations.

Applications

• Clinical Pathology Training: Enables real-time consensus diagnosis during resident rotations—reducing turnaround time for case review and improving inter-observer agreement metrics (e.g., Cohen’s κ).
• Surgical Oncology Education: Supports intraoperative frozen section review with simultaneous input from attending pathologists, surgeons, and fellows—enhancing margin assessment accuracy.
• Academic Histology Labs: Scales instruction across large cohorts without requiring sequential microscope rotation—increasing student hands-on time by >300% versus traditional single-user setups.
• Pharmaceutical Toxicology Screening: Facilitates group evaluation of hematoxylin-eosin (H&E) and special stains in preclinical safety studies, aligning with ICH S2(R2) histopathology reporting standards.
• Biobank Quality Control: Allows concurrent verification of tissue block orientation, section thickness, and staining uniformity prior to cryosectioning or slide digitization.

FAQ

How many users can simultaneously view the same specimen?
The Leica Multiviews supports 2 to 20 simultaneous optical viewing stations, configurable in increments of 1. Expansion beyond 10 users requires additional optical distribution modules and structural reinforcement—installed and calibrated by Leica Field Service Engineers.
Does the system support fluorescence microscopy?
Yes—fluorescence capability is available via optional upgrade kits including motorized filter turrets, LED-based excitation sources (e.g., EL6000), and high-sensitivity emission filters—all mechanically coupled to maintain co-registration across all viewing ports.
Is digital image capture integrated into the system?
Digital acquisition is not built-in but fully supported through standardized camera interfaces (C-mount, F-mount, or direct sensor coupling). Leica DFC cameras and third-party models compliant with GenICam protocols are operationally validated.
Can the Multiviews be used in ISO 13485-certified medical device manufacturing environments?
Yes—when deployed with documented IQ/OQ protocols, validated software (LAS X v4.13+), and maintained per Leica’s Preventive Maintenance Schedule, the system satisfies design control and traceability requirements for Class II/III device histocompatibility testing.
What maintenance is required for long-term optical performance?
Annual calibration of beam splitter alignment and LED intensity uniformity is recommended. Optical surfaces require cleaning only with manufacturer-approved solvents and lens tissues; no routine lamp replacement is needed due to solid-state illumination.
