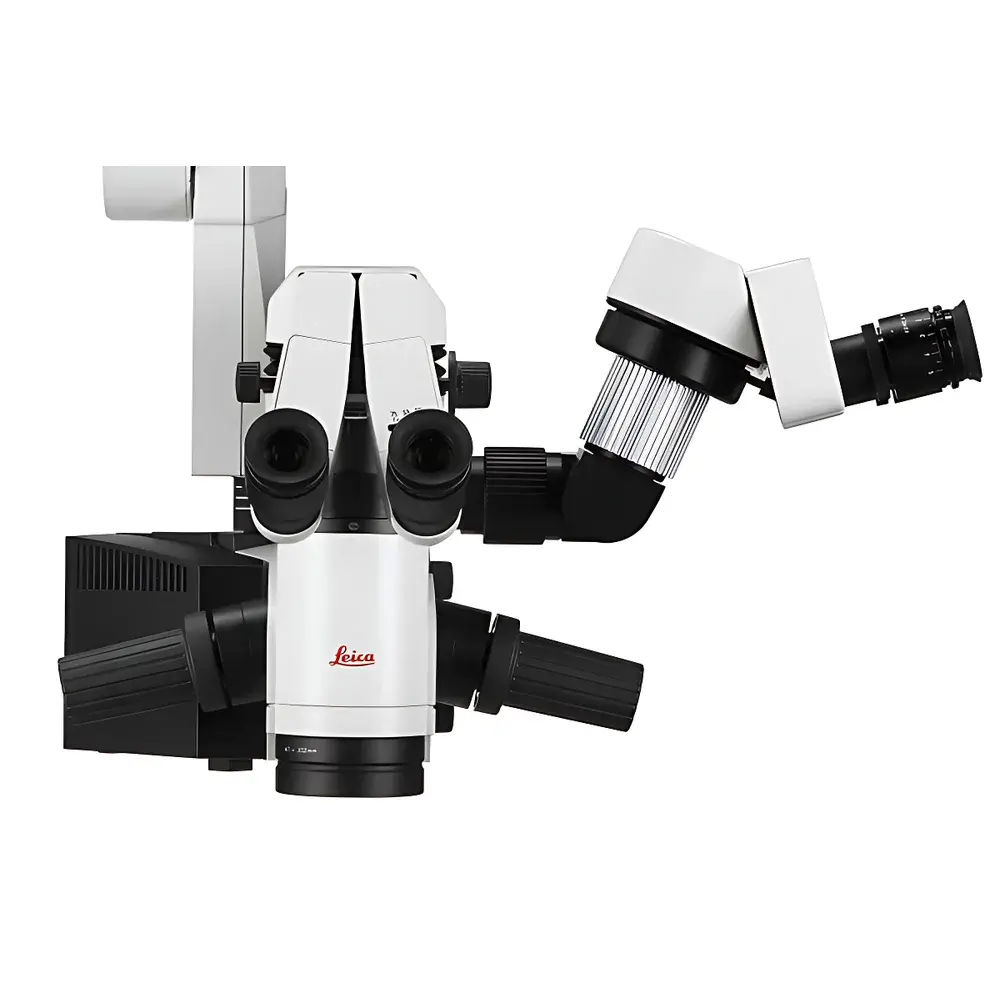

Leica Rotatable Beamsplitter for Surgical Microscopes

Overview

The Leica Rotatable Beamsplitter is a precision-engineered optical beam steering component designed specifically for integration into Leica surgical microscope platforms. It operates on the principle of controlled beam redirection via a motorized or manually actuated rotating mirror assembly mounted on a kinematically stable swing-arm mechanism. Unlike fixed dichroic or pellicle beamsplitters, this device enables rapid, repeatable, and backlash-free reconfiguration of the optical path—allowing seamless alternation between primary surgeon and assistant observer viewing channels without mechanical realignment or optical recalibration. Its design adheres to the stringent optical throughput, wavefront fidelity, and polarization preservation requirements mandated in high-magnification, high-resolution neurosurgical, ophthalmic, and ENT procedures where real-time stereoscopic fidelity and minimal light loss are clinically critical.

Key Features

• Swing-arm kinematic mount with precision-ground pivot bearings ensures sub-arcminute repeatability and zero optical axis shift during rotation
• Optimized dielectric coatings on the rotating mirror surface deliver >92% reflectivity across 400–1000 nm (visible to near-IR), with <0.15λ RMS wavefront distortion at f/4 illumination
• Integrated mechanical detent positions for dual-path alignment—left/right assistant channel selection with tactile feedback and visual indicator
• Direct mechanical coupling to Leica M620/M820 and M525 F20/F40 microscope base units via standardized optical interface flange (Leica DMS-2000 compliant)
• No electrical power requirement for manual operation; optional motorized actuation module available with RS-485 interface for integration into Leica Envision™ control architecture
• Autoclavable housing components (stainless steel 316L and anodized aluminum) compatible with ISO 17664-compliant sterilization protocols

Sample Compatibility & Compliance

The Leica Rotatable Beamsplitter is validated exclusively for use with Leica’s certified surgical microscope systems—including the M620 and M820 ophthalmic platforms, and the M525 F20/F40 ENT microscopes. It complies with IEC 60601-2-57 (Medical Electrical Equipment – Part 2-57: Particular Requirements for the Basic Safety and Essential Performance of Surgical Lamps and Luminaires) for optical safety and thermal management. All optical surfaces meet ISO 10110-7 surface quality specifications (scratch-dig 10-5), and the assembly conforms to ISO 13485:2016 quality management system requirements for medical device components. It supports GLP-aligned documentation packages including traceable calibration certificates and material biocompatibility reports (ISO 10993-5 cytotoxicity testing).

Software & Data Management

While the beamsplitter itself is a passive optomechanical component, its rotational state is fully integrated into Leica’s Envision™ digital ecosystem. When paired with the optional motorized actuator, position status (left/right path selection) is reported via Modbus RTU over RS-485 and logged in real time within Envision’s audit trail—supporting FDA 21 CFR Part 11 compliance for electronic records and signatures. System logs retain timestamps, operator ID (when authenticated via Envision login), and associated procedure metadata (e.g., case ID, microscope model, date/time). No proprietary drivers or third-party software installation is required; configuration is managed through Leica’s standard Envision Settings Manager.

Applications

• Ophthalmic surgery: Enables rapid switching between surgeon and assistant views during phacoemulsification, IOL implantation, and vitreoretinal procedures—reducing intraoperative setup time by up to 40% compared to manual repositioning of auxiliary optics
• Neurosurgery: Facilitates simultaneous stereoscopic observation during temporal lobe approaches and skull base dissections, maintaining parfocal alignment across both optical paths
• ENT surgery: Supports bilateral endoscopic-assisted visualization in transnasal sphenoidotomy or anterior skull base tumor resection, where assistant coordination is essential for instrument guidance and suction management
• Training environments: Integrated into Leica’s Surgical Simulation Suite for resident instruction, allowing instructors to toggle observation paths without interrupting live imaging or recording sessions

FAQ

Is the Leica Rotatable Beamsplitter compatible with non-Leica microscopes?
No. It is engineered exclusively for mechanical and optical integration with Leica M-series surgical microscopes and lacks universal mounting interfaces or collimation compensation for third-party platforms.
Does it require periodic recalibration?
No. The kinematic swing-arm design is factory-aligned and drift-compensated; routine verification per ISO 13485 preventive maintenance schedule (annually or after 500 actuations) is recommended, but no user-accessible calibration is needed.
Can it be used in laser-assisted procedures?
Only with Leica-approved laser modules (e.g., VISULAS YAG III). The mirror coatings are not optimized for UV or high-peak-power pulsed lasers; unauthorized laser coupling may cause coating damage or hazardous back-reflection.
What sterilization methods are validated?
Steam autoclaving (134°C, 3 min, 2.1 bar) and low-temperature hydrogen peroxide plasma (Sterrad® NX) are validated. Ethylene oxide is not recommended due to potential outgassing effects on optical adhesives.
