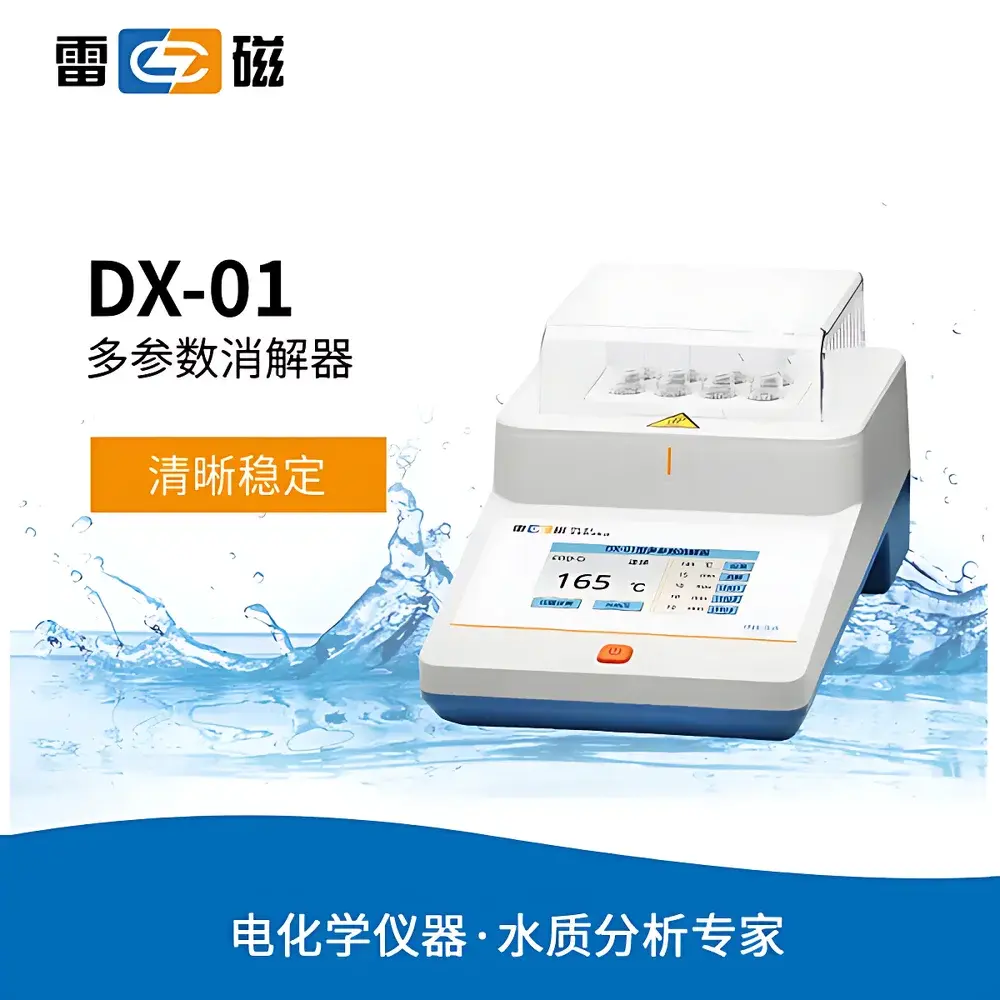

Leichi DX-01 Multi-Parameter Digestion Block

Overview

The Leichi DX-01 Multi-Parameter Digestion Block is an engineered thermal digestion platform designed for laboratory and field-deployable pretreatment of water, wastewater, and environmental samples prior to quantitative analysis of chemical oxygen demand (COD), total phosphorus (TP), total nitrogen (TN), and other oxidizable analytes. It implements a sealed micro-reflux digestion principle—eliminating the need for external condensers or cooling water—thereby reducing operational complexity and enhancing safety in confined or mobile lab environments. Unlike traditional open-reflux systems, the DX-01 maintains consistent thermal profiles across all eight digestion positions via precision PID-controlled heating elements and high-efficiency thermal insulation. Its compact footprint (165 × 270 × 145 mm) and low mass (~2 kg) support benchtop integration in QC labs, mobile environmental testing units, and regulatory compliance facilities requiring rapid, reproducible sample preparation.

Key Features

• Eight independent digestion wells with uniform temperature distribution (≤2 °C deviation across the block surface), validated per ISO 15705:2002 for COD determination.
• Programmable temperature range from 45 °C to 185 °C at ±0.1 °C control resolution; display accuracy certified to ±2 °C against NIST-traceable reference thermometers.
• Adjustable digestion duration from 0 to 480 minutes with ±2% timekeeping fidelity, supporting standardized methods including EPA 410.4, ISO 6060, and HJ 828–2017.
• Dual heating modes—continuous and intermittent—enable method-specific thermal energy delivery, minimizing reagent degradation during extended low-temperature protocols (e.g., TP digestion at 120 °C).
• Integrated safety architecture: real-time over-temperature detection, automatic cutoff at 190 °C, mechanical protective shield, and fail-safe power interruption upon lid removal.
• High-resolution color TFT touchscreen with intuitive icon-driven navigation; supports multilingual UI configuration (English, Spanish, Portuguese) for international deployment.
• Built-in memory for eight preloaded digestion protocols aligned with common environmental testing standards, plus one user-definable method with editable ramp/hold profiles.

Sample Compatibility & Compliance

The DX-01 accommodates standard 16 mm OD borosilicate glass digestion tubes (up to 15 mL volume) and is compatible with sulfuric acid–potassium dichromate, persulfate–ascorbic acid, and alkaline potassium persulfate reagent systems. Its sealed micro-reflux design conforms to the physical constraints defined in ASTM D1252–04 (COD by dichromate method) and avoids volatile loss during high-temperature oxidation. The unit meets IEC 61010-1:2010 requirements for electrical safety in laboratory equipment and carries CE marking under the Low Voltage Directive (2014/35/EU). While not intrinsically rated for hazardous locations, its enclosed heating chamber and absence of exposed heating elements make it suitable for use in ISO/IEC 17025-accredited environmental testing laboratories operating under GLP conditions.

Software & Data Management

The DX-01 operates autonomously without external software dependencies. All method parameters—including target temperature, ramp rate, hold duration, and heating mode—are stored in non-volatile flash memory with battery-backed clock retention. Audit trails are maintained internally: each digestion cycle logs timestamp, setpoint, actual average temperature, elapsed time, and completion status. Though the device lacks USB or Bluetooth connectivity, cycle records can be manually transcribed for inclusion in LIMS or electronic lab notebooks (ELN). For laboratories subject to FDA 21 CFR Part 11 or EU Annex 11 requirements, the DX-01 serves as a compliant ancillary instrument when paired with validated data capture workflows and documented change control procedures for method modifications.

Applications

• Routine COD analysis in municipal wastewater treatment plants and industrial effluent monitoring programs.
• Total phosphorus quantification in surface water and groundwater per EPA Method 365.4 and ISO 6878.
• Pretreatment for UV-Vis spectrophotometric determination of nitrate/nitrite after alkaline persulfate digestion (EPA 353.2).
• Field-based environmental assessments where portability, low power draw (~250 W), and AC mains independence (via optional inverter) are critical.
• Educational laboratories conducting AP Environmental Science or undergraduate analytical chemistry experiments requiring safe, repeatable digestion protocols.

FAQ

Does the DX-01 support calibration verification using certified reference materials?
Yes—users may perform temperature uniformity verification using NIST-traceable immersion thermometers placed simultaneously in multiple wells, following the procedure outlined in Section 7.2 of ISO/IEC 17025:2017.
Can the device be operated on DC power sources such as vehicle batteries?
Not natively; the DX-01 requires stable 220 V AC input. However, compatibility with pure-sine-wave inverters (≥300 W continuous output) has been verified in third-party field trials.
Is firmware update capability available?
Firmware updates are performed exclusively by authorized Leichi service centers using proprietary diagnostic hardware; no end-user upgradable interface is provided.
What maintenance is required to ensure long-term temperature accuracy?
Annual verification of thermal sensor drift using a calibrated dry-block calibrator is recommended. No routine cleaning of internal heating elements is necessary due to the sealed construction.
Are replacement digestion blocks available as spare parts?
Yes—Leichi supplies OEM-matched aluminum digestion blocks (P/N DX-BLK-01) with factory-applied thermal coating, ensuring consistent heat transfer characteristics across service life.
