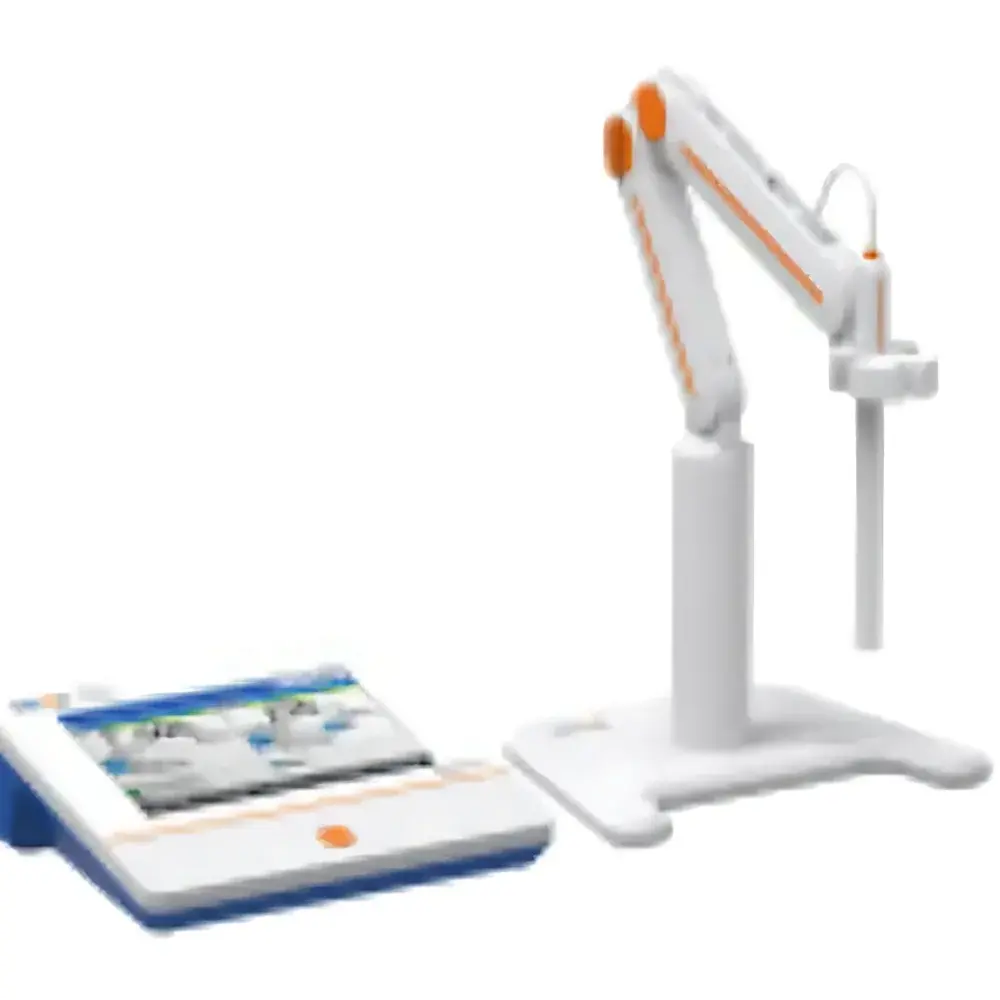

Leichi DZS-708T-A Multi-Parameter Water Quality Analyzer

Overview

The Leichi DZS-708T-A Multi-Parameter Water Quality Analyzer is a benchtop laboratory instrument engineered for precise, reproducible, and compliant measurement of critical water quality parameters in environmental monitoring, municipal water treatment, academic research, and industrial process control laboratories. Unlike single-parameter meters, the DZS-708T-A integrates two independent electrochemical measurement units—pH/pX (ion-selective electrode) and conductivity—within a unified hardware platform. Its core measurement principles are potentiometric (for pH, redox potential, and ion activity) and conductometric (for electrical conductivity, resistivity, TDS, and salinity), with temperature compensation implemented via integrated Pt1000 or NTC thermistor inputs. The instrument does not rely on optical detection for its primary functions; while the product listing references “colorimetric method” as a detection principle, this applies only to optional external modular attachments (e.g., photometric modules for COD, ammonia, or nitrate), not the base DZS-708T-A configuration. All electrochemical measurements adhere to internationally recognized metrological frameworks—including ISO 7888 (conductivity), ISO 10523 (pH), and ASTM D1125 (electrical conductivity of water)—and are traceable to NIST-certified reference standards.

Key Features

• 7-inch high-resolution color TFT LCD touchscreen with intuitive icon-driven navigation and dual-language UI (English/Chinese)
• IP54-rated enclosure for dust resistance and limited water ingress protection during routine lab handling
• Integrated electrode diagnostics with real-time impedance monitoring and calibration status flagging
• Auto-buffer recognition for six standard pH buffer sets (GB, DIN, NIST, USA, MERK, JIS) plus customizable buffer definitions
• Flexible ion concentration quantification: supports direct reading, standard addition, sample addition, and Gran plot methods for Ag⁺, Na⁺, K⁺, NH₄⁺, Cl⁻, F⁻, NO₃⁻, Ca²⁺, Cu²⁺, Pb²⁺, I⁻, Br⁻, BF₄⁻, CN⁻, and user-defined ions
• Multi-mode conductivity compensation: linear (reference temps: 5.0, 10.0, 15.0, 18.0, 20.0, or 25.0 °C), non-linear (for natural waters), pure water mode (per ISO 3696), seawater salinity compensation, and no-compensation options
• Three-tier user permission system (Administrator, Supervisor, Operator) with password enforcement and session timeout
• Firmware upgradability via USB drive or PC-connected software, ensuring long-term compliance with evolving regulatory requirements

Sample Compatibility & Compliance

The DZS-708T-A is designed for aqueous liquid samples across a broad range of matrices: drinking water, wastewater effluent, surface water, groundwater, boiler feedwater, and process rinse solutions. It accommodates standard glass-body pH electrodes, solid-state and refillable ISEs, and platinum black or graphite conductivity cells (cell constants from 0.01 to 10 cm⁻¹). The instrument meets IP54 per IEC 60529 and conforms to electromagnetic compatibility standards IEC 61326-1 (Class B). For regulated environments, it supports full GLP data integrity through timestamped, immutable records—including electrode ID, calibration history, operator ID, ambient temperature/humidity (when logged externally), and measurement metadata. Audit trails comply with FDA 21 CFR Part 11 requirements when used with validated Leichi communication software and controlled electronic signatures.

Software & Data Management

Data handling follows strict ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available). Each stored dataset (up to 1000 entries) includes raw signal values, compensated results, electrode condition flags, calibration coefficients, and user-defined sample IDs. Data can be reviewed in tabular or time-series graphical format directly on-device. Export options include CSV (via USB flash drive), printed reports (RS-232 to dot-matrix or thermal printers), and structured XML/CSV transfer to LIMS via Leichi’s certified PC software. The software enables method validation documentation, statistical analysis (mean, SD, RSD, confidence intervals), trend charting, and automated report generation aligned with ISO/IEC 17025 clause 7.7.

Applications

• Environmental labs performing EPA Method 150.1 (conductivity), 150.2 (pH), and supporting ion-specific methods (e.g., EPA 300.0 for fluoride)
• Drinking water utilities verifying compliance with WHO Guidelines and national standards (e.g., GB 5749-2022)
• Pharmaceutical QC labs conducting purified water and WFI conductivity testing per USP and EP 2.2.38
• Academic research requiring multi-ion profiling in soil leachates, hydroponic solutions, or aquatic ecotoxicology studies
• Industrial pretreatment facilities monitoring influent/effluent for pH excursions, chloride corrosion risk, or conductivity-based total dissolved solids load

FAQ

Does the DZS-708T-A include optical (colorimetric) measurement capability out-of-the-box?
No. The base DZS-708T-A performs potentiometric and conductometric measurements only. Colorimetric functionality requires an optional external photometer module—not included in the standard configuration.
Can the instrument store calibration records for multiple electrodes independently?
Yes. Each electrode type (pH, ISE, conductivity) maintains its own calibration history with date/time stamps, slope/mV per pH unit, offset, cell constant, and user annotation fields.
Is USB printer support available?
The device supports only RS-232 printers. USB ports are designated for data export (U-disk), peripheral connection (barcode scanner), and firmware updates—not direct printing.
What temperature sensors are compatible with automatic compensation?
The analyzer accepts built-in temperature probes (integrated into supplied electrodes) or external Pt1000/NTC sensors connected via the auxiliary port. Manual temperature entry is also supported.
Does the instrument meet GMP requirements for pharmaceutical water testing?
When deployed with validated software, controlled access protocols, and documented procedures, the DZS-708T-A satisfies key GMP elements for equipment qualification (IQ/OQ) and data integrity under EU Annex 11 and FDA guidance—particularly for non-sterile water systems.
