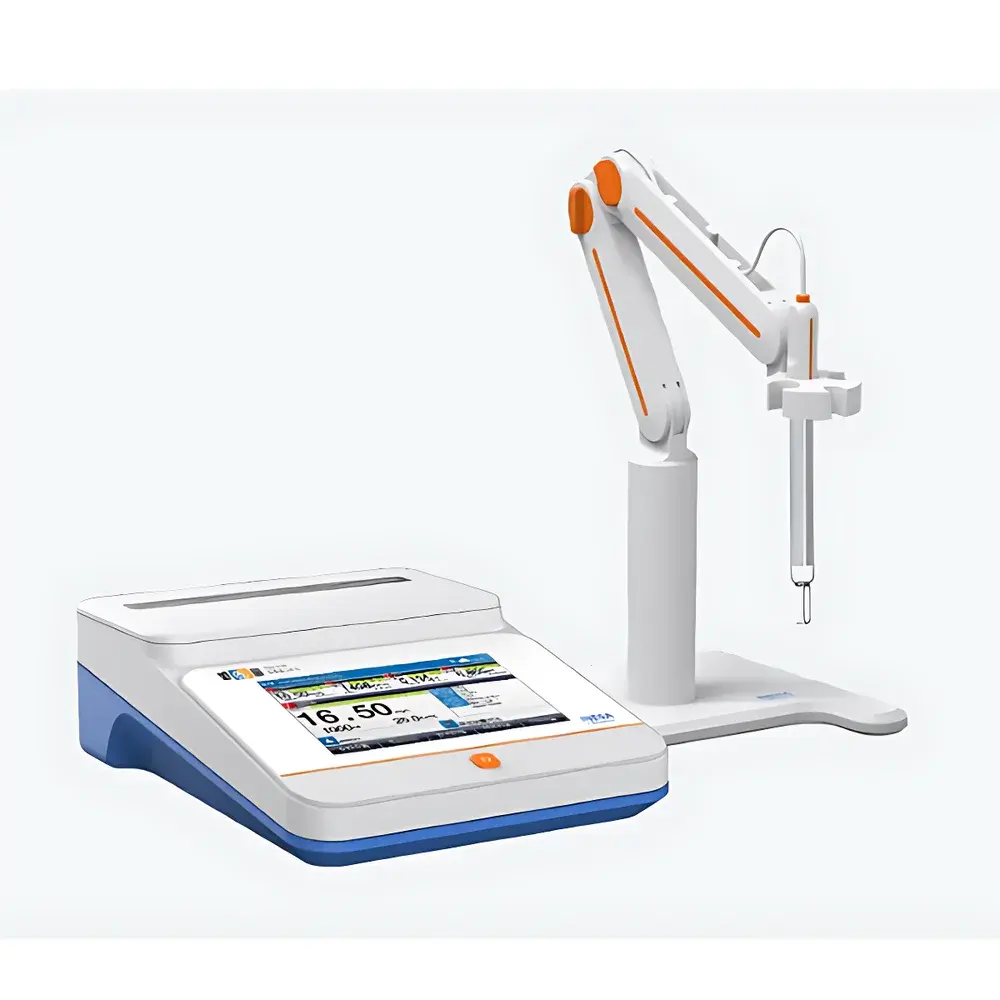

Leici DDSJ-319L Conductivity Meter

Overview

The Leici DDSJ-319L Conductivity Meter is a high-precision benchtop electrochemical analyzer engineered for rigorous laboratory environments requiring trace-level conductivity quantification across ultra-low to high-conductivity matrices. Based on the fundamental principle of conductometric measurement—applying an alternating current (AC) voltage across a pair of electrodes immersed in solution and measuring the resulting current to determine specific conductance—the DDSJ-319L delivers stable, reproducible readings under variable ionic strength, temperature, and sample viscosity conditions. Its wide dynamic range (0.000 µS/cm to 3000 mS/cm) accommodates applications spanning ultrapure water monitoring (e.g., pharmaceutical WFI and PW systems), industrial process stream analysis, environmental aqueous sampling, and saline or brine characterization. The instrument integrates a dual-frequency excitation architecture that enables automatic electrode frequency selection—ensuring optimal signal-to-noise ratio and minimizing polarization errors across diverse conductivity regimes without manual range switching.

Key Features

• Intelligent endpoint detection: configurable reading modes including auto-read (stable-signal termination), timed-read (user-defined interval), fixed-interval acquisition, and manual trigger—enhancing repeatability in regulated workflows.
• Multi-mode temperature compensation: programmable linear, non-linear (pure water), and seawater-specific algorithms compliant with ISO 7888 and ASTM D1125 standards.
• Auto-recognized GB-standard calibration: supports four preloaded Chinese national standard conductivity solutions (e.g., KCl 0.01 mol/L, 0.1 mol/L, etc.) and permits up to five-point calibration with user-defined standards.
• Single-electrode versatility: intelligent frequency modulation allows one sensor to cover 0–200 mS/cm without hardware reconfiguration—reducing cross-contamination risk and operational overhead.
• Built-in resistivity, TDS, and salinity conversion engines: all derived in real time from primary conductivity measurements using NIST-traceable algorithms and configurable conversion factors (e.g., NaCl-equivalent vs. KCl-equivalent TDS).
• GLP-compliant firmware architecture: timestamps all calibrations, measurements, and configuration changes; logs electrode serial numbers, calibration slopes/offsets, and operator IDs for full auditability.

Sample Compatibility & Compliance

The DDSJ-319L is validated for use with aqueous samples ranging from deionized water (resistivity >10 MΩ·cm) to saturated salt solutions and aggressive industrial effluents. Its corrosion-resistant cell housing and platinum black-coated electrodes withstand prolonged exposure to chloride-rich, acidic, or alkaline media. Regulatory alignment includes full support for Good Laboratory Practice (GLP) and Good Manufacturing Practice (GMP) documentation requirements: all data entries include immutable metadata (date/time, user, method ID, electrode ID, calibration status), satisfying FDA 21 CFR Part 11 criteria when paired with Leici LabSuite™ software and appropriate access controls. The instrument meets IEC 61010-1 safety standards and EMC Directive 2014/30/EU for laboratory electromagnetic compatibility.

Software & Data Management

Data integrity is maintained through a hierarchical management system supporting method templates, electrode lifecycle tracking (including usage count and recalibration alerts), and role-based user permissions. Each of the 1000 internal storage slots retains complete measurement context—including raw conductivity, compensated values, temperature, electrode constant, and calibration curve parameters. Export options include CSV (for LIMS integration), PDF reports (with embedded calibration certificates), and direct printing via USB-connected thermal or laser printers. When connected to a Windows PC running Leici LabSuite™, users gain advanced capabilities: statistical process control (SPC) charting, trend analysis over time, comparative reporting across batches or instruments, and secure electronic signature workflows compliant with 21 CFR Part 11 Annex 11 requirements.

Applications

• Pharmaceutical water systems: continuous verification of conductivity in purified water (PW), water for injection (WFI), and clean steam condensate per USP and EP 2.2.38.
• Environmental monitoring: field-deployable lab validation of surface water, groundwater, and wastewater conductivity/TDS/salinity for EPA Method 120.1 and ISO 7888 compliance.
• Chemical manufacturing: real-time quality control of electrolyte solutions, acid/base titration endpoints, and rinse water purity in semiconductor cleaning processes.
• Academic research: kinetic studies of ion exchange, membrane fouling assessment, and solute dissociation behavior in mixed-solvent systems.
• Food & beverage: salt content verification in brines, sauces, and dairy processing streams per AOAC 971.27 and ISO 2173.

FAQ

Does the DDSJ-319L support ISO/IEC 17025-compliant calibration documentation?
Yes—calibration records include uncertainty budgets (based on reference standard traceability to CNAS-accredited labs), electrode constant verification, and environmental condition logging (ambient temperature/humidity), fulfilling Clause 6.4.10 requirements.
Can the instrument be integrated into a LIMS via serial or USB?
Yes—RS232 and virtual COM port (USB CDC) protocols support ASCII-based command-response communication (SCPI-like syntax), enabling bidirectional data exchange with major LIMS platforms without proprietary drivers.
Is the temperature sensor interchangeable or built-in?
The instrument uses a Pt1000 RTD probe integrated into the conductivity cell; external temperature probes are not supported to maintain thermal equilibrium and minimize measurement lag.
What is the maximum allowable sample temperature for continuous operation?
Continuous measurement is rated to 130.0 °C; however, sustained exposure above 80 °C requires optional high-temperature cell accessories and thermal shielding per IEC 61010-1 Annex G.
How does the pure water compensation algorithm differ from standard linear ATC?
It applies a non-linear, temperature-dependent water dissociation model (based on the empirical equation from ISO 3696) to correct for the intrinsic conductivity of H⁺ and OH⁻ ions—critical for sub-1 µS/cm measurements where residual ions dominate signal.
