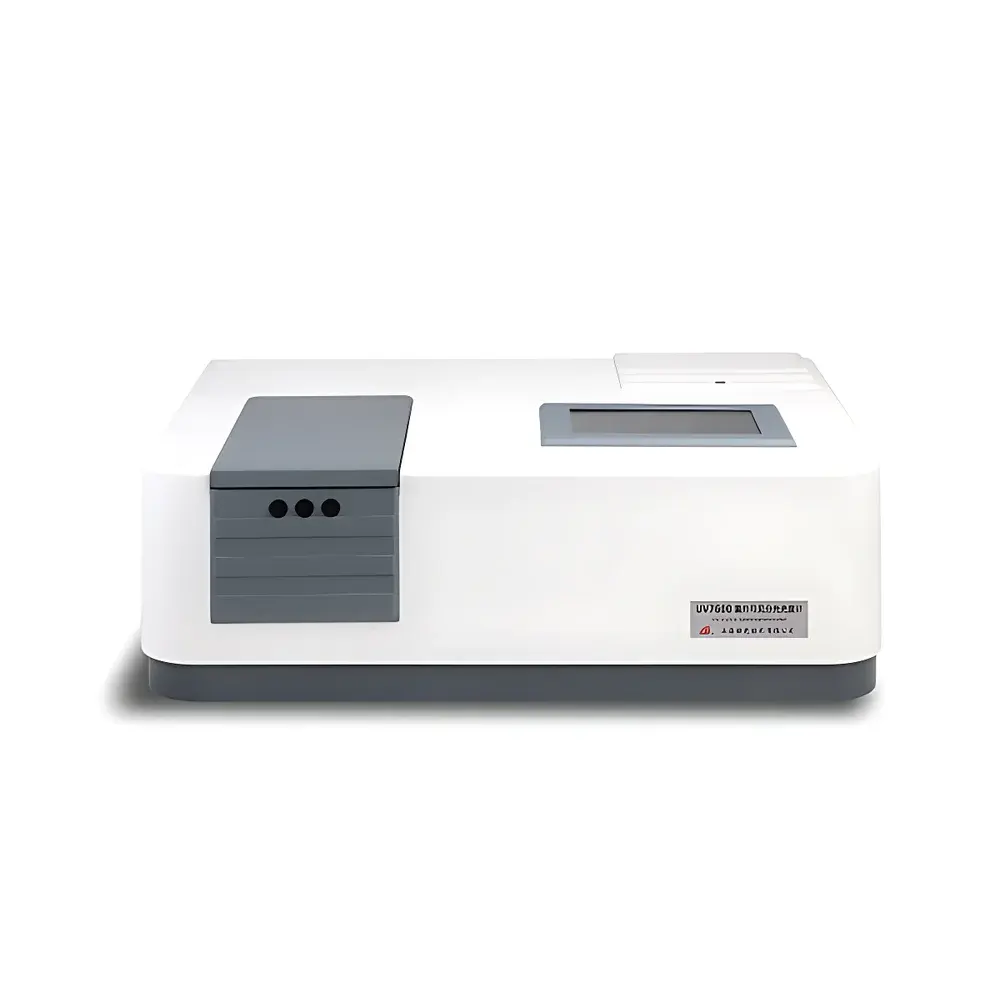

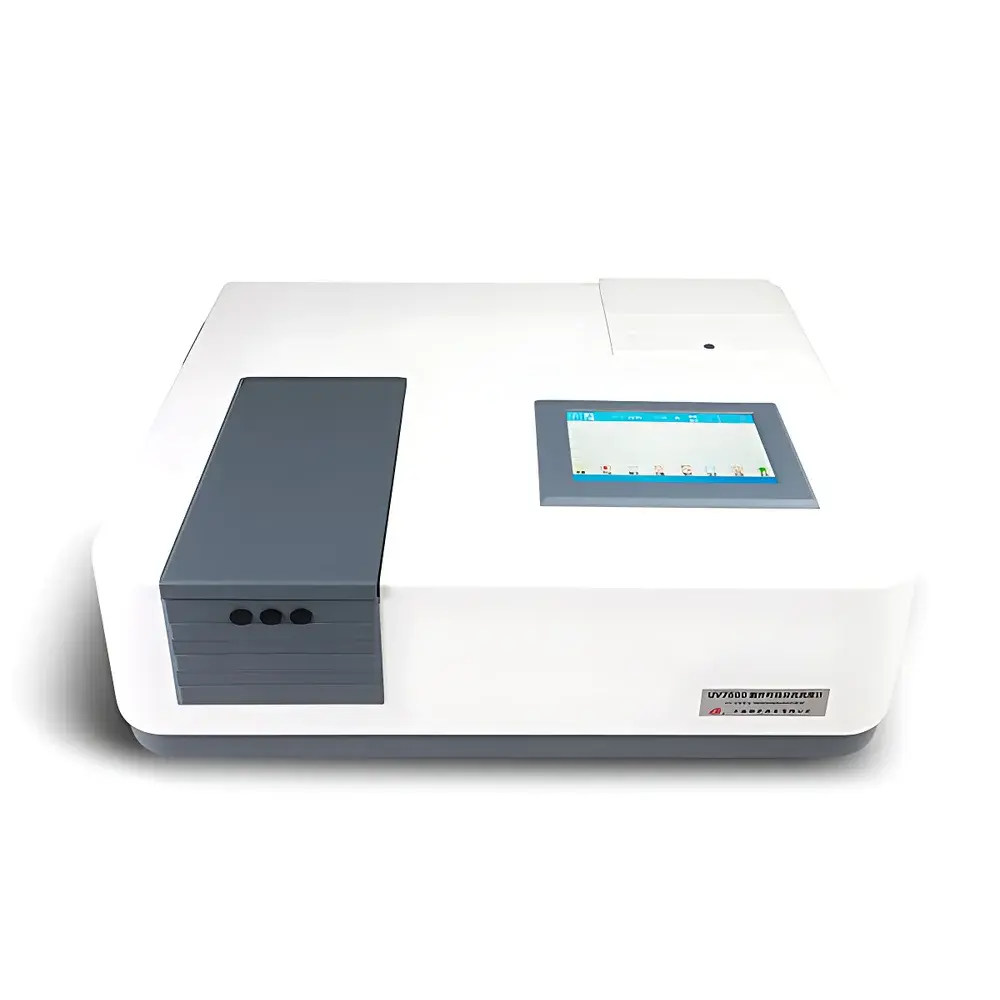

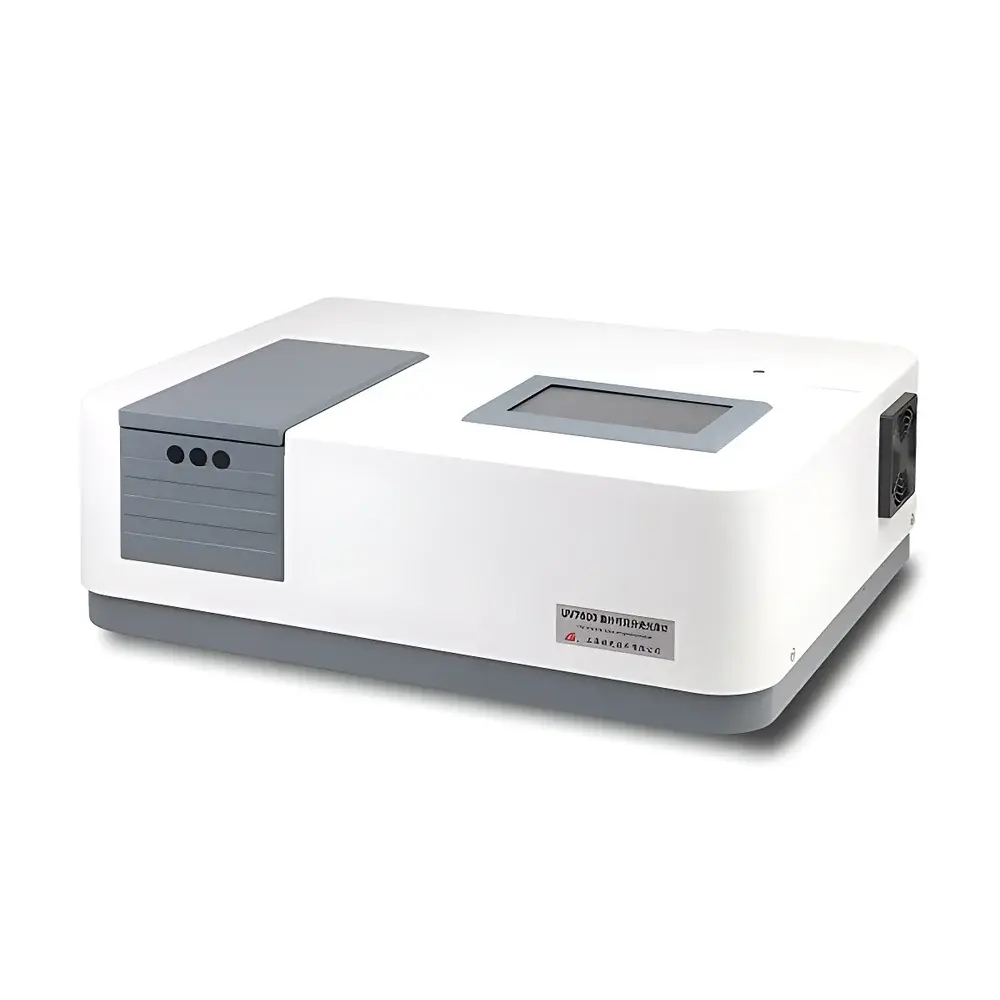

Lengguang Tech. UV7600 Dual-Beam Ultraviolet-Visible Spectrophotometer

Overview

The Lengguang Tech. UV7600 Dual-Beam Ultraviolet-Visible Spectrophotometer is a precision optical instrument engineered for high-fidelity absorbance and transmittance measurements across the ultraviolet, visible, and near-infrared spectral regions (190–1100 nm). It employs a dual-beam Czerny-Turner monochromator architecture with a 1200 lines/mm holographic grating, enabling real-time reference beam compensation to mitigate source intensity drift, thermal instability, and detector response variation. This design ensures exceptional baseline stability (<±0.0008 A), low photometric noise (≤0.05% T at 0% T), and long-term measurement reproducibility—critical for quantitative analysis in regulated environments. The instrument operates on the fundamental principle of Beer-Lambert law-based spectrophotometry, where sample absorption is measured relative to a matched reference path under identical optical and electronic conditions. Its performance aligns with international standards including ISO 6425, ASTM E275, and USP for spectrophotometric system suitability.

Key Features

• Dual-beam optical architecture with real-time digital ratio feedback processing for baseline drift suppression and enhanced photometric stability.
• Continuously variable spectral bandwidth (0.5–6.0 nm in 0.1 nm increments), enabling optimization of resolution versus signal-to-noise ratio for diverse sample types—from narrow-band dyes to broad-absorbing polymers.
• Ultra-low stray light level (≤0.03% T at 220 nm), achieved via optimized C-T monochromator geometry, high-efficiency blazed grating, and precision baffling—essential for accurate high-absorbance (>3.0 A) measurements.
• High-stability light sources: Hamamatsu long-life deuterium lamp (≥2000 h operational lifetime) and imported tungsten-halogen lamp, with automatic source switching and motorized mirror positioning eliminating manual alignment.
• Integrated 7-inch full-color capacitive touchscreen interface supporting standalone operation: wavelength scanning, kinetic assays, multi-wavelength quantitation, and method-driven concentration calculations.
• Modular hardware design allows tool-free lamp replacement and rapid optical path verification—reducing downtime and service dependency.

Sample Compatibility & Compliance

The UV7600 accommodates standard quartz, glass, or plastic cuvettes (1–100 mm pathlength), solid film samples via optional holders, and liquid samples in automated 6- or 8-position sample changers. Its optical configuration supports compliance-critical workflows: built-in wavelength calibration using internal spectral reference lines (e.g., holmium oxide filter peaks) enables traceable verification per ISO/IEC 17025 requirements. Data integrity features—including user-level access control, electronic audit trail, and timestamped method/data logging—support adherence to FDA 21 CFR Part 11, EU Annex 11, and GLP/GMP documentation protocols. All photometric accuracy specifications (±0.3% T transmittance accuracy, ≤0.1% T repeatability) are validated per ASTM E275-22 procedures.

Software & Data Management

The UV7600 connects to Windows-based PCs via USB 2.0 and is controlled by Lengguang’s proprietary SpectraSuite software—a validated application supporting method development, instrument qualification (IQ/OQ/PQ), and routine analysis. Functions include kinetic profiling, DNA/RNA purity assessment (A260/A280, A260/A230), enzyme activity monitoring, and multi-point calibration with forced linear regression. Raw spectral data are stored in vendor-neutral CSV and JCAMP-DX formats; all user actions—including parameter changes, calibration events, and result exports—are recorded in an immutable audit log. Software supports role-based permissions (Administrator, Analyst, Viewer), electronic signatures, and export to LIMS-compatible platforms via configurable XML templates.

Applications

The UV7600 serves as a primary analytical tool across pharmaceutical QC labs (active pharmaceutical ingredient assay, excipient identification), environmental testing (nitrate/nitrite, phosphate, COD determination), food & beverage QA (colorant quantification, antioxidant capacity), academic research (ligand-binding kinetics, nanoparticle plasmon resonance), and polymer science (degradation kinetics, additive concentration). Its wide dynamic range (–4.0 to +4.0 A), sub-nanometer wavelength resolution, and robust stray-light rejection make it suitable for both routine compliance testing and exploratory spectroscopic investigation requiring high photometric fidelity.

FAQ

Does the UV7600 support GLP-compliant data handling?
Yes—audit trail logging, user authentication, electronic signatures, and method versioning are fully implemented in accordance with FDA 21 CFR Part 11 and EU GMP Annex 11.
Can the instrument perform DNA/RNA quantitation without external software?
Yes—the embedded touchscreen interface includes dedicated nucleic acid analysis modules with preconfigured A260/A280 and A260/A230 ratio calculations and purity thresholds.
What is the recommended calibration frequency for regulatory use?
Wavelength calibration should be verified daily using certified holmium oxide or didymium filters; photometric accuracy verification is recommended before each analytical batch per USP .
Is the photodiode array detector temperature-stabilized?
No—the PDA operates at ambient temperature but benefits from the dual-beam design’s inherent thermal drift compensation; no active cooling is required for routine laboratory conditions (15–30 °C).
Can third-party software interface with the UV7600 via USB?
Only Lengguang’s SpectraSuite software is officially supported and validated; generic VISA or SCPI command sets are not exposed for external integration.
