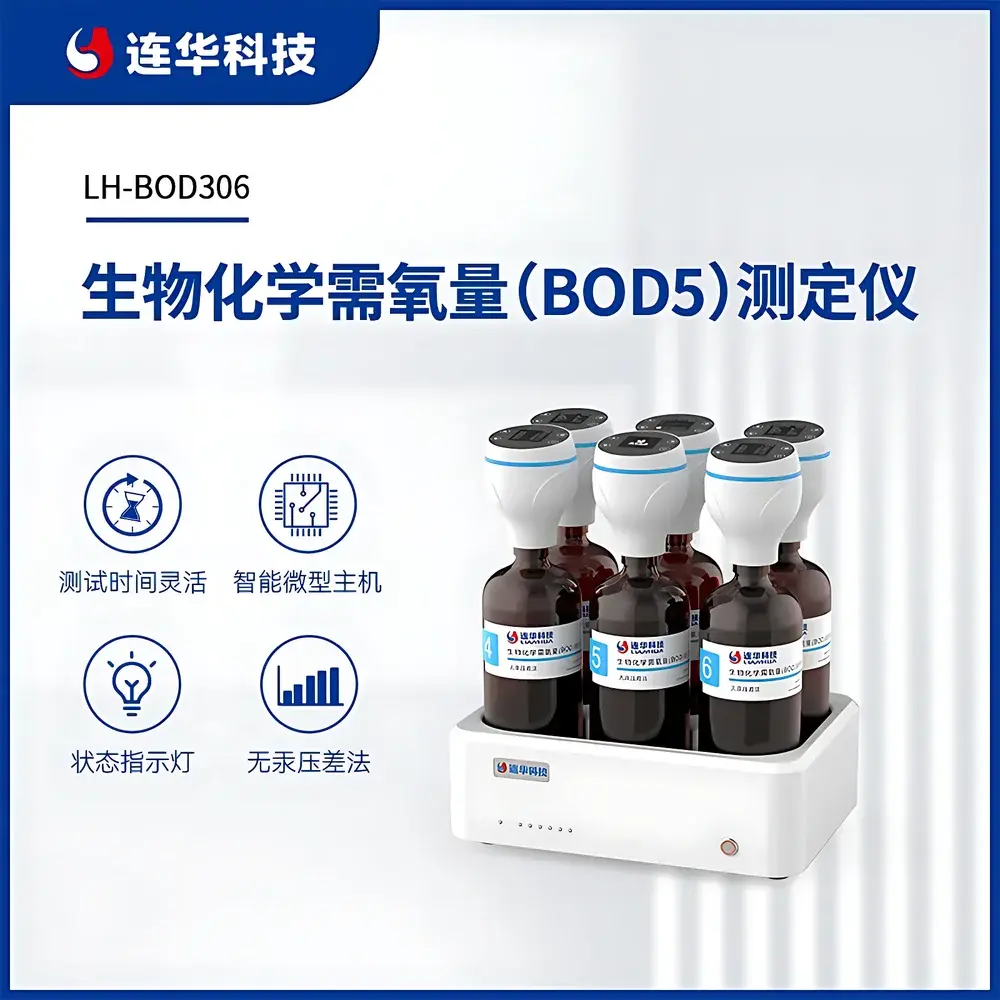

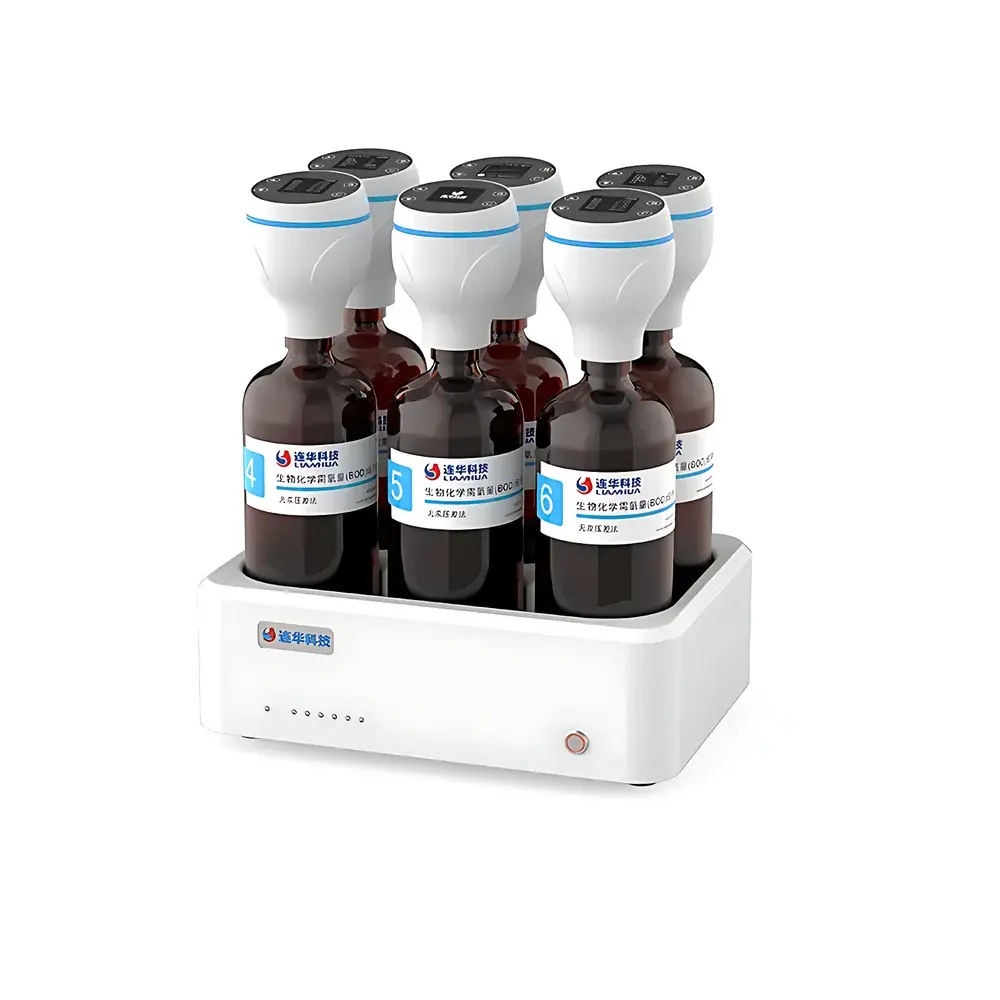

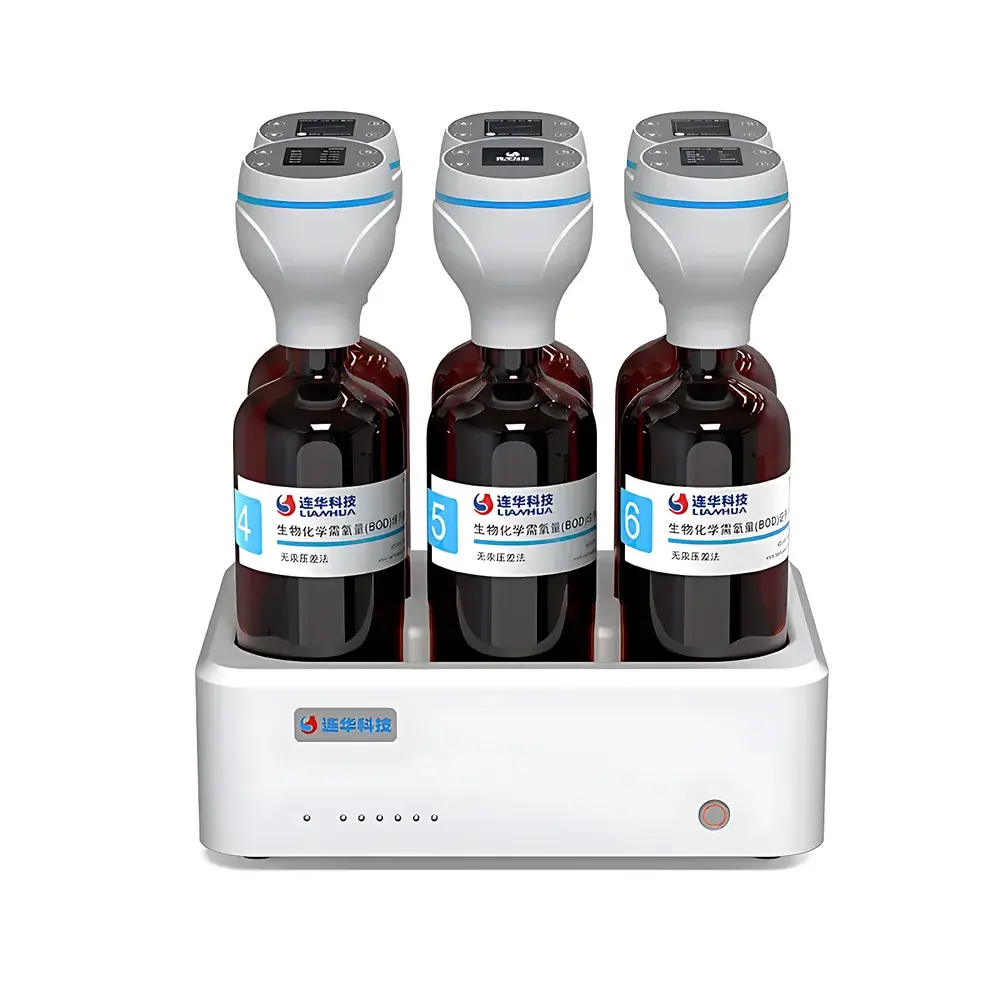

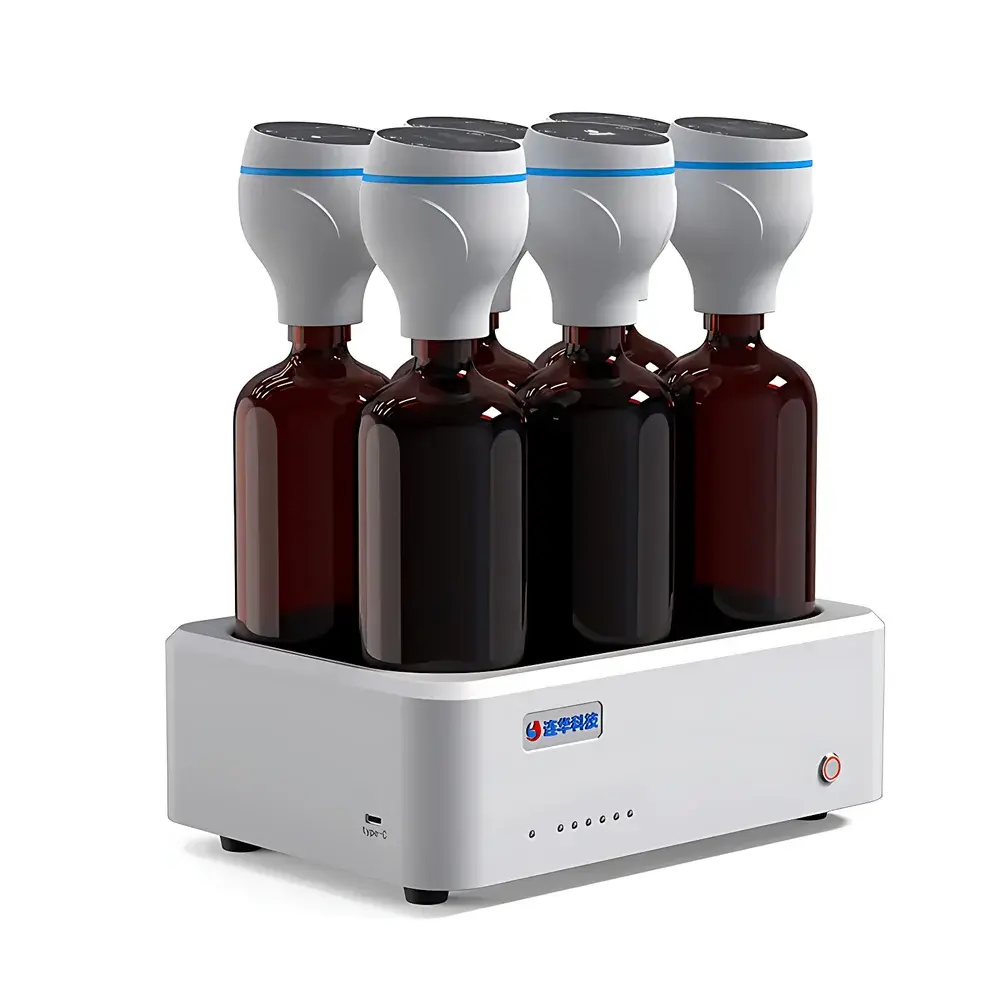

Lianhua LH-BOD306 BOD₅ Analyzer (Pressure-Difference Method)

Overview

The Lianhua LH-BOD306 BOD₅ Analyzer is a dedicated laboratory instrument engineered for precise, unattended biochemical oxygen demand measurement over standard 5-day (BOD₅) or extended incubation periods (1–30 days). It operates on the pressure-difference principle—a gravimetrically referenced, mercury-free alternative to traditional manometric and dilution-based methods. In this configuration, microbial respiration within a sealed BOD bottle consumes dissolved oxygen, generating a proportional pressure drop across a calibrated gas-permeable membrane. This differential is measured via high-stability piezoresistive transducers and converted directly into mg/L BOD values using stoichiometric oxygen demand calibration curves. Designed for compliance with HJ 505–2009 (China’s standard method for BOD₅ determination) and aligned with ISO 9408:1999 (Water quality — Determination of biochemical oxygen demand after n days — BOD_n), the LH-BOD306 eliminates mercury hazards while maintaining metrological traceability to primary reference standards.

Key Features

• Modular six-channel architecture supporting concurrent analysis of 1–6 samples, each independently configurable for incubation duration (1–30 days) and pre-incubation thermal equilibration (1–10 hours).

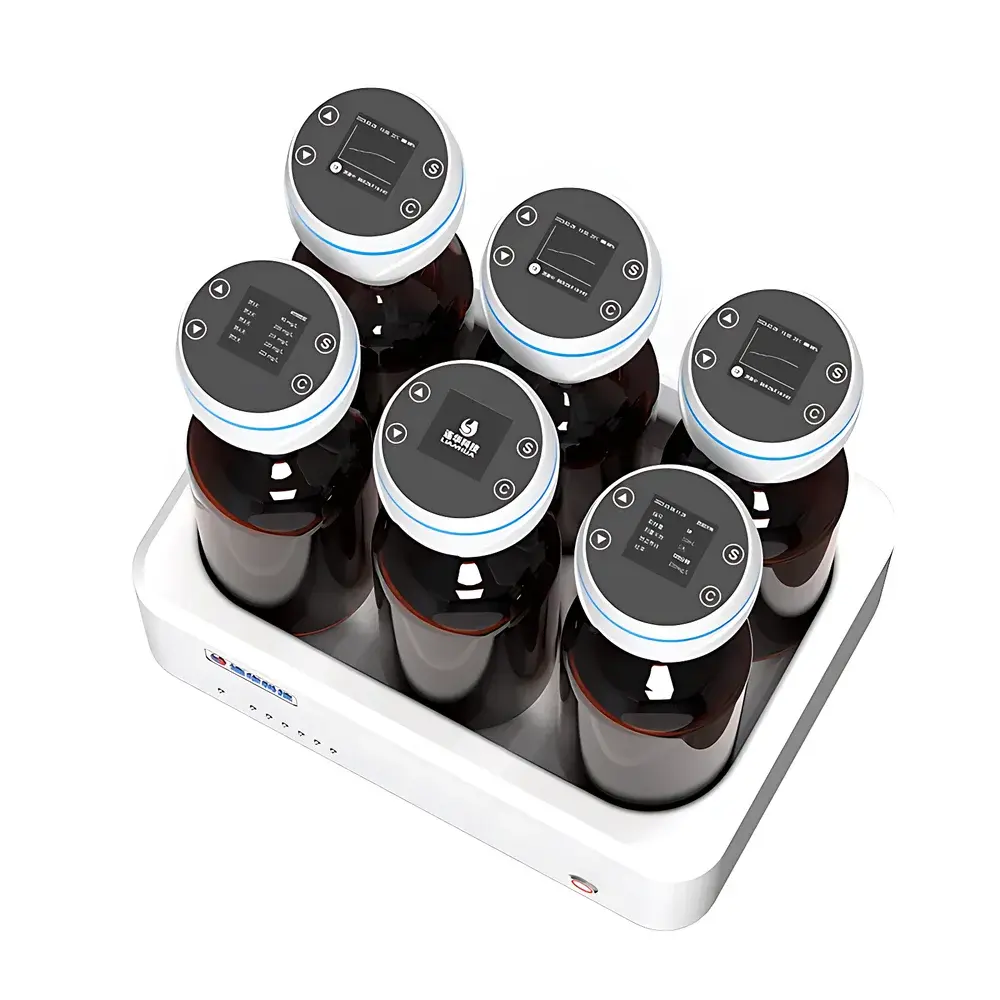

• Dedicated smart test cap per sample—integrating CR-P2 lithium battery, 1.5-inch OLED display, onboard memory (100 data points per cap), real-time curve visualization, and autonomous operation during brief power interruptions.
• Full-range quantification from 0.1 to 4000 mg/L BOD, with eight programmable sampling volume options (e.g., 2 mL to 300 mL) enabling direct readout without manual dilution factor correction.
• Integrated electromagnetic stirring base with six individually addressable stirrer units ensures homogeneous suspension of seeded microorganisms and consistent mass transfer—critical for reproducible oxygen consumption kinetics.
• Front-panel status indicators (7 LEDs) provide immediate visual feedback on power supply integrity, stirrer activation, sensor readiness, and communication handshake with the host controller.
• Hardware-optimized low-range performance: enhanced signal-to-noise ratio in sub-5 mg/L regime through temperature-compensated transducer calibration and adaptive zero-drift compensation algorithms.

Sample Compatibility & Compliance

The LH-BOD306 accommodates standard 300-mL glass BOD bottles fitted with proprietary threaded caps containing integrated pressure sensors and gas diffusion membranes. It supports both unseeded and seeded wastewater, surface water, effluent, and treated drinking water matrices. Sample preparation follows HJ 505–2009 protocols—including pH adjustment (6.5–7.5), nutrient supplementation (phosphate buffer, MgSO₄, CaCl₂, FeCl₃), and nitrification inhibition (allylthiourea) where required. The system meets national regulatory requirements for environmental monitoring laboratories under China’s “Administrative Measures for Qualification Recognition of Inspection and Testing Institutions” (CNAS-CL01:2018 equivalent), and its mercury-free design fulfills EU RoHS Directive 2011/65/EU Annex II restrictions on hazardous substances. Data outputs are structured to support GLP-compliant audit trails when paired with optional external logging software.

Software & Data Management

While the LH-BOD306 operates autonomously at the hardware level, optional USB-connected PC software enables centralized data aggregation, trend analysis, and report generation in PDF/CSV formats. All measurements include timestamp, incubation duration, temperature log (±0.2 °C resolution), pressure differential history, and calculated BOD value with uncertainty annotation. Audit-ready metadata includes operator ID, sample ID, reagent lot numbers, and calibration certificate references. The firmware supports 21 CFR Part 11–compatible electronic signatures when deployed in regulated QA/QC environments requiring FDA-aligned documentation integrity.

Applications

• Regulatory compliance testing for municipal wastewater treatment plants (effluent discharge monitoring per GB 18918–2002).
• Environmental impact assessment (EIA) studies evaluating receiving water body assimilative capacity.
• Research laboratories investigating biodegradability kinetics of industrial effluents, pharmaceutical residues, or novel surfactants.
• Educational use in university environmental engineering curricula for hands-on BOD methodology training.
• Third-party certification labs performing accredited BOD₅ testing under CMA (China Metrology Accreditation) scope.

FAQ

Does the LH-BOD306 require daily manual intervention during incubation?
No. Once configured and sealed, each test cap operates autonomously for the full selected duration. The system requires no recalibration, media replenishment, or physical access until endpoint reading.
Can the instrument measure BOD beyond the standard 5-day period?
Yes. Users may select any incubation interval from 1 to 30 days, enabling BOD_n profiling for kinetic modeling or low-biodegradability sample characterization.
Is the pressure-difference method validated against conventional dilution methods?
Yes. Multi-laboratory validation studies per HJ 505–2009 demonstrate correlation coefficients ≥0.992 (n=42) against reference dilution-thiosulfate titration, with mean bias within ±8.3% across 0.5–3500 mg/L range.
What maintenance is required for long-term operational stability?
Annual verification of pressure transducer linearity and membrane integrity is recommended; no routine consumables other than standard BOD bottles, stir bars, and nutrient tablets included in the supplied consumables kit.
How is temperature control managed during incubation?
The LH-BOD306 is designed for integration with externally controlled BOD incubators (20.0 ± 0.5 °C). It does not incorporate active heating/cooling but continuously logs ambient incubator temperature via an integrated NTC sensor for post-hoc thermal correction if needed.
