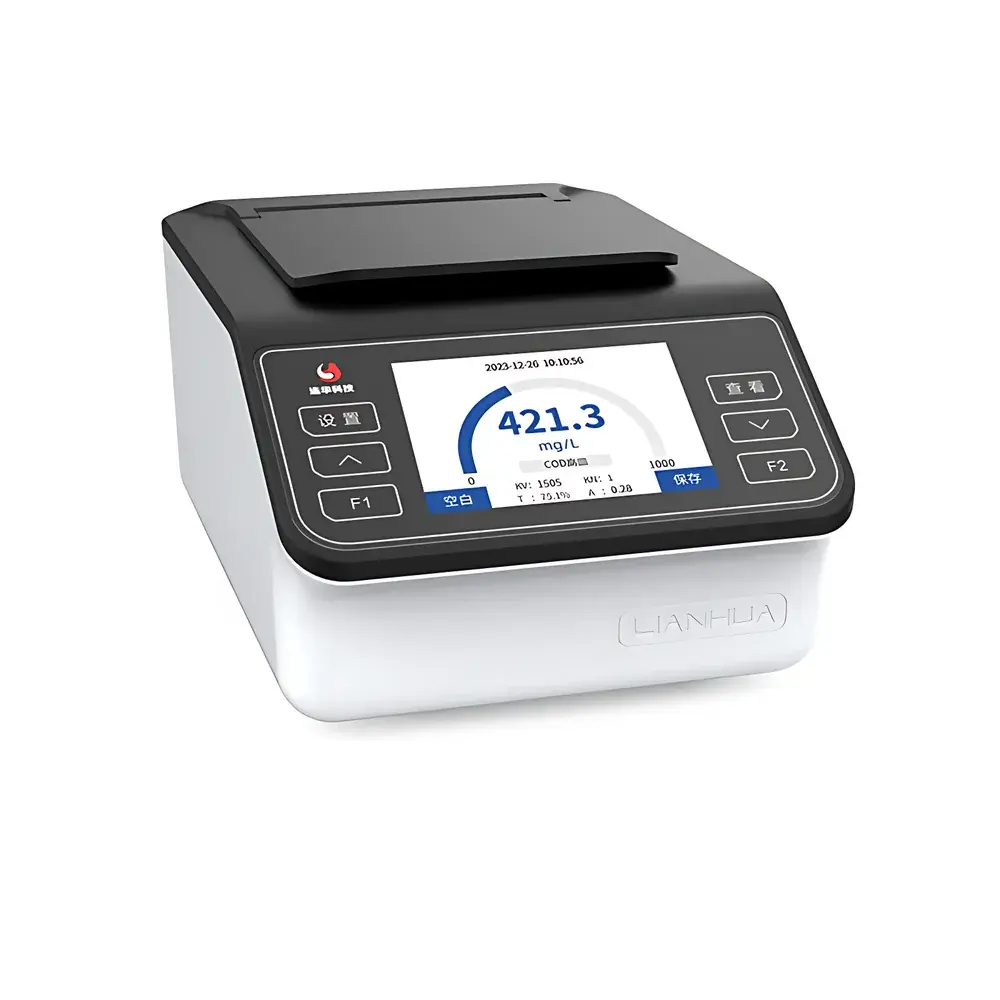

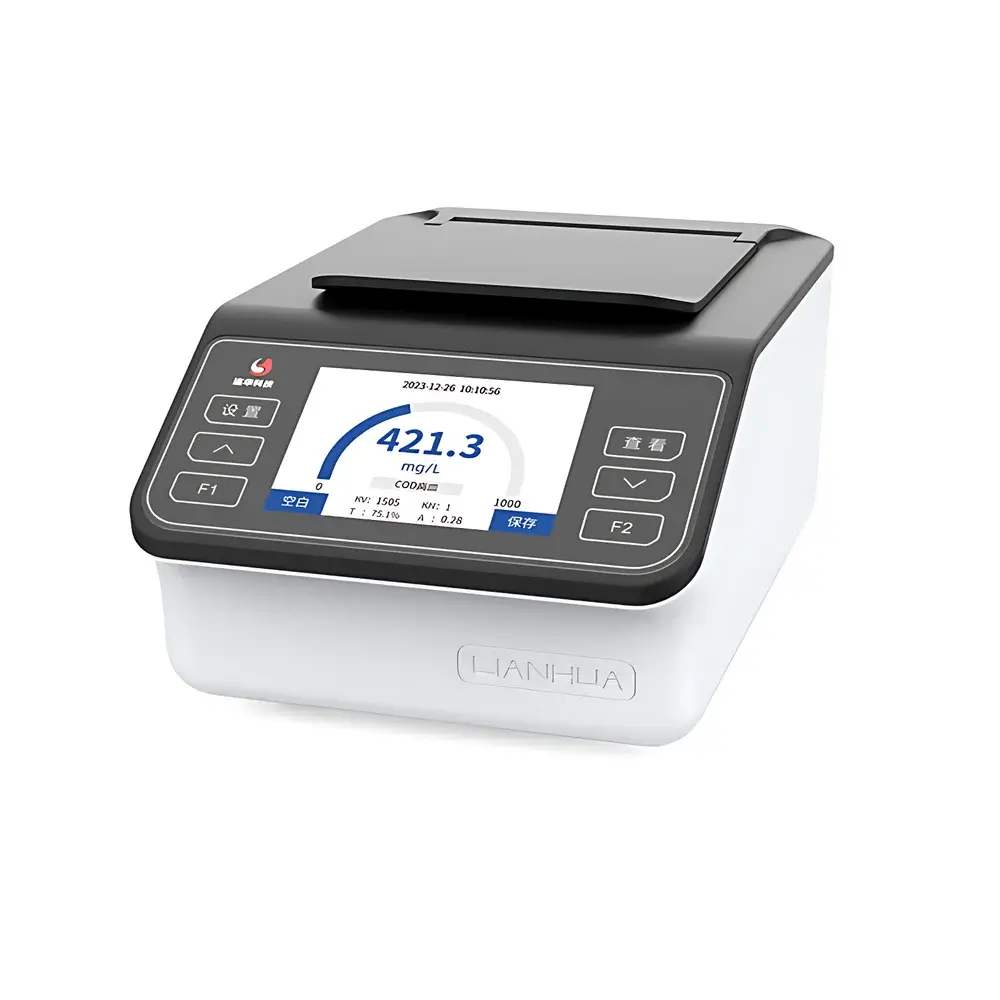

Lianhua Tech Qingmiao Series COD Fast Analyzer LH-T3COD

Overview

The Lianhua Tech Qingmiao Series COD Fast Analyzer LH-T3COD is a laboratory-grade benchtop instrument engineered for precise, rapid determination of Chemical Oxygen Demand (COD) in water and wastewater samples. It operates on the standardized rapid digestion–spectrophotometric method per China’s national environmental monitoring standard HJ/T 399–2007, which specifies dichromate oxidation under acidic, high-temperature conditions followed by colorimetric quantification of Cr(III) at 600 nm. Unlike open-reflux or titrimetric approaches, this system integrates controlled thermal digestion with stable optical detection to deliver reliable results within 20–30 minutes per batch—significantly reducing analyst time while maintaining metrological traceability to certified reference materials. The analyzer is designed for routine QC/QA laboratories, municipal water treatment facilities, industrial effluent monitoring stations, and third-party environmental testing labs requiring consistent compliance with domestic regulatory frameworks.

Key Features

• Segmented multi-range measurement capability from 20 to 10,000 mg/L COD, enabling accurate analysis across low-strength influents and highly concentrated industrial discharges without manual dilution.
• Cold light source with narrow-band interference optics ensures long-term photometric stability; rated lifetime exceeds 100,000 hours with minimal drift (<0.001 A/h).

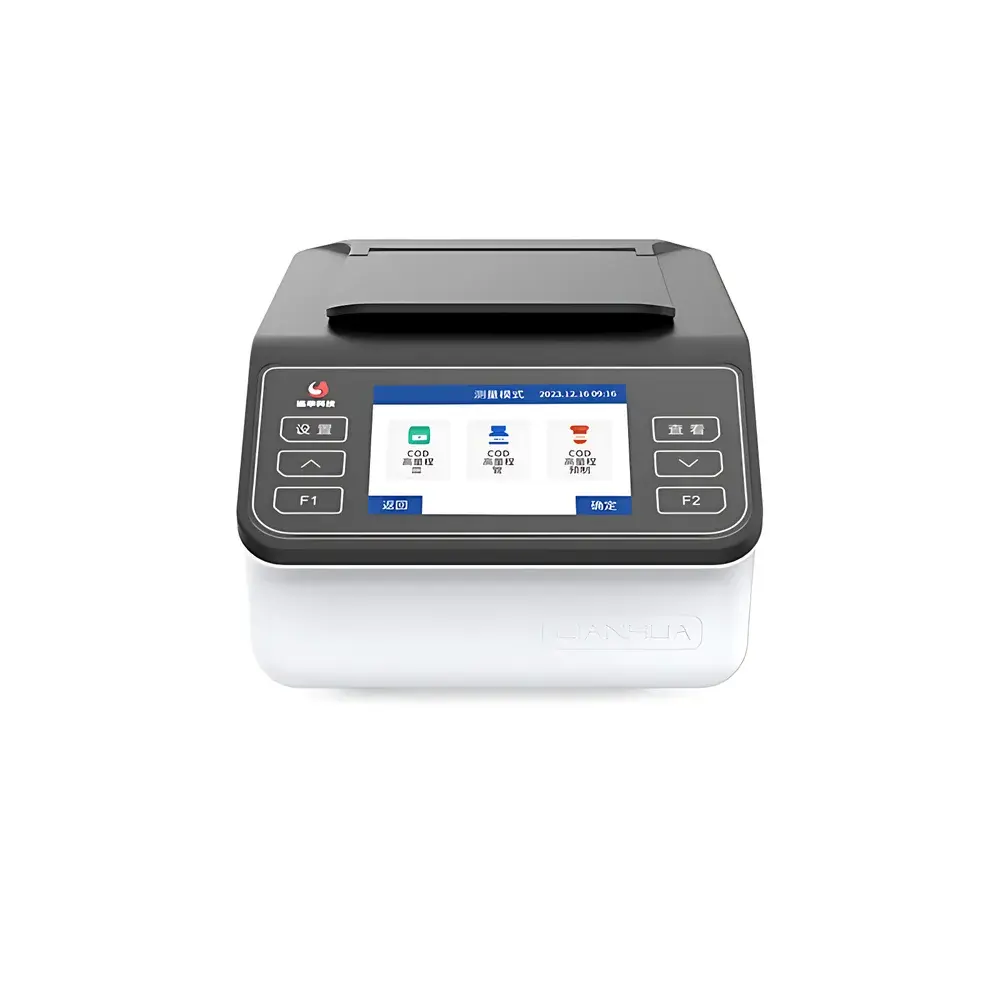

• 3.5-inch high-resolution color TFT display with dial-style UI provides intuitive navigation, real-time graphing of absorbance trends, and immediate concentration readout in mg/L.
• Flexible sample handling supports both 16-mm round glass test tubes and 30-mm square quartz cuvettes—compatible with standard digestion vials used in parallel with the included LH-A109 9-hole digester.
• Fifteen pre-programmed calibration curves—including EPA-equivalent and ISO 6060–derived polynomials—allow user selection based on matrix complexity and regulatory context.
• Onboard curve calibration using up to five standard points ensures adaptability to local reagent batches and instrument aging compensation.

Sample Compatibility & Compliance

The LH-T3COD accommodates raw and filtered aqueous samples including surface water, groundwater, domestic sewage, and pretreated industrial effluents. Chloride interference is mitigated via mercury sulfate addition during digestion (per HJ/T 399–2007), and turbidity is minimized through centrifugation or filtration prior to measurement. While not validated for direct FDA 21 CFR Part 11 compliance out-of-the-box, the system supports GLP/GMP-aligned workflows when paired with documented SOPs, audit-trail-enabled data export (via USB), and external LIMS integration. All measurements are traceable to NIST-traceable potassium hydrogen phthalate (KHP) standards and certified COD reference solutions (e.g., AccuStandard® CRM-W-1000-COD).

Software & Data Management

The embedded firmware stores up to 5,000 measurement records, each timestamped (YYYY-MM-DD HH:MM:SS) and annotated with sample ID, selected curve, measured absorbance, calculated COD value, operator code, and digestion temperature/duration metadata. Data export is supported via USB flash drive in CSV format—structured for direct import into Excel, LabWare LIMS, or custom QA databases. No proprietary software installation is required; raw files are human-readable and schema-documented. Firmware updates are delivered as signed binary packages via Lianhua Tech’s secure technical portal, with version logs and change documentation provided per release.

Applications

• Regulatory compliance monitoring for municipal wastewater treatment plants reporting to MEP (Ministry of Ecology and Environment) under the “Discharge Standard of Pollutants for Municipal Wastewater Treatment Plants” (GB 18918–2002).
• Process control in electroplating, pharmaceutical, food processing, and textile manufacturing where COD load fluctuations impact biological treatment efficiency.
• Environmental impact assessment (EIA) field laboratories conducting baseline and post-construction water quality surveys.
• Academic research on biodegradability indices (e.g., BOD₅/COD ratios) and advanced oxidation process (AOP) efficacy evaluation.
• Third-party certification labs performing accredited testing per CNAS-CL01 (equivalent to ISO/IEC 17025:2017).

FAQ

Does the LH-T3COD require external PC software for operation?
No—the instrument is fully autonomous with built-in touchscreen interface, calibration management, and data storage. PC connectivity is optional and limited to data export and firmware updates.
Is the LH-A109 9-hole digester included in the base configuration?
Yes—the LH-T3COD is shipped with the LH-A109 digester as standard equipment, pre-calibrated for 150 °C / 15 min digestion cycles per HJ/T 399–2007.
Can the instrument be validated for ISO 6060 or ASTM D1252 methods?
While optimized for HJ/T 399–2007, its optical and thermal performance parameters align with the instrumental requirements of ISO 6060:2021 (Section 6.2) and ASTM D1252–2022 (Method B), subject to user-performed method verification per ISO/IEC 17025 Clause 7.2.2.
What maintenance intervals are recommended for long-term reliability?
Optical path cleaning every 200 measurements; annual verification of digestion temperature uniformity and photometer linearity using certified reference standards.
Are replacement parts and consumables available internationally?
Yes—Lianhua Tech maintains an authorized distributor network across Southeast Asia, the Middle East, and Latin America; OEM-certified digestion vials, cuvettes, and KHP standards are stocked regionally.
