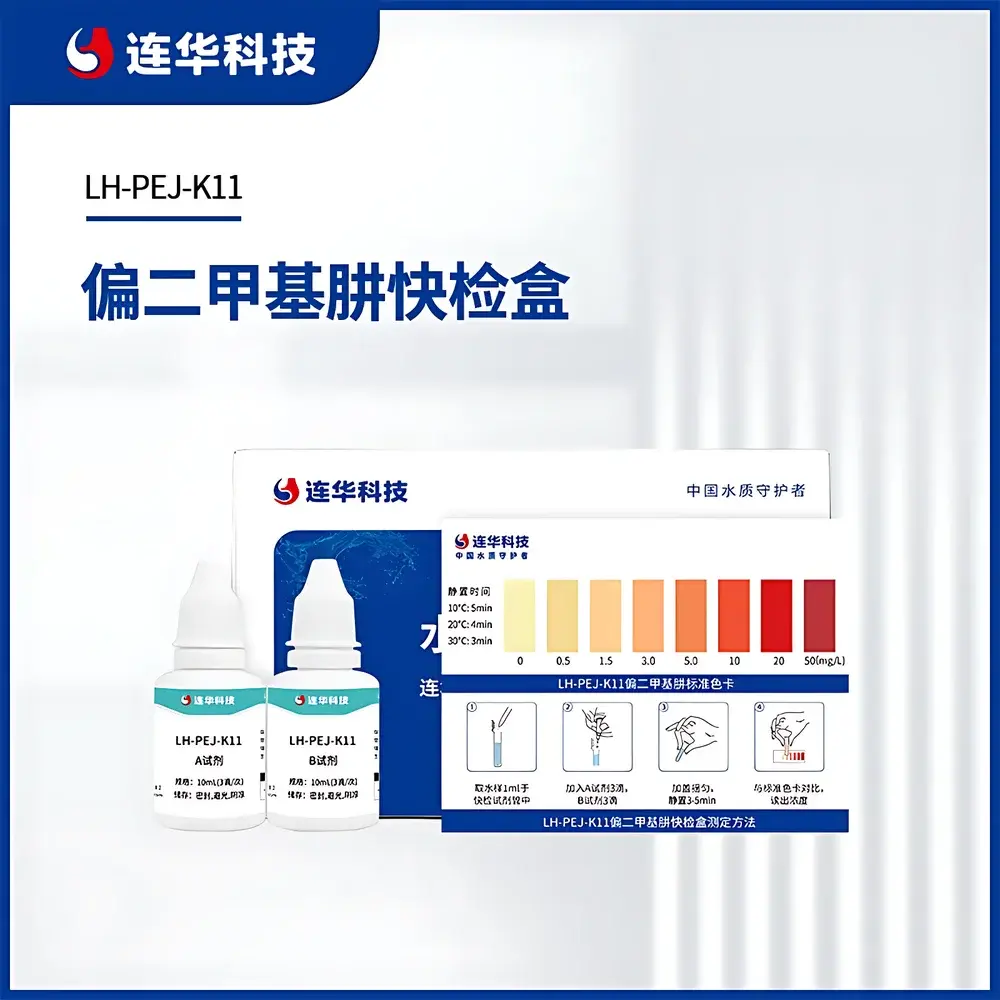

Lianhua Technology Dimethylhydrazine (Unsymmetrical) Quick Test Kit LH-PEJ-K11

Overview

The Lianhua Technology Dimethylhydrazine (Unsymmetrical) Quick Test Kit LH-PEJ-K11 is a field-deployable, colorimetric analytical system engineered for the rapid qualitative and semi-quantitative determination of unsymmetrical dimethylhydrazine (UDMH) in environmental water samples, soil leachates, and surface wipe extracts. UDMH is a highly toxic, volatile organic hydrazine derivative historically used as a rocket propellant and industrial intermediate; its presence poses acute health risks and environmental persistence concerns. This kit operates on the principle of selective chromogenic reaction—UDMH reacts with a proprietary reagent system under controlled pH and temperature conditions to yield a stable, intensity-proportional colored complex. Visual comparison against a calibrated color scale enables on-site estimation of concentration within defined detection limits, eliminating the need for laboratory instrumentation during initial screening or emergency response scenarios.

Key Features

• Field-Ready Visual Detection: Designed for immediate use without power supply, calibration equipment, or trained analysts—results are interpretable within 5–10 minutes post-sample introduction.
• Optimized Chromogenic Chemistry: Utilizes a dual-reagent formulation with enhanced selectivity for UDMH over common interferences (e.g., hydrazine, methylhydrazine, ammonia), minimizing false positives in complex matrices.
• Standardized Color Scale: Includes a high-resolution, UV-stabilized reference card with 8 discrete color gradations corresponding to nominal UDMH concentrations from 0.05 mg/L to 5.0 mg/L (as applicable per batch validation).
• Robust Packaging Architecture: Each test kit comprises individually sealed, moisture-barrier aluminum pouches containing pre-measured reagents and reaction vials—ensuring shelf life of ≥24 months when stored at 4–30 °C.
• Operator-Independent Workflow: Requires only three manual steps: sample collection, reagent addition, and incubation—no pipetting accuracy or timing precision beyond standard visual guidance.

Sample Compatibility & Compliance

The LH-PEJ-K11 is validated for use with aqueous environmental samples including potable water, surface water, groundwater, and decontamination runoff. Soil samples require aqueous extraction (1:5 w/v, 30-min agitation) prior to analysis. The kit complies with Chinese national standard HJ 1227–2021 for emergency monitoring of hazardous chemicals in environmental media. While not intended for regulatory compliance reporting per se, results serve as Tier-1 triage data aligned with ISO/IEC 17025 principles for method validation—supporting decision-making under incident command systems (ICS) and fulfilling preliminary screening requirements under China’s Emergency Response Plan for Sudden Environmental Incidents (State Council Decree No. 34). All reagents are non-hazardous for transport (UN 3082, Class 9) and meet REACH SVHC screening thresholds.

Software & Data Management

This is a non-instrumented, analog detection system; no software integration or digital data output is provided. However, each kit includes a standardized paper-based field log sheet compliant with GLP documentation practices—featuring designated fields for sample ID, time/date, analyst initials, ambient temperature, observed color match, estimated concentration, and chain-of-custody annotation. Digital transcription into LIMS or incident management platforms (e.g., ESRI ArcGIS Field Maps, Hazus-MH) is supported via manual entry. For audit readiness, lot-specific Certificate of Analysis (CoA) and stability data are supplied with each shipment, traceable to internal QC batch records maintained per ISO 9001:2015.

Applications

• Rapid assessment of UDMH contamination following launch facility accidents or transportation incidents involving hypergolic propellants
• Pre-deployment verification of decontamination efficacy on equipment, PPE, and infrastructure surfaces
• Screening of wastewater effluents from aerospace manufacturing or chemical synthesis facilities
• First-responder situational awareness during hazmat incidents where real-time exposure risk stratification is critical
• Supplemental monitoring in long-term environmental surveillance programs targeting legacy rocket fuel sites

FAQ

What is the detection range and limit of quantitation (LOQ) for this kit?
The visual detection range is 0.05–5.0 mg/L UDMH in water; the practical LOQ is 0.1 mg/L under optimal lighting conditions (D65 illuminant, CIE standard observer).
Can this kit be used for air or vapor-phase sampling?
No—LH-PEJ-K11 is validated exclusively for liquid-phase analysis. Air sampling requires sorbent tube collection followed by solvent extraction prior to testing.
How does temperature affect result accuracy?
Reaction kinetics are optimized for 15–25 °C. At temperatures below 10 °C, incubation time must be extended by 3–5 minutes; above 35 °C, color development may accelerate nonlinearly—reference card interpretation remains valid only within the validated thermal envelope.
Is cross-reactivity with monomethylhydrazine (MMH) documented?
Yes—MMH produces a similar but distinguishable hue (slightly more violet-shifted); interference is ≤15% at equimolar concentrations, as verified per ASTM D808-22 Annex A1.
Does the kit include quality control standards?
Each batch ships with one sealed QC check standard (0.5 mg/L UDMH in matrix-matched solution) for daily performance verification prior to field deployment.
