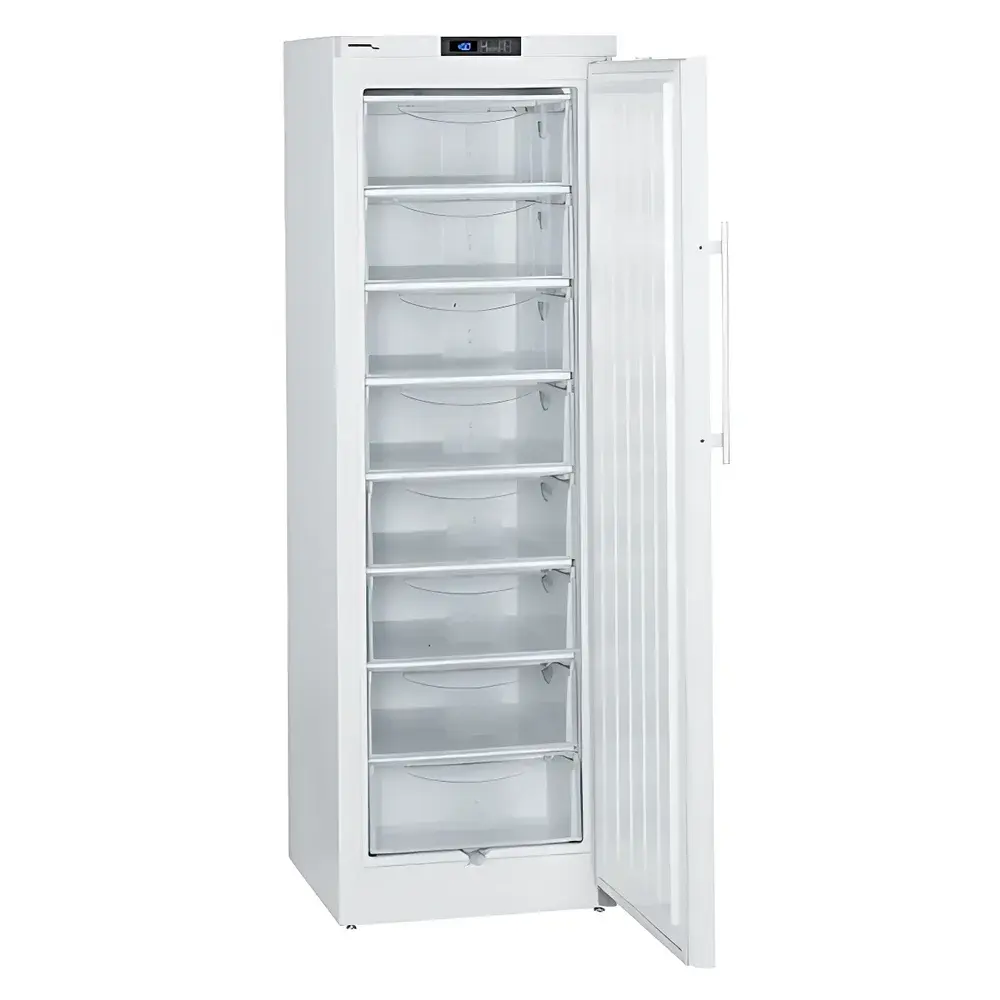

Liebherr LGex 3410 Explosion-Proof Upright Freezer

Overview

The Liebherr LGex 3410 is a certified explosion-proof upright freezer engineered for safe, long-term storage of flammable, volatile, or thermally sensitive materials in regulated laboratory, pharmaceutical, and chemical environments. Designed and manufactured in Germany to stringent EU ATEX Directive 94/9/EC (now recast as 2014/34/EU) requirements, the LGex 3410 is approved for use in hazardous area Zone 2 — specifically for gas group II 3G and temperature class T6 (surface temperature ≤ 27 °C under fault conditions). Its static cooling architecture eliminates internal fans, compressors, or electronic components that could serve as ignition sources, while all metallic parts are fully grounded and non-sparking surfaces are maintained throughout the interior cavity. The unit operates within a precisely controlled temperature range of −9 °C to −30 °C, making it suitable for cryogenic-grade sample preservation where thermal stability and intrinsic safety are non-negotiable.

Key Features

• ATEX-certified design compliant with EN 60079-0, EN 60079-15, and EN 60079-31 for Zone 2 (II 3G, T6) applications
• Static natural convection cooling system — no internal fans, motors, or spark-generating electronics
• Manually defrosted evaporator with integrated condensate collection tray (sealed per ATEX maintenance requirements)
• External digital temperature display with visual and audible alarm outputs for deviation, door-open, and power failure events
• RS485 serial interface (3-wire, up to 500 m cable length) supporting Modbus RTU protocol for integration into centralized environmental monitoring systems
• Reversible double-glazed door with self-closing mechanism, ergonomic slim handle, and integrated security lock
• 8 removable, height-adjustable tempered glass shelves (440 × 420 mm, load capacity 40 kg each) with molded ribbed supports for anti-tilt stability
• 70–70 mm polyurethane insulation across walls, floor, and ceiling; climate class SN-ST (operable at ambient temperatures from +10 °C to +32 °C)
• R600a hydrocarbon refrigerant — low GWP (Global Warming Potential = 10), high energy efficiency, and compatible with intrinsically safe design principles

Sample Compatibility & Compliance

The LGex 3410 is validated for storage of Class I, Group D (NEC) / Category 3G (IEC) flammable substances including acetone, ethanol, ether, gasoline, and other low-flashpoint solvents. Its interior construction avoids exposed wiring, ungrounded metal, or friction-prone moving parts — all metallic surfaces are electrically bonded and potential static discharge paths are eliminated. The plastic liner, glass shelving, and coated steel components meet ISO 14644-1 Class 8 (100,000) cleanroom compatibility for low-particulate environments. While not GLP/GMP-validated out-of-the-box, the unit supports audit-ready operation when paired with optional NTC product temperature sensors and SAM1000 power-failure alarms — both traceable to NIST-calibrated references. Documentation includes full Electrosuisse certification report (No. ES-ATEX-XXXXX), Declaration of Conformity, and technical file per Annex VII of 2014/34/EU.

Software & Data Management

The LGex 3410 does not include embedded software but provides deterministic hardware-level interfaces for external data acquisition and compliance logging. The RS485 port enables real-time temperature telemetry and alarm status polling using third-party SCADA or ELN platforms compliant with FDA 21 CFR Part 11 (when configured with electronic signature, audit trail, and user access controls). Optional accessories include an RS232-to-USB converter, dedicated temperature documentation software (e.g., Liebherr LogSoft v3.x), and interface gateways supporting MQTT or OPC UA protocols. All recorded data — including setpoint history, alarm timestamps, and voltage-loss events — can be exported in CSV or PDF format for regulatory submission. The NTC probe accessory (order code LGex-NTC-01) allows direct measurement of product core temperature, independent of chamber air readings — critical for stability-indicating storage validation per ICH Q5C.

Applications

• Storage of flammable reagents and solvents in analytical chemistry labs (e.g., HPLC mobile phase preparation areas)
• Secure cold chain holding for explosive precursors in forensic and defense research facilities
• Long-term archiving of volatile organic standards (VOCs) and calibration gases requiring sub-zero inert storage
• Backup freezing of biobanked samples where electrical ignition risk must be eliminated (e.g., peroxide-forming compounds)
• Compliance-driven storage in petrochemical QA/QC labs operating under OSHA 1910.106 or DSEAR UK regulations
• Integration into automated sample management systems where intrinsic safety precludes standard UL-listed freezers

FAQ

Is the LGex 3410 suitable for storing peroxide-forming chemicals?
Yes — its spark-free interior, grounded construction, and absence of internal electronics make it appropriate for extended storage of ethers, tetrahydrofuran, and other peroxide-susceptible compounds, provided ambient ventilation meets NFPA 45 requirements.
Can the unit be validated for IQ/OQ/PQ per GMP guidelines?
While the base unit lacks built-in validation support, it is fully compatible with third-party qualification protocols when equipped with NTC probes, calibrated data loggers, and documented installation procedures aligned with ASTM E2500 and ISPE Baseline Guide Vol. 5.
What maintenance is required to retain ATEX certification?
Annual inspection by a Notified Body-accredited technician is recommended; cleaning of the condensate tray, verification of door seal integrity, and grounding continuity testing must be logged per EN 60079-17.
Does the RS485 interface support alarm event logging with time stamps?
Yes — alarm states (door open, temperature deviation, power loss) are transmitted as discrete Modbus registers with millisecond-resolution timestamps when interfaced with compliant master devices.
Is remote monitoring possible without modifying the unit’s certified enclosure?
Yes — all communication occurs via the factory-sealed RS485 port; no internal modifications or field-installed transceivers are needed to achieve secure, intrinsically safe remote supervision.
