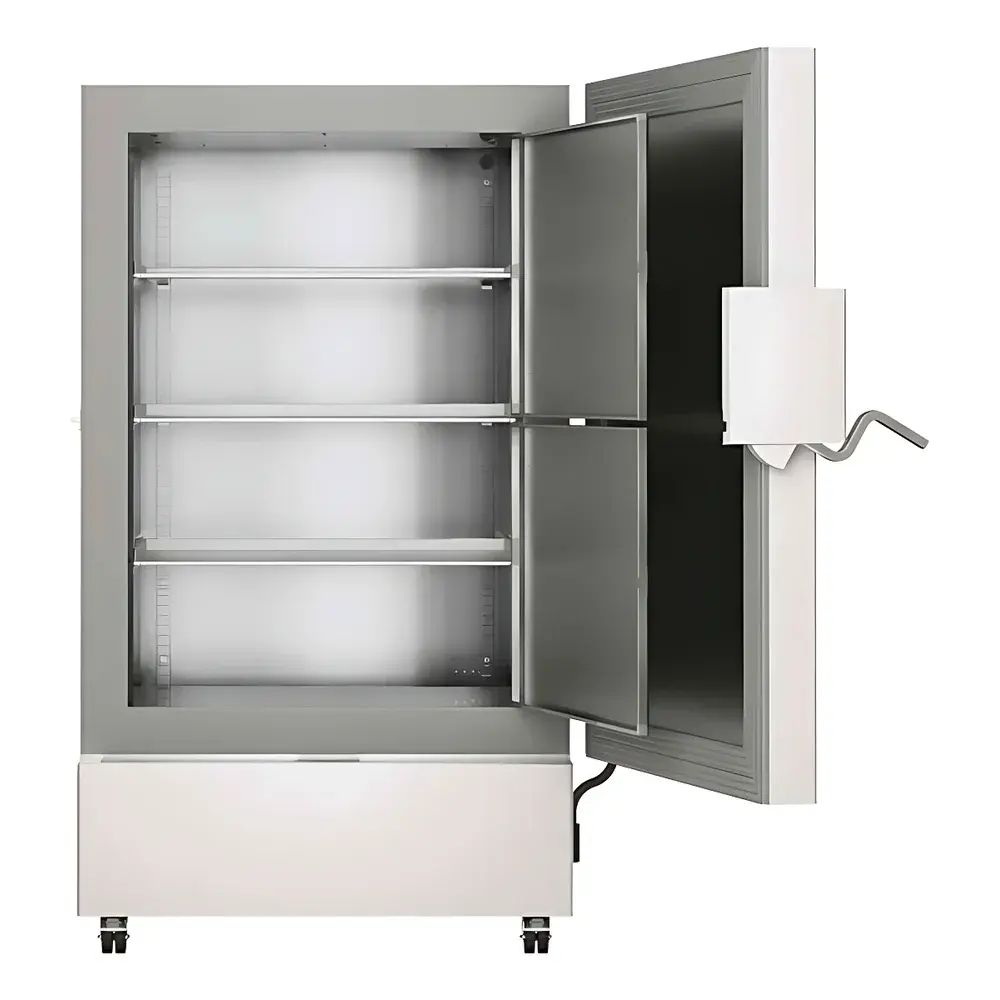

Liebherr SUFsg7001 Ultra Low Temperature Freezer

Overview

The Liebherr SUFsg7001 Ultra Low Temperature Freezer is an upright, European-manufactured cryogenic storage system engineered for long-term preservation of biologically sensitive materials at temperatures ranging from –40 °C to –90 °C. Designed and assembled in Austria, this unit employs a dual-stage cascade refrigeration cycle—utilizing environmentally responsible hydrocarbon refrigerants R290 (propane) and R170 (ethane)—to achieve stable, uniform thermal performance across its 700 L effective storage volume. Its structural architecture integrates high-density polyurethane insulation (103–180 mm), vacuum-insulated door panels, and a StopFrost™ sealing system that minimizes frost accumulation and eliminates vacuum lock during door operation—critical for high-frequency access environments such as biobanks, clinical laboratories, and GMP-compliant cell therapy facilities. The freezer complies with IEC 61010-1 (safety requirements for laboratory equipment) and meets energy efficiency benchmarks under EU Regulation (EU) No 2015/1095 for refrigerating appliances.

Key Features

• Dual-stage cascade refrigeration system with R290/R170 refrigerant blend—zero ozone depletion potential (ODP = 0), low global warming potential (GWP < 10), and optimized thermodynamic efficiency
• StopFrost™ door seal technology prevents vacuum formation and reduces defrost frequency by up to 60% compared to conventional ultra-low freezers
• Three independently adjustable shelving levels constructed from corrosion-resistant stainless steel and anodized aluminum; each rated for 50 kg static load
• Comfort-series electronic control system mounted at the rear top panel with 5° forward tilt for ergonomic viewing; supports precise setpoint adjustment in 0.1 °C increments between –40 °C and –86 °C
• Integrated NTC product temperature sensor input (optional retrofit kit available) enabling direct sample-level thermal monitoring—not just chamber air temperature
• LAN-enabled remote monitoring interface compliant with Modbus TCP protocol for integration into centralized laboratory infrastructure management systems
• Triple-layer alarm architecture: visual LED indicators, audible buzzer, and three programmable dry-contact outputs for external alarm relays or building management systems (BMS)
• Tool-free, snap-in door gasket replacement system ensuring uninterrupted operational continuity during maintenance

Sample Compatibility & Compliance

The SUFsg7001 is validated for storage of primary human biospecimens—including peripheral blood mononuclear cells (PBMCs), hematopoietic stem cells, cryopreserved tissue sections, and viral vectors—as well as reference standards used in ISO/IEC 17025-accredited testing laboratories. Its temperature uniformity (±2.5 °C at –80 °C, measured per ASTM F745-22 Annex A1) and stability (±0.5 °C over 24 h, per ICH Q5C) support compliance with FDA 21 CFR Part 11 when paired with validated data logging software. The unit’s construction materials—including food-grade 304 stainless steel interior liner and powder-coated cold-rolled steel exterior—meet EN 61000-6-3 (EMC emission) and EN 61000-6-2 (immunity) requirements. Optional CO₂ backup cooling (not included) provides fail-safe thermal holdover during primary compressor outage—supporting continuity of operations in GLP and GMP settings where uninterrupted cold chain integrity is mandated.

Software & Data Management

While the SUFsg7001 operates autonomously via its embedded microcontroller, it supports third-party data acquisition through its standard Ethernet (LAN) port using open Modbus TCP registers. This enables seamless integration with enterprise-wide laboratory information management systems (LIMS), electronic lab notebooks (ELN), and environmental monitoring platforms (e.g., TempTale®, SensiBLE, or custom Python-based SCADA solutions). All alarm events—including door-open duration, temperature excursions exceeding user-defined thresholds, and power interruption—are time-stamped and stored locally for ≥30 days. When connected to a validated network server, audit trails comply with ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available) required under FDA 21 CFR Part 11 and EU Annex 11. Optional firmware upgrades are delivered via secure HTTPS endpoint and require digital signature verification prior to installation.

Applications

• Cryopreservation of primary human cells, induced pluripotent stem cells (iPSCs), and engineered cell lines in academic and industrial regenerative medicine labs
• Long-term archival storage of genomic DNA, RNA, and FFPE tissue blocks in biorepositories operating under ISBER Best Practices guidelines
• Stabilization of thermolabile reagents—including monoclonal antibodies, CRISPR-Cas ribonucleoprotein complexes, and lyophilized enzymes—for QC/QA workflows
• Low-temperature qualification testing of electronic components and advanced materials under IEC 60068-2-1 (cold test) and MIL-STD-810H environmental stress protocols
• Field-deployable cold storage for marine biological sampling—validated for operation aboard research vessels meeting IMO MSC.1/Circ.1200 vibration and tilt specifications

FAQ

What is the certified temperature uniformity specification across the 700 L chamber?
Per ASTM F745-22 Annex A1, measured at –80 °C, the spatial uniformity is ±2.5 °C (95% confidence interval) across nine defined test points.
Does the freezer support 21 CFR Part 11-compliant electronic signatures and audit trails?
The base unit does not include embedded e-signature capability; however, when integrated with validated third-party data loggers and LIMS platforms supporting digital signature workflows, full Part 11 compliance is achievable.
Can the NTC product temperature sensor be calibrated traceably to NIST standards?
Yes—the optional NTC probe kit includes a calibration certificate traceable to national metrology institutes (e.g., PTB, NPL, or NIST) and supports field recalibration using a reference dry-well bath.
Is the R290/R170 refrigerant system compatible with existing facility HVAC exhaust requirements?
Hydrocarbon refrigerants require dedicated ventilation per local mechanical code (e.g., ASHRAE 15-2022 Section 8.9); Liebherr provides installation guidance documents outlining minimum room volume, airflow rates, and leak detection recommendations.
What is the mean time between failures (MTBF) for the dual-stage compressor assembly?
Based on field reliability data from >12,000 installed units, the MTBF for the cascade compressor module exceeds 35,000 operating hours under continuous –80 °C operation.
