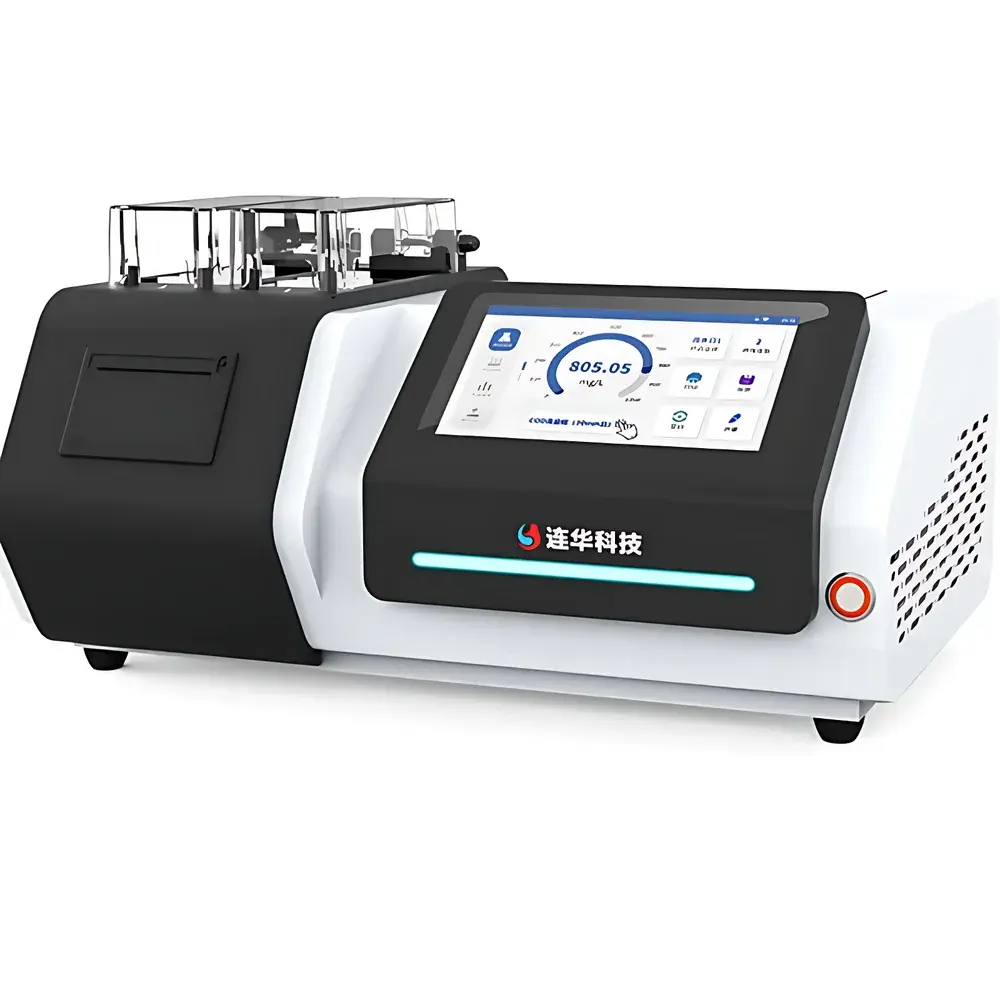

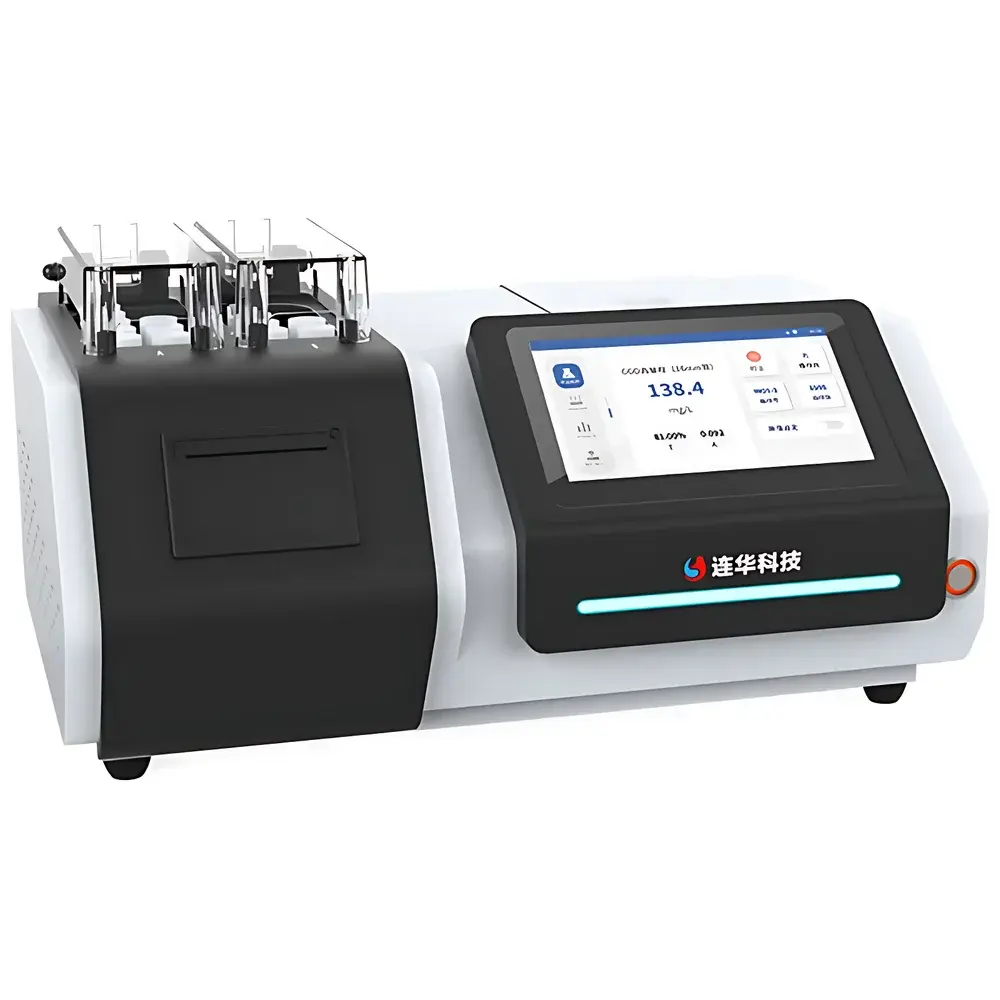

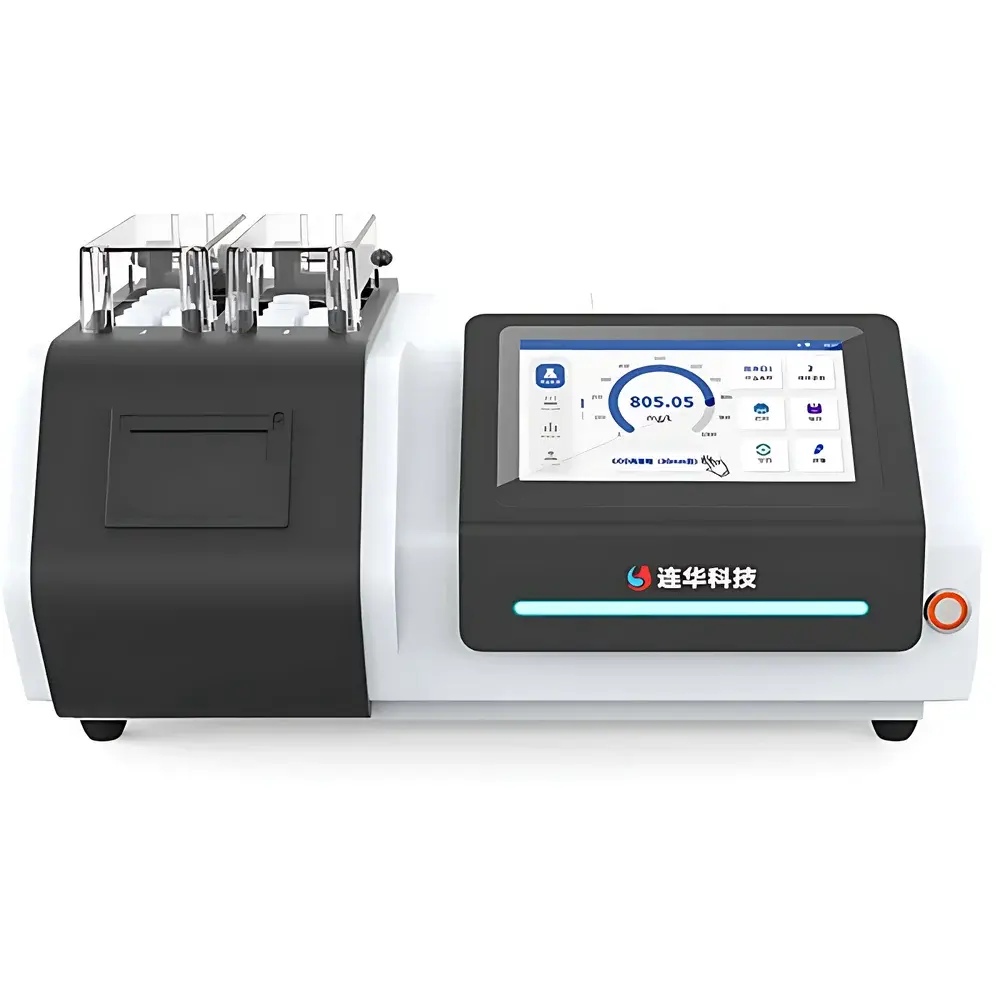

LoHua LH-C500 Multi-Parameter Water Quality Analyzer

Overview

The LoHua LH-C500 Multi-Parameter Water Quality Analyzer is a fully integrated laboratory instrument engineered for precise, standardized, and high-throughput analysis of critical water quality parameters in municipal, industrial, environmental monitoring, and research laboratories. Built upon a dual-function architecture—combining a programmable 20-position digestion unit with a spectrophotometric detection module—the LH-C500 eliminates inter-instrument variability by performing sample digestion and optical quantification within a single, thermally isolated platform. Its measurement principle relies on standardized colorimetric and photometric methodologies aligned with Chinese national and environmental protection standards (e.g., HJ/T 399–2007 for COD, HJ 535–2009 for ammonia nitrogen, and GB 11893–1989 for total phosphorus). The system employs fixed-wavelength visible-light LED sources (eight discrete channels) to ensure long-term photometric stability, reduced spectral drift, and minimal maintenance over extended operational lifecycles.

Key Features

• Dual-zone 20-position digestion block with independent thermal control across two 10-zone segments, supporting simultaneous or staggered heating protocols from 45 °C to 190 °C with ±0.5 °C accuracy.

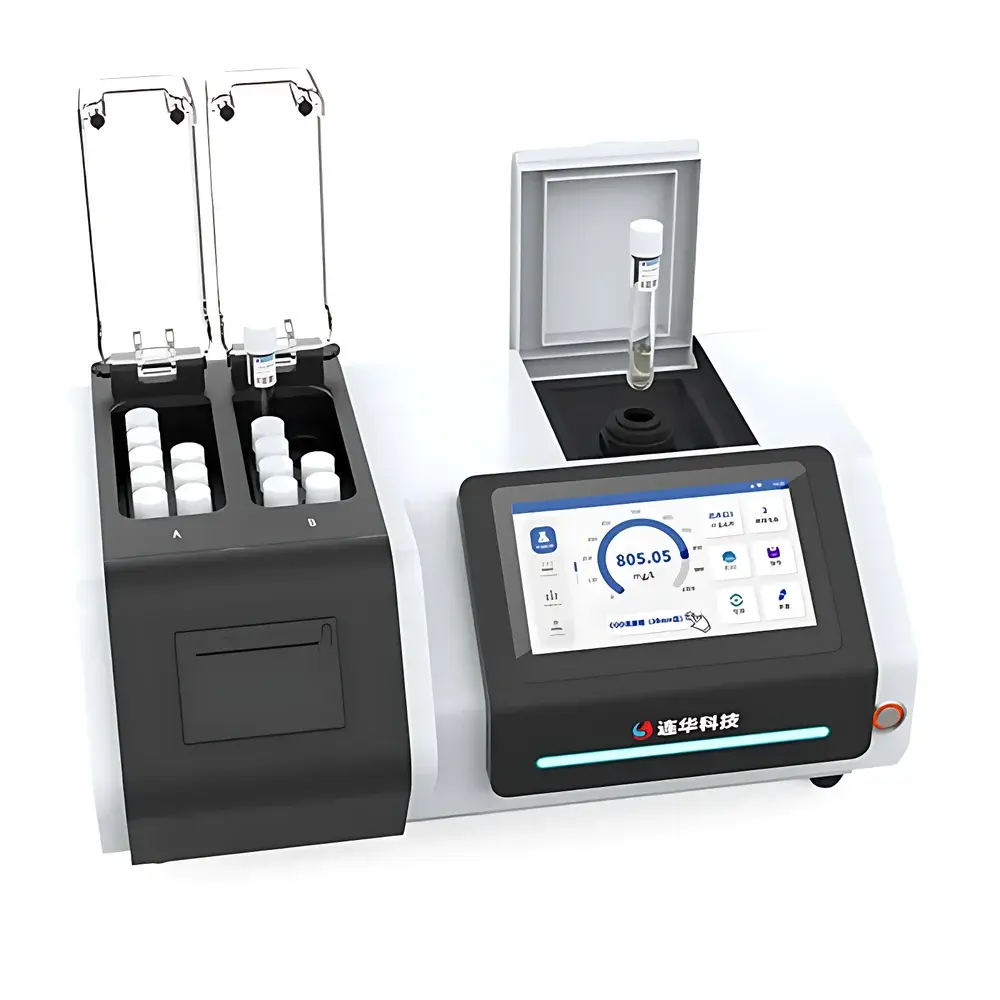

• Universal optical interface accommodating both tube-based (16 mm and 25 mm OD) and cuvette-based (10 mm and 30 mm pathlength) sample formats, including a motorized 360° rotational tube holder to mitigate meniscus-induced absorbance variance and improve repeatability (CV ≤ 1.2% for repeated COD measurements).
• 7-inch high-resolution IPS touchscreen (1024 × 600) with ambient-light adaptive brightness, programmable screen-saver and energy-saving modes compliant with IEC 62301 standby power requirements.
• LHOS—an Android-based embedded operating system—enabling secure Wi-Fi connectivity, remote firmware updates, GLP-compliant audit trails, and local data encryption at rest.
• State-aware LED status ring providing real-time visual feedback: solid green (standby), pulsing blue (digestion active), rapid amber blink (error condition), and slow cyan pulse (data transmission in progress).
• Preloaded with 38 standardized test methods and 960 validated calibration curves; supports single-point and multi-point calibration with automatic timestamped logging traceable to ISO/IEC 17025 documentation requirements.

Sample Compatibility & Compliance

The LH-C500 is validated for use with aqueous matrices including surface water, wastewater effluent, drinking water pre-treatment samples, and industrial process streams. It accommodates turbid and colored samples via integrated baseline correction algorithms and optional blank subtraction workflows. All default analytical protocols conform to the technical specifications and procedural rigor defined in HJ/T 399–2007 (COD), HJ 535–2009 (ammonia nitrogen), and GB 11893–1989 (total phosphorus), ensuring regulatory acceptability in China’s environmental inspection framework. While not CE-marked or FDA 510(k)-cleared, the instrument’s hardware design follows IEC 61010-1 safety principles for laboratory electrical equipment, and its software architecture supports audit trail generation required under GLP and internal QA/QC policies.

Software & Data Management

LHOS provides native support for structured data export in CSV and PDF formats, with metadata embedding (operator ID, timestamp, method ID, calibration history, and instrument serial number). Data filtering, trend visualization, and statistical summary (mean, SD, CV%, pass/fail flagging against preset limits) are performed locally without cloud dependency. Wi-Fi-enabled synchronization allows encrypted upload to networked LIMS environments or LoHua’s optional cloud dashboard—configured to meet ISO 27001-aligned access controls. All user actions—including method modification, calibration execution, and result deletion—are logged with immutable timestamps and operator credentials, satisfying basic 21 CFR Part 11 electronic record requirements when deployed with role-based authentication enabled.

Applications

• Regulatory compliance testing for municipal wastewater treatment plants (WWTPs) conducting routine COD, TN, and TP reporting under China’s “Water Pollution Prevention and Control Action Plan”.
• Industrial pretreatment verification in electroplating, pharmaceutical, and food processing facilities where heavy metal speciation (e.g., Cr⁶⁺, Ni²⁺, Cu²⁺) and organic load tracking are mandated.
• Environmental monitoring agencies performing field-lab hybrid workflows: on-site sample collection followed by centralized analysis using standardized digestion/detection sequences.
• University teaching laboratories requiring modular, safe, and repeatable experiments in analytical environmental chemistry—particularly for method validation, interference studies, and inter-laboratory comparison exercises.
• Third-party testing labs seeking cost-effective, low-maintenance platforms capable of running parallel assays across multiple regulatory parameters without cross-contamination risk.

FAQ

Does the LH-C500 support method validation per ISO 17025?
Yes—when operated with documented calibration records, traceable standards, and controlled environmental conditions, the LH-C500 meets the technical competence requirements for routine water quality testing under ISO/IEC 17025:2017 Clause 7.2 and 7.7.
Can custom calibration curves be exported and shared between instruments?
Yes—user-defined curves and test configurations can be saved as encrypted .lhc files and transferred via USB or Wi-Fi to other LH-C500 units running identical firmware versions.
Is third-party reagent compatibility supported?
The instrument accepts standard 16 mm and 25 mm digestion tubes and 10 mm/30 mm cuvettes; however, LoHua does not validate performance with non-OEM reagents, and warranty coverage excludes issues arising from unapproved chemistries.
What is the maximum number of samples that can be processed per hour?
Under optimized workflow (e.g., staggered digestion cycles + parallel cooling), the LH-C500 achieves up to 24 COD determinations per hour, or 36 ammonia nitrogen tests per hour, depending on selected digestion temperature and duration.
How is data integrity ensured during power interruption?
The LH-C500 features non-volatile memory for all calibration data and recent measurement results; digestion programs resume from last valid step upon power restoration, and unsaved results are retained in RAM-backed cache for ≥72 hours.
