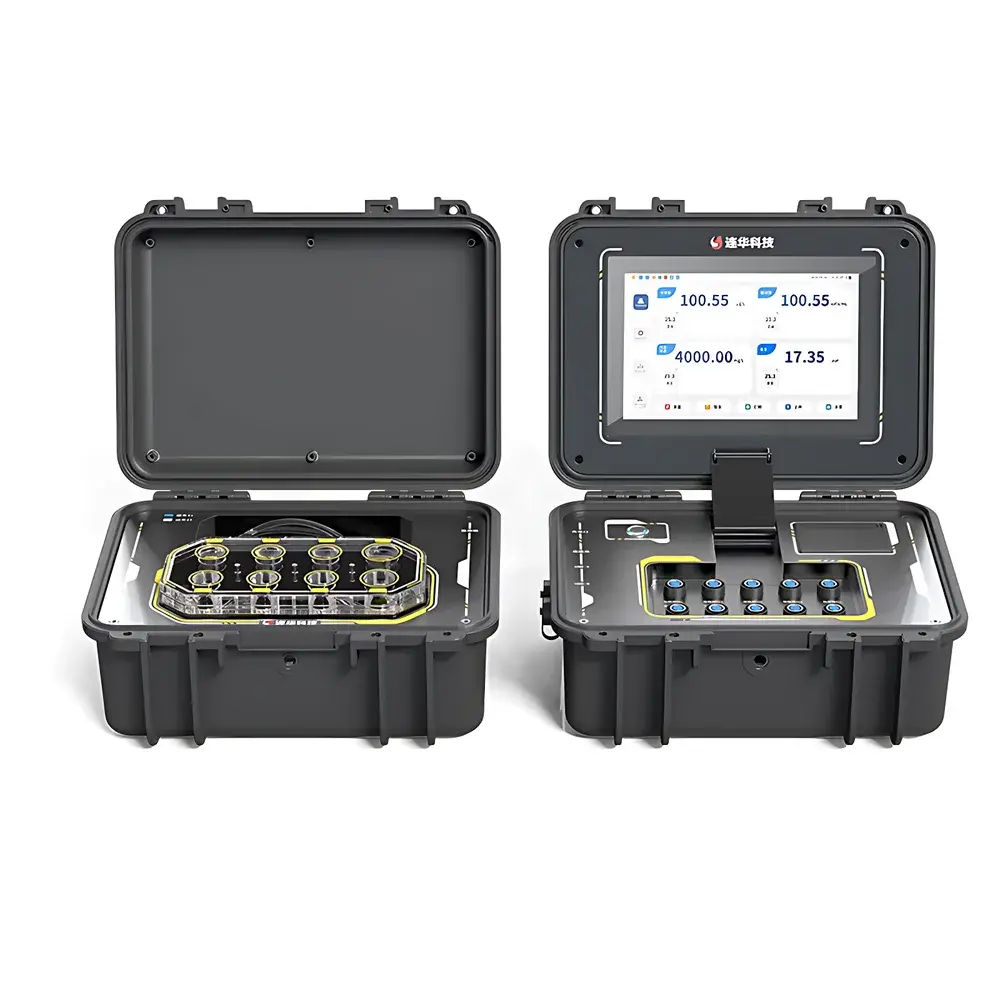

LoHua LH-E600 Multi-Parameter Water Quality Analyzer

Overview

The LoHua LH-E600 Multi-Parameter Water Quality Analyzer is an integrated, field-deployable analytical platform engineered for high-reliability in situ water characterization. It employs a hybrid sensing architecture: electrochemical transduction for pH, dissolved oxygen (DO), electrical conductivity (EC), salinity, TDS, and ORP; calibrated optical absorption for COD and ammonia nitrogen (NH₃-N); nephelometric detection for turbidity; fluorometric excitation-emission for chlorophyll-a and phycocyanin (as a proxy for cyanobacterial biomass); and multi-angle light scattering for suspended solids (SS) quantification. Designed to meet the operational demands of environmental monitoring programs, wastewater treatment facilities, aquaculture operations, and regulatory compliance sampling, the LH-E600 delivers simultaneous, real-time measurement of 12 critical water quality indicators—without requiring reagent addition for most parameters. Its modular architecture supports both handheld operation and fixed-site deployment via integrated flow cell and peristaltic pump, enabling representative sampling under dynamic flow conditions.

Key Features

• Digital electrode interface with automatic parameter recognition—eliminates manual configuration and reduces operator error.

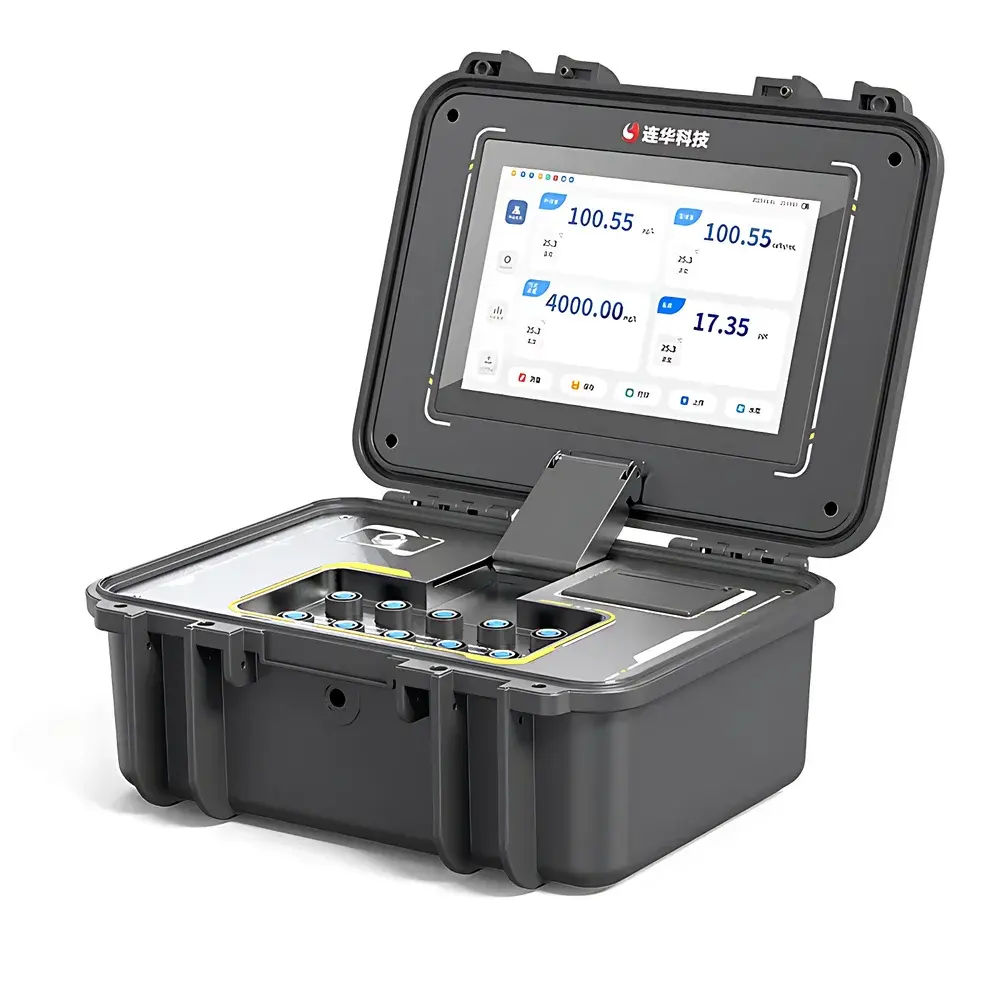

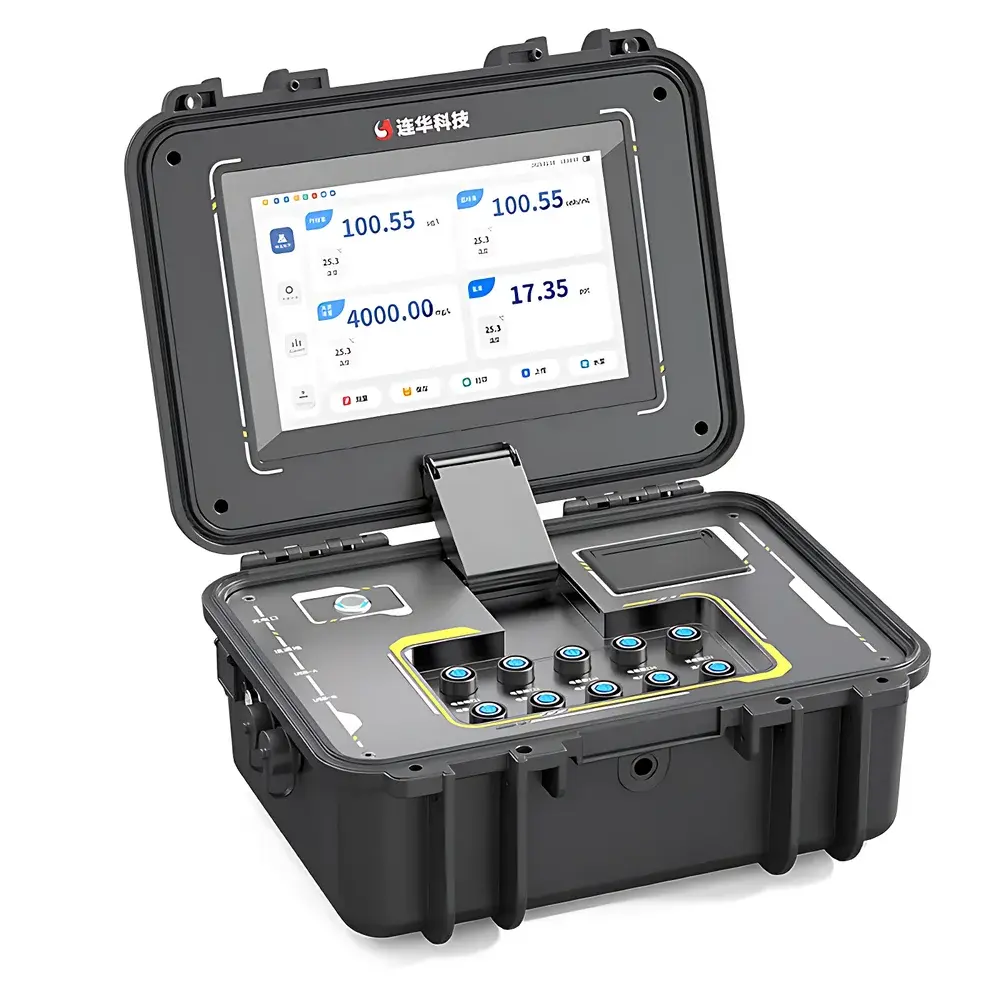

• 10-inch industrial-grade capacitive touchscreen embedded in the protective instrument case lid, supporting glove-compatible operation and IP65-rated front panel sealing.

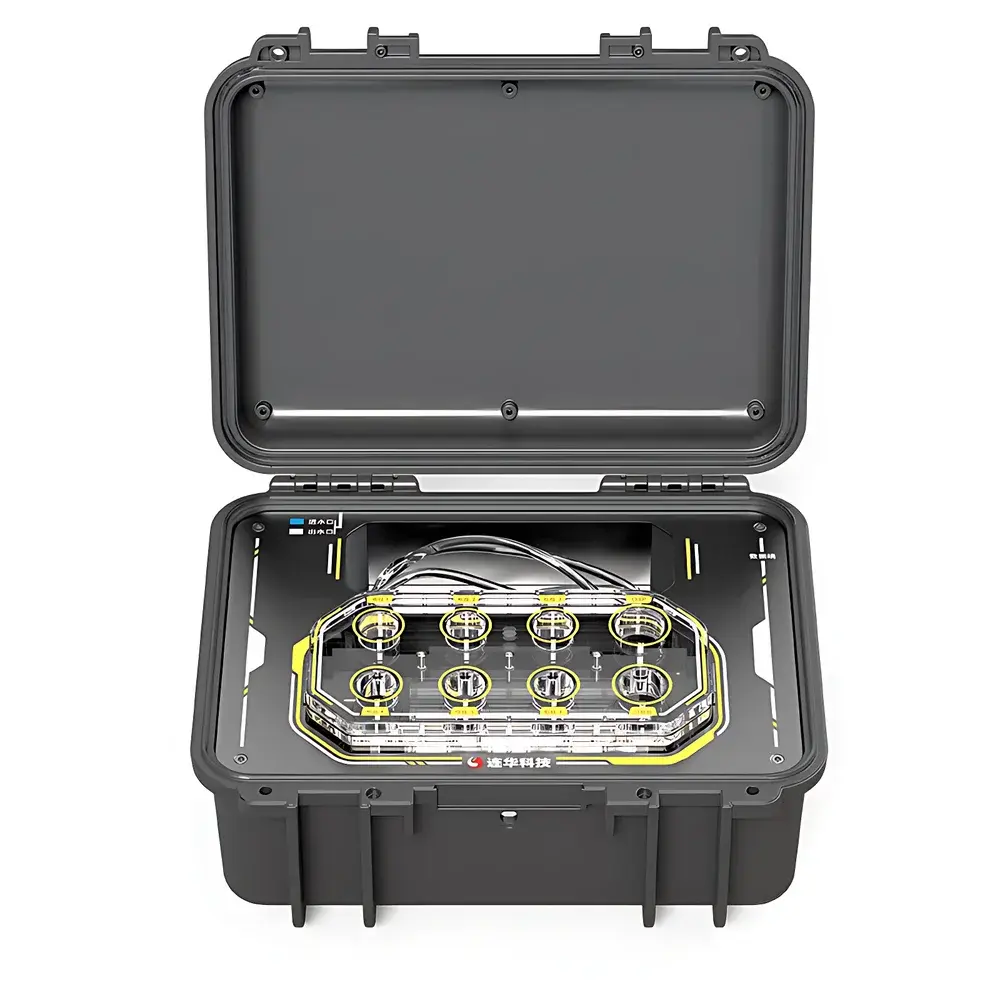

• Integrated flow-through cell with programmable peristaltic pump (0.1–10 mL/min flow rate range) and eight-electrode mounting bracket for synchronized, cross-calibrated multi-parameter acquisition.
• Intelligent temperature compensation across all electrochemical sensors using built-in Pt1000 thermistor array, ensuring traceable accuracy across 0–40 °C ambient and sample temperature ranges.
• Dual-power architecture: rechargeable lithium-ion battery (rated ≥12 h continuous operation at 25 °C) with seamless auto-switching to AC 220 V input—no interruption during charging or field use.
• Four configurable measurement modes: real-time continuous, timed endpoint, interval logging (user-defined from 1 s to 24 h), and online streaming—each supporting audit-trail timestamping and metadata tagging (location, operator ID, calibration status).
• Automatic electrode diagnostics including impedance monitoring, response time validation, and signal-to-noise ratio assessment—flagging sensor degradation prior to data drift.

Sample Compatibility & Compliance

The LH-E600 is validated for use with natural surface waters (rivers, lakes, reservoirs), municipal wastewater influent/effluent, aquaculture recirculation systems, drinking water distribution networks, and industrial process streams. All electrochemical sensors comply with ISO 7888 (conductivity), ISO 5814 (dissolved oxygen), and ASTM D1293 (pH). Optical modules adhere to ISO 7027 (turbidity), EPA Method 410.4 (COD), and APHA Standard Methods 4500-NH₃ F (ammonia nitrogen). Firmware and data handling protocols support GLP-compliant workflows, including electronic signature capability, user-level access control, and full audit trail generation per FDA 21 CFR Part 11 requirements when paired with LoHua’s certified LHSync software suite.

Software & Data Management

The LH-E600 runs LoHua Hydrological Operating System (LHOS) v3.2—a deterministic, real-time OS optimized for low-latency sensor fusion and secure local data persistence. Raw and processed measurements are stored in encrypted SQLite databases with per-parameter storage capacity of 22,720 records. Data export options include USB mass storage (CSV/Excel-compatible), thermal printer output (via integrated 58 mm thermal module), and wireless transmission via 4G LTE or RS-485 Modbus RTU. GNSS-derived geotags (GPS + BeiDou) are embedded in every record, enabling spatial-temporal correlation in GIS platforms. Optional 720p camera integration allows synchronized photo/video annotation with metadata overlay (timestamp, coordinates, measured values), supporting chain-of-custody documentation in regulatory submissions.

Applications

• Regulatory surface water monitoring under national water quality standards (e.g., China’s GB 3838-2002, EU WFD reporting requirements).
• Routine QA/QC in municipal wastewater treatment plants—tracking influent variability, aeration basin DO optimization, and effluent compliance verification.
• Aquaculture health management—continuous monitoring of DO, pH, NH₃-N, and algal density to prevent hypoxia or cyanobacterial bloom events.
• Industrial pretreatment verification—real-time screening of COD, TDS, and heavy metal surrogates (via ORP trends) prior to discharge.
• Field research in limnology and hydroecology—spatial mapping of nutrient gradients, phytoplankton dynamics, and sediment resuspension events.
• Educational laboratories—modular sensor training, method validation exercises, and student-led environmental impact assessments.

FAQ

Does the LH-E600 require daily calibration?
Calibration frequency depends on application stringency and matrix complexity. For routine field surveys, single-point calibration before each sampling session is sufficient for pH, DO, and EC. For regulatory reporting, two-point pH and multi-point DO calibration per ASTM D888 is recommended.
Can the instrument operate submerged or in heavy rain?
The main unit meets IP65 ingress protection rating; however, the flow cell and electrodes are rated IP68 for short-term submersion (up to 1 m for 30 min). Extended underwater deployment requires optional waterproof housing kits.
Is remote firmware update supported?
Yes—over-the-air (OTA) updates are delivered via LoHua’s secure LHSync Cloud portal using TLS 1.3 encryption and signed firmware packages verified via SHA-256 hash integrity checks.
How is data traceability ensured for audit purposes?
Each measurement includes immutable metadata: UTC timestamp, GNSS coordinates (±2 m CEP), sensor serial numbers, calibration timestamps, operator ID, and digital signature hash—fully compliant with ISO/IEC 17025 and GLP data integrity requirements.
Are replacement electrodes supplied with NIST-traceable calibration certificates?
All factory-calibrated electrodes ship with individual CoA (Certificate of Analysis) referencing NIST SRM 1692 (pH), NIST SRM 916 (DO), and LoHua’s ISO/IEC 17025-accredited calibration laboratory (CNAS L8247).
