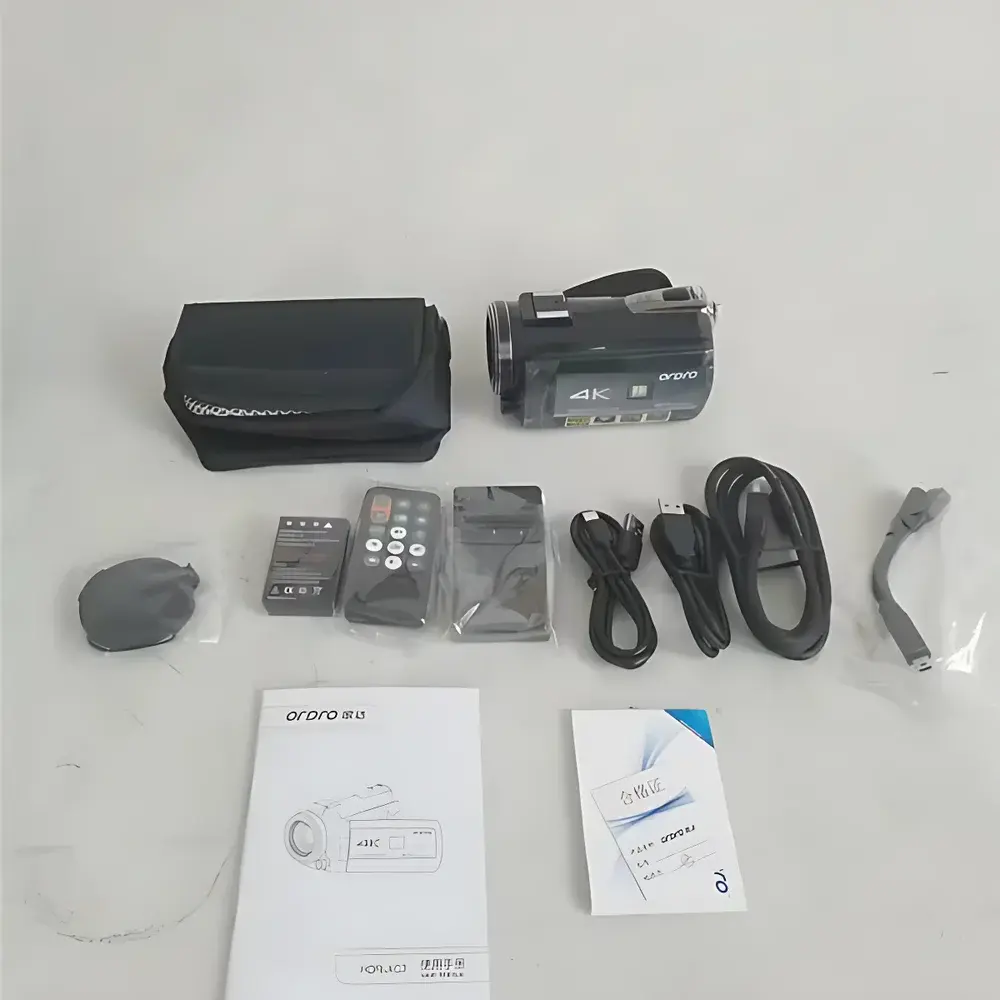

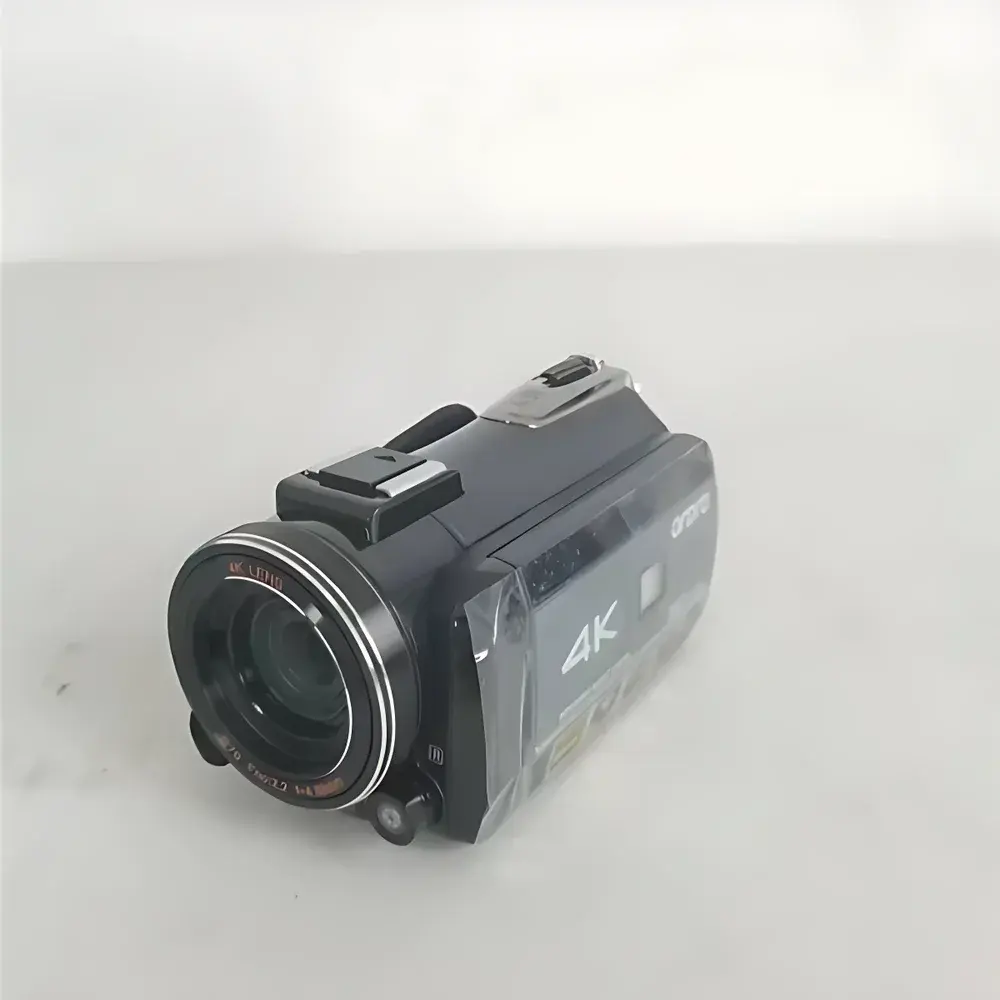

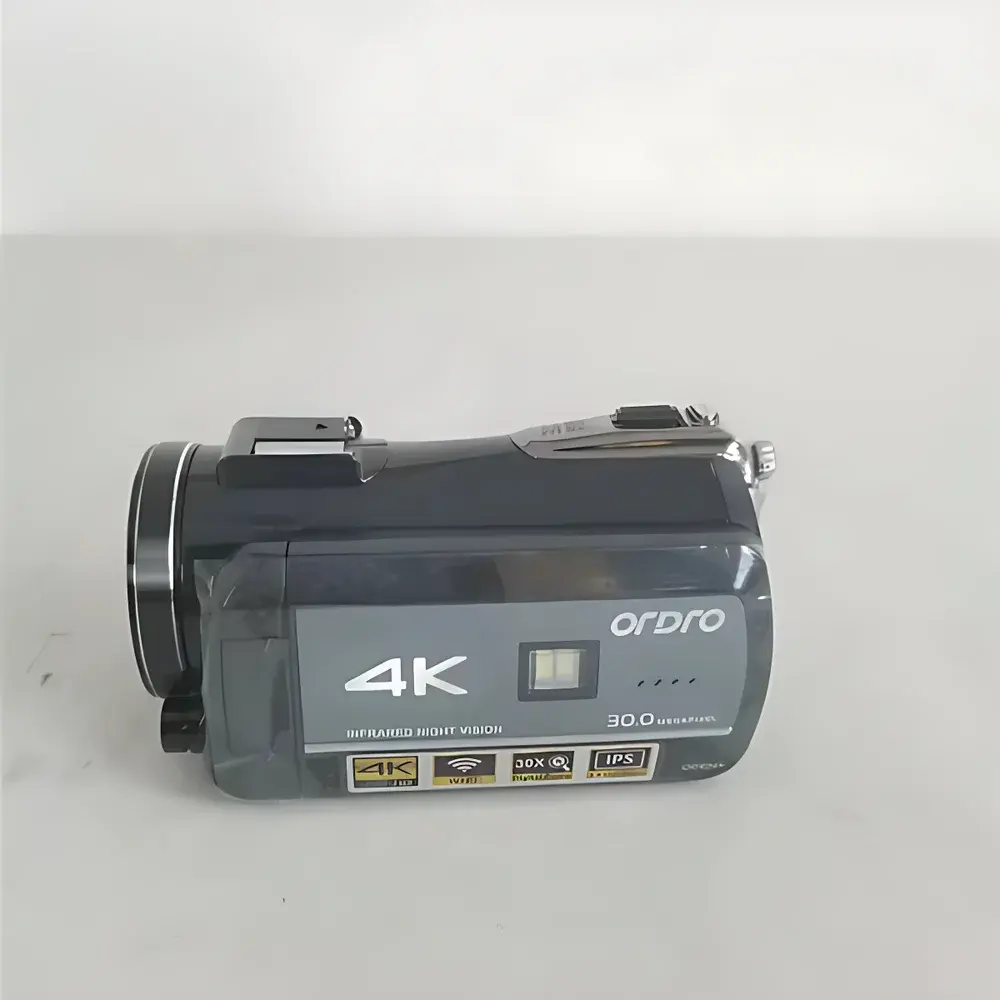

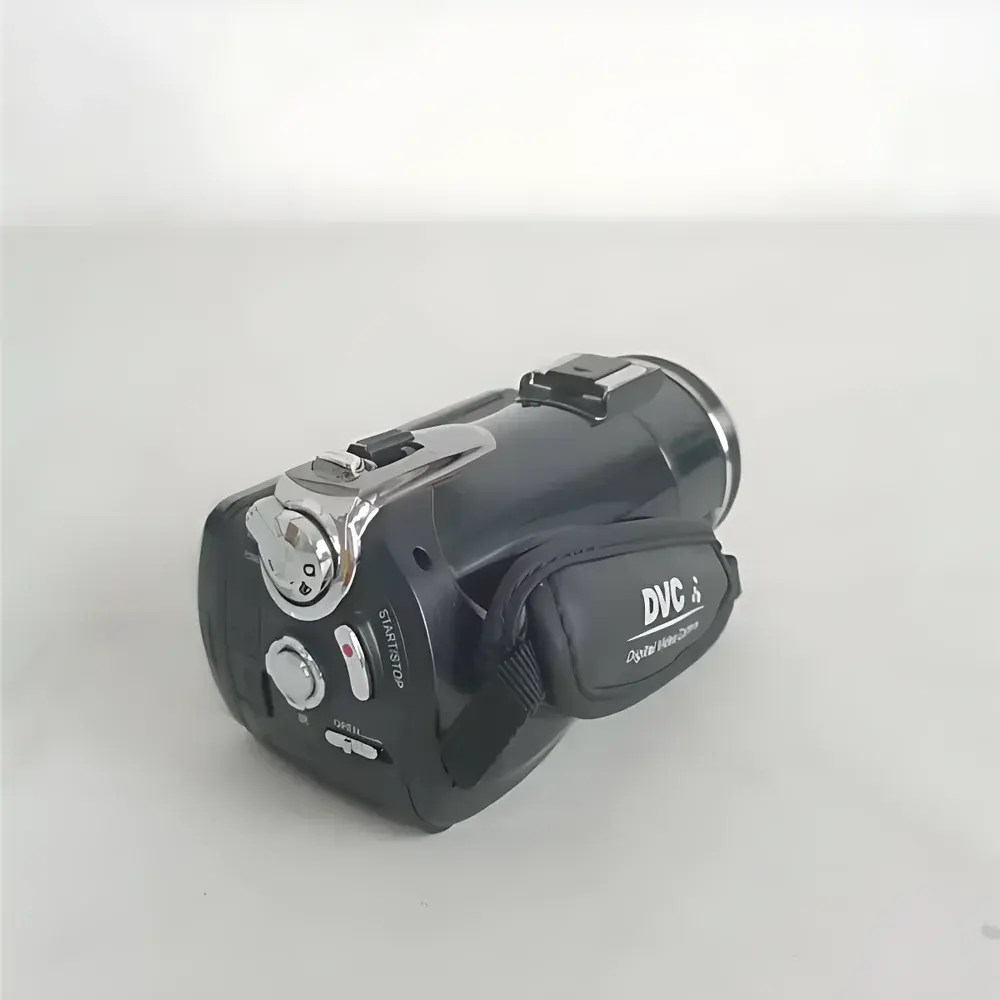

Loobo HDR-AC3 Environmental Enforcement Infrared Camera

Overview

The Loobo HDR-AC3 Environmental Enforcement Infrared Camera is a ruggedized, field-deployable imaging system engineered for regulatory compliance monitoring, ecological surveillance, and non-intrusive environmental inspection tasks. Designed specifically for use by environmental protection bureaus, ecological law enforcement teams, and third-party compliance auditors, the HDR-AC3 integrates high-resolution visible-light imaging with active infrared (IR) illumination to enable reliable day-and-night documentation under variable ambient lighting conditions—including low-light forests, industrial perimeters, wastewater discharge points, and illegal dumping sites. Its optical architecture employs a fixed-focal-length lens optimized for mid-range target acquisition (5–100 m typical operational range), while the Sony 13 MP back-illuminated CMOS sensor delivers high quantum efficiency (>75% at 850 nm) and low read noise (<2.1 e⁻ RMS), ensuring usable image data even in sub-lux illumination when paired with the integrated 850 nm IR array. Unlike thermal imaging systems, the HDR-AC3 operates on near-infrared reflectance principles—capturing reflected IR light rather than emitted thermal radiation—making it ideal for identifying human activity, vehicle movement, signage, and physical evidence without requiring cryogenic cooling or complex radiometric calibration.

Key Features

• 4K Ultra-High-Definition Video Capture (3840 × 2160 @ 30 fps) compliant with SMPTE ST 2067-21 for archival-grade documentation
• 30× Intelligent Digital Zoom with motion-compensated stabilization to maintain edge sharpness during pan-tilt-zoom sequences
• Dual-mode imaging: Auto-switching between daylight RGB mode and IR-illuminated monochrome night mode via hardware-triggered sensor gain adjustment

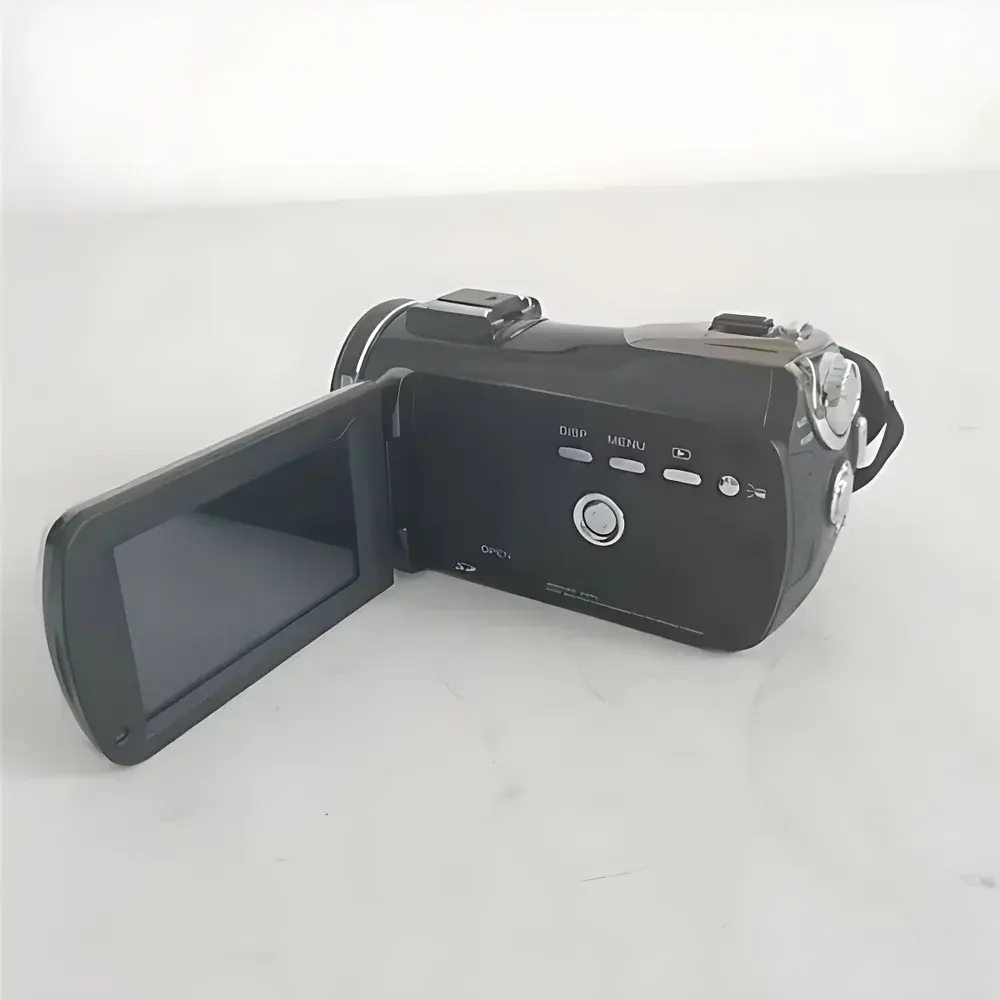

• 3.1″ 720 × 1280 IPS touchscreen with glove-compatible touch response and 180° mechanical rotation for overhead, ground-level, or tripod-mounted operation
• Embedded IEEE 802.11n Wi-Fi module supporting WPA2-PSK encryption; enables real-time preview, remote start/stop, metadata tagging, and encrypted video streaming to iOS/Android applications
• IP54-rated enclosure with reinforced polycarbonate housing and anti-corrosion coating suitable for outdoor deployment in humid, dusty, or mildly saline environments

Sample Compatibility & Compliance

The HDR-AC3 is intended for visual documentation of environmental compliance scenarios—not for quantitative spectral analysis or emission measurement. It supports evidentiary capture in accordance with China’s Administrative Measures for Evidence Collection in Ecological and Environmental Law Enforcement (MEP Order No. 32, 2021), including timestamped, GPS-geotagged video export with SHA-256 hash integrity verification. While not certified to IEC 61000-4 electromagnetic immunity standards, its power management circuitry meets GB/T 17626.2–6 (equivalent to EN 61000-4-2 to -6) for electrostatic discharge and surge resilience. Device firmware adheres to GB/T 25000.10–2020 (ISO/IEC 25010) software quality requirements for reliability and recoverability after unexpected shutdown.

Software & Data Management

The camera ships with Loobo EvidentLink™ Desktop Suite (v2.4+), a Windows-based application supporting forensic video annotation, frame-by-frame metadata logging (including IR activation status, zoom level, battery SOC, and ambient light intensity estimates), and batch export to NIST-compliant MOV/MP4 containers with embedded XMP sidecar files. Mobile applications (iOS v15+, Android 10+) provide secure TLS 1.2-encrypted pairing and support audit-trail generation per GB/T 22239–2019 (China’s Cybersecurity Level Protection Standard). All exported media include embedded EXIF tags compliant with ISO 12234-2 (JPEG XR) and preserve original sensor timestamps traceable to UTC via optional NTP synchronization over Wi-Fi.

Applications

• Unannounced inspections of effluent discharge outlets and stack emissions monitoring zones
• Documentation of illegal sand mining, deforestation, or wetland encroachment activities
• Perimeter surveillance of hazardous waste storage facilities during nighttime hours
• Supporting drone-assisted environmental surveys when mounted on stabilized gimbal platforms (via M12 mounting interface)
• Chain-of-custody video capture for administrative penalty proceedings under the P.R.C. Environmental Protection Law Article 24

FAQ

Does the HDR-AC3 comply with evidentiary admissibility requirements in Chinese administrative litigation?
Yes—when operated per Loobo’s documented chain-of-custody protocol (included in user manual Annex D), video exports meet the authentication criteria outlined in the Supreme People’s Court’s Provisions on Evidence in Administrative Litigation (2020).
Is IR illumination detectable by subjects at night?
The 850 nm wavelength emits faint red glow perceptible within ~5 m; for covert operations, external 940 nm IR illuminators (sold separately) may be used with manual sensor mode override.
Can video files be digitally signed to prevent tampering?
Yes—EvidentLink™ supports RSA-2048 digital signing of exported clips; signature validity persists across format conversion if hash verification is enabled.
What is the maximum microSD card capacity supported?
Up to 512 GB UHS-I Class 10 cards; exFAT formatting required for >32 GB volumes.
Is firmware upgradable in the field?
Yes—over-the-air updates via Wi-Fi or USB-C mass storage mode; all updates undergo cryptographic signature validation prior to installation.
