Loobo LB-7220 Beta-Ray Absorption Based Continuous Ambient Dust Monitoring System

Overview

The Loobo LB-7220 is a certified continuous ambient particulate matter (PM) monitoring system engineered for long-term, unattended operation in regulatory-grade environmental air quality networks. It employs the beta-ray absorption method—a gravimetrically traceable, reference-equivalent measurement principle endorsed by ISO 10473 and aligned with U.S. EPA Reference Method EQPM-0897-057 for PM₁₀ and PM_2.5. A calibrated ¹⁴C radioactive source emits high-energy beta particles; as sampled air passes through a precision-cut cyclone or impactor and deposits particulate mass onto a moving filter tape, attenuation of the beta beam is quantified via a solid-state scintillation detector. Mass concentration is calculated in real time using the Beer–Lambert law, corrected for sampling flow rate (16.7 L/min), elapsed sampling duration, and effective filter area—enabling direct traceability to SI mass units without reliance on optical proxies or empirical calibration curves.

Key Features

• Beta-ray absorption core with ¹⁴C source (half-life: 5730 years), ensuring stable emission energy and minimal source replacement frequency over instrument lifetime
• Integrated Dual-Stage Cutpoint Selection: configurable switching between PM_2.5, PM₁₀, and TSP measurement modes via interchangeable inertial impactors compliant with ISO 7708 and EN 12341
• Dual-Humidity Stabilization (DHS) system: actively controls filter tape temperature and relative humidity (0–99% RH) to minimize hygroscopic bias—critical for accurate PM mass quantification in variable climatic conditions
• Industrial-grade 7-inch capacitive touchscreen running embedded Android OS: supports local visualization, manual diagnostics, firmware updates, and multi-language UI (English default)

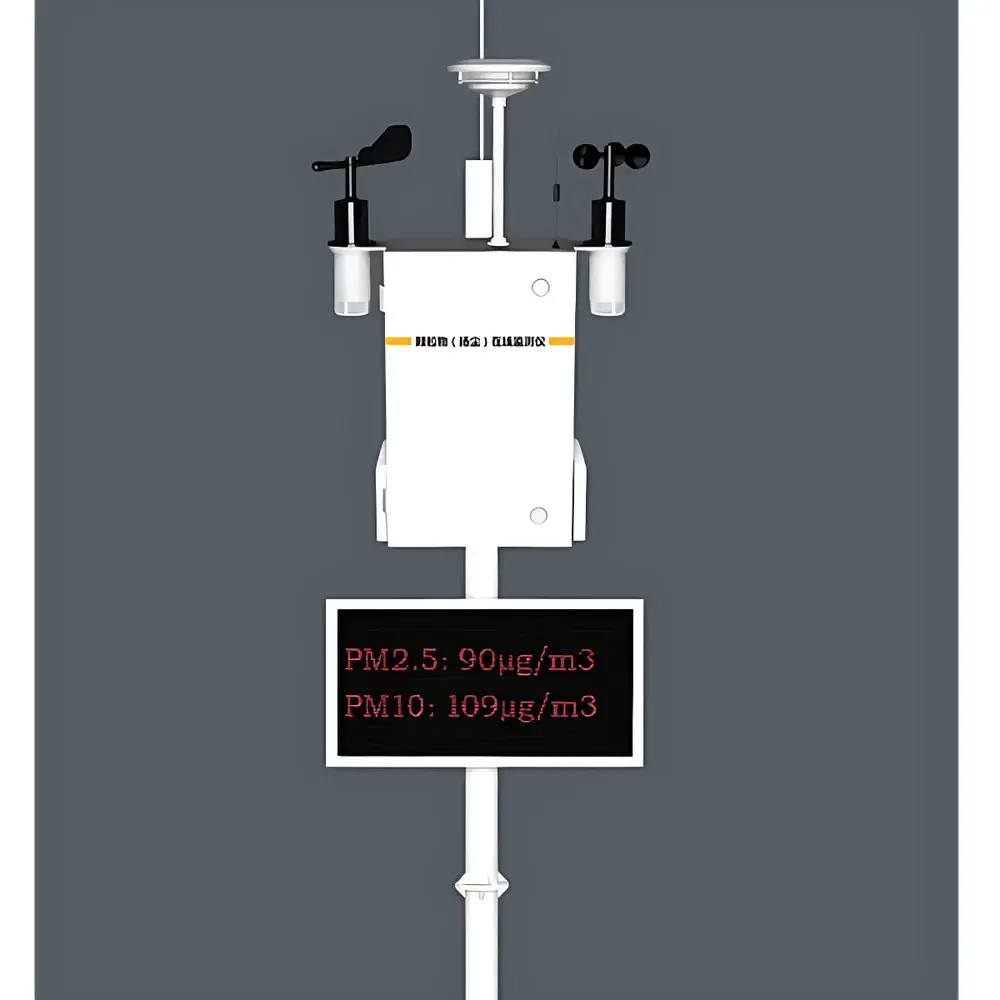

• Robust mechanical architecture: IP53-rated enclosure (305 × 245 × 389 mm), ≤25 kg net weight, compatible with wall-mount, pole-mount, and tripod configurations
• Onboard data logger with ≥1 year local storage capacity (non-volatile flash memory), supporting timestamped raw beta counts, flow logs, temperature/humidity telemetry, and diagnostic flags

Sample Compatibility & Compliance

The LB-7220 meets fundamental metrological requirements for ambient PM monitoring under international regulatory frameworks. Its beta-ray absorption methodology satisfies the performance criteria defined in ISO 20983:2017 (Ambient air—Measurement of mass concentration of suspended particulate matter) and serves as an equivalent method to EPA PM_2.5 FRM/FEM specifications when operated within stated range and environmental limits. The system accommodates standard 47-mm quartz or Teflon-coated glass fiber filter substrates, enabling post-sampling gravimetric validation per ISO 12103-1 and USP <788>. All electronic modules—including flow control, temperature stabilization, and analog-to-digital conversion—are designed to maintain ≤±20% field accuracy across the full PM_2.5 (1–1000 µg/m³) and PM₁₀ (1–10,000 µg/m³) dynamic ranges, with a documented detection limit of 1 µg/m³ (3σ). Internal self-check routines include automatic zero/span verification using certified attenuation foils, motorized tape advancement diagnostics, and pump pressure feedback calibration.

Software & Data Management

• Local data acquisition unit records second-level beta transmission counts, volumetric flow (corrected to standard temperature and pressure), ambient temperature, and RH at user-defined intervals (default: 1-minute averaging)
• 4G LTE Cat-1 cellular modem enables secure, bi-directional communication with central servers using TLS 1.2 encryption and configurable APN authentication
• Modbus TCP and MQTT v3.1.1 protocols supported for integration into SCADA, EMS, or third-party cloud platforms (e.g., AWS IoT Core, Azure IoT Hub)
• Firmware includes audit-trail logging per GLP principles: all parameter changes, calibration events, and error states are time-stamped and immutable
• Remote configuration interface allows OTA updates, alarm threshold adjustment, and diagnostic command execution without physical access

Applications

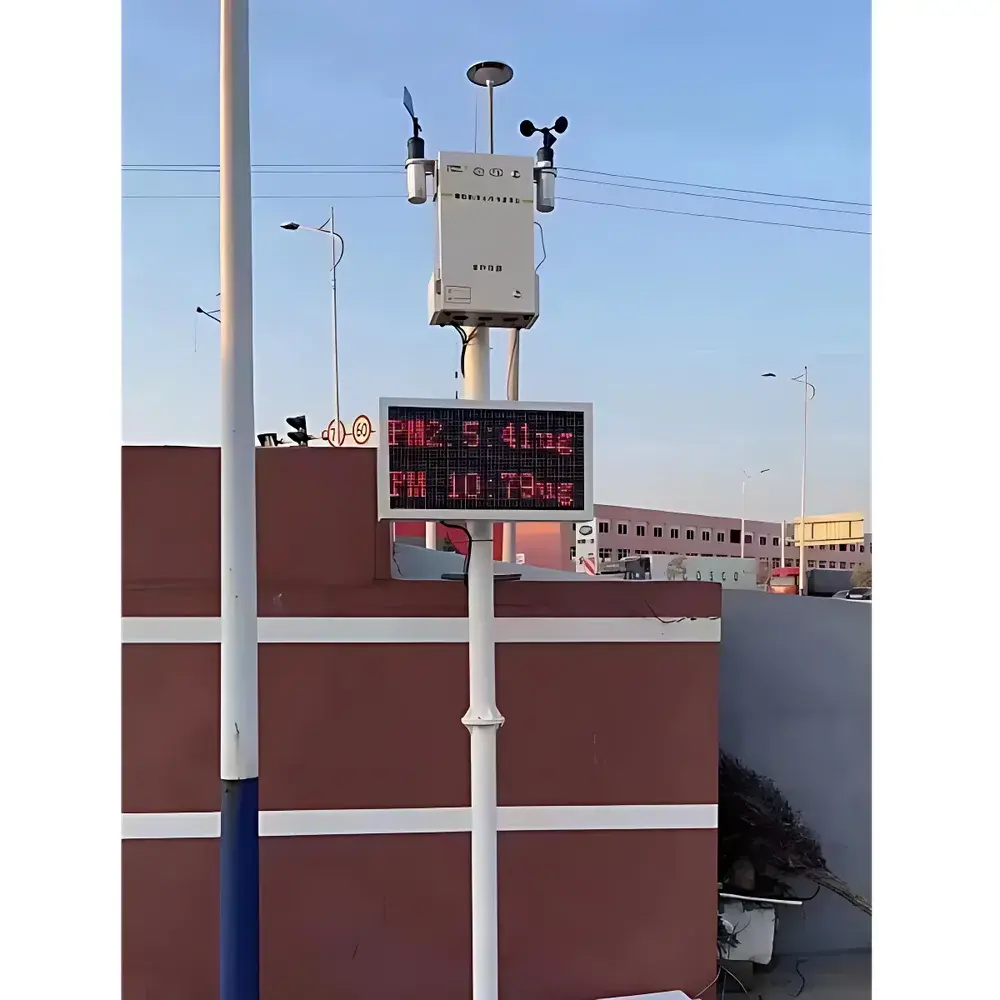

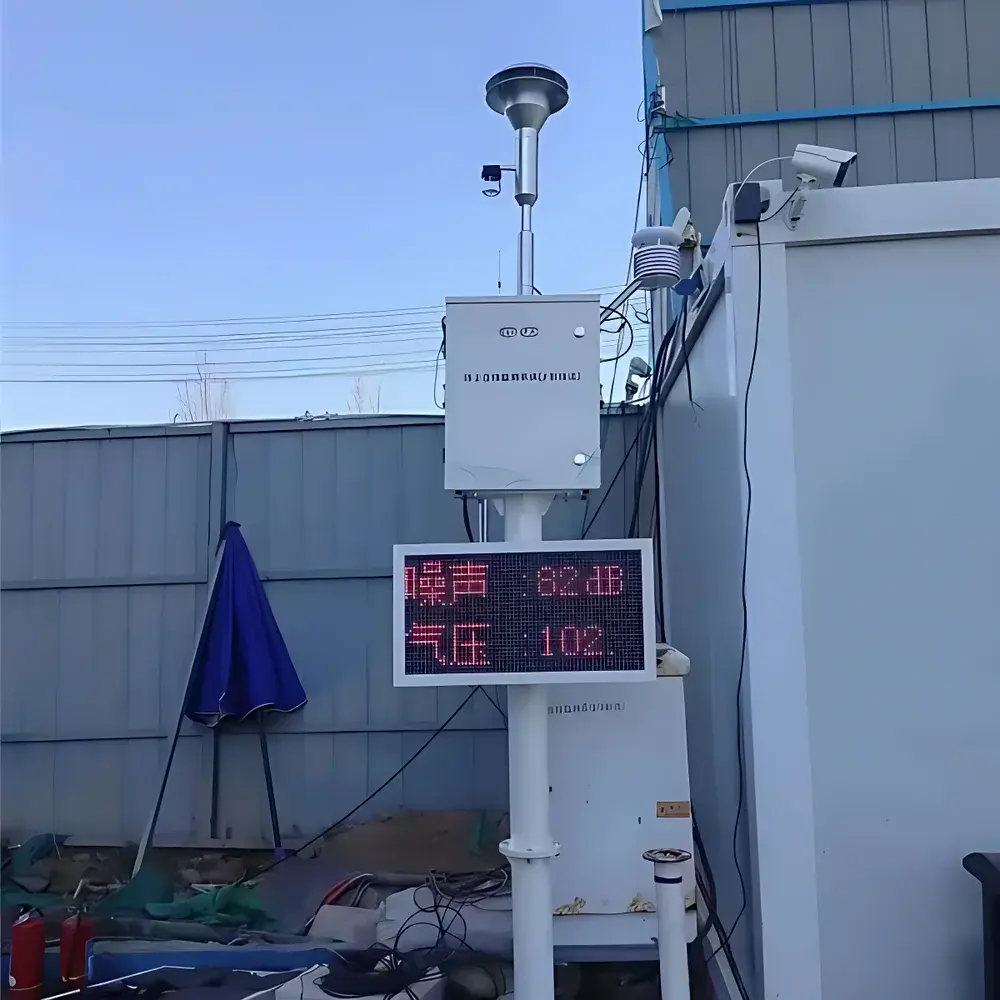

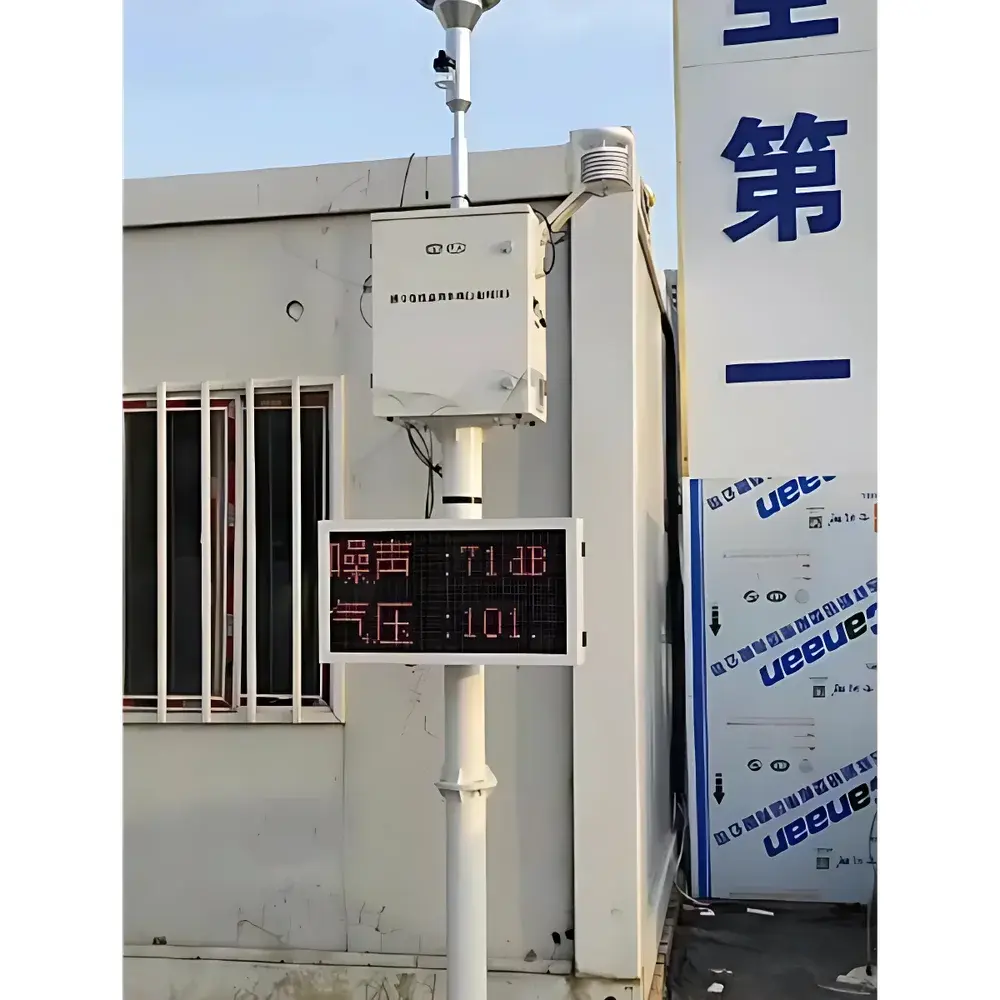

The LB-7220 is deployed in municipal air quality monitoring networks, construction site boundary compliance systems, industrial fence-line surveillance, and regional background stations requiring continuous, legally defensible PM data. Its low power consumption (≤190 W) and wide operating temperature range (−20 °C to +50 °C) support deployment in remote or off-grid locations when paired with solar-charged battery backup. Regulatory users leverage its DHS-controlled humidity compensation to reduce seasonal bias in coastal, humid, or arid environments—particularly where sulfate/nitrate aerosols dominate fine-mode composition. Research applications include source apportionment studies requiring co-located beta-absorption and optical scattering instruments, as well as long-term trend analysis aligned with WHO Air Quality Guidelines (AQG) and EU Directive 2008/50/EC.

FAQ

Is the ¹⁴C source licensed and transport-compliant?
Yes—the source is encapsulated in a double-walled stainless steel capsule meeting IAEA SSG-46 transport category II requirements and registered under national radiation safety authority guidelines. Installation requires site-specific licensing per local nuclear regulatory body.

Does the system support dual independent PM measurements simultaneously?
No—PM_2.5, PM₁₀, and TSP are measured sequentially using a single filter tape path and selectable impactor; simultaneous dual-channel operation is not implemented.

What maintenance intervals are recommended for field operation?
Filter tape replacement every 30 days (standard), impactor cleaning weekly, and annual source activity verification and flow calibration per ISO/IEC 17025-accredited service provider.

Can raw beta-count data be exported for secondary analysis?
Yes—binary or CSV-formatted raw transmission count files, including associated metadata (flow, temperature, timestamp), are accessible via USB or FTP export.

Is the instrument suitable for indoor or occupational exposure monitoring?
No—it is designed exclusively for ambient outdoor air measurement per ISO 12103-1 Class A particle generation standards; it does not meet NIOSH or OSHA criteria for personal or workplace exposure assessment.
