Loobo LB-FHB08 Environmental Field Protection Kit (Compliant with MEP Standard 2020)

Overview

The Loobo LB-FHB08 Environmental Field Protection Kit is an integrated, standards-aligned personal protective equipment (PPE) deployment system engineered for frontline environmental inspectors, ecological monitoring personnel, emergency response teams, and hazardous site investigators. Designed in strict accordance with the Ministry of Ecology and Environment (MEP) of the People’s Republic of China’s *Guidelines for Standardization of Comprehensive Ecological and Environmental Protection Law Enforcement Equipment (Standard Configuration, 2020 Edition)*, the LB-FHB08 serves as a certified field-deployable platform—not a single device, but a validated, interoperable ecosystem of certified protective components. Its architecture follows ISO 13688:2013 (General requirements for protective clothing) and integrates accessories conforming to EN 166 (eye protection), EN 140 (respiratory half-masks), EN 374-5:2016 (chemical resistance), EN 14126:2003 (biological hazard protection), EN 1077 (helmets for alpine sports—adapted for impact/penetration resistance), and IEC 61526:2013 (radiation survey instruments). The kit enables rapid, auditable, and mission-tailored PPE assembly under variable exposure scenarios—including chemical spills, radiological incidents, biological contamination zones, and mixed-hazard field environments.

Key Features

• Modular slot-based internal layout ensures secure retention of all components during transport—even under high-vibration or off-road conditions—eliminating component migration and enabling one-handed access during urgent deployment.
• Anodized aerospace-grade aluminum perimeter frame provides structural rigidity, drop resistance up to 1.2 m (per MIL-STD-810G drop test methodology), and corrosion resistance in humid, saline, or chemically contaminated field settings.

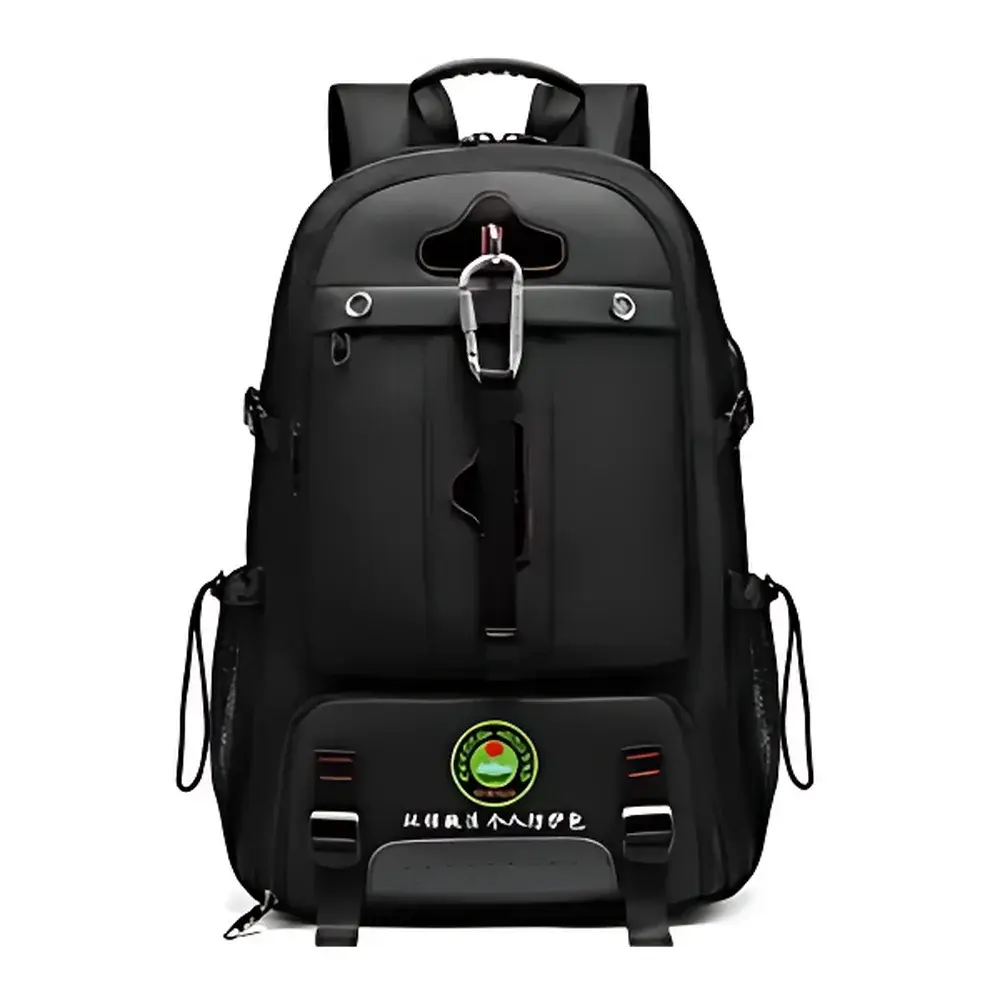

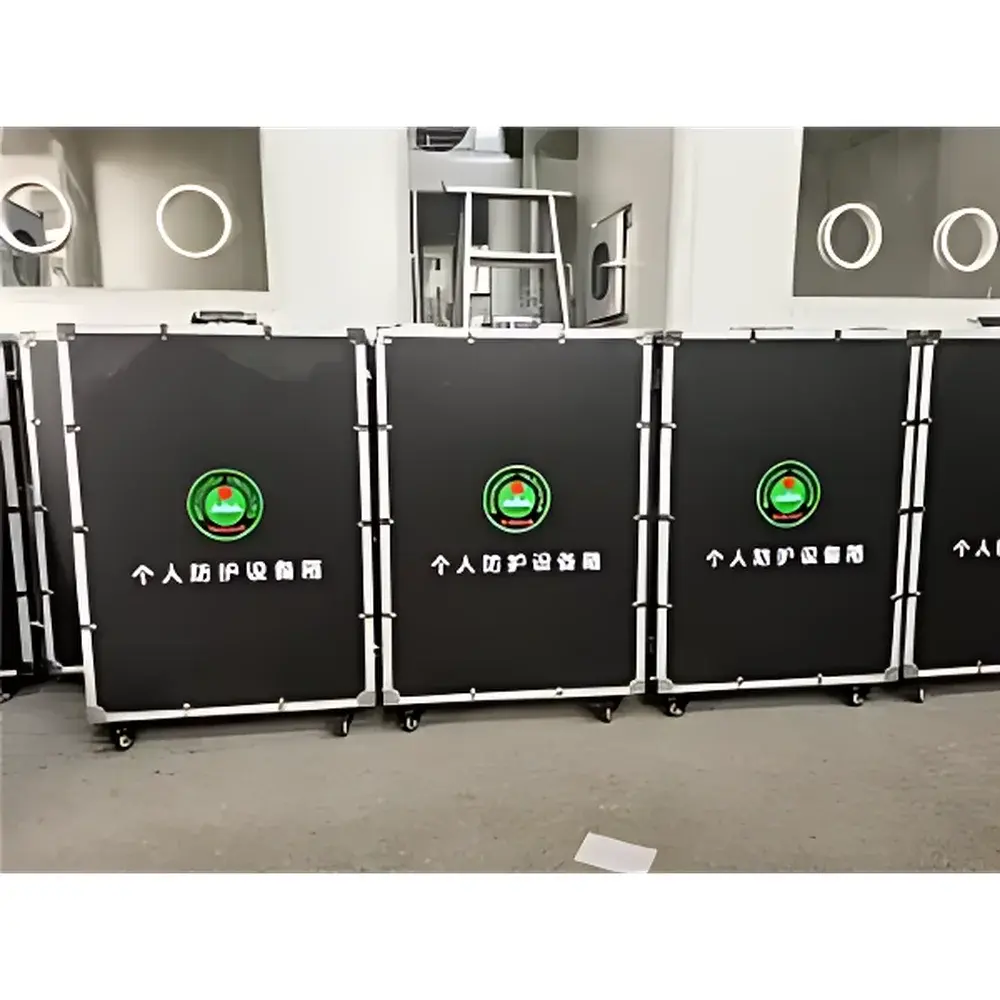

• Dual deployment form factors: a telescoping-handle trolley version with sealed ball-bearing wheels (suitable for paved or compacted terrain), and a load-distributed dual-shoulder backpack variant with ventilated lumbar support and MOLLE-compatible webbing for auxiliary tool attachment.
• Configurable inventory management: Each standard slot is labeled per MEP Annex B nomenclature; optional RFID-tagged component trays (available upon request) support GLP-compliant equipment tracking and audit-ready usage logs.
• All electrical components—including the radiation dosimeter and LED flashlight—meet IP67 ingress protection rating (IEC 60529), ensuring operational integrity after full immersion at 1 m depth for 30 minutes.

Sample Compatibility & Compliance

The LB-FHB08 does not perform analytical measurements itself; rather, it functions as a certified carrier and organizational platform for PPE items validated against internationally harmonized occupational safety standards. All included components undergo third-party certification: the chemical protective suit complies with EN 13034 (Type 6) and EN 14605 (Type 3/B), the respirator half-mask with EN 140 and filter cartridges meeting EN 14387 (A1B1E1K1-P3), and the radiation detection instrument calibrated per ISO 4037-3 for photon energy response (50 keV–1.5 MeV). The kit satisfies MEP’s requirement for “full-category coverage” across seven PPE classes: head, respiratory, ocular, hand/foot, body, fall arrest, and ionizing radiation protection—enabling seamless integration into GMP-aligned environmental sampling workflows and EPA-equivalent incident command protocols.

Software & Data Management

While the LB-FHB08 physical kit contains no embedded firmware or software, its design supports digital workflow integration. Optional companion Excel-based PPE Inventory Tracker (v2.1, provided as .xlsx with SHA-256 checksum) enables serialized logging of component expiration dates, calibration due dates (e.g., dosimeter annual verification), and usage frequency per inspector ID. For organizations operating under FDA 21 CFR Part 11 or EU Annex 11, the tracker supports electronic signature fields and audit trail export (CSV/JSON). Radiation dose data from the integrated dosimeter can be exported via micro-USB to compliant LIMS platforms using ASTM E2962-14 structured data format.

Applications

• Regulatory field inspections by provincial ecological environment bureaus conducting air/water/soil pollution source investigations.
• Rapid response to chemical release incidents—supporting NIOSH-recommended tiered PPE selection based on vapor pressure, dermal toxicity, and pH of suspected agents.
• Biological sampling in wastewater treatment plants or zoonotic outbreak zones, where EN 14126-certified gowns and splash-resistant goggles are mandatory.
• Radiological surveys near legacy nuclear facilities, medical isotope production sites, or scrap metal recycling yards—leveraging the 0.5 mm Pb-equivalent shielding garments and real-time dosimetry.
• Interagency joint operations involving fire services, public health units, and environmental enforcement—where standardized PPE interchangeability reduces cross-agency compatibility friction.

FAQ

Does the LB-FHB08 meet international export compliance requirements (e.g., CE, UKCA)?
The individual PPE components carry relevant CE markings where applicable (e.g., EN 14126 gowns, EN 140 respirators); however, the assembled kit itself is classified as a logistical system—not a CE-marked product. Export documentation includes full declarations of conformity per directive for each certified subcomponent.
Can the radiation dosimeter be calibrated traceable to national standards?
Yes—the included scintillation-based dosimeter is supplied with a factory calibration certificate traceable to CNIM (China National Institute of Metrology) and supports recalibration at ISO/IEC 17025-accredited laboratories.
Is customization of PPE content supported for non-MEP jurisdictions (e.g., US EPA or EU EEA protocols)?
Absolutely. Loobo offers configuration engineering services to align the LB-FHB08’s internal layout and component set with OSHA 1910.132, EU Directive 89/656/EEC, or ISO 28892:2011 field PPE deployment guidelines—subject to minimum order quantity and lead time validation.
What maintenance protocol is recommended for long-term storage?
Store in climate-controlled environments (15–25°C, RH ≤60%). Inspect elastomeric components (facepiece seals, glove cuffs) quarterly per ASTM F2052-20. Replace lithium-ion batteries every 24 months regardless of cycle count. Log all inspections in the provided PPE Maintenance Register template.
