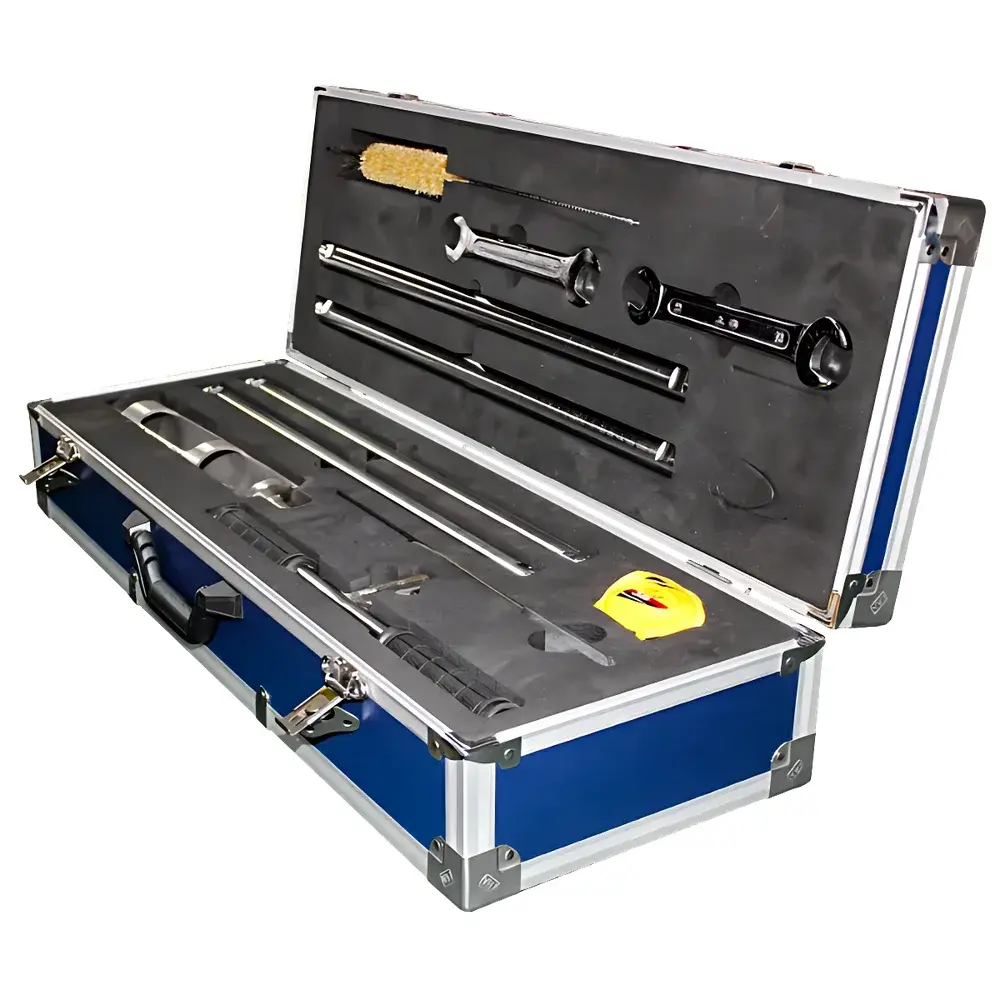

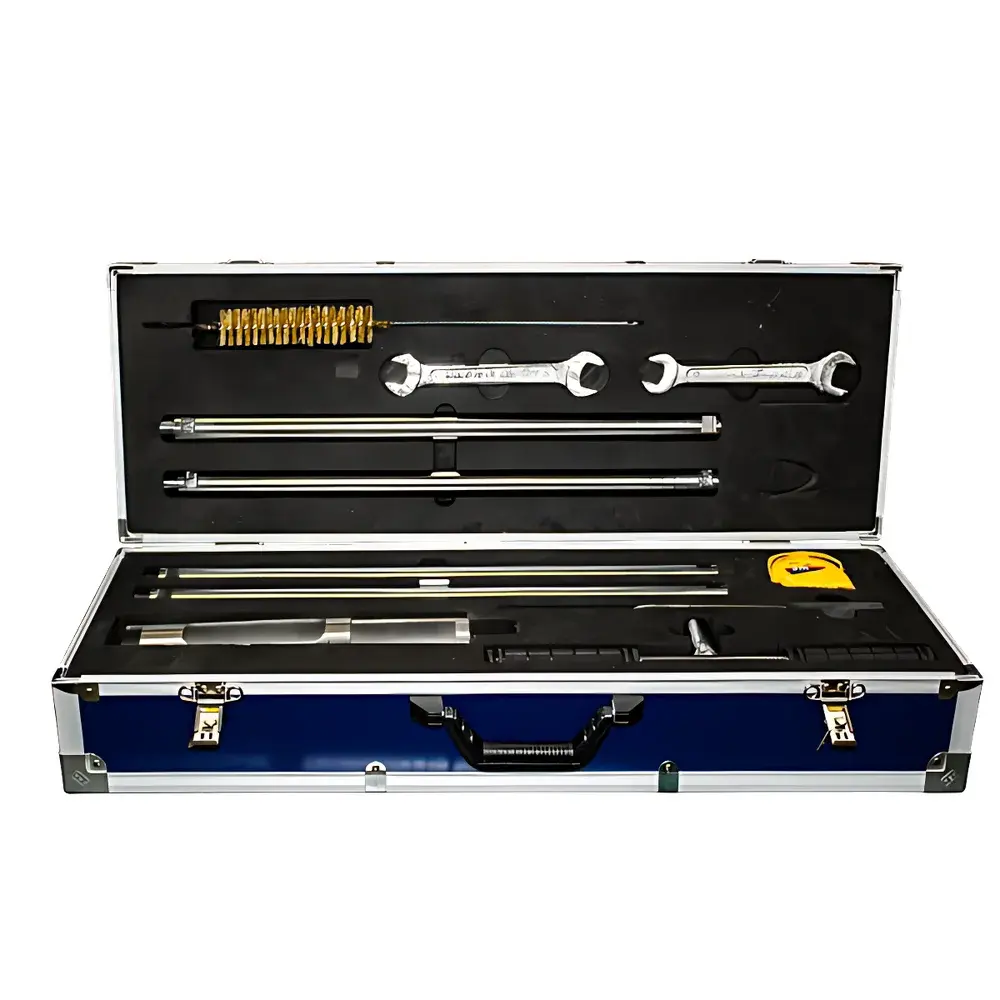

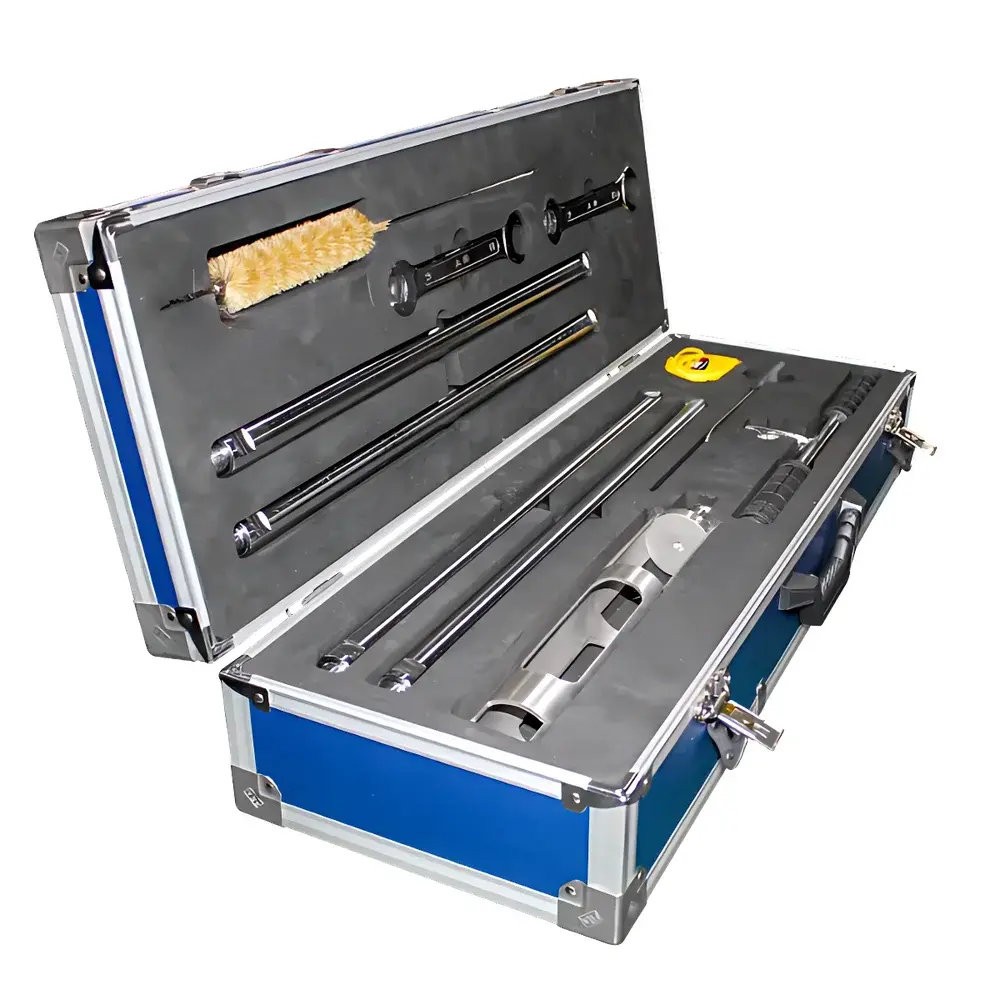

Loobo LB-TR008 Stainless Steel Manual Soil Sampler

Overview

The Loobo LB-TR008 is a manually operated, modular soil coring sampler engineered for consistent, contamination-free collection of undisturbed soil cores in field-based environmental monitoring, agricultural research, and geotechnical pre-survey applications. Its measurement principle relies on controlled rotational insertion combined with a precision-ground helical cutting edge to minimize soil disturbance during extraction—ensuring structural integrity of the core across texture classes ranging from loam and clay to moderately compacted silt. Constructed entirely from AISI 304 stainless steel, the LB-TR008 eliminates metallic leaching or surface oxidation that could compromise trace-element analysis, pH stability, or microbial viability in downstream laboratory assays. The device operates without power sources or consumables, making it suitable for remote deployments where portability, mechanical reliability, and regulatory traceability are critical.

Key Features

• Full-body AISI 304 stainless steel construction—resistant to corrosion, abrasion, and chemical interaction with acidic or saline soils.
• Helical cutting edge geometry optimized for low-torque penetration and high core retention; reduces sloughing and maintains stratigraphic layer fidelity.
• Modular threaded interface between sampling bit, extension tubes, and ergonomic T-handle—enables rapid reconfiguration for 1 m, 1.5 m, or 2 m total sampling depths.
• Integrated depth scale etched directly onto the extension tube surface at precise 100 mm intervals—supports reproducible horizon-specific sampling per ISO 28258 and USDA NRCS soil survey guidelines.
• Standardized 15–20 cm core length per insertion—compatible with common soil moisture sensor housings (e.g., 5TE, EC-5, GS3) for direct in-field sensor mounting as a support rod.
• Compact disassembled footprint (≤ Ø60 mm × 350 mm) and total mass of 5 kg—meets IATA Section II hand-carry specifications for air transport to international field sites.

Sample Compatibility & Compliance

The LB-TR008 is validated for use across mineral soils (USDA texture classes: sand to clay), organic-rich topsoils (up to 30% OM), and moderately structured subsoils (CBR ≤ 8). It is not intended for rocky, gravelly (>15% >2 mm fraction), or frozen matrices. All components comply with EU REACH Annex XVII restrictions on heavy metal migration and meet FDA 21 CFR 170–199 indirect food-contact material equivalency for agricultural soil testing workflows. Documentation includes full material certification (EN 10204 3.1), dimensional inspection reports, and corrosion resistance validation per ASTM A967 (passivation testing). Device design supports audit-ready GLP documentation when paired with standardized field logbooks referencing ISO/IEC 17025 clause 7.5.2 (sampling process control).

Software & Data Management

As a manual, non-electronic sampling tool, the LB-TR008 does not incorporate embedded sensors or digital interfaces. However, it integrates seamlessly into digital field data ecosystems: depth markings enable direct entry into LIMS-compatible mobile apps (e.g., ESRI Field Maps, Fulcrum, OpenDataKit) via barcode-scannable depth tags; core metadata (location, depth, time, operator ID) is structured to align with ISO 19115 geospatial metadata standards. Optional companion accessories—including calibrated depth-lock collars and NIST-traceable calibration rods—support metrological traceability for QA/QC programs requiring documented uncertainty budgets per ISO/IEC 17025 clause 6.4.1.

Applications

• Long-term ecological research (LTER) networks requiring repeatable, low-disturbance sampling across chronosequences.
• Regulatory compliance monitoring under EU Soil Thematic Strategy directives and U.S. EPA Region 10 RCRA corrective action protocols.
• Soil health assessment programs measuring bulk density, water retention curves, and aggregate stability using intact cores.
• Calibration and validation of in-situ soil moisture and salinity sensor networks—leveraging the sampler’s rigid, non-polar shaft as a stable mounting platform.
• Academic pedagogy in environmental science field methods—where durability, repairability, and transparency of mechanical function support experiential learning outcomes.

FAQ

Is the LB-TR008 compatible with standard soil moisture sensors?
Yes—the outer diameter and thread pitch of the extension tube conform to ISO 22196 and Decagon Devices’ mechanical interface specifications, enabling direct attachment of 5TE, EC-5, and GS3 probes without adapters.
Can it be used for contaminated site investigation?
Yes—AISI 304 stainless steel resists adsorption of hydrocarbons and heavy metals; decontamination follows ASTM D5088 protocols using 10% HNO₃ rinse followed by triple DI water flush.
Does it meet ISO 10381-1 requirements for representative sampling?
Yes—the fixed core volume (100 cm³ nominal), defined insertion torque range (<25 N·m), and depth-marking resolution (±5 mm) satisfy Clause 6.3.2 criteria for systematic sampling design.
What maintenance is required between uses?
Rinse with deionized water after each use; inspect threads for galling; apply food-grade mineral oil to threaded joints biannually to prevent seizing in high-humidity environments.
Is third-party calibration available?
Yes—accredited metrology labs provide depth-scale verification (NIST-traceable calipers) and torque-performance certification per ISO 6789-2, with certificates issued to ISO/IEC 17025 scope.
