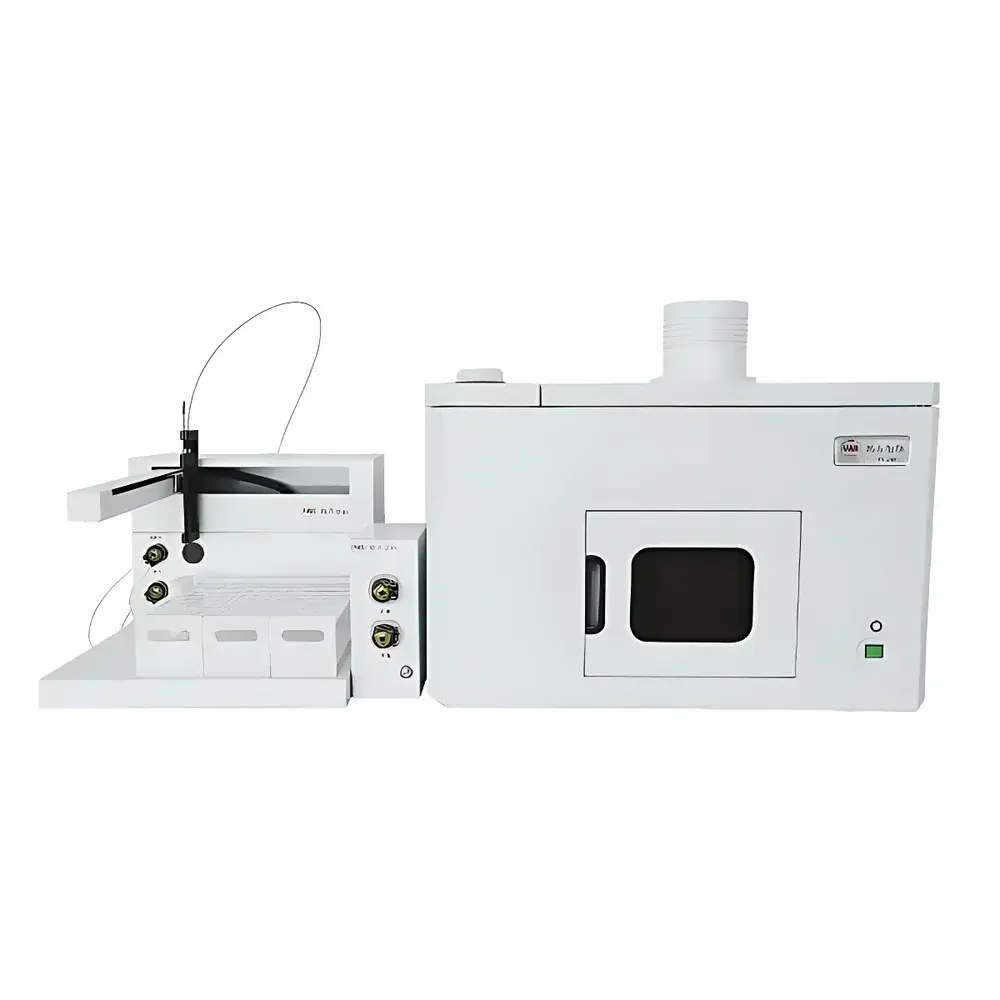

Louis LWL FL-100 Atomic Fluorescence Spectrometer

Overview

The Louis LWL FL-100 Atomic Fluorescence Spectrometer is a single-channel, hydride-generation-based analytical instrument engineered for trace-level quantification of hydride-forming and cold-vapor elements in environmental, food, agricultural, geological, and regulatory compliance laboratories. It operates on the principle of atomic fluorescence spectroscopy (AFS), where analyte atoms—generated in situ via chemical vapor generation (CVG) or hydride generation (HG)—are excited by a high-intensity, pulsed hollow cathode lamp (HCL) source, and their characteristic fluorescence emission is measured at right angles to the excitation path. The FL-100 implements fourth-generation AFS architecture, incorporating integrated hydrogen generation, real-time background correction via FPGA-based time-division multiplexing (TDM), and microsecond-scale pulsed excitation to enhance signal-to-noise ratio, photometric stability, and lamp longevity. Designed for routine high-throughput analysis, it supports unattended overnight operation with robust baseline stability and minimal maintenance requirements.

Key Features

• Fourth-generation AFS platform with integrated solid-state hydrogen generator—eliminates external gas cylinders and reduces reagent consumption by up to 40% versus conventional HG-AFS systems.
• Micro-precision peristaltic pump system with proprietary chemically resistant tubing—ensures long-term flow accuracy, eliminates pulsation-induced noise, and extends service intervals beyond 6,000 operational hours.
• High-duty-cycle, microsecond-pulsed HCL driver—delivers peak irradiance > 2× conventional DC lamps while suppressing thermal drift and extending lamp lifetime to ≥ 5,000 hours.
• FPGA-accelerated signal processing engine operating at 50 MHz sampling rate—enables real-time dual-beam correction for source intensity fluctuation and baseline drift.
• Patented monolithic two-stage gas–liquid separator—achieves > 99.8% separation efficiency with < 0.8% memory effect, critical for sub-pptr quantification of Hg and As in complex matrices.
• Optimized quartz-trap atomizer with shortened residence time (< 0.3 s) and low-surface-area geometry—minimizes carryover and improves peak shape reproducibility.
• High-reliability spark ignition system rated for ≥ 1 million ignitions—monitors flame status continuously and auto-relights within 150 ms upon extinction.
• Electronic Flow Controller (EFC)-regulated carrier and shielding gas delivery—maintains ±0.5% flow stability over 72 h, ensuring consistent atomization efficiency and inter-day precision.

Sample Compatibility & Compliance

The FL-100 is validated for direct analysis of aqueous digests and extracts following standardized sample preparation protocols—including microwave-assisted acid digestion (EPA Method 3052, GB/T 6016–2020), alkaline leaching (EN 12457), and hydride-compatible matrix modifiers (e.g., thiourea/ascorbic acid for As speciation). It complies with over 18 national and industry standards, including GB/T 22105–2008 (soil Hg/As/Pb), HJ 694–2014 and HJ 702–2014 (water and solid waste), GB 5009.11–2024 and GB 5009.17–2021 (food total and speciated As/Hg), and HJ 1133–2020 (ambient PM-bound As/Se/Bi/Sb). Its measurement uncertainty profile meets ISO/IEC 17025:2017 requirements for accredited testing laboratories, and its audit trail functionality supports GLP/GMP-aligned data integrity under FDA 21 CFR Part 11 when paired with compliant LIMS integration.

Software & Data Management

The FL-100 runs on Windows-based AFS Control Suite v4.2—a modular application supporting method development, calibration curve fitting (linear, quadratic, weighted least squares), QC charting (Levey-Jennings, Shewhart), and automated report generation compliant with ISO 17025 Annex A. All raw spectra, integration parameters, and instrument logs are timestamped and digitally signed. Audit trail records include user ID, action type (e.g., “calibration performed”, “method modified”), timestamp, and IP address (when networked). Data export formats include CSV, PDF, and XML for seamless ingestion into laboratory information management systems (LIMS) or statistical platforms such as JMP or R.

Applications

• Environmental monitoring: Quantification of Hg, As, and Sb in surface water, groundwater, wastewater effluents, and soil extracts per EPA 1631E and China’s HJ series standards.
• Food safety testing: Routine screening of total As, inorganic As, total Hg, organic Hg, Se, and Sb in rice, seafood, infant formula, and dietary supplements per GB 5009 series.
• Geochemical surveying: Multi-element analysis of stream sediments and rock digests for exploration geochemistry (Au, Bi, Te, Ge).
• Pharmaceutical quality control: Residual catalyst metal screening (e.g., Pd, Pt) in active pharmaceutical ingredients (APIs) using cold-vapor adaptation.
• Regulatory compliance: Accredited testing for CNAS, CMA, and provincial CDC laboratories performing statutory monitoring under China’s MEE and NHC mandates.

FAQ

What hydride-forming elements can the FL-100 quantify with certified detection limits?
The FL-100 delivers validated detection limits per GB/T 22105–2008 and HJ 694–2014 for Hg (≤ 0.001 µg/L), As, Se, Sb, and Bi (≤ 0.01 µg/L each), with demonstrated linearity across 0.01–100 µg/L for all listed elements.
Is the instrument compatible with existing laboratory automation systems?
Yes—the FL-100 features RS-232, USB 2.0, and optional Ethernet interfaces, supporting ASTM E1384-compliant bidirectional communication with autosamplers (e.g., CETAC ASX-560) and LIMS via HL7 or ASTM E2500 protocols.
Does the system support speciation analysis (e.g., As(III) vs. As(V))?
While the FL-100 is a total-element quantifier, it integrates seamlessly with HPLC–AFS coupling modules (sold separately) for hyphenated speciation workflows compliant with GB/T 5750.6–2023 Annex F.
What maintenance intervals are recommended for routine operation?
Per manufacturer guidelines: pump tubing replacement every 3,000–4,000 runs; quartz atomizer cleaning weekly; HCL alignment verification monthly; full optical path calibration semiannually.
Can the FL-100 be used for mercury analysis in biological tissues?
Yes—when coupled with closed-vessel microwave digestion (e.g., Milestone ETHOS UP) and gold amalgamation preconcentration, the FL-100 achieves sub-ppt Hg detection in blood, hair, and liver homogenates per GB 5009.17–2021 Annex B.
