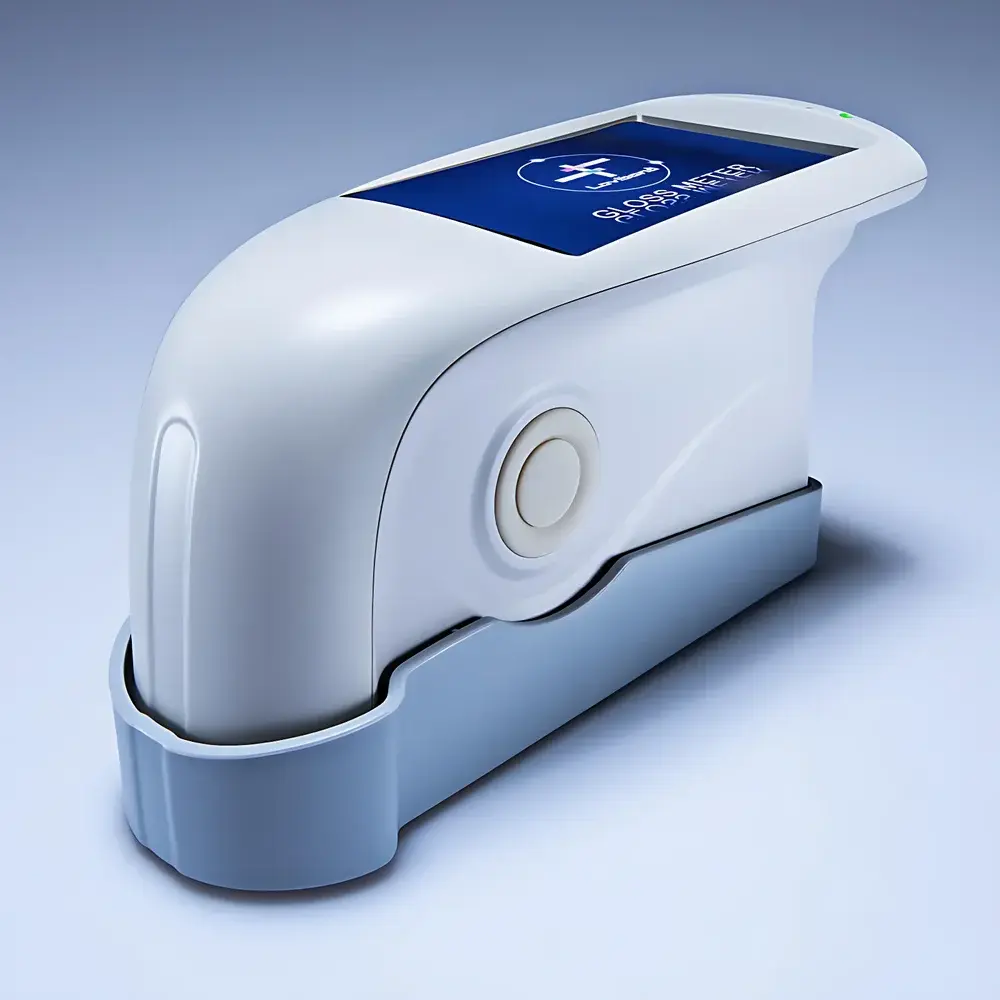

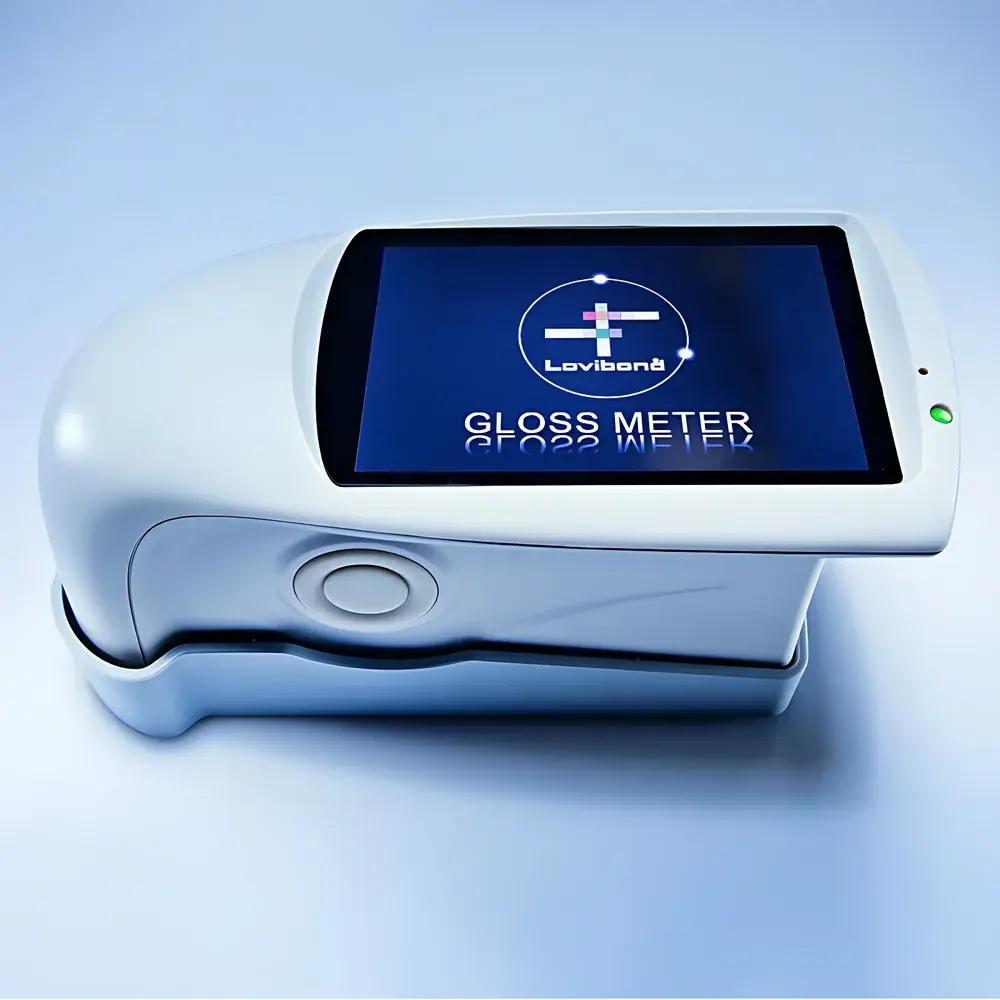

Lovibond TG60 Gloss Meter

Overview

The Lovibond TG60 Gloss Meter is a precision-engineered optical instrument designed for rapid, reliable, and repeatable measurement of specular gloss at the standard 60° geometry. Built upon the foundational principles of photometric reflectance analysis—where surface reflectance is quantified as the ratio of reflected luminous flux to incident luminous flux under controlled CIE Standard Illuminant C and 2° observer conditions—the TG60 delivers traceable, standards-aligned results essential for quality assurance in coatings, plastics, automotive finishes, printing, and architectural materials. Its compact ergonomic housing, optimized for one-handed operation, integrates a high-stability LED light source and calibrated silicon photodetector array to ensure consistent angular alignment and minimal thermal drift across environmental fluctuations. Unlike legacy analog glossmeters, the TG60 employs digital signal processing with real-time auto-zero compensation and ambient light rejection algorithms, enabling robust performance even in variable lighting environments typical of production floors or field inspection sites.

Key Features

• Ergonomic, contoured chassis with matte-finish polymer housing for slip-resistant handling and long-term durability in industrial settings.
• Capacitive 3.5-inch TFT touchscreen interface supporting intuitive navigation, on-device data review, and five-result side-by-side comparison display for immediate pass/fail assessment.
• High-speed measurement cycle completed in ≤0.5 seconds—optimized for inline sampling or high-throughput lab workflows without compromising metrological integrity.
• Internal calibration verification routine compliant with ISO 2813 Annex B; supports user-executed calibration checks using supplied reference gloss tiles (certified traceable to NPL/PTB standards).
• Integrated rechargeable 3200 mAh lithium-ion battery providing ≥10,000 measurements per full charge—validated under IEC 62133 safety requirements.
• Dual communication interfaces (USB 2.0 and RS-232) enable seamless integration with LIMS, MES, or SPC platforms while maintaining backward compatibility with legacy factory systems.

Sample Compatibility & Compliance

The TG60 is validated for use on non-metallic, uniformly diffusing, and moderately reflective surfaces—including solvent- and water-based paints, powder coatings, laminates, molded thermoplastics, and paperboard substrates. It excludes highly curved, textured, or metallic surfaces where directional reflectance deviates significantly from Lambertian assumptions. All measurement protocols adhere strictly to ISO 2813:2014 (Paints and varnishes — Determination of specular gloss), ASTM D523-14 (Standard Test Method for Specular Gloss), ASTM D2457-22 (Standard Test Method for Specular Gloss of Plastic Films and Solid Plastics), and GB/T 9754–2007 (Non-metallic substrate coatings). Instrument firmware and OnShade software support audit trails, electronic signatures, and metadata stamping (date/time/operator ID/sample ID) required for GLP and GMP-regulated environments per FDA 21 CFR Part 11 guidelines.

Software & Data Management

OnShade QC software provides comprehensive post-acquisition analysis, including statistical process control (SPC) charting (X-bar/R, Cp/Cpk), batch trending, deviation mapping, and automated report generation in PDF or CSV formats. Data export includes raw GU values, measurement timestamps, instrument serial number, calibration status, and environmental metadata (ambient temperature/humidity if logged externally). The software architecture enforces role-based access control (RBAC), configurable user permissions, and immutable record retention—ensuring compliance with ISO/IEC 17025:2017 clause 7.5.2 (Control of data and information management). All firmware updates are digitally signed and delivered via secure HTTPS channel to prevent unauthorized modification.

Applications

• Coating formulation validation and batch release testing in R&D laboratories.
• In-process gloss verification during spray application, roll coating, or UV-curing lines.
• Final inspection of OEM automotive trim components, consumer electronics housings, and appliance panels.
• Quality conformance audits for ISO 9001-certified suppliers in packaging and printing sectors.
• Third-party certification testing for CE marking, RoHS-compliant surface finish declarations, and sustainability reporting (e.g., VOC reduction correlation studies).

FAQ

What is the recommended calibration frequency for the TG60 in a regulated manufacturing environment?
Per ISO/IEC 17025 and internal SOPs, daily verification using certified reference tiles is advised; full recalibration by an accredited service provider is required every 12 months or after 10,000 measurements—whichever occurs first.
Can the TG60 measure gloss at angles other than 60°?
No. The TG60 is a single-angle instrument optimized exclusively for the 60° geometry per ISO 2813. For multi-angle analysis (e.g., 20°/60°/85°), the Lovibond TG268 or TG368 series is recommended.
Does the instrument meet FDA 21 CFR Part 11 requirements for electronic records?
Yes—when used with OnShade v4.2+ and configured with enabled audit trail, electronic signature, and data encryption modules, the system satisfies Part 11 criteria for closed systems.
Is the battery replaceable by the end user?
No. Battery replacement requires authorized service center intervention to maintain IP54 ingress protection rating and calibration integrity.
How does the TG60 handle measurements on slightly curved surfaces?
It accommodates gentle convex curvature (radius ≥50 mm) within specification limits; concave or sharply contoured geometries require custom fixturing or alternative instrumentation (e.g., micro-gloss probes).
