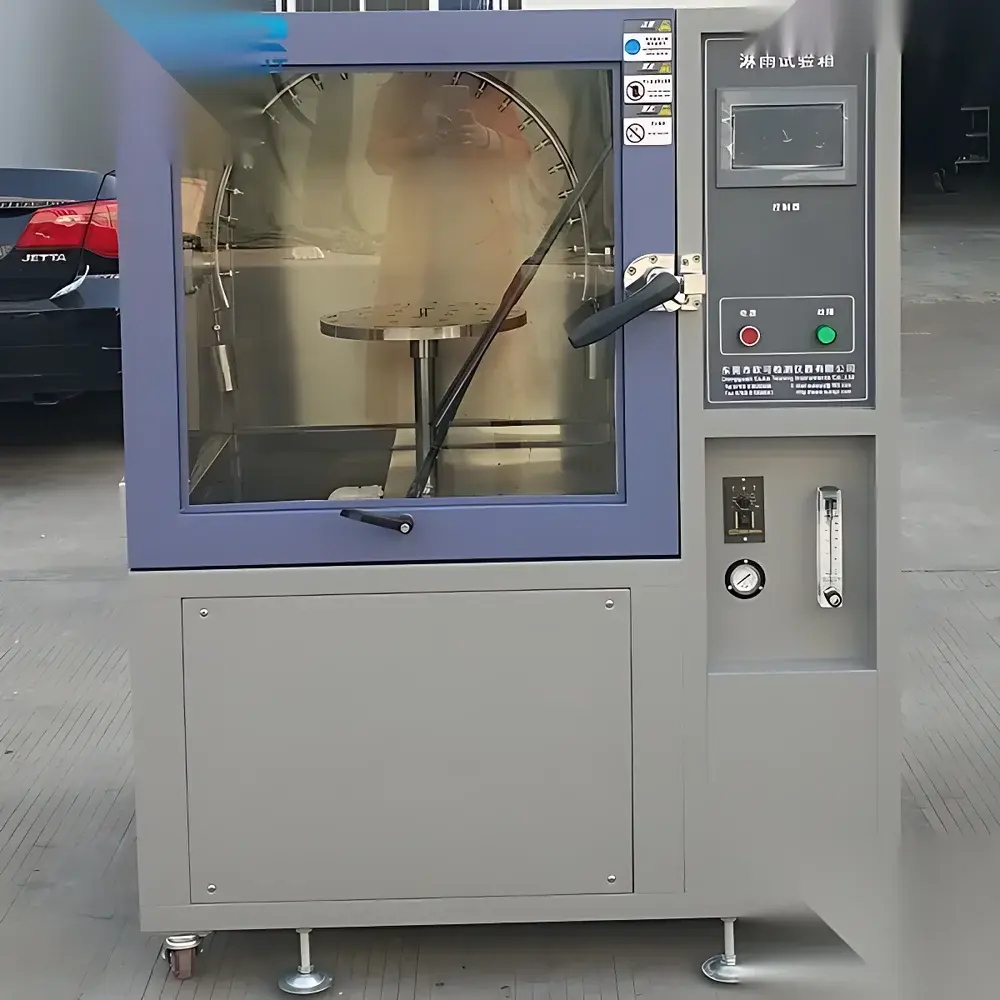

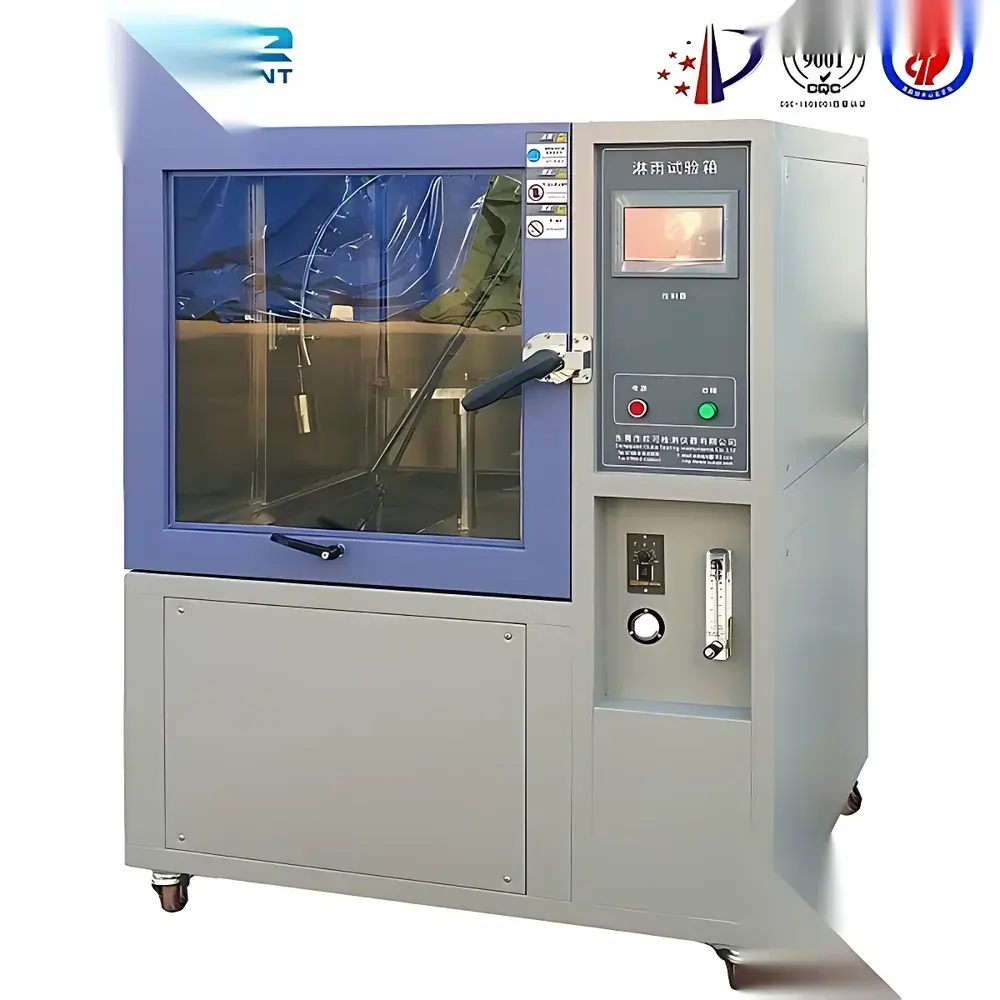

LS-1000 Benchtop Rain Test Chamber for IPX3/IPX4 Ingress Protection Evaluation

Overview

The LS-1000 Benchtop Rain Test Chamber is an engineered environmental simulation system designed to evaluate the ingress protection (IP) rating of enclosures—specifically conforming to IEC 60529 IPX3 and IPX4 test requirements. It replicates controlled, dynamic rainfall conditions by delivering calibrated water spray at defined pressure, flow rate, and angular distribution onto stationary or rotating test specimens. Unlike static drip chambers, this unit employs a motor-driven oscillating spray arm with precision-adjustable amplitude and speed, enabling reproducible exposure profiles across diverse product geometries. Its compact footprint and modular architecture make it suitable for QC laboratories, R&D centers, and certification testing facilities where space-constrained validation of outdoor-rated electronics, automotive lighting assemblies, aerospace avionics housings, and industrial control panels is required.

Key Features

• Full compliance with IEC 60529 clauses for IPX3 (oscillating shower) and IPX4 (splashing water from any direction) testing protocols.
• Stainless steel spray arm (SUS304) with 25 precisely drilled nozzles (0.4 mm diameter, 50 mm spacing) and 375 mm bending radius ensures uniform water distribution and long-term corrosion resistance.
• Variable oscillation control: adjustable swing angle (±45°, ±60°, ±90°) and speed (60°/s nominal, regulated via frequency inverter-driven AC motor) for method-specific test execution.
• Integrated high-pressure centrifugal pump with stable flow delivery; all wetted components constructed from non-reactive, non-clogging materials.
• Robust dual-seal door assembly featuring reinforced organic glass viewport, automatic rain wiper, and switch-controlled LED illumination for real-time visual monitoring during operation.
• Modular layout: hydraulic system housed beneath chamber base; control panel and rotation interface mounted on right-side service panel for ergonomic access and maintenance efficiency.

Sample Compatibility & Compliance

The LS-1000 accommodates samples up to 1000 mm in height, width, and depth—ideal for automotive headlamps, traffic signal modules, marine navigation displays, and ruggedized IoT enclosures. Its temperature-stabilized environment (+5 to +36 °C) prevents thermal shock-induced condensation artifacts during prolonged tests. All mechanical and hydraulic subsystems are built to meet CE machinery directive standards. While not pre-certified to UL or CSA, the chamber supports traceable test execution under GLP and ISO/IEC 17025-accredited quality systems when paired with calibrated flow meters and documented SOPs. Optional calibration kits and NIST-traceable verification reports are available upon request for audit readiness.

Software & Data Management

This model operates via a dedicated microprocessor-based controller with intuitive membrane keypad interface and LCD display. It stores up to 10 programmable test sequences—including dwell time, oscillation parameters, and cycle count—with timestamped event logging. For integration into enterprise QA workflows, optional RS-485/Modbus RTU output enables connection to LIMS or SCADA platforms. Audit trails include operator ID, start/stop timestamps, parameter deviations, and error codes—all compliant with FDA 21 CFR Part 11 requirements when deployed with validated electronic signature modules and secure user authentication.

Applications

• Validation of IPX3/IPX4 ratings for LED streetlights, railway signaling equipment, and telecom junction boxes.
• Pre-compliance screening of automotive exterior lighting per SAE J575 and ECE R112 before formal type approval.
• Environmental stress screening of military-grade handheld radios and UAV payload housings per MIL-STD-810H Method 512.6.
• Reliability assessment of solar inverter enclosures exposed to monsoon conditions in tropical deployment zones.
• Process qualification of conformal coating integrity on printed circuit board assemblies subjected to intermittent wetting cycles.

FAQ

Does the LS-1000 support IPX5 or IPX6 testing?

No—the LS-1000 is engineered exclusively for IPX3 and IPX4 protocols. IPX5/IPX6 require higher-pressure nozzle arrays and fixed-direction jet impact; those capabilities are provided in the LS-2000 series vertical spray chamber.

Can the chamber be operated continuously for extended durations?

Yes, with scheduled maintenance intervals: pump oil change every 500 operational hours and nozzle inspection every 100 cycles to prevent clogging or misalignment.

Is distilled water required for testing?

Deionized or softened water is strongly recommended to minimize mineral buildup in nozzles and pump internals; tap water may be used only if hardness is below 50 ppm and filtered through a 5 µm inline filter.

What electrical supply specifications are needed?

Standard input: 220 VAC ±10 %, 50/60 Hz, single-phase, 3 kW maximum load including pump and control system.

Is third-party calibration documentation included with shipment?

A factory performance verification report is supplied; full ISO/IEC 17025 calibration with uncertainty budget requires separate scheduling through our accredited metrology partner network.
