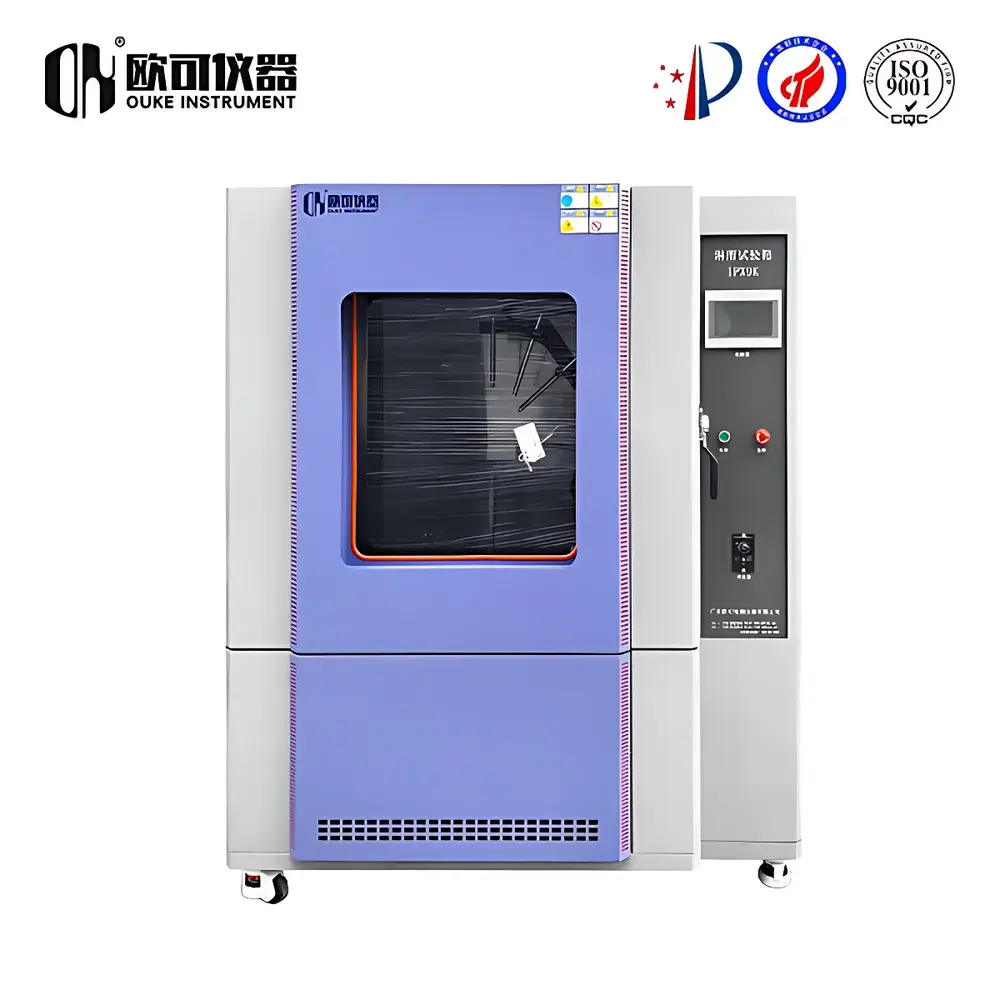

OK LS-806 Integrated Rain Test Chamber for IPX3–IPX6 Ingress Protection Validation

Overview

The OK LS-806 Integrated Rain Test Chamber is an engineered environmental simulation system designed to validate the liquid ingress protection performance of enclosures in accordance with internationally recognized IP (Ingress Protection) rating standards—specifically IPX3 through IPX6 as defined in IEC 60529, GB 4208, and ISO 20653. Unlike single-mode rain simulators, the LS-806 integrates three physically distinct water application methodologies within a single robust chamber architecture: oscillating pipe spray (for IPX3 and IPX4), calibrated jet nozzle delivery (for IPX5 and IPX6), and programmable wind-assisted rainfall simulation. This multi-modal capability enables laboratories to replicate real-world exposure conditions ranging from gentle, angled rain under wind load to high-velocity, high-volume water jet impact—critical for evaluating sealing integrity, gasket resilience, material hydrophobicity, and functional continuity under wet operation. The chamber operates on a closed-loop water management principle: deionized or low-conductivity water (≤10 µS/cm) is recirculated through dual-stage filtration to prevent nozzle clogging, while pressure, flow rate, droplet size distribution, and angular coverage are independently regulated to meet standard-specified tolerances.

Key Features

• Triple-Mode Spray System: Independently configurable oscillating pipe (120° or 180° arc, adjustable amplitude and cycle time), handheld/fixed jet nozzle (6.3 mm and 12.5 mm interchangeable orifices), and wind-assisted rain generation (5–18 m/s laminar airflow synchronized with droplet release).
• Precision Droplet Engineering: Adjustable nozzle geometry and hydraulic pressure control enable reproducible droplet diameter range of 0.5–4.5 mm—verified per ISO 9223 Annex B and ASTM D5117 practices for rain simulation fidelity.
• Thermally Stabilized Test Environment: Ambient temperature control from (RT + 10°C) to 5°C supports cold-rain testing protocols required by automotive OEM specifications (e.g., VW TL 813, Ford ES-XW7T-1A278-AC) where thermal shock exacerbates seal failure mechanisms.

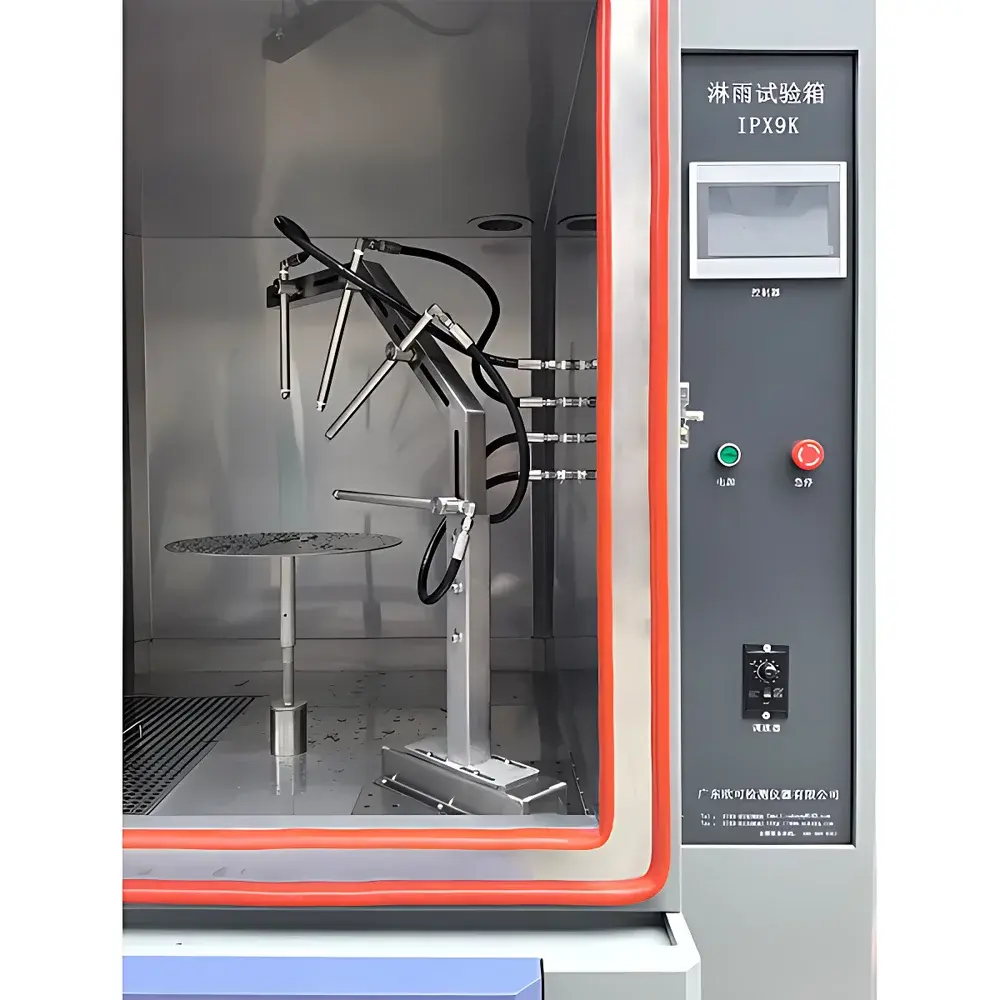

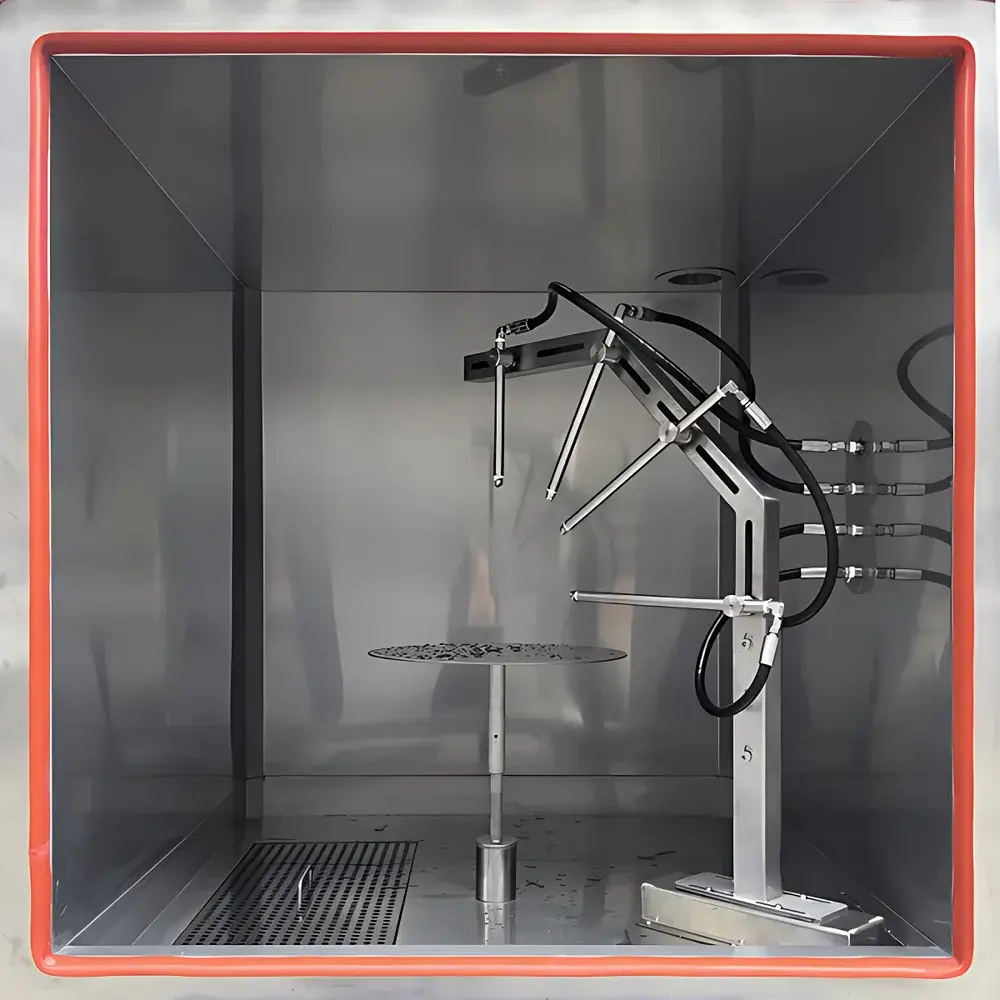

• Programmable Turntable: Ø400 mm stainless steel rotating platform (1–5 rpm, ±0.1 rpm accuracy) ensures uniform exposure across all vertical and inclined surfaces; optional indexing mode allows discrete-face testing per IPX5/IPX6 dwell requirements.
• Compliance-Ready Control Architecture: PLC-based controller with 7″ resistive touchscreen interface stores up to 99 test programs; each program logs timestamped parameters (flow rate, pressure, duration, rotation speed) with audit-trail capability compatible with GLP/GMP documentation workflows.
• Integrated Safety & Diagnostics: Real-time leak detection via capacitive floor sensors, automatic pump shutdown on filter differential pressure >0.3 bar, door interlock disabling all spray functions during access, and dry-run prevention logic protecting pump integrity.

Sample Compatibility & Compliance

The LS-806 accommodates samples up to 450 mm × 450 mm × 450 mm (W×D×H) on its turntable, with maximum payload of 50 kg. Its modular spray head mounting system permits repositioning to maintain standardized distances: 2.5–3.0 m for IPX5/IPX6 jet tests (per IEC 60529 §14.2.5), and center-of-arc alignment for oscillating pipe tests (R = 400 mm standard, configurable to R = 600 mm or R = 800 mm upon request). The chamber meets full mechanical and procedural requirements of IEC 60529 Annex B (rain test methods), GB 4208 Clause 14, ISO 20653:2013 for road vehicles, and MIL-STD-810G Method 506.5 (Rain). It is routinely deployed in third-party certification labs accredited to ISO/IEC 17025 for IP code verification, and supports traceable calibration of flow meters (ISO 4064-1), pressure transducers (IEC 61298-2), and rotational encoders (ISO 5725-2).

Software & Data Management

The embedded HMI firmware provides native support for test sequence definition—including multi-step cycles with variable spray intensity, intermittent pauses, wind-on/wind-off phases, and turntable speed ramping. All operational data (time-stamped flow rate, system pressure, chamber temperature, elapsed test duration, and fault codes) are stored internally in non-volatile memory and exportable via USB 2.0 to CSV format. Optional Ethernet connectivity enables integration into enterprise LIMS or MES platforms using Modbus TCP protocol. Audit trails comply with FDA 21 CFR Part 11 requirements when paired with user-access-controlled login (role-based permissions) and electronic signature functionality (available as firmware upgrade). Raw sensor outputs are logged at 1 Hz resolution, supporting post-test statistical analysis of parameter stability per ISO 5725-4 repeatability criteria.

Applications

The LS-806 serves as a primary validation tool across sectors where environmental sealing reliability directly impacts safety, regulatory compliance, and product lifetime. In automotive electronics, it verifies ECU housings, ADAS sensor bezels, and charging port assemblies against OEM-specific rain immersion and dynamic wash-down protocols. For industrial lighting and outdoor telecom cabinets, it validates IP66/IP67-rated enclosures under simulated monsoon conditions with crosswind effects. Consumer electronics manufacturers use it to assess smartphone and wearable device gasket compression set and adhesive bond durability after cyclic wet-dry exposure. Additionally, it supports R&D-level investigations into hydrophobic coating efficacy, silicone sealant extrusion consistency, and micro-gap penetration thresholds—enabling failure mode analysis via post-test disassembly and dye-penetrant inspection.

FAQ

Does the LS-806 support IPX1 and IPX2 drip testing?
Yes—the oscillating pipe assembly can be reoriented vertically above the sample to deliver calibrated vertical drip (0.4 mm orifice, 1.0 mm/min rate) per IEC 60529 §14.1.1.
Can the chamber be configured for IPX9K high-temperature high-pressure testing?
No—IPX9K requires steam-jacketed nozzles and 80–100°C water delivery; the LS-806 is rated for ambient-to-5°C operation only. A dedicated IPX9K module is available as a separate system (OK LS-900 series).
What water quality specifications must be maintained for long-term reliability?
Conductivity ≤10 µS/cm, hardness <1 ppm CaCO₃ equivalent, and particulate content <0.45 µm. We recommend inline deionization + activated carbon filtration upstream of the reservoir.
Is calibration documentation provided with shipment?
Yes—each unit ships with a factory calibration certificate covering flow meter (±1.5% FS), pressure transducer (±0.5% FS), and turntable speed encoder (±0.1 rpm), traceable to NIM (China National Institute of Metrology).
How is compliance with IEC 60529 verified during installation qualification (IQ)?
We supply an IQ/OQ protocol package including test templates, acceptance criteria checklists, and measurement uncertainty budgets aligned with ISO/IEC 17025 Annex A. On-site witness testing is available upon request.
