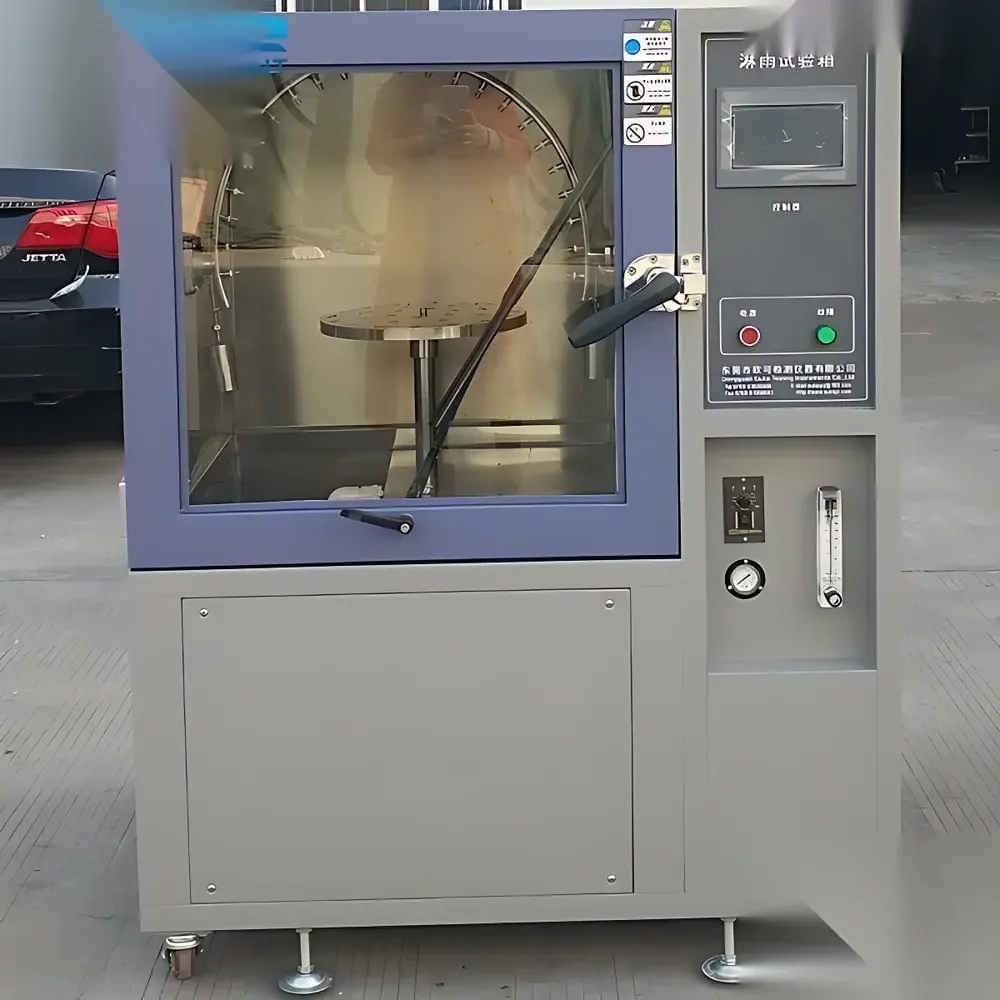

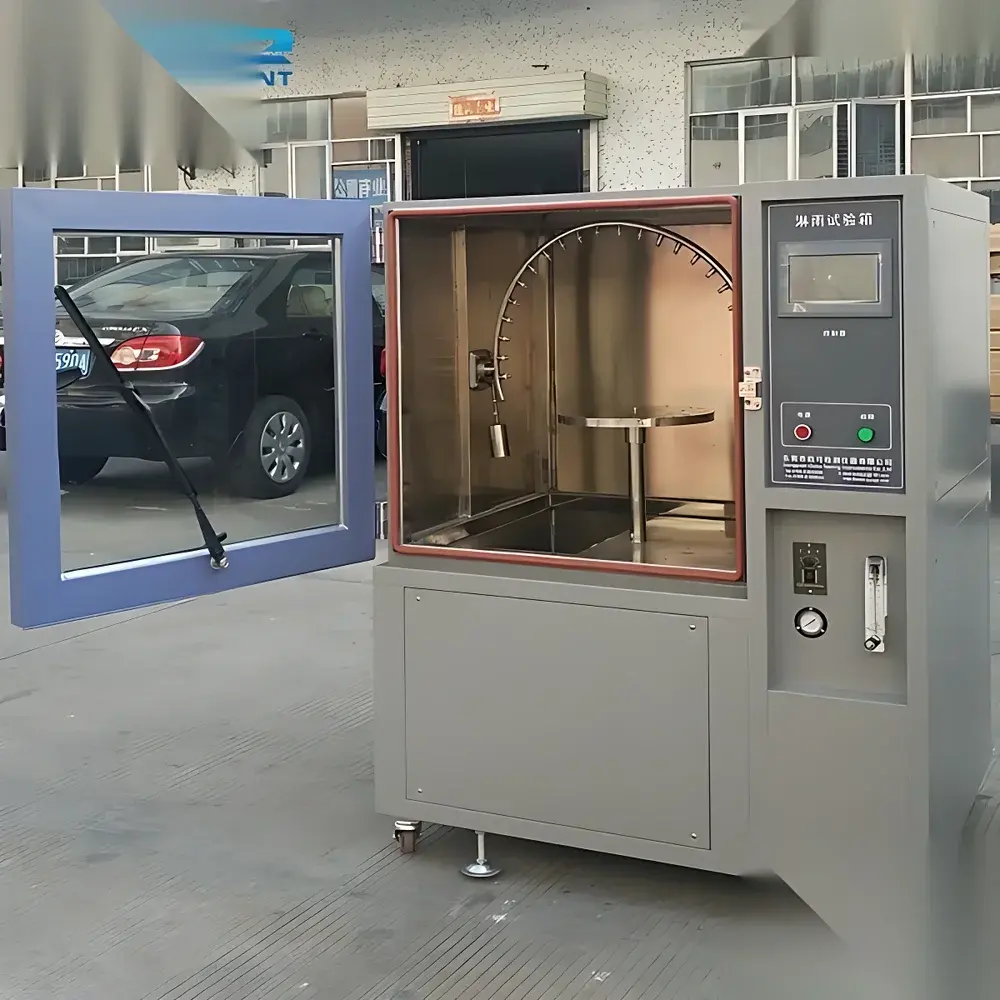

LS Series Rain Simulation and Weathering Test Chamber

Overview

The LS Series Rain Simulation and Weathering Test Chamber is an engineered environmental test system designed to replicate natural rainfall exposure under controlled laboratory conditions. It operates on the principle of calibrated oscillating spray delivery combined with rotational sample presentation, enabling precise simulation of rain ingress scenarios encountered during outdoor service life. This chamber is specifically configured to perform IPX3 and IPX4-rated enclosure protection testing per IEC 60529 (adopted as GB/T 4208–2008 in China), evaluating resistance to water penetration from dripping, splashing, and limited-directional spraying. Unlike generic humidity or temperature chambers, the LS Series integrates dynamic mechanical actuation—oscillating arms and a rotating turntable—to ensure uniform, repeatable wetting patterns across complex geometries such as automotive lighting assemblies, outdoor electrical enclosures, traffic signal housings, and industrial control panels. Its stainless-steel construction and integrated filtration system support long-term operational stability and contamination-free water delivery, essential for compliance-driven validation workflows.

Key Features

• Robust dual-layer chamber structure fabricated entirely from mirror-finish SUS304 stainless steel—resistant to corrosion, thermal distortion, and chemical degradation from repeated water exposure.
• Adjustable oscillating arm mechanism with selectable angular ranges (±60°, ±90°, ±160°) to meet distinct test profiles defined in GB/T 10485–2007 and IEC 60529.
• Precision-engineered spray ring with 0.4 mm nozzles spaced at 50 mm intervals and φ16 mm stainless-steel piping ensures consistent droplet size distribution and laminar flow characteristics.
• Motor-driven turntable operating at 1 rpm (standard) with optional continuously variable speed drive for enhanced surface coverage on asymmetric or vertically mounted samples.
• Digital programmable timer controlling both rain-on and rain-off cycles (0–15 min rain duration; 0–30 min interval), supporting multi-phase weathering protocols.
• Integrated water filtration unit and calibrated flow meter enable reproducible rainfall intensity adjustment up to 150 mm/h—critical for validating ingress thresholds per IPX3/IPX4 classification.
• Large-format tempered glass observation window with sealed gasket permits real-time visual monitoring without interrupting test integrity or compromising chamber pressure equilibrium.
• Comprehensive electrical safety architecture including leakage current detection, short-circuit interruption, and thermal motor overload protection—certified for continuous unattended operation.

Sample Compatibility & Compliance

The LS Series accommodates samples up to 100 cm × 100 cm × 100 cm (L×W×H), making it suitable for full-size automotive headlamps, LED streetlight modules, junction boxes, and industrial sensor housings. Its design adheres strictly to national and international standards governing ingress protection evaluation: GB/T 4208–2008 (equivalent to IEC 60529), GB/T 10485–2007 (road vehicle lighting equipment testing), and GB/T 4942.2–1993 (rotating electrical machines). While not inherently compliant with UL 50E or EN 60529 certification out-of-the-box, the chamber’s mechanical repeatability, traceable flow calibration, and documented operational parameters provide auditable evidence required for GLP and ISO/IEC 17025-accredited laboratories. Optional calibration documentation and NIST-traceable flow verification kits are available upon request to support regulatory submissions.

Software & Data Management

The LS Series operates via embedded digital controller with intuitive membrane keypad interface—no PC dependency required for standard IPX3/IPX4 execution. All timing parameters (spray duration, pause interval, oscillation angle, turntable speed) are stored in non-volatile memory and retain settings after power cycling. For integration into automated quality management systems, optional RS-485 Modbus RTU output enables connection to SCADA platforms or LIMS for timestamped event logging. While native software does not include FDA 21 CFR Part 11-compliant electronic signatures or audit trails, third-party data acquisition modules with electronic record functionality can be retrofitted to meet GMP/GLP documentation requirements for pharmaceutical or medical device applications.

Applications

• Validation of IPX3/IPX4 ratings for automotive exterior lighting (headlamps, fog lamps, tail lamps) per GB/T 10485–2007 and SAE J575.
• Verification of waterproof integrity in outdoor-rated consumer electronics enclosures—including smart meters, EV charging stations, and telecom base station cabinets.
• Accelerated aging assessment of sealants, gaskets, and elastomeric interfaces exposed to cyclic wet-dry conditions.
• Pre-compliance screening of industrial control panels prior to formal third-party IP certification testing.
• Research into hydrophobic coating performance under dynamic spray impact, including contact angle decay and water channeling behavior.

FAQ

What standards does this chamber directly support?
It is configured to execute IPX3 and IPX4 tests per GB/T 4208–2008 (IEC 60529), GB/T 10485–2007 (automotive lighting), and GB/T 4942.2–1993.
Can the rainfall intensity be verified and calibrated?
Yes—intensity is adjustable via flow meter and validated using standardized collection trays; optional NIST-traceable calibration certificates are available.
Is the turntable speed adjustable beyond 1 rpm?
Standard configuration is fixed at 1 rpm; variable-speed DC motor upgrade is offered as a factory-configured option.
Does the chamber include water recycling capability?
No—this model uses once-through water delivery; closed-loop recirculation requires custom engineering and additional filtration stages.
What electrical supply options are supported?
Dual voltage compatibility: single-phase 220 V AC ±10%, 50/60 Hz or three-phase 380 V AC ±10%, 50/60 Hz—selected at time of order.
