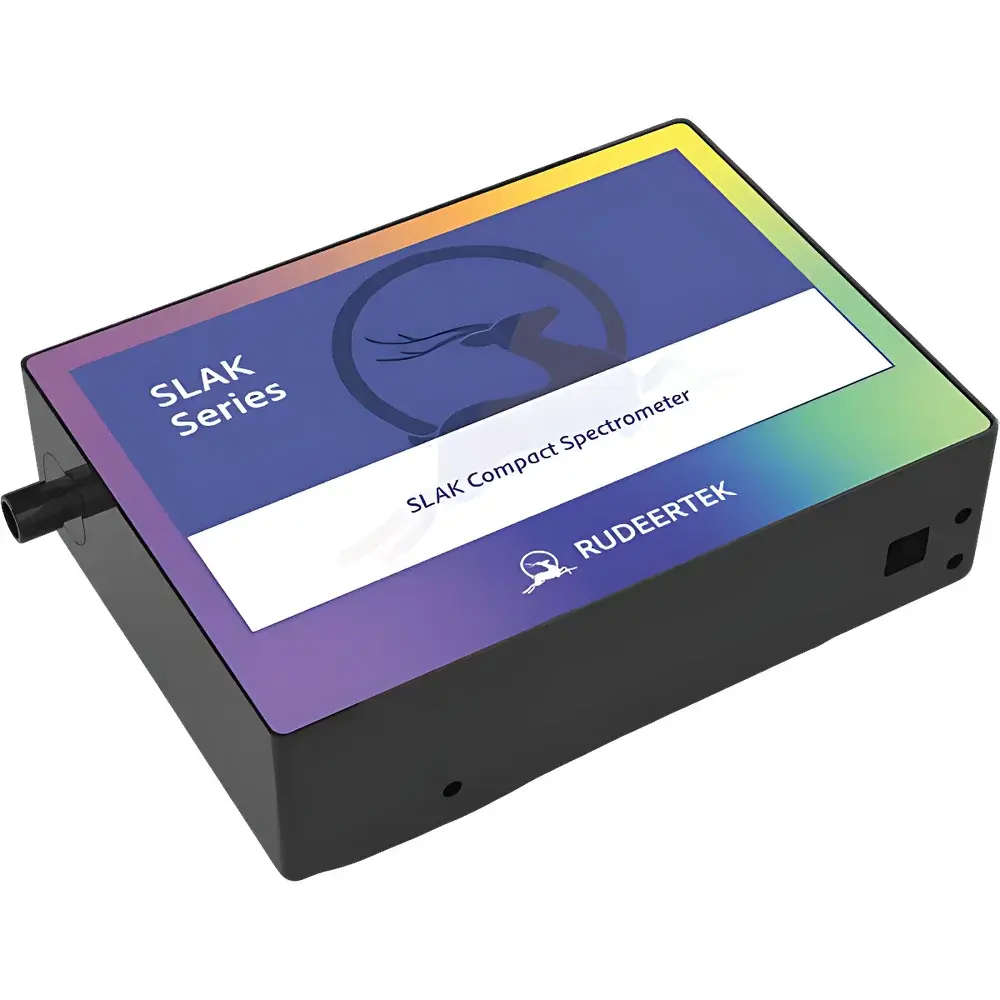

Luchu Technology SLAK Portable Miniature Fiber Optic Spectrometer

Overview

The Luchu Technology SLAK Portable Miniature Fiber Optic Spectrometer is an engineered solution for high-fidelity spectral acquisition in space-constrained and mobile environments. Based on the symmetrical Czerny-Turner optical architecture—a proven configuration for balanced aberration correction and wavelength linearity—the SLAK delivers stable, repeatable spectral data across the broad UV-VIS-NIR range (200–1100 nm). Its uncooled CMOS linear array detector (2048 × 1 pixels) enables rapid acquisition with low power consumption, eliminating thermal stabilization requirements while maintaining a signal-to-noise ratio of 320:1 and a dynamic range of 1500:1. Designed for integration rather than benchtop operation, the SLAK operates without external optics or alignment tools; its f/7 optical train ensures efficient light throughput while minimizing sensitivity to fiber coupling variations. This spectrometer is not intended as a general-purpose lab instrument but as a core sensing module for embedded analytical systems where size, weight, power, and robustness are primary design constraints.

Key Features

• Compact form factor (95 × 68 × 25 mm, 195 g) optimized for handheld, drone-mounted, and inline industrial applications
• Wide spectral coverage from deep ultraviolet (200 nm) to near-infrared (1100 nm) with configurable resolution (0.3–7 nm FWHM)
• Symmetrical Czerny-Turner optical layout ensuring minimal astigmatism and high wavelength fidelity
• Uncooled CMOS detector enabling low-power, fanless operation with no warm-up delay or thermal drift compensation overhead
• USB Type-C interface supporting plug-and-play connectivity, real-time data streaming, and bus-powered operation
• Digital I/O lines for hardware triggering, synchronization with external sources (e.g., pulsed LEDs, lasers), and status signaling
• SMA905 fiber input standard; optional custom fiber port configurations available for OEM integration

Sample Compatibility & Compliance

The SLAK interfaces exclusively via optical fiber, supporting standard 200–600 µm core diameter fibers with numerical apertures up to 0.22. It is compatible with common illumination sources including deuterium-halogen lamps, LEDs, and pulsed lasers—provided spectral output falls within the 200–1100 nm detection window. No sample chamber or internal fluidics are integrated; the device functions strictly as a spectral transducer. While not certified to ISO/IEC 17025 or FDA 21 CFR Part 11 out-of-the-box, its digital I/O and deterministic USB timing allow traceable acquisition workflows when deployed in GLP- or GMP-aligned systems. Stray light <1% meets ASTM E275-22 criteria for qualitative absorbance measurements in field-deployable UV-Vis instruments. RoHS-compliant construction and CE marking apply to the base unit.

Software & Data Management

Luchu provides a cross-platform SDK (Windows, Linux, macOS) with C/C++, Python, and LabVIEW APIs, enabling full control over integration time, averaging, dark subtraction, and region-of-interest readout. Raw 16-bit spectra are delivered in binary or CSV format; no proprietary file locking or vendor-specific post-processing is enforced. The SDK supports timestamped frame logging and hardware-triggered acquisition sequences—critical for synchronized multi-sensor deployments. For regulatory environments, users may implement audit trails, electronic signatures, and data integrity protocols at the application layer using NIST-traceable time sources and encrypted storage. Firmware updates are performed via signed DFU over USB Type-C, preserving bootloader security.

Applications

• Real-time colorimetric monitoring in food processing lines (e.g., fruit ripeness, meat freshness)
• In-situ water quality analysis (nitrate, chlorophyll-a, dissolved organic carbon) using LED-based absorption spectroscopy
• Drone-based vegetation health assessment via NDVI and red-edge reflectance mapping
• Portable counterfeit pharmaceutical detection through spectral fingerprinting of excipients and APIs
• OEM integration into handheld Raman or LIBS systems as a secondary broadband reference channel
• Process analytical technology (PAT) endpoints in continuous manufacturing, compliant with ICH Q8/Q9 frameworks

FAQ

Is the SLAK suitable for quantitative absorbance measurements?
Yes—when paired with calibrated light sources and reference standards, it supports Beer-Lambert law-based quantification. However, users must perform system-level calibration (wavelength, intensity, stray light) per ASTM E1421 or ISO 17025 procedures.

Can the resolution be adjusted without changing hardware?
Resolution is determined by slit width, grating density, and pixel binning. While the base optical path is fixed, software-controlled pixel binning and interpolation enable effective resolution trade-offs between SNR and sampling density.

Does the SLAK support external triggering?
Yes—dedicated TTL-compatible digital I/O lines allow precise hardware synchronization with external events such as laser pulses or conveyor belt encoders.

What is the typical integration time range?
From 1 ms to 10 s, adjustable in 1-ms increments. Minimum integration is limited by readout speed; maximum is constrained by dark current accumulation in uncooled operation.

Is firmware open for customization?
Firmware binaries are locked, but Luchu offers white-label firmware development services—including custom command sets and boot behavior—for volume OEM agreements.
