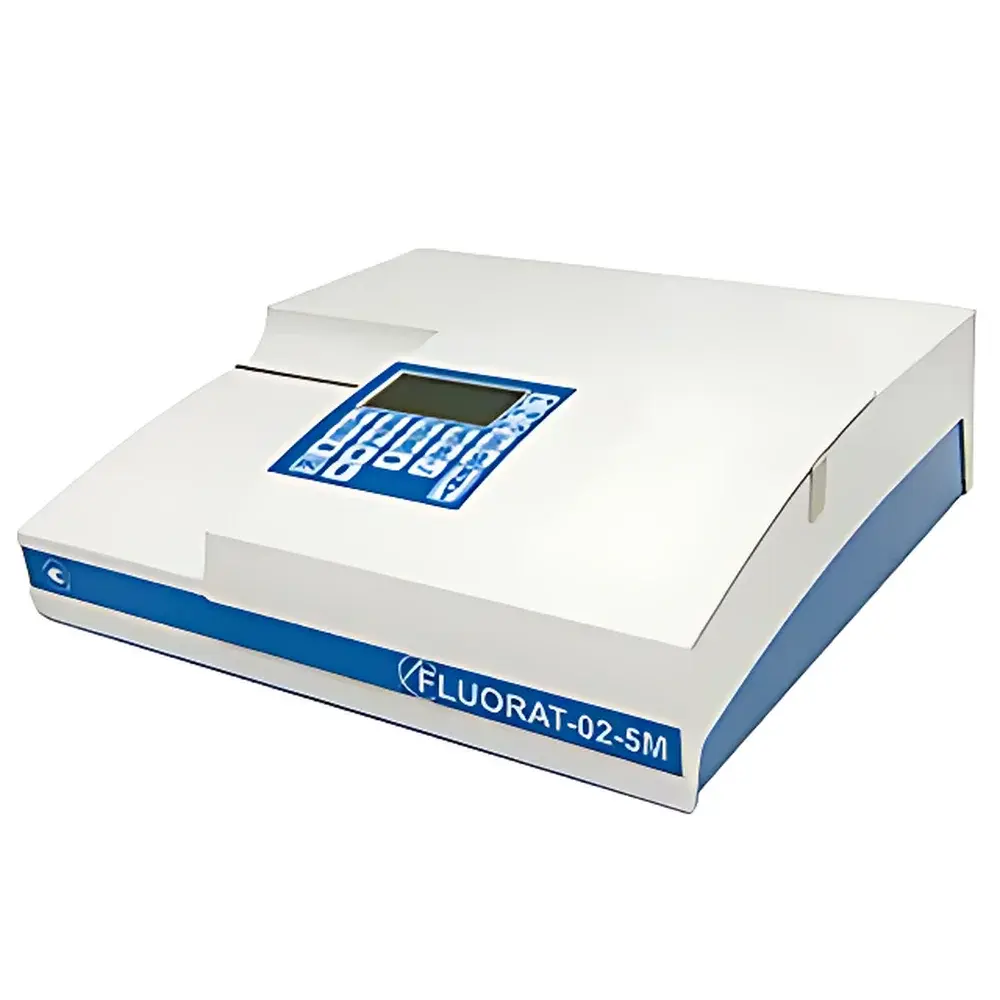

LUMEX FLUORAT-02 Multi-Parameter Water Quality Analyzer

Overview

The LUMEX FLUORAT-02 Multi-Parameter Water Quality Analyzer is a field-deployable, benchtop-capable analytical instrument engineered for quantitative determination of priority water contaminants using three complementary optical detection principles: fluorometry, photometry, and chemiluminescence. Its core measurement architecture relies on controlled excitation of analytes via high-intensity pulsed xenon lamp illumination across a broad spectral range (250–900 nm), followed by precise detection of emitted fluorescence intensity, absorbance, or chemiluminescent signal—each correlated to analyte concentration via calibrated response functions. Unlike single-mode instruments, the FLUORAT-02 integrates these modalities into a unified optical platform with triple reference channels, enabling compensation for source drift, detector sensitivity variation, and environmental fluctuations. This architecture ensures high reproducibility (RSD < 3% for routine measurements) and long-term stability of calibration curves—critical for regulatory compliance workflows in environmental monitoring laboratories operating under ISO/IEC 17025 or EPA Method-equivalent protocols.

Key Features

• Tri-modal optical detection system supporting fluorometric, photometric, and chemiluminescent assays within a single instrument platform
• Pulsed xenon lamp with spectral output spanning 250–900 nm, eliminating need for multiple light sources or lamp replacements during routine operation
• Patented optical path design incorporating three independent reference channels to minimize signal attenuation and baseline drift
• Single-channel wide-dynamic-range configuration optimized for hydrocarbon analysis—from trace-level oil-in-water (ppb) to high-concentration industrial effluents (mg/L)—without manual range switching
• Integrated touchscreen interface with preloaded method templates for 12 regulated water parameters including volatile phenols (ASTM D1783), anionic surfactants (ISO 7875-2), COD (ISO 6060), turbidity (ISO 7027), cyanide (ISO 6703-1), and heavy metals (U, V, Mo, Ni, Mn, Cr) via derivatization-coupled fluorometry
• Low-reagent consumption design compliant with Montreal Protocol guidelines: reagents are non-halogenated, low-toxicity, and fully regenerable in situ
• Non-volatile memory storage for calibration curves, instrument configuration files, and audit-ready measurement logs
• Modular cuvette holder accommodating 10 mm, 20 mm, and 40 mm quartz cells—optimized for both low-volume field sampling and high-sensitivity laboratory quantification

Sample Compatibility & Compliance

The FLUORAT-02 is validated for direct analysis of raw and filtered aqueous matrices including surface water, drinking water, wastewater, leachates, and groundwater. It demonstrates robust performance in the presence of common interferents: suspended solids (up to 100 NTU), methanol and other polar solvents, and turbid colloidal suspensions—eliminating requirement for centrifugation or filtration in many field applications. All supported methods align with internationally recognized standards: volatile phenol quantification follows EPA Method 420.1 and ISO 6439; COD analysis adheres to ISO 6060 with dichromate-free chemistry options; turbidity conforms to ISO 7027 (Nephelometric principle); and heavy metal detection leverages ISO 11969-compliant fluorogenic chelation protocols. The instrument’s firmware supports GLP-compliant data integrity features including user authentication, electronic signatures, and immutable audit trails—meeting requirements for FDA 21 CFR Part 11 readiness when operated with optional PC-based software.

Software & Data Management

Onboard operation is managed via a 7-inch capacitive touchscreen running embedded Linux OS with intuitive icon-driven workflow navigation. Preconfigured assay modules include single-point and multi-point calibration routines with up to six concentration gradients, enabling rapid recalibration during extended field campaigns without external standard solutions. Raw spectral data, time-stamped measurement metadata, and calibration history are stored in encrypted binary format on internal flash memory (≥10,000 records capacity). Optional LUMEX Analytical Suite software (Windows-compatible) provides advanced data processing: overlay of excitation/emission spectra, kinetic curve fitting for chemiluminescent reactions, statistical outlier detection, and automated report generation in PDF/CSV formats. All exported datasets retain full traceability to instrument ID, operator credentials, and environmental sensor logs (ambient temperature/humidity if equipped).

Applications

The FLUORAT-02 serves as a primary analytical tool in municipal water utilities for real-time compliance screening of disinfection byproducts and heavy metals; in industrial environmental health & safety (EHS) programs for effluent monitoring at discharge points; and in research institutions conducting fate-and-transport studies of persistent organic pollutants (e.g., benz[a]pyrene in sediment porewater). Its portability and battery-operable variants (optional external power bank support) enable deployment in remote locations—such as Arctic permafrost thaw sites or post-wildfire watersheds—where traditional lab-based instrumentation is impractical. Cross-matrix capability extends utility beyond water: validated protocols exist for soil extracts (petroleum hydrocarbons), food homogenates (vitamins A/E, mycotoxins), and air particulate filters (metals, formaldehyde), making it a versatile platform for integrated environmental quality assessment.

FAQ

Does the FLUORAT-02 require annual lamp replacement?

No—the pulsed xenon lamp is rated for ≥1 × 10⁹ flashes, corresponding to >5 years of typical field use without degradation in spectral output or intensity stability.
Can it perform simultaneous multi-analyte detection in one sample injection?

Not concurrently; however, sequential analysis of up to 12 parameters is achievable within 15 minutes using automated method switching and shared sample aliquots—minimizing sample volume and preparation time.
Is third-party software validation available for regulated laboratories?

Yes—LUMEX provides IQ/OQ documentation packages and 21 CFR Part 11 validation support kits, including test scripts, traceability matrices, and URS alignment reports for GxP environments.
What maintenance is required beyond routine cleaning?

Annual optical alignment verification and detector dark-current calibration are recommended; no consumable optics or alignment-sensitive mechanical adjustments are required between services.
How does it handle high-turbidity wastewater samples?

The triple-reference channel architecture inherently corrects for scattering-induced signal loss; empirical validation confirms <5% bias up to 200 NTU without sample dilution or filtration.
