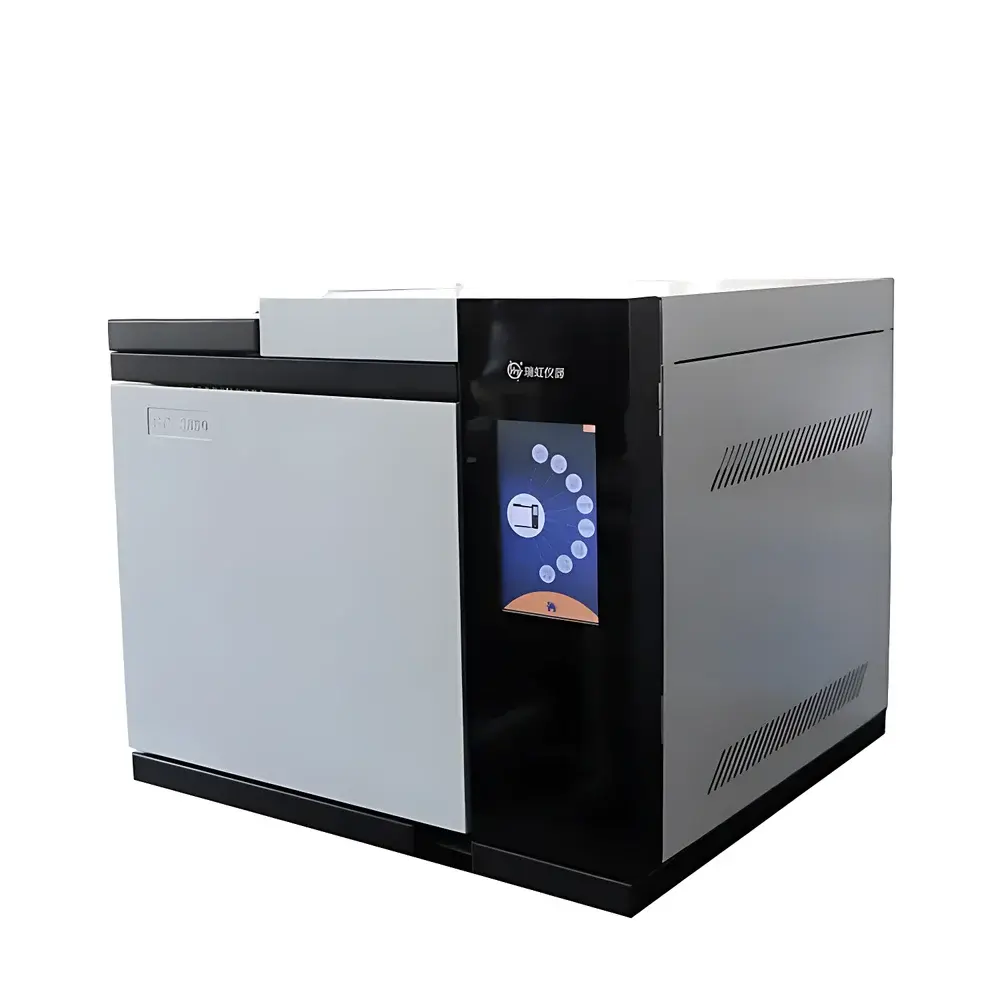

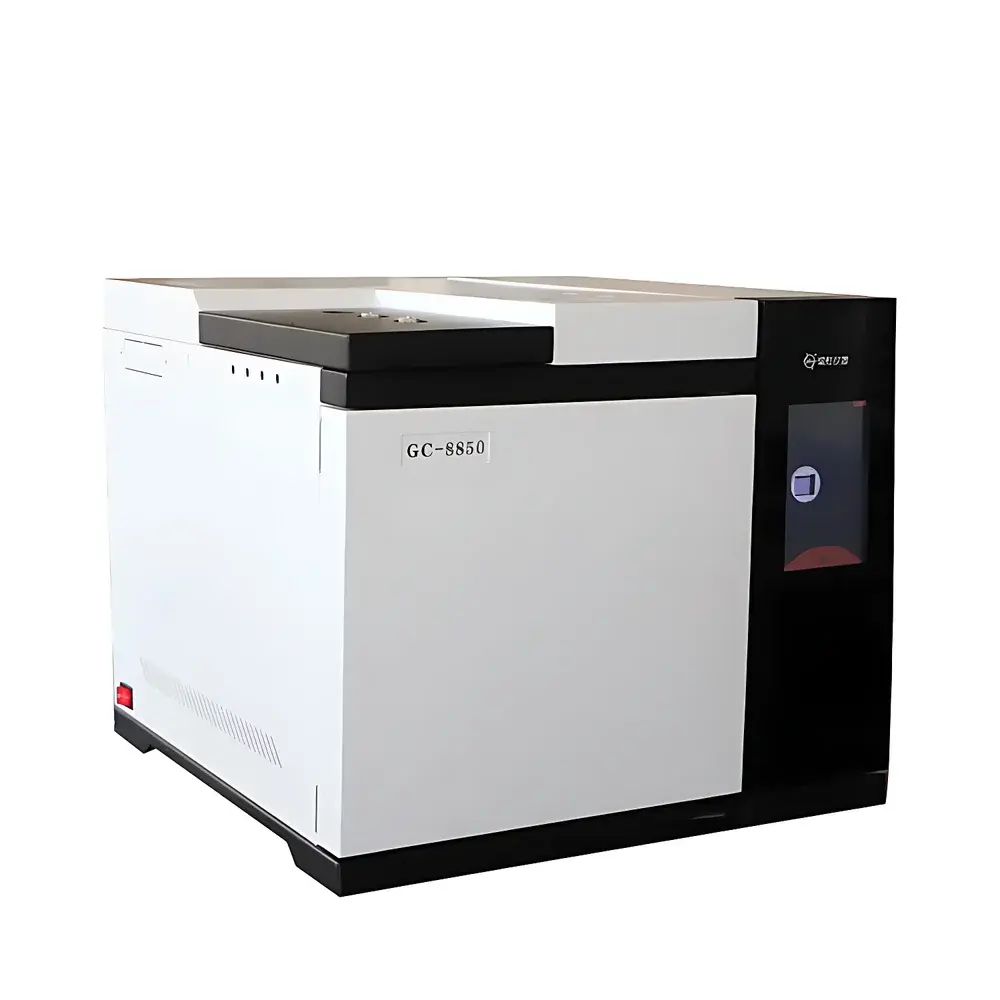

Lunan Ruihong GC-8850 Gas Chromatograph
| Brand | Lunan Ruihong |
|---|---|
| Model | GC-8850 |
| Origin | Shandong, China |
| Instrument Type | Laboratory Gas Chromatograph |
| Temperature Control Range | 4 °C to 450 °C |
| Ramp Rate | 0.1–60 °C/min |
| Cooling Rate | 300 °C to 50 °C in ~8 min |
| Carrier Gas Flow Range | 0–1000 mL/min |
| Carrier Gas Pressure Range | 0–400 kPa |
| Programmable Pressure/Flow Steps | 16 |
| Injector Max Temp | 420 °C |
| Injector Pressure Setpoint Range | 0–400 kPa |
| Injector Total Flow Setpoint Range | 0–1000 mL/min |
| Temperature Zones | 8 independent zones |
| Temperature Resolution | 0.5 °C |
| Temperature Accuracy | ±0.1 °C |
| Detector Options | FID, TCD, ECD, FPD, NPD (up to 3 simultaneously) |
| Data Interface | 10/100/1000BASE-T Ethernet (IEEE 802.3), MODBUS/TCP compliant |
| Display | 7-inch color capacitive touchscreen (hot-swappable, handheld-capable) |
| Analog-to-Digital | 24-bit low-noise ADC with baseline storage and subtraction |
| External Events | 8 inputs, 2 auxiliary outputs |
| Injection Modes | Packed column, capillary column, 6-port gas valve, optional autosampler |
Overview
The Lunan Ruihong GC-8850 is a modular, network-enabled laboratory gas chromatograph engineered for precision separation and quantitative analysis of volatile and semi-volatile organic compounds. Based on classical gas-solid and gas-liquid partition principles, the GC-8850 delivers high-resolution chromatographic performance through precise carrier gas flow and pressure regulation, thermally stable column oven control, and configurable detector selection. Its architecture supports routine QC/QA workflows across environmental, petrochemical, pharmaceutical, food safety, and academic research laboratories—where reproducibility, traceability, and interoperability with existing lab infrastructure are critical requirements.
Key Features
- Full Electronic Pressure & Flow Control (EPC): Integrated digital pneumatic modules enable accurate, repeatable, and programmable regulation of carrier gas pressure (0–400 kPa) and total flow (0–1000 mL/min) across all inlets and detectors—eliminating mechanical flow controllers and enhancing method transfer robustness.
- Advanced Thermal Management: Eight independently controlled temperature zones—including oven, up to three injectors, and up to three detectors—support complex multi-segment methods. The column oven achieves 4 °C to 450 °C operation with ±0.1 °C accuracy and ramp rates from 0.1 to 60 °C/min. An automated rear door system enables rapid cooling (300 °C → 50 °C in ~8 minutes) and improved near-ambient retention time stability.
- Modular Detector Configuration: Supports simultaneous installation of up to three detectors—FID (with auto-ignition and logarithmic amplification), TCD, ECD, FPD, or NPD—each with dedicated temperature and signal conditioning channels. All detectors interface via isolated 24-bit analog-to-digital conversion with baseline storage and real-time subtraction capabilities.
- Network-Centric Architecture: Equipped with a dual-mode Ethernet interface (10/100/1000BASE-T) and embedded TCP/IP stack, the GC-8850 natively communicates over LAN/WAN environments. It implements MODBUS/TCP protocol for seamless integration into industrial DCS or centralized lab data systems, enabling remote monitoring, firmware updates, and instrument-level diagnostics without proprietary middleware.
- Human-Centric Operator Interface: A 7-inch high-brightness capacitive touchscreen provides full local control, method editing, and real-time chromatogram visualization. The display module is hot-swappable and functions as a portable handheld controller—enabling flexible benchtop deployment and reduced cabling complexity.
Sample Compatibility & Compliance
The GC-8850 accommodates diverse sample introduction formats: packed column, fused-silica capillary column, 6-port gas sampling valve, and optionally, third-party autosamplers (via TTL/RS-232 trigger support). Its wide operating temperature range and programmable inlet pressure/flow profiles ensure compatibility with standard USP , ASTM D3606/D5501, ISO 11843, and EPA Method 8021B/8270 applications. While not pre-certified for 21 CFR Part 11, the system’s audit-trail-ready software platform (when used with validated workstation configurations) supports GLP/GMP-aligned documentation practices—including electronic signatures, user access controls, and immutable method/data versioning.
Software & Data Management
The GC-8850 operates with a Windows-based chromatography data system (CDS) that supports concurrent connection to multiple instruments, centralized method library management, and bidirectional instrument control. Raw data files adhere to open AIA/ANDI standards (.cdf), ensuring long-term archival integrity and third-party processing compatibility. The CDS includes peak integration algorithms compliant with ICH Q2(R2) guidelines, calibration curve fitting with weighted least-squares regression, and customizable report templates aligned with ISO/IEC 17025 reporting requirements. Audit trail logs record all user actions—including method edits, sequence changes, and result reprocessing—with timestamps and operator IDs.
Applications
- Residual solvent analysis in pharmaceutical active ingredients (ICH Q3C)
- Hydrocarbon profiling in gasoline and diesel fuels (ASTM D6730)
- Pesticide residue screening in fruits, vegetables, and grains (AOAC 2007.01)
- VOC emissions testing from building materials (ISO 16000-6)
- Fatty acid methyl ester (FAME) quantification in biodiesel (EN 14103)
- Environmental analysis of chlorinated hydrocarbons in soil/water (EPA 8081B)
FAQ
Does the GC-8850 support FDA 21 CFR Part 11 compliance?
The instrument hardware and embedded firmware do not constitute a standalone Part 11–compliant system; however, when deployed with validated CDS software, role-based access controls, electronic signature workflows, and audit trail generation, it meets technical prerequisites for regulated environments.
Can I integrate the GC-8850 into an existing LIMS or ELN platform?
Yes—via its native MODBUS/TCP and standard Ethernet interfaces, the GC-8850 exposes instrument status, method parameters, and acquisition triggers to external systems. Custom API wrappers or OPC UA gateways may be implemented for deeper LIMS/ELN synchronization.
What is the maximum number of temperature program segments supported?
The GC-8850 supports up to 16 independent temperature ramp and hold steps per method across its eight thermal zones—enabling highly resolved separations of complex mixtures such as petroleum distillates or essential oil terpenes.
Is the FID detector equipped with automatic flame ignition and extinction control?
Yes—the FID module includes closed-loop hydrogen/air flow management and real-time flame status monitoring, with programmable auto-ignite and safe shutdown sequences triggered by temperature or pressure anomalies.
How is baseline noise managed during low-concentration detection?
The 24-bit ADC incorporates hardware-level baseline drift compensation, coupled with software-based dynamic baseline subtraction algorithms that preserve peak shape integrity while reducing integration uncertainty at sub-ppb levels.
