LY WD-2110A Compact Metal Block Heater (Model 131-1010)

Overview

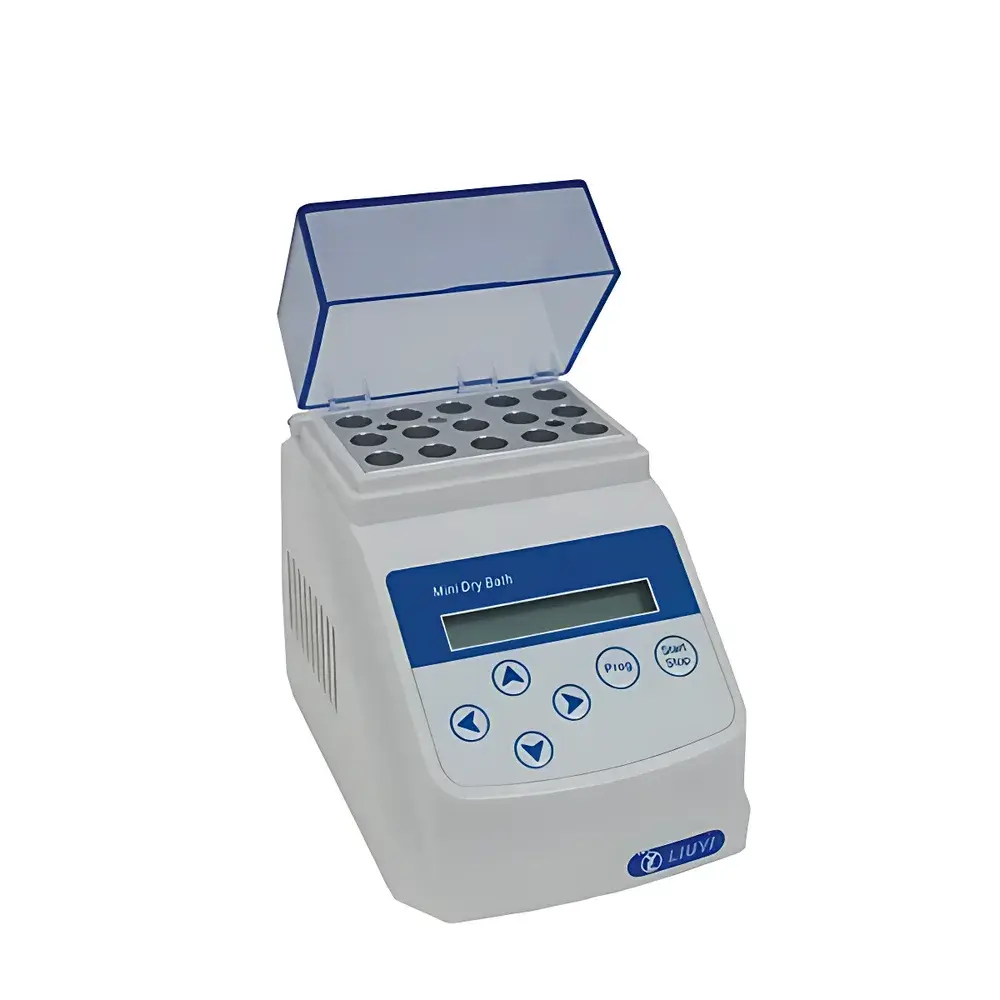

The LY WD-2110A Compact Metal Block Heater (Model 131-1010) is a microprocessor-controlled dry bath instrument engineered for precise, uniform thermal regulation of small-volume samples in molecular biology, clinical diagnostics, and quality control laboratories. Unlike water baths, this metal block heater employs solid aluminum heating blocks with high thermal conductivity and low thermal mass, enabling rapid, stable temperature equilibration without evaporation, condensation, or contamination risks. Its operating range spans from ambient +5°C to 100°C — sufficient for enzyme inactivation, serum coagulation, DNA denaturation prior to PCR, and pre-electrophoresis sample incubation. The device operates on a 12 V DC input, supporting both benchtop and mobile applications including field-deployable lab units and vehicle-mounted diagnostic setups.

Key Features

• Real-time digital display showing current temperature (0.1°C resolution) and countdown timer (hh:mm:ss format)
• Ultra-compact footprint (160 × 110 × 136 mm) and lightweight design (≤1 kg), optimized for space-constrained workstations and portable use
• Integrated overtemperature protection circuitry with audible alarm and automatic cut-off to prevent sample degradation or hardware damage
• Self-diagnostic system that detects sensor faults, heating element anomalies, or power instability and triggers visual/audible alerts
• User-accessible temperature offset calibration function, allowing traceable adjustment to match reference thermometers per ISO/IEC 17025 requirements
• Modular block architecture: eight standardized interchangeable blocks (M1–M8) support common tube formats — including 0.2 mL PCR strips, 1.5/2.0 mL microcentrifuge tubes, 5–50 mL conical tubes, and cuvettes — facilitating rapid reconfiguration and autoclavable cleaning
• Multi-segment programmable temperature protocol capability; each segment can be independently enabled/disabled, supporting complex thermal ramping sequences without external controllers

Sample Compatibility & Compliance

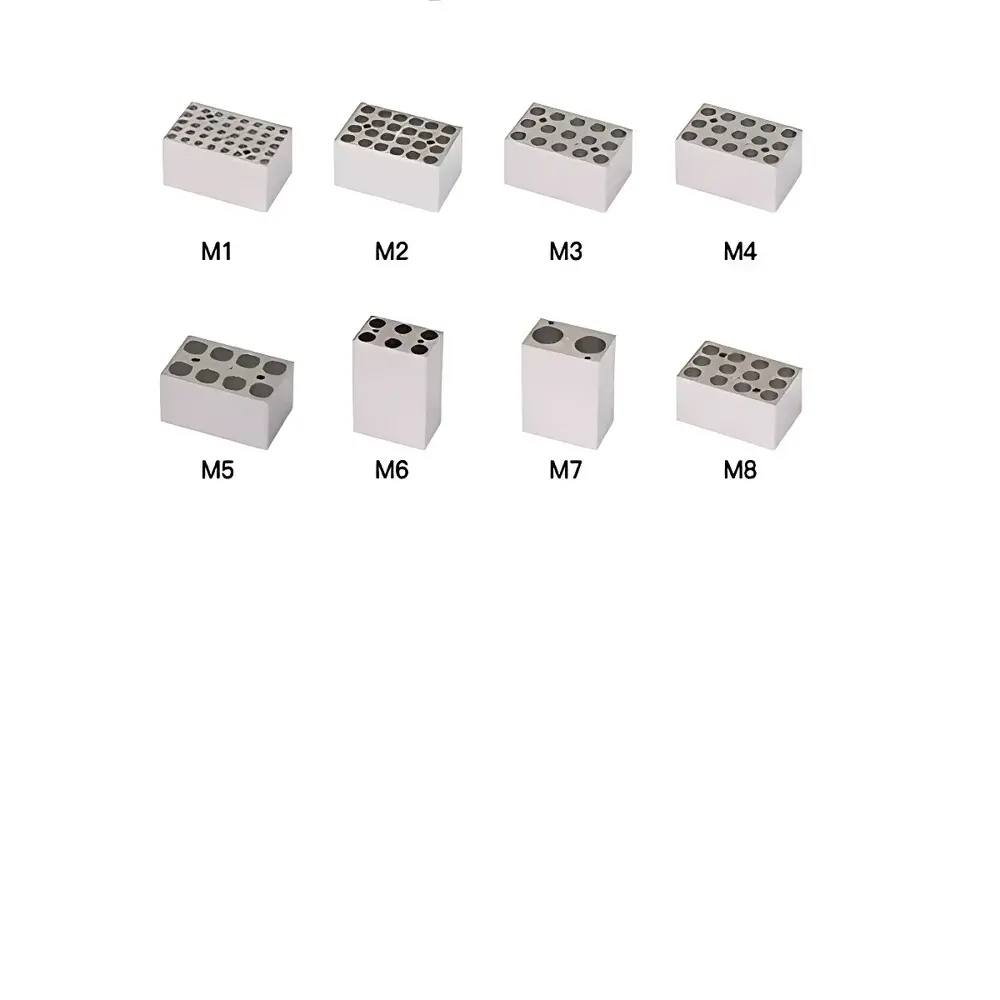

The WD-2110A accommodates a broad spectrum of standard laboratory consumables via its modular insert system. Certified compatibility includes: 40×0.2 mL PCR tubes (M1), 24×0.5 mL tubes (M2), 15×1.5 mL or 2.0 mL tubes (M3/M4), 8×12.5×12.5 mm cuvettes (M5), 6×15 mL tubes (M6), 2×50 mL tubes (M7), and 12×5.0 mL tubes (M8). All aluminum blocks are anodized for corrosion resistance and compatible with ethanol, isopropanol, and sodium hypochlorite disinfection protocols. While the unit does not include a heated lid, its tight-fitting passive insulation minimizes convective heat loss during extended incubations. The device complies with IEC 61010-1:2010 safety standards for electrical equipment for measurement, control, and laboratory use. Its firmware supports audit-ready operation logs when integrated with validated LIMS environments under GLP/GMP frameworks.

Software & Data Management

This stand-alone heater operates without proprietary software or USB connectivity; all settings are managed locally via tactile membrane keypad and dual-line LCD. However, its timer and temperature parameters are fully configurable for reproducible SOP execution — critical for FDA 21 CFR Part 11-aligned workflows where electronic records must demonstrate integrity, authenticity, and traceability. Optional external data loggers (e.g., calibrated thermocouple-based systems compliant with ASTM E2877-22) may be deployed to document thermal profiles across validation cycles. Temperature stability data (±0.3°C at both 40°C and 100°C) meets typical requirements for USP environmental monitoring and CLSI EP23-A validation guidelines for incubation devices.

Applications

• DNA/RNA denaturation and renaturation steps in nucleic acid purification and library preparation
• Serum and plasma coagulation assays in clinical chemistry and transfusion medicine
• Enzyme activity stabilization or quenching during kinetic studies
• Pre-heating reagents prior to ELISA, Western blotting, or lateral flow assay assembly
• Controlled thawing of cryopreserved cell suspensions and bacterial glycerol stocks
• Thermal equilibration of standards and controls in analytical method verification
• Field-based pathogen detection kits requiring battery-powered, low-power thermal activation

FAQ

Does the WD-2110A support remote control or computer interface?
No — it is a manually operated, standalone instrument with no RS-232, USB, or Bluetooth connectivity. All functions are controlled locally.
Can the device maintain temperature during power interruptions?
It lacks internal battery backup; operation ceases immediately upon power loss. For uninterrupted incubation, integration with an uninterruptible power supply (UPS) is recommended.
Is calibration documentation provided with the unit?
The device ships with a factory calibration certificate referencing NIST-traceable standards. Full calibration verification and adjustment procedures are detailed in the user manual per ISO/IEC 17025 Clause 6.5.
What is the expected service life of the heating element under continuous operation?
Rated for ≥20,000 hours of cumulative heating cycles under normal load conditions (≤80% of max power), assuming proper ventilation and absence of condensate ingress.
Are replacement modules available for purchase separately?
Yes — all eight module types (M1 through M8) are stocked as spare parts with individual part numbers and sterilization validation reports.
