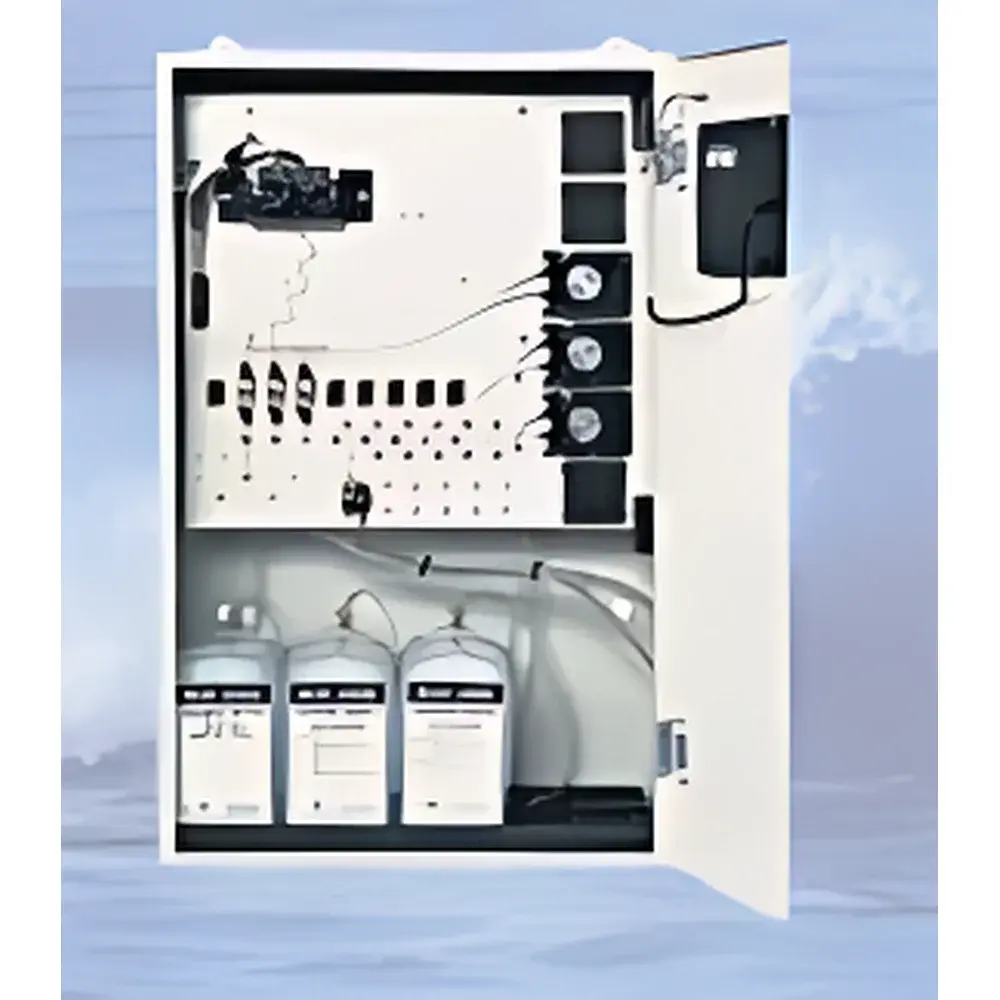

M90S Automatic Online Water Quality Analyzer by Blaubeuren
| Origin | Germany |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | M90S |
| Instrument Type | Online Water Quality Analyzer |
| Measurement Principles | Photometric (Colorimetric), Ion-Selective Electrode (ISE), and Specialized High-Purity Water Analysis Modules |
Overview
The M90S Automatic Online Water Quality Analyzer is an industrial-grade, multi-parameter continuous monitoring platform engineered by Blaubeuren — a German instrumentation pioneer established in 1932 and globally recognized for introducing the world’s first online analytical instrument in 1940. Leveraging over eight decades of wet-chemistry method development and deployment across more than 10,000 AA3 automated discrete analyzers in laboratories worldwide, the M90S integrates robust, standardized colorimetric, ion-selective electrode (ISE), and ultra-trace high-purity water analysis modules into a single, unified online architecture. Its core measurement principles include photometric detection based on ASTM D3557 (for phosphate), ISO 11908 (for total cyanide), USP (for silica), and EPA Method 365.4 (for orthophosphate), ensuring regulatory alignment for environmental, municipal, and industrial compliance applications. Designed for unattended operation in demanding field environments — including reservoirs, drinking water treatment plants, power generation facilities, and semiconductor ultrapure water (UPW) loops — the M90S delivers stable, trace-level quantification with minimal operator intervention.
Key Features
- Triple-module architecture: Simultaneous operation of photometric (Kolorimeter), ion-selective electrode (Ionometer), and high-purity water-specific (Natriometer & Silikometer) analysis units within one chassis
- Sub-ppb detection capability: Total phosphorus down to 10 ng/L (ppb); dissolved silica down to 0.2 ng/L (ppb) — validated per IEC 62586-2 and SEMI F63 for UPW monitoring
- Low reagent consumption: Optimized fluidic design reduces chemical usage by up to 40% compared to conventional segmented-flow online analyzers
- Automated calibration and validation: Scheduled zero/span checks, multi-point standardization, and drift correction using onboard reference standards
- Modular maintenance design: Plug-in reagent cartridges, field-replaceable electrodes, and tool-free optical cell access minimize downtime and service complexity
- Robust environmental rating: IP66 enclosure with optional hazardous area certification (ATEX/IECEx Zone 2) for outdoor or process-area installation
Sample Compatibility & Compliance
The M90S accommodates raw surface water, clarified effluent, potable water, boiler feedwater, and ultrapure water (UPW) with conductivity as low as 0.055 µS/cm. It complies with ISO/IEC 17025 requirements for measurement uncertainty estimation and supports audit-ready data integrity through built-in electronic signatures and ALCOA+ compliant logging. All photometric methods adhere to DIN EN ISO 15303 for spectrophotometric analysis, while ISE-based measurements conform to ISO 10523 (pH) and ISO 10304-1 (anion/cation determination). For pharmaceutical and biotech applications, the system meets FDA 21 CFR Part 11 requirements when configured with secure user authentication, role-based access control, and immutable audit trails.
Software & Data Management
The M90S operates under Blaubeuren’s proprietary AquaControl™ firmware v4.2, supporting Modbus TCP, OPC UA, and MQTT protocols for seamless integration into SCADA, DCS, and MES platforms. Real-time data visualization includes trend charts, alarm thresholds with hysteresis logic, and automatic report generation in PDF/CSV formats. All measurement events — including calibration logs, error codes, reagent lot tracking, and maintenance timestamps — are timestamped, digitally signed, and retained for ≥36 months. Remote diagnostics via encrypted TLS 1.2 connection enable predictive maintenance alerts and firmware updates without physical site access.
Applications
- Reservoir and watershed monitoring: Continuous classification of trophic state indices (TSI) via simultaneous TP, TN, NH₄⁺, NO₂⁻, and NO₃⁻ quantification
- Drinking water safety: Regulatory compliance for cyanide (total/free), phenol index, hexavalent chromium, and heavy metals (Cu, Fe, Al, Mn) per EU Directive 98/83/EC and US EPA Safe Drinking Water Act
- Power plant chemistry control: Real-time silica monitoring in condensate and feedwater circuits to prevent turbine blade deposition
- Semiconductor UPW validation: Sub-part-per-quadrillion (ppq) equivalent sensitivity for SiO₂ in 18.2 MΩ·cm water, meeting SEMI F63 Grade C specifications
- Wastewater treatment optimization: Ammonia and nitrate profiling for biological nutrient removal (BNR) process control
FAQ
What wet-chemistry methods does the M90S implement for total phosphorus analysis?
It follows ISO 6878 and EPA 365.4 using ammonium molybdate–ascorbic acid reduction under controlled temperature and reaction time, with photometric detection at 880 nm.
Can the M90S be validated under GLP or GMP conditions?
Yes — when deployed with AquaControl™ Audit Mode enabled, it provides full 21 CFR Part 11 compliance, including electronic signatures, audit trail review, and change control documentation.
Is remote calibration verification supported?
Yes — the system supports automated daily zero/span verification using certified reference materials traceable to NIST SRMs, with results logged and exportable.
What is the maximum number of parameters measurable simultaneously?
Up to 12 parameters concurrently: 8 photometric, 3 ISE-based, and 1 ultra-low-level silica channel — configurable per application requirements.
Does the M90S require external sample filtration or conditioning?
For turbid or particulate-laden samples (e.g., raw river water), an optional inline 5-µm filter and air bubble removal module is recommended to maintain optical path integrity and electrode stability.
