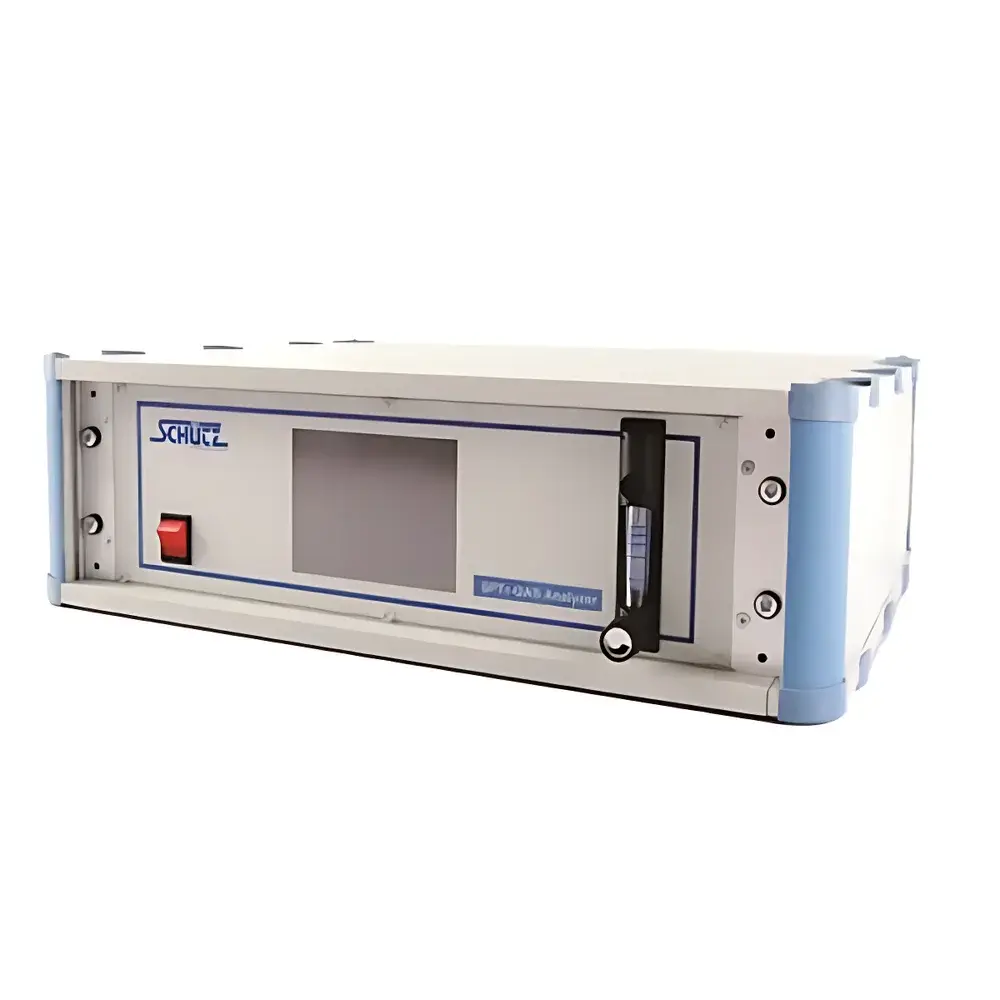

MA-003 Photoacoustic Spectroscopy Trace Gas Analyzer
| Origin | Jiangsu, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Regional Origin | Domestic (China) |
| Model | MA-003 |
| Pricing | Available Upon Request |
Overview
The MA-003 Photoacoustic Spectroscopy Trace Gas Analyzer is an advanced environmental monitoring instrument engineered for high-sensitivity, selective, and interference-resistant quantification of trace-level gaseous analytes in complex industrial and ambient atmospheres. Unlike conventional non-dispersive infrared (NDIR) or electrochemical sensors, the MA-003 leverages the photoacoustic effect—a physical phenomenon wherein modulated light absorbed by target gas molecules induces localized thermal expansion, generating pressure waves (acoustic signals) proportional to gas concentration. These acoustic transients are detected with ultra-low-noise electret microphones integrated directly into a resonant photoacoustic cell. The system employs a non-interfering blackbody radiation source with >90% optical-to-thermal conversion efficiency, combined with precision bandpass filters and a mechanical chopper to deliver wavelength-selective, amplitude-modulated irradiation. This architecture eliminates optical path drift, minimizes baseline instability, and ensures long-term measurement stability without requiring frequent optical recalibration—critical for unattended, continuous operation in field-deployed environmental monitoring networks.
Key Features
- Sub-ppm detection capability: Achieves a typical limit of detection (LOD) of 0.01 ppm for key gases (e.g., CO, NO₂, SO₂, NH₃, H₂S), validated under ISO 12039-compliant test conditions.
- Self-calibrating operation using ambient air as zero reference—no external calibration gases required for routine baseline correction.
- Integrated infrared hygrometer for real-time water vapor concentration measurement; enables dynamic compensation of H₂O-induced spectral interference and acoustic damping effects.
- Three-point automated sampling via internal solenoid valves and a maintenance-free diaphragm pump, supporting sequential multi-location monitoring without manual intervention.
- Stainless steel sampling lines with replaceable particulate filters installed at each inlet point—designed to prevent dust ingress and ensure consistent flow dynamics across extended deployments.
- Onboard activated carbon pre-filter to remove volatile organic compounds (VOCs) and other reactive contaminants upstream of the photoacoustic cell, preserving sensor integrity and reducing cross-sensitivity.
Sample Compatibility & Compliance
The MA-003 is optimized for continuous, real-time analysis of permanent gases and polar volatiles in humid, dusty, or thermally fluctuating environments. It complies with IEC 61000-6-2 (EMC immunity) and IEC 61000-6-4 (EMC emission) standards. Its measurement methodology aligns with principles referenced in ASTM D6348 (standard test method for determining gaseous pollutants by photoacoustic spectroscopy) and supports data traceability requirements under ISO/IEC 17025-accredited laboratories. The analyzer’s firmware includes audit-trail logging per GLP/GMP guidelines and supports optional 21 CFR Part 11-compliant user access control and electronic signature modules when deployed in regulated industrial QA/QC settings.
Software & Data Management
The MA-003 operates with embedded Linux-based firmware and communicates via RS-485, Modbus TCP, or Ethernet/IP protocols. Its web-accessible interface provides real-time concentration plots, alarm status visualization, and historical trend export in CSV or XML formats. Remote configuration, firmware updates, and diagnostic logs are accessible through HTTPS-secured connections. Data synchronization supports integration with SCADA systems, cloud-based environmental dashboards (e.g., AWS IoT Core, Microsoft Azure IoT Hub), and enterprise LIMS platforms via standardized RESTful APIs. All raw acoustic waveform data and spectral processing metadata are retained onboard for post-acquisition reprocessing and method validation.
Applications
- Petrochemical refining: Continuous monitoring of sulfur compounds (H₂S, COS, SO₂) and hydrocarbon leaks in flare stacks, storage tank vents, and process headers.
- Automotive emissions testing: In-situ exhaust gas analysis during chassis dynamometer cycles and on-road RDE (Real Driving Emissions) campaigns.
- Cement and iron & steel production: Quantification of NOₓ, CO, and NH₃ in kiln off-gas streams and SCR/SNCR system feedback loops.
- Quarantine and fumigation facilities: Regulatory-grade detection of methyl bromide, phosphine, and sulfuryl fluoride in cargo holds and grain silos.
- Industrial fence-line monitoring: Multi-point deployment for perimeter air quality surveillance in chemical manufacturing zones, complying with EPA Method TO-15 and EU Directive 2008/50/EC.
FAQ
What gases can the MA-003 detect simultaneously?
The analyzer is configured for single-gas or dual-gas operation depending on filter/chopper setup; simultaneous multi-gas detection requires sequential wavelength modulation and is supported via time-multiplexed scanning mode.
Does the system require periodic span calibration?
Span calibration is recommended every 90 days for regulatory reporting applications; however, automatic air-zero referencing maintains baseline stability between calibrations.
Can the MA-003 operate in high-humidity environments (>90% RH)?
Yes—the integrated IR hygrometer and adaptive signal compensation algorithm correct for humidity-induced acoustic attenuation and spectral overlap, enabling reliable operation up to 95% RH at 40°C.
Is the photoacoustic cell field-serviceable?
The resonant cell is sealed and factory-aligned; no user-serviceable optics or microphone components exist. Full unit return-to-factory service is provided under warranty or extended support contracts.
What power supply options are available?
Standard operation uses 24 VDC ±10%, with optional 110/230 VAC input via external switching power supply—suitable for both portable and fixed-installation configurations.
