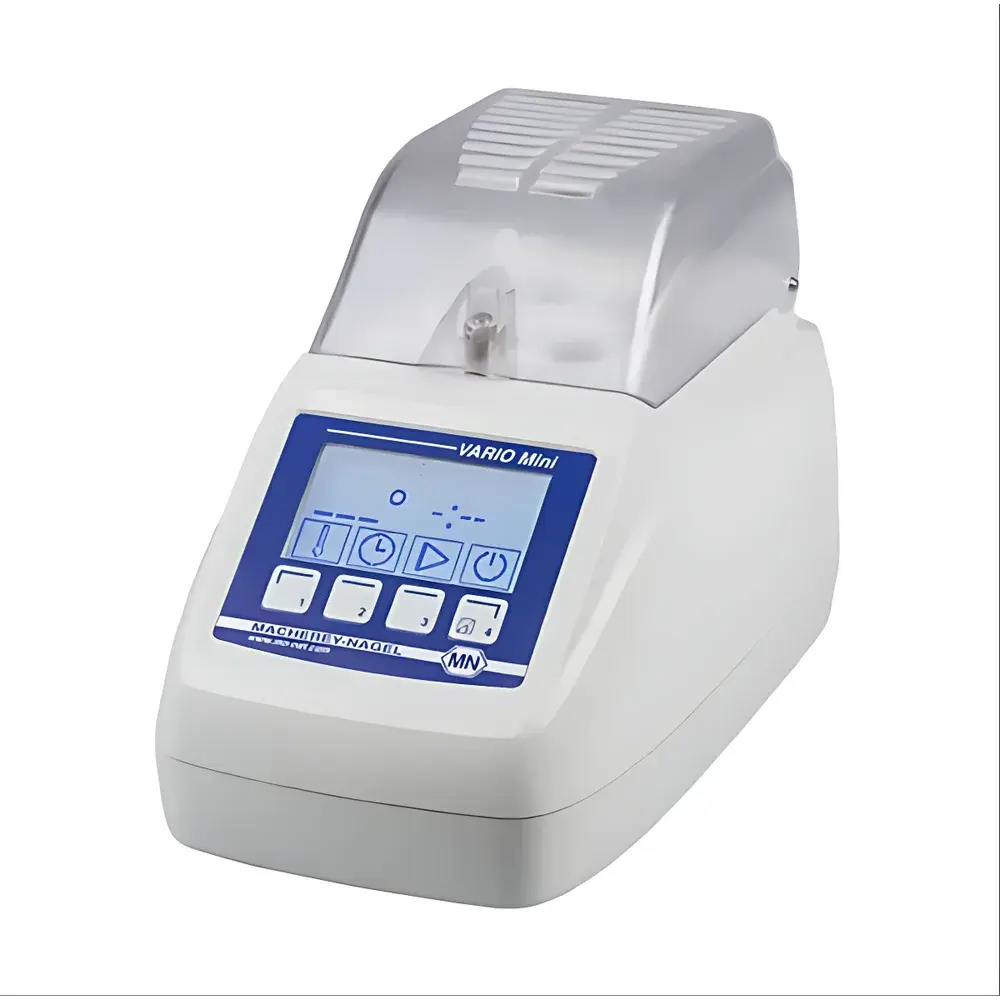

Macherey-Nagel MN Vario mini COD and Heavy Metal Digestion Heater

Overview

The Macherey-Nagel MN Vario mini is a compact, precision-engineered digestion heater designed specifically for rapid, standardized thermal pretreatment of aqueous samples in environmental water quality laboratories. It operates on the principle of controlled conductive heating via a single aluminum block, ensuring uniform thermal distribution across all six sample positions. The instrument is optimized for applications requiring oxidation under acidic conditions—most notably chemical oxygen demand (COD), total phosphorus (TP), total nitrogen (TN), and acid-digestible heavy metals including nickel, copper, chromium, and lead. Its design adheres to internationally recognized digestion protocols aligned with ISO 6060 (COD), ISO 11908 (TP), EPA Method 300.0 (anions), and EPA Method 200.7/200.8 (metals), enabling reproducible sample preparation prior to spectrophotometric, ICP-OES, or AAS analysis. Unlike open-flame or hotplate-based systems, the Vario mini provides closed-system thermal control with integrated safety interlocks, minimizing operator exposure and analytical variability.

Key Features

• Compact footprint (105 × 125 × 170 mm) and lightweight construction (0.67 kg) for flexible deployment—suitable for benchtop use, mobile labs, or field-deployed water monitoring stations.
• Graphical LCD interface (124 × 64 px) with intuitive icon-driven menu navigation—operable with only four tactile keys, eliminating software learning curves and reducing training overhead.
• Six-position heating block accommodating standard 16 mm OD digestion tubes up to 60 mL volume; compatible with common pre-filled reagent vials used in NANOCOLOR® and other certified test kits.
• Precise thermal control: six factory-preset temperatures (70, 100, 120, 148, 150, 160 °C) with ±1 °C accuracy and stability, verified per DIN 12878 and ISO/IEC 17025 calibration requirements.
• Integrated lockable safety lid prevents splashing, vapor release, and accidental contact during active digestion; automatically disables heating when opened.
• Dual-power capability: powered via 12 V DC input—enabling operation from vehicle batteries, portable power banks, or laboratory DC supplies—ideal for remote sampling campaigns or emergency response scenarios.
• Built-in temperature validation support via optional NANOCOLOR USB T-Set, allowing automated, auditable temperature profiling and traceable calibration records compliant with GLP and ISO/IEC 17025 documentation standards.

Sample Compatibility & Compliance

The Vario mini is validated for use with a wide range of aqueous matrices—including surface water, wastewater, drinking water, and leachates—when processed according to standardized digestion procedures. Its 60 mL vessel capacity supports both low-volume colorimetric assays and higher-volume metal extractions per EPA SW-846 Method 3010B and 3050B. All thermal profiles meet critical regulatory thresholds: the 148–150 °C range satisfies COD digestion per ISO 6060 and ASTM D1252, while 160 °C enables complete mineralization of refractory organics and particulate-bound metals. The device carries CE marking and conforms to IEC 61010-1 (safety) and IEC 61326-1 (EMC) directives. Its temperature performance is documented against DIN EN ISO/IEC 17025 reference methods, supporting audit readiness for accredited environmental testing laboratories.

Software & Data Management

While the Vario mini operates as a standalone hardware unit without embedded data logging, its mini-USB port enables direct connection to Windows-based PCs for firmware updates and integration with third-party LIMS or QA/QC workflows. When paired with the NANOCOLOR USB T-Set, users generate timestamped temperature validation reports (.csv) containing real-time sensor readings, deviation metrics, and pass/fail status against user-defined tolerances. These reports are fully compatible with electronic record retention systems and satisfy FDA 21 CFR Part 11 requirements when deployed with appropriate system controls (e.g., user authentication, audit trail activation). No proprietary software installation is required—validation outputs are human-readable and exportable for inclusion in method validation dossiers or accreditation submissions.

Applications

• Routine COD determination using dichromate oxidation in compliance with ISO 6060 and APHA Standard Methods 5220.
• Total phosphorus quantification via persulfate digestion (ISO 6878) prior to molybdenum blue spectrophotometry.
• Acid digestion of water and sludge samples for subsequent heavy metal analysis by ICP-OES or GF-AAS per EPA Methods 200.7, 200.8, and 6010D.
• Preparation of reference materials and QC check standards in accordance with ISO Guide 34 and ISO/IEC 17025 internal quality control protocols.
• Field-deployable digestion for emergency water quality screening during industrial spills or natural disasters.

FAQ

Is the Vario mini suitable for EPA-compliant COD analysis?
Yes—the 148–150 °C preset temperature range aligns with EPA Method 410.4 and ISO 6060 requirements for dichromate-based COD digestion, provided appropriate reagents and digestion vessels are used.
Can it be used for total nitrogen digestion?
Yes—its 160 °C setting supports alkaline persulfate digestion (ISO 11908, APHA 4500-N) for total nitrogen determination in low-turbidity waters.
Does it include calibration documentation?
The unit ships with a factory calibration certificate; optional NANOCOLOR USB T-Set enables user-performed, traceable temperature verification with downloadable reports.
What safety certifications does it hold?
It complies with IEC 61010-1 (electrical safety for laboratory equipment) and carries CE marking for the European Economic Area.
Is the heating block interchangeable or serviceable?
No—the aluminum heating block is permanently integrated into the chassis for thermal stability and mechanical robustness; replacement requires authorized service.
