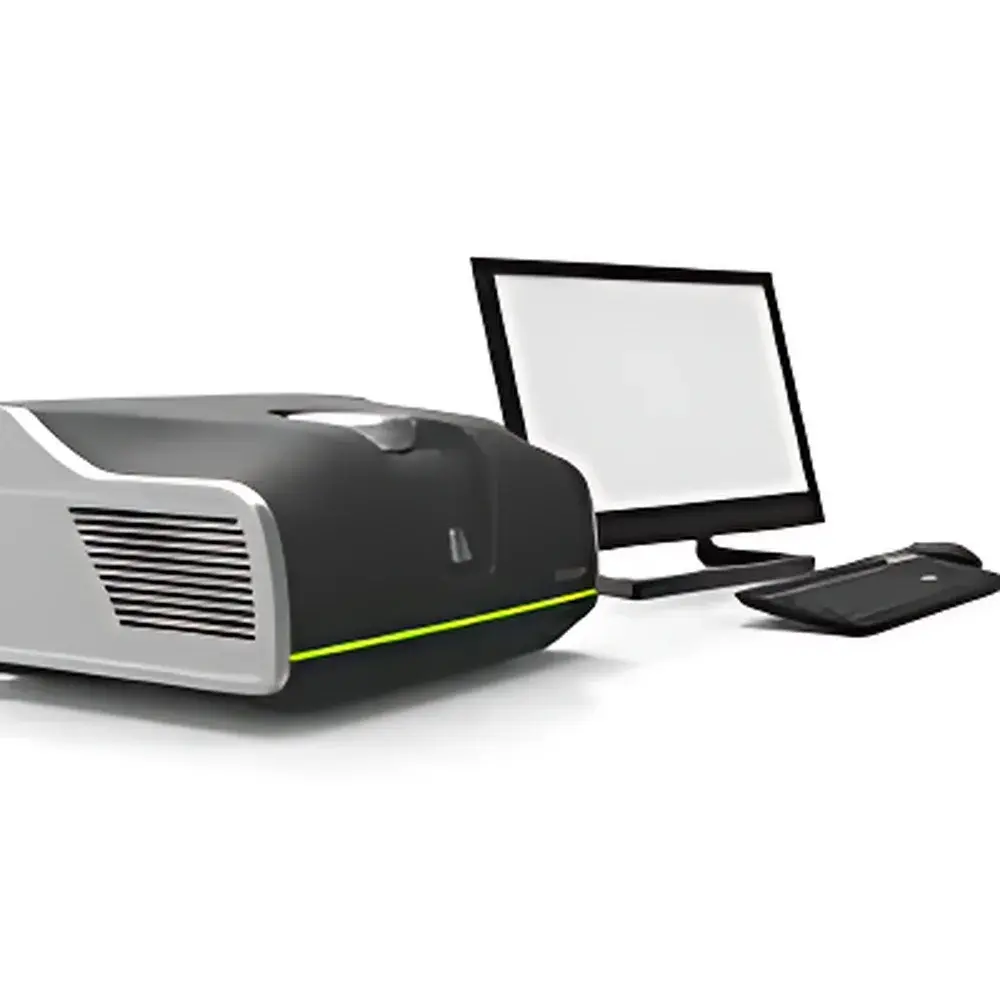

Makeway TCT-3 Thin Film Thermal Conductivity Measurement System

Overview

The Makeway TCT-3 Thin Film Thermal Conductivity Measurement System is a precision benchtop instrument engineered for quantitative thermal transport characterization of micro- and nanoscale thin films. It implements the well-established 3ω technique—a four-terminal, frequency-domain method grounded in lock-in detection of the third-harmonic voltage response generated when an AC current (ω) passes through a metallic heater line patterned directly onto the sample surface. As heat diffuses laterally and vertically from the heater into the film/substrate system, the resulting periodic temperature oscillation (at 2ω) modulates the heater’s resistance, producing a measurable 3ω voltage component. This signal is directly related to the in-plane or cross-plane thermal conductivity of the film—depending on heater geometry, film thickness, and substrate thermal boundary conductance. Designed specifically for semiconductor process development and advanced materials R&D labs, the TCT-3 delivers traceable, reproducible thermal conductivity data across temperature sweeps (ambient to 200 °C), enabling critical evaluation of thermal management layers in IC packaging, thermoelectric heterostructures, and optoelectronic device stacks.

Key Features

• Integrated 3ω measurement architecture with dual-channel high-resolution digital source meter (DSM) and dual-phase lock-in amplifier—ensuring sub-microvolt sensitivity and precise harmonic isolation.
• Custom-designed microfabricated heater electrodes (Ti/Pt or Cr/Au, 5–20 µm width) optimized for uniform Joule heating, minimal lateral heat loss, and robust adhesion to diverse dielectric and semiconducting substrates (SiO₂/Si, sapphire, AlN, polymer films).
• Programmable temperature-controlled stage with PID-regulated heating and integrated Pt100 sensor (±0.1 °C stability over 1 hr), supporting both isothermal measurements and dynamic thermal sweeps.
• Modular sample holder accommodating standard 4-inch wafers or discrete film coupons (10 × 10 mm to 25 × 25 mm), with vacuum-compatible design for low-convection environments.
• Real-time signal validation tools including ω- and 2ω amplitude monitoring, phase drift compensation, and automatic baseline correction to mitigate thermoelastic and piezoresistive artifacts.

Sample Compatibility & Compliance

The TCT-3 supports a broad spectrum of functional thin films relevant to semiconductor manufacturing and next-generation electronics: metal nitrides (TiN, TaN), transition metal oxides (VO₂, NiO), chalcogenides (Sb₂Te₃, Bi₂Se₃), dielectric barriers (SiCN, SiOC), and polymeric thermal interface materials (TIMs). Film thickness range: 10 nm to 5 µm. Substrate compatibility includes single-crystal Si, SOI, quartz, fused silica, and flexible polyimide carriers. All hardware and firmware comply with ISO/IEC 17025 calibration traceability requirements. Data acquisition workflows adhere to GLP and GMP principles—including full audit trail logging, user-access controls, and electronic signature support per FDA 21 CFR Part 11. Measurement protocols align with ASTM E1461 (standard test method for thermal diffusivity by flash method) and ISO 22007-4 (determination of thermal conductivity using the 3ω method), ensuring regulatory acceptability in qualification reports.

Software & Data Management

The TCT-3 is operated via Makeway’s proprietary ThermalStudio™ software suite (v3.2+), a Windows 10/11 native application built on Qt framework with .NET backend. It provides synchronized control of excitation frequency, current amplitude, temperature ramp rate, and lock-in time constant. Raw 3ω signals are processed using fast Fourier transform (FFT)-based harmonic decomposition, followed by iterative curve fitting against analytical 3ω models (e.g., Cahill’s thin-film solution or Chen’s multilayer extension). Output includes thermal conductivity (λ), thermal diffusivity (α), volumetric heat capacity (ρc_p), and interfacial thermal resistance (R_th)—all exportable in CSV, HDF5, or MATLAB .mat formats. The software maintains full metadata tagging (operator ID, timestamp, environmental conditions, calibration certificate ID) and supports automated report generation compliant with ISO/IEC 17025 Annex A.2.

Applications

• Thermal reliability assessment of BEOL interlayer dielectrics and Cu/low-k interconnect stacks in advanced node CMOS fabrication.
• Screening of high-κ thermal barrier coatings for GaN HEMT power devices operating above 150 °C junction temperature.
• Structure–property correlation studies of strained epitaxial oxide films (e.g., SrTiO₃/LaAlO₃ superlattices) for phonon engineering.
• Qualification of anisotropic thermal conductors (e.g., aligned boron nitride nanosheets) used in flexible OLED backplane thermal management.
• Validation of accelerated aging effects on thermal interface material (TIM) performance under thermal cycling (−40 °C to 125 °C).

FAQ

What film thicknesses can the TCT-3 accurately characterize?

The system is validated for films between 10 nm and 5 µm thick. For sub-20 nm layers, measurement accuracy depends on heater-to-film thermal coupling and substrate phonon scattering; optional cryogenic stage extension enables enhanced resolution down to 2 K.
Does the TCT-3 require physical contact with the sample during measurement?

Yes—the heater electrode must be lithographically patterned or bonded onto the film surface. Non-contact alternatives (e.g., time-domain thermoreflectance) are not supported by this platform.
Can the TCT-3 measure cross-plane versus in-plane thermal conductivity?

Cross-plane λ is measured using narrow-line heaters (≤10 µm width) on freestanding membranes or suspended films; in-plane λ requires wide-area heaters (≥50 µm) on rigid substrates. Geometry selection is configured in ThermalStudio™ prior to acquisition.
Is calibration traceable to NIST or other national metrology institutes?

Yes—each system ships with a factory calibration certificate referencing NIST-traceable thermal reference standards (e.g., certified sapphire wafers and amorphous carbon films) and includes annual recalibration service options.
How does the TCT-3 handle thermal boundary resistance (Kapitza resistance) at film–substrate interfaces?

The software incorporates multi-layer 3ω modeling that explicitly accounts for interfacial thermal conductance (G_int). Users may input known G_int values or extract them iteratively by varying film thickness across a series of samples.
