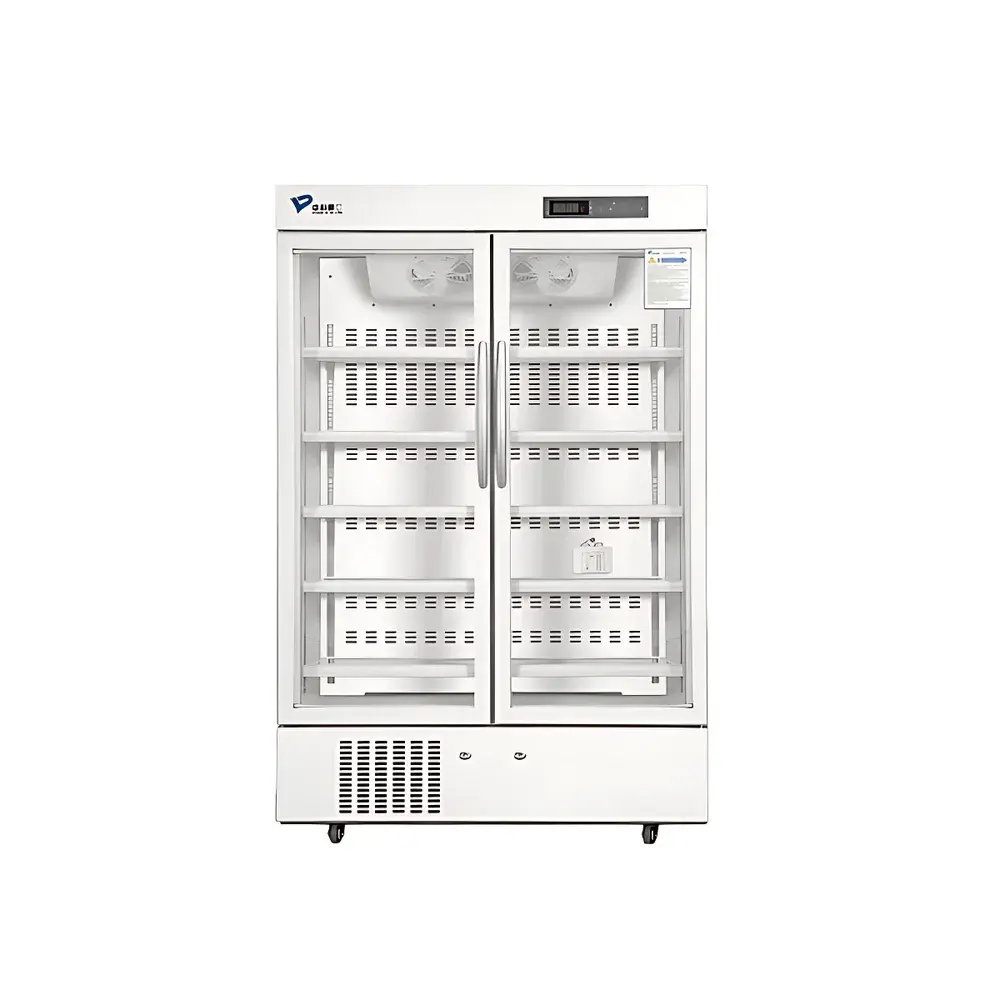

MDC Duling MPC-5V1006 Medical Refrigerator (2–8°C)

Overview

The MDC Duling MPC-5V1006 Medical Refrigerator is a high-capacity, microprocessor-controlled, forced-air cooled storage system engineered for reliable, continuous maintenance of temperature-sensitive biological materials at 2–8°C. Designed in strict alignment with international cold chain requirements for clinical and research-grade specimens—including vaccines, blood components, reagents, diagnostic kits, and primary cell cultures—the unit employs a dual-stage air circulation architecture to ensure uniform temperature distribution across its 1006 L internal volume. Its thermally insulated cabinet construction features high-density polyurethane foam (≥100 mm thickness) and triple-sealed magnetic door gaskets, minimizing thermal leakage and supporting stable operation under ambient conditions up to 32°C. Unlike passive or direct-coil refrigeration systems, the MPC-5V1006 utilizes an intelligent fan-assisted cooling loop with adaptive speed control, enabling rapid recovery after door openings and mitigating localized cold spots or condensation buildup—critical factors in long-term sample integrity and regulatory compliance.

Key Features

• Microprocessor-based digital temperature controller with ±0.5°C accuracy and real-time display of setpoint, actual chamber temperature, and alarm status
• Redundant dual-sensor monitoring (primary + backup PT100 sensors) with automatic fault detection and audible/visual alarms for temperature deviation, door ajar, power failure, and sensor failure
• Forced-air cooling system with variable-speed EC fans and optimized duct geometry to achieve ≤±1.5°C temperature uniformity (measured per ICH Q5C Annex 1 methodology)
• Stainless steel interior (SUS304) with seamless welded corners and removable, autoclavable shelves; corrosion-resistant aluminum exterior housing
• Integrated data logging capability (internal memory for ≥30 days of 10-minute interval data) with optional USB export and configurable alarm thresholds
• Compliance-ready design: CE-marked, RoHS-compliant, and compatible with external monitoring systems via 4–20 mA analog output and RS485 Modbus RTU interface

Sample Compatibility & Compliance

The MPC-5V1006 accommodates standard laboratory and clinical storage configurations—including stacked cryoboxes (e.g., 10×10 format), blood bag racks, multi-tier reagent trays, and upright vial holders—without compromising airflow or thermal stability. Its 1100 mm depth supports full-length specimen racks used in hospital blood banks and central labs. The unit meets essential performance criteria referenced in ISO 13485:2016 (medical device quality management), WHO Technical Report Series No. 961 (vaccine storage), and USP <1079> (good storage and distribution practices). While not certified as a Class II medical device under FDA 21 CFR Part 820, it is routinely deployed in GLP and GMP-adjacent environments where documented temperature validation (IQ/OQ/PQ), audit-ready log files, and alarm traceability are required.

Software & Data Management

The embedded control system supports local data review via front-panel interface, with timestamped event logs covering all temperature excursions, door events, and system faults. Optional connectivity modules enable integration into centralized environmental monitoring platforms (e.g., SensiLog, TempTale Web, or custom SCADA systems) using standard protocols. All logged data adhere to ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available) when exported in CSV format. Audit trail functionality—including user login history and parameter change logs—is available with firmware version 2.3.1 or later, satisfying baseline requirements for FDA 21 CFR Part 11 electronic record controls when paired with institutional access governance policies.

Applications

• Vaccine storage and distribution hubs requiring uninterrupted 2–8°C maintenance per CDC and EMA cold chain guidelines
• Hospital blood bank refrigerators for whole blood, RBCs, and platelet concentrates (in conjunction with validated storage protocols)
• Pharmaceutical QC laboratories storing reference standards, stability samples, and assay reagents
• Academic and contract research organizations managing biobank inventories, tissue sections, and primary isolates
• Clinical trial supply chains needing scalable, verifiable cold storage at satellite sites and regional depots

FAQ

Does the MPC-5V1006 support external temperature monitoring systems?

Yes—it provides isolated 4–20 mA analog output and RS485 Modbus RTU communication for integration with third-party BMS or EMS platforms.
Is validation documentation (IQ/OQ/PQ templates) provided with the unit?

Duling supplies standardized validation protocol templates and factory calibration certificates; site-specific execution remains the responsibility of the end-user’s QA team.
What is the recommended maintenance schedule?

Biannual inspection of condenser coil cleanliness, door seal integrity, and sensor calibration verification is advised; annual preventive maintenance by authorized service personnel is strongly recommended.
Can the unit operate continuously at 32°C ambient temperature?

Yes—the design is rated for continuous operation at ambient temperatures up to 32°C with relative humidity ≤80% non-condensing, per IEC 61000-4-2 EMC and IEC 60068-2 environmental testing standards.
Are replacement parts and service support available outside China?

Global service coordination is managed through Duling’s network of certified distributors; technical documentation, spare parts catalogs, and firmware updates are accessible via secure customer portal upon registration.
