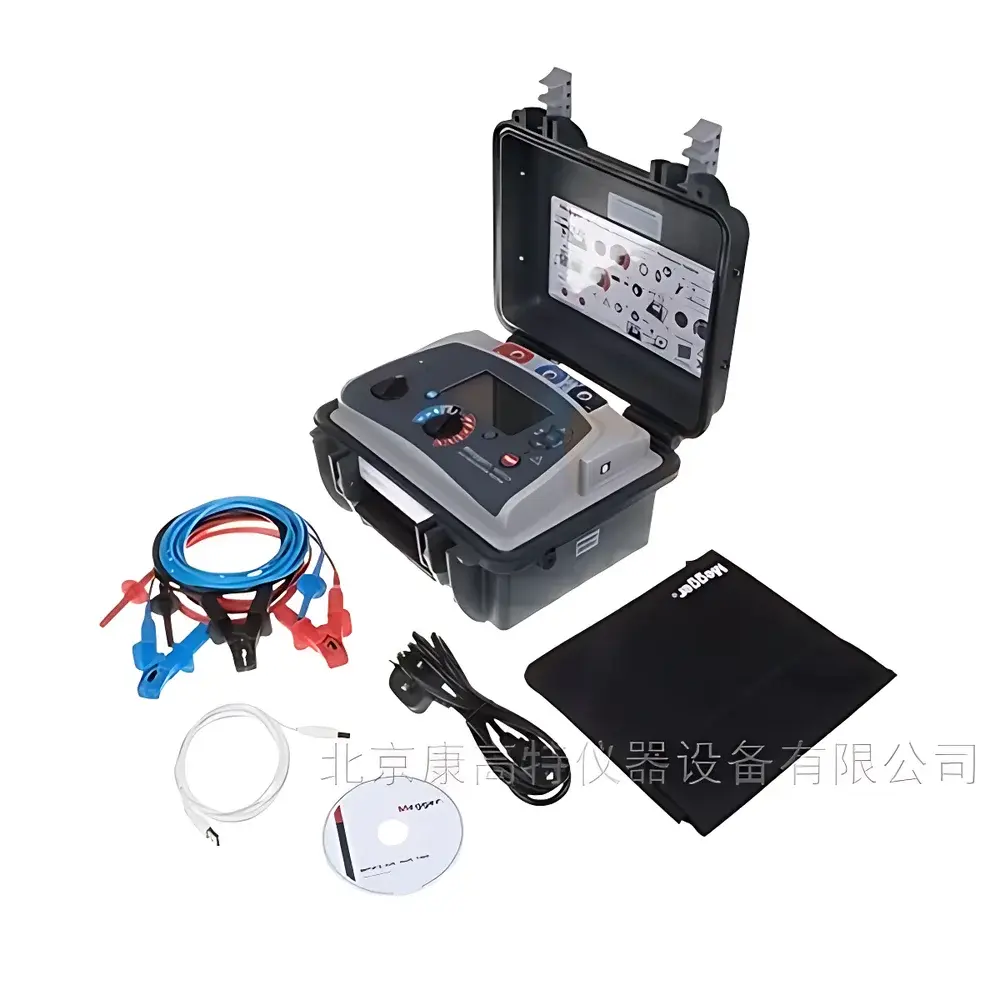

Megger MIT525 5 kV Insulation Resistance Tester

Overview

The Megger MIT525 is a portable, high-voltage insulation resistance tester engineered for precision, safety, and field-deployable reliability in demanding electrical maintenance and commissioning environments. Operating on the principle of DC voltage application followed by leakage current measurement—governed by Ohm’s Law (R = V/I)—the MIT525 delivers stable, traceable insulation integrity assessments across a wide range of asset classes. Its 5 kV maximum test voltage enables evaluation of medium- and high-voltage apparatus including power cables, rotating machines, distribution transformers, switchgear bushings, and generator windings. Designed to meet stringent international safety standards—including CAT IV 600 V overvoltage category and double insulation—the instrument ensures operator protection even under transient overvoltage conditions typical in industrial substations and utility infrastructure. The MIT525 integrates advanced diagnostics such as Polarization Index (PI), Dielectric Absorption Ratio (DAR), Dielectric Discharge (DD), Step Voltage (SV), and programmable Ramp testing, enabling condition-based assessment beyond simple pass/fail thresholds.

Key Features

• Five factory-preset test voltages (250 V, 500 V, 1000 V, 2500 V, 5000 V) plus fully user-definable voltage steps (10 V increments from 100 V–1 kV; 25 V increments from 1 kV–5 kV)
• Measurement range up to 10 TΩ with ±5% accuracy to 1 TΩ and ±20% to 10 TΩ (per IEC 62439-2 calibration reference conditions at 23 °C)
• 3 mA short-circuit current output—engineered to maintain rated voltage across high-capacitance loads (e.g., long cable runs or large motor windings) without sag

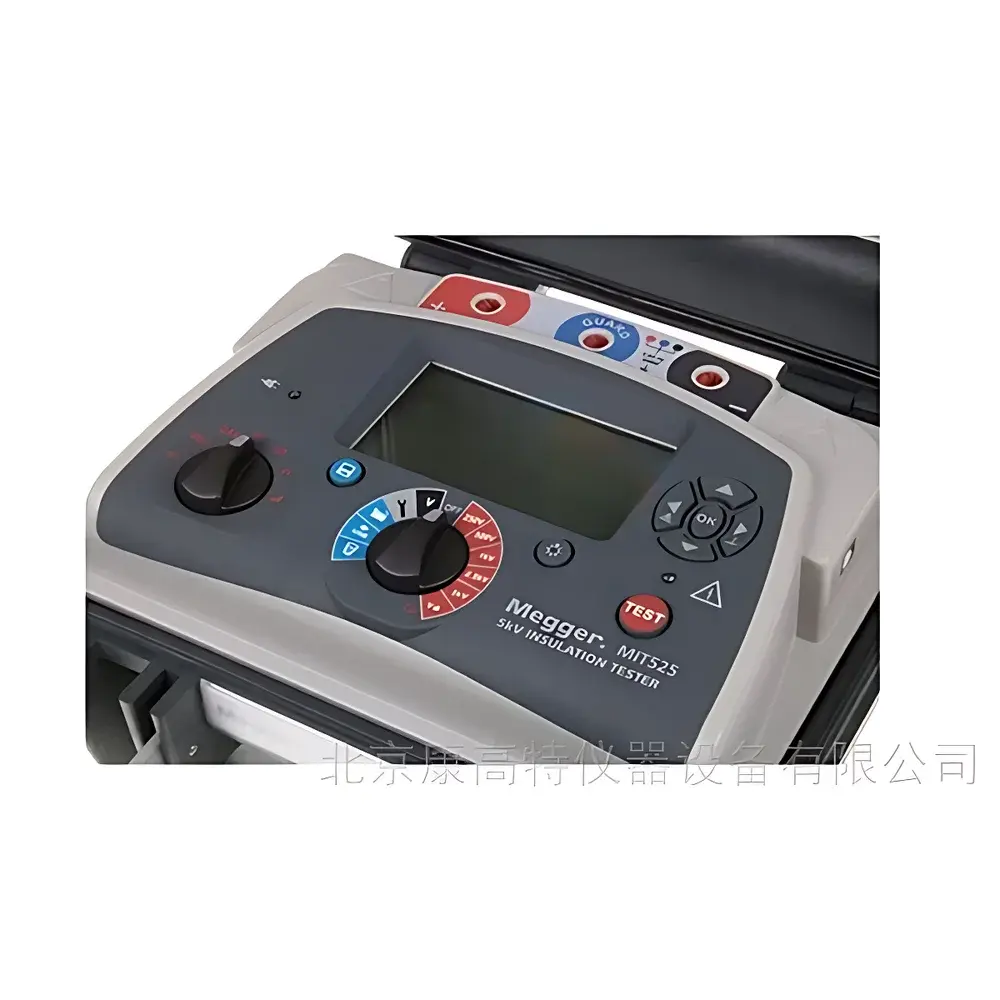

• Dual rotary controls and large backlit LCD support simultaneous display of resistance, voltage, current, time, and diagnostic indices (e.g., PI value alongside elapsed test time)

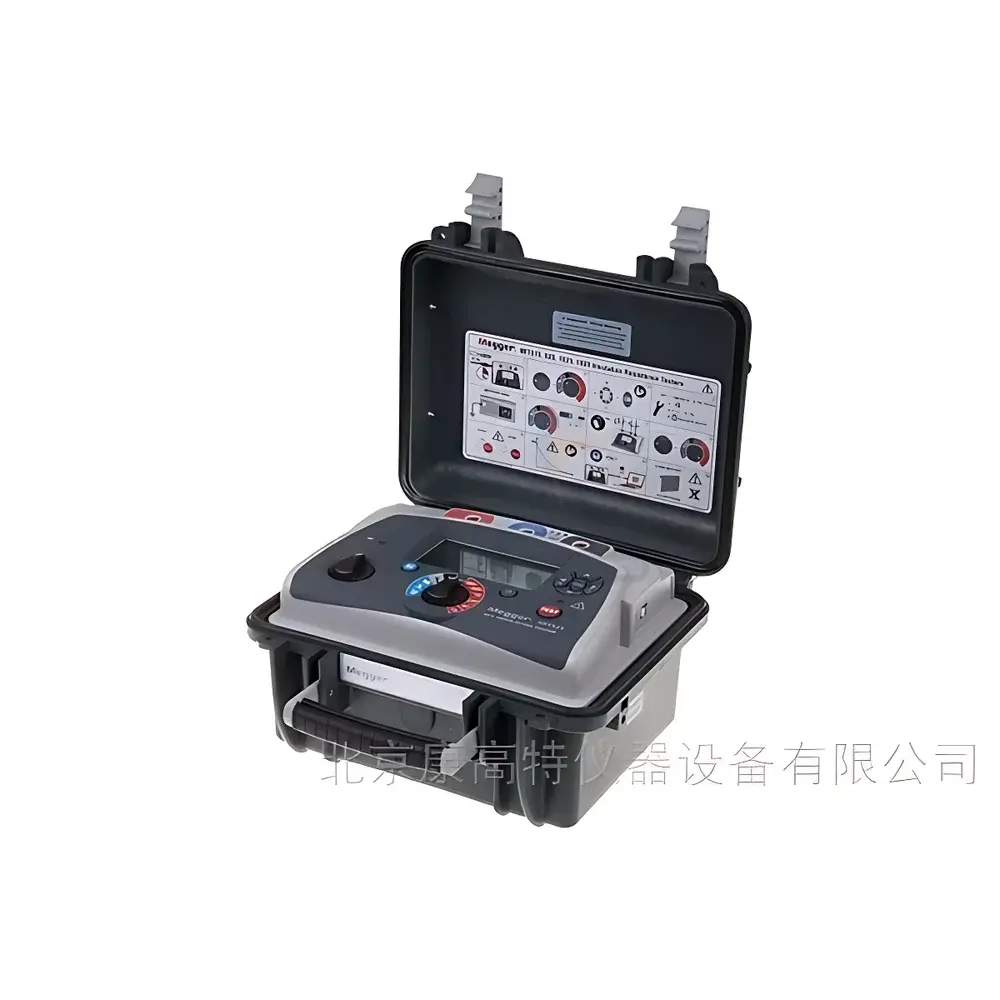

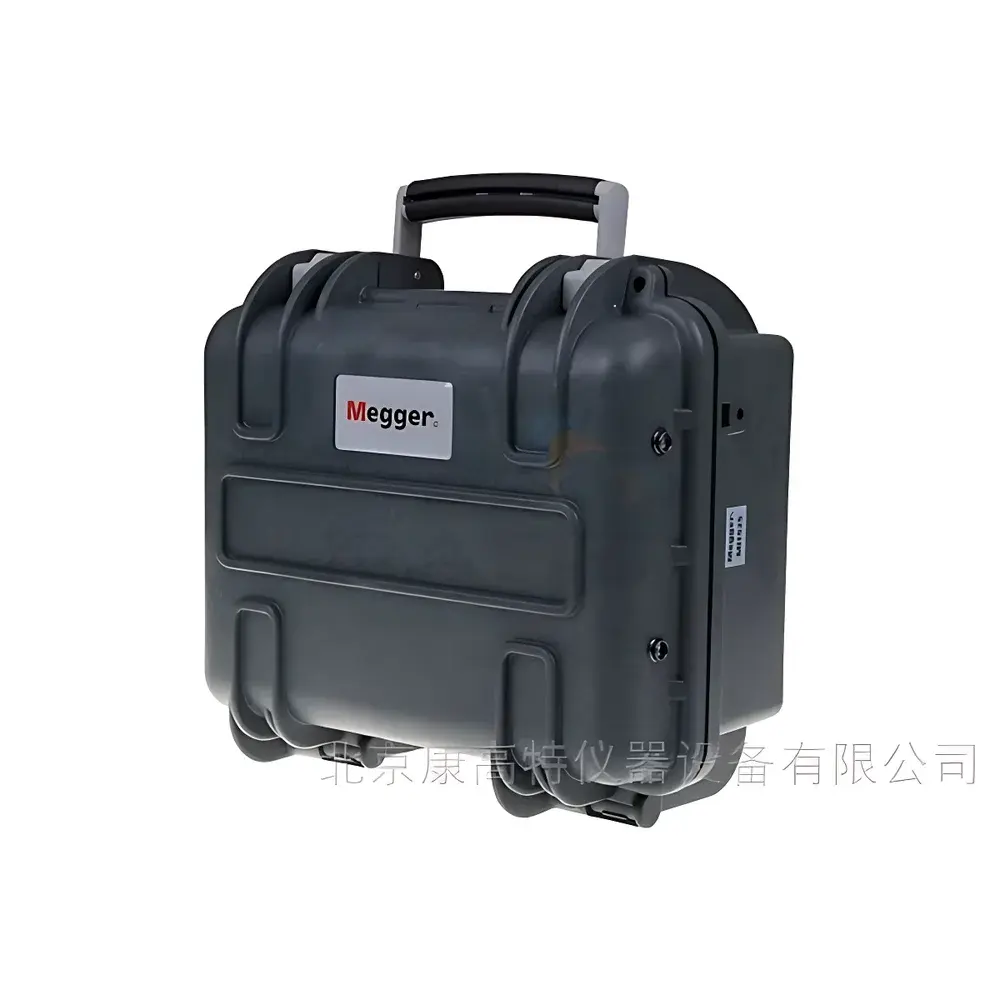

• IP65-rated enclosure (lid closed) provides dust-tight and water-jet resistant protection; removable lid facilitates direct terminal access in confined spaces
• Integrated true-RMS voltage meter (30–660 V ac/dc, 50/60 Hz) with frequency measurement capability—enabling pre-test verification of induced or residual voltages prior to insulation testing
• Noise rejection circuitry suppresses interference currents up to 3 mA, ensuring stable readings in electrically noisy substations or near VFD-driven equipment
• Lithium-ion battery (11.1 V, 5.2 Ah) supports six hours of continuous 5 kV testing; intelligent charging allows concurrent operation and recharging from AC mains (85–265 V, 50/60 Hz)
• CAT IV 600 V rating applied to all terminals, verified per IEC 61010-1; test leads comply with IEC 61010-31:2008 for enhanced creepage/clearance and mechanical robustness

Sample Compatibility & Compliance

The MIT525 is validated for use across diverse electrical assets requiring periodic or commissioning insulation verification. It supports standardized test protocols referenced in IEEE 43 (rotating machinery), IEEE 95 (power cables), and IEC 60204-1 (industrial control panels). Its 3000 m altitude rating maintains CAT IV 600 V performance in mountainous or high-elevation installations—critical for rail traction systems and remote renewable energy sites. All test functions—including timed IR, PI, DAR, DD, SV, and Ramp—generate timestamped records compliant with GLP and ISO/IEC 17025 documentation requirements. The device meets electromagnetic compatibility (EMC) requirements per IEC 61326-1 for industrial environments and conforms to safety directives under IEC 61010-1 Edition 3.0, including reinforced insulation construction and automatic discharge circuitry that reduces stored capacitor voltage to <50 V within 250 ms/µF after test completion.

Software & Data Management

Data export and long-term asset tracking are enabled via an isolated USB-B (device-class) interface, eliminating ground-loop risks during PC connection. Raw measurements—including time-stamped resistance vs. time curves, voltage ramp profiles, and diagnostic indices—are transferable to Megger PowerDB Lite software. This desktop application supports automated report generation aligned with utility maintenance templates, trend analysis across multiple test campaigns, and audit-ready export in CSV and PDF formats. All data entries include embedded UTC timestamps, operator ID fields (configurable), and instrument serial number metadata—supporting compliance with FDA 21 CFR Part 11 where electronic records are subject to regulatory review. Firmware updates are delivered via signed binary packages, ensuring integrity and version traceability.

Applications

• Commissioning verification of new HV cable installations per IEEE 400.2 and CIGRE TB 373
• Preventive maintenance of stator windings in generators and motors (IEEE 43-2013)
• Condition assessment of oil-immersed and dry-type distribution transformers
• Routine insulation surveillance in railway electrification systems (EN 50122-1)
• QA testing of transformer bushings, circuit breaker poles, and surge arresters
• Trend-based analysis of insulation degradation using multi-year PI and DAR datasets
• Field diagnostics of moisture ingress or contamination in underground cable joints and terminations
• Verification of grounding system isolation prior to HV system energization

FAQ

What safety standards does the MIT525 comply with?
The MIT525 conforms to IEC 61010-1 (Edition 3.0) for electrical safety, IEC 61326-1 for EMC, and IEC 61010-31:2008 for test lead construction. Its CAT IV 600 V rating applies to all input terminals under transient overvoltage conditions.

Can the MIT525 perform tests while connected to AC mains?
Yes—the instrument operates from AC mains power during testing and simultaneously charges its internal Li-ion battery, eliminating downtime between field tests.

How is data integrity ensured during USB transfer?
The isolated USB-B interface prevents ground potential differences from corrupting data streams. PowerDB Lite logs cryptographic hash values for each imported dataset to verify file integrity post-transfer.

What is the maximum capacitive load the MIT525 can charge at 5 kV?
At 3 mA output, the MIT525 charges capacitance at a rate of <3 seconds per microfarad—sufficient for most distribution-class cables and rotating machine windings.

Does the MIT525 support scheduled, unattended testing?
No—the MIT525 requires manual initiation and supervision per IEC 60364-6 and NFPA 70E arc-flash safety guidelines; it does not feature autonomous timer-triggered test sequences.
