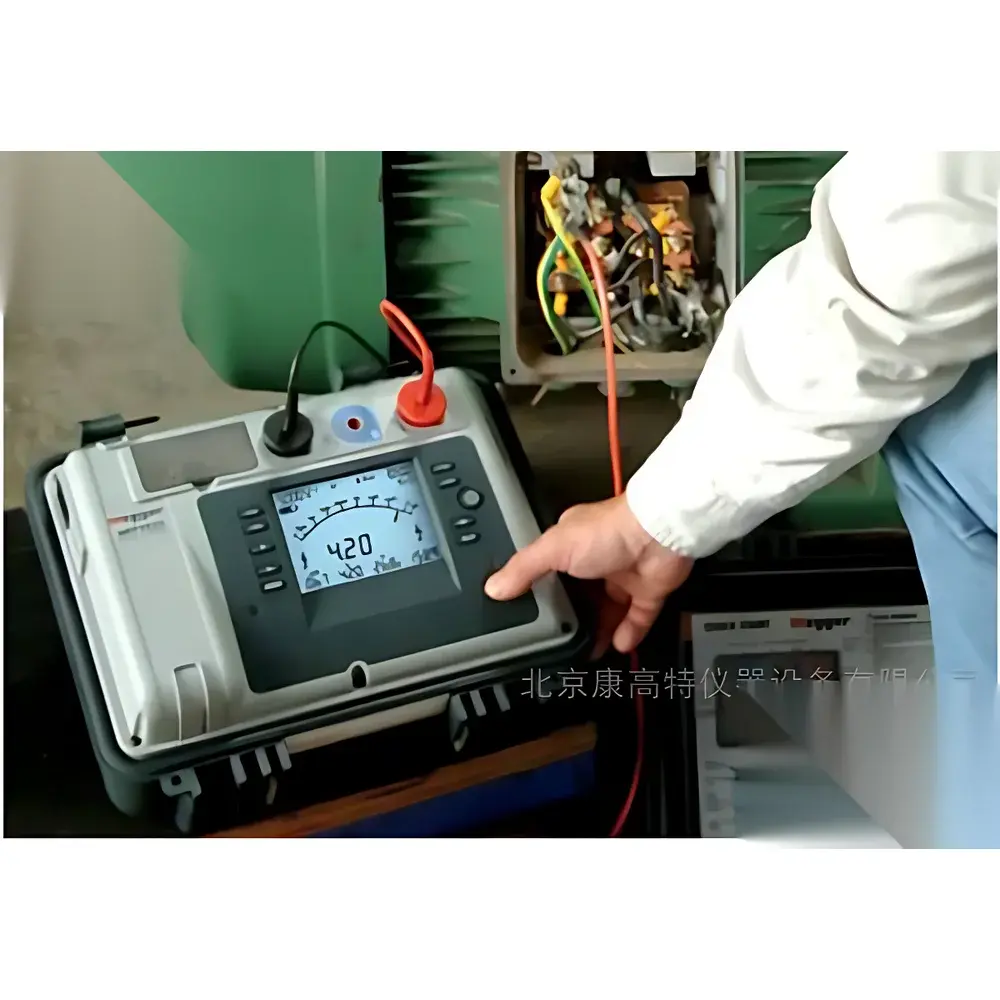

Megger MIT525 Insulation Resistance Tester

Overview

The Megger MIT525 is a high-performance, portable insulation resistance tester engineered for precision diagnostics and preventive maintenance of medium- and high-voltage electrical assets—including power transformers, switchgear, rotating machinery, cables, and busbar systems. Operating on the principle of DC voltage application and subsequent leakage current measurement, the MIT525 calculates insulation resistance (R = V/I) across a defined test duration, enabling quantitative assessment of dielectric integrity. Unlike basic handheld testers, the MIT525 integrates advanced electrochemical diagnostics—including Polarization Index (PI), Dielectric Absorption Ratio (DAR), Dielectric Discharge (DD), Step Voltage (SV), and programmable Ramp testing—to detect moisture ingress, surface contamination, aging, and thermal degradation in insulation systems. Its 5 kV output capability complies with IEEE 43, IEC 60204-1, and ASTM D257 standards for motor and generator winding evaluation, while its CAT IV 600 V safety rating ensures operational reliability in distribution-level substations and industrial control panels.

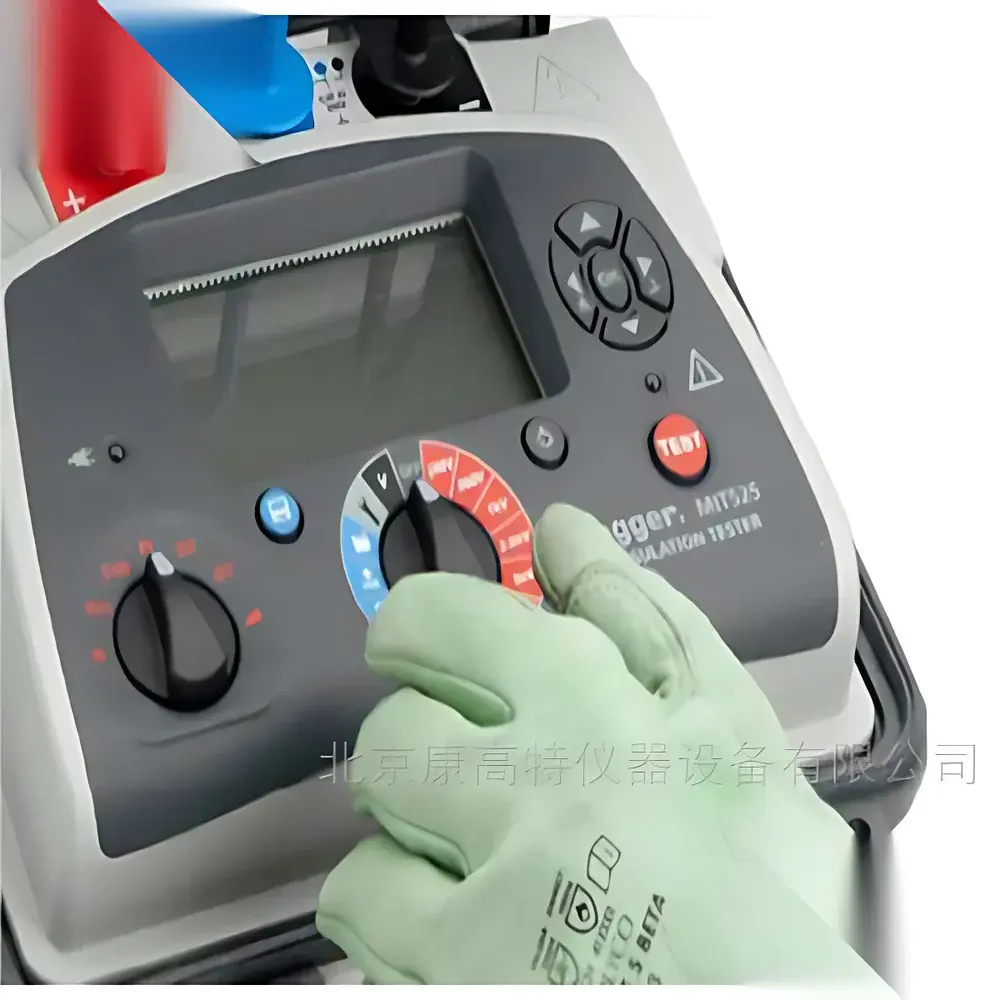

Key Features

• Programmable DC test voltage from 50 V to 5 kV—selectable in 10 V increments up to 1 kV, then 25 V increments—with user-defined voltage locking for repeatable field calibration and commissioning workflows.
• Dual-shell mechanical architecture: outer high-impact polymer housing for drop resistance (1 m drop tested), inner flame-retardant (UL94 V-0) shell contributing to full IP65 ingress protection against dust, water jets, and particulate contaminants.
• Real-time, multi-parameter display showing simultaneously: insulation resistance (up to 10 TΩ), applied test voltage, measured leakage current (0.01 nA–3 mA), capacitance (0.001–50 µF), time constant (τ), battery state-of-charge, and elapsed test time—no external timer required.
• Integrated 3 mA short-circuit current with active noise suppression (±2% accuracy at 100 MΩ under 500 kΩ parallel leakage), ensuring stable readings in electrically noisy environments such as near VFDs or HV switchyards.
• Onboard real-time clock with temperature logging (via optional external probe) enables time-synchronized data correlation for trending analysis per ISO 55001 asset management frameworks.
• USB and RS232 interfaces support bidirectional communication with Megger PowerDB™ software for automated report generation, compliance archiving (21 CFR Part 11 audit trail ready), and long-term insulation health forecasting.

Sample Compatibility & Compliance

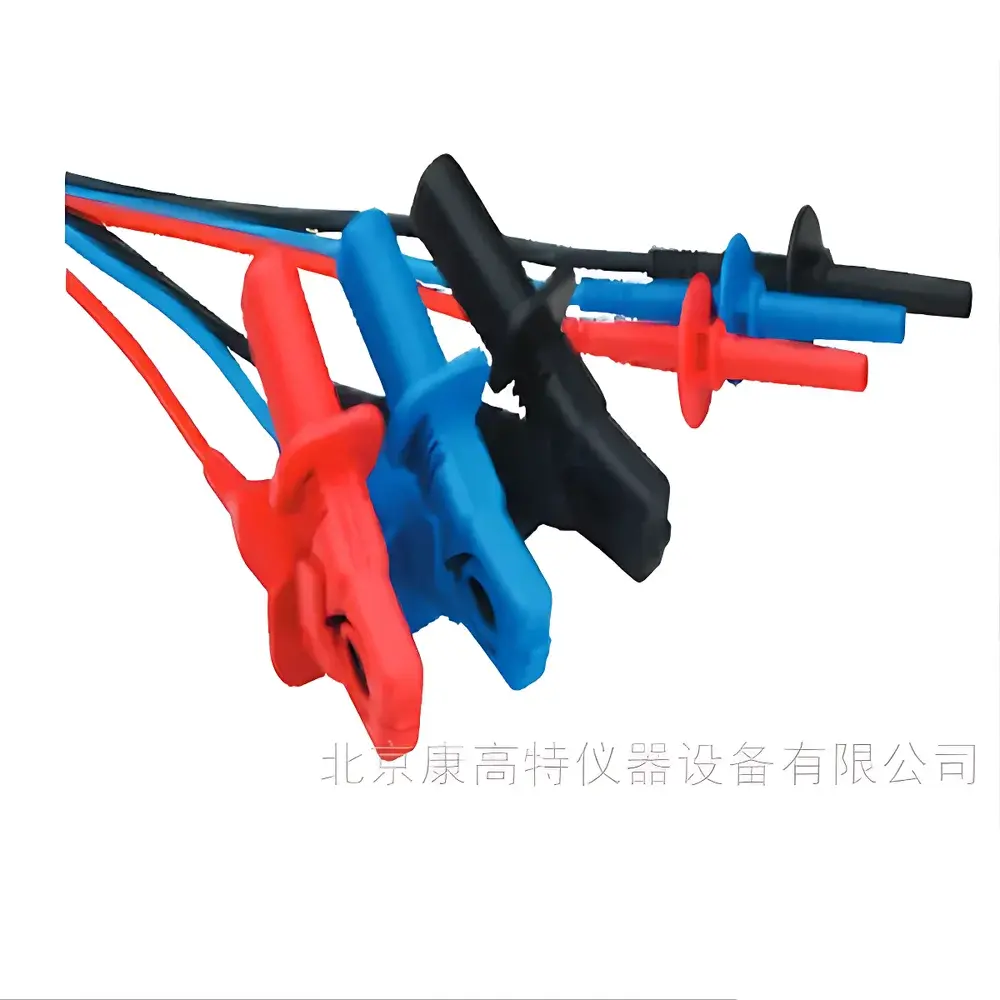

The MIT525 is validated for use on solid-dielectric insulated conductors (XLPE, EPR, PVC), oil-immersed transformer windings, stator/rotor windings of AC/DC motors and generators, circuit breaker bushings, and medium-voltage cable systems rated up to 36 kV. All test leads meet IEC 61010-031 Category III/IV requirements, with reinforced silicone insulation and shielded banana-to-banana or crocodile terminations. The instrument itself conforms to IEC 61010-1 (Safety Requirements for Electrical Equipment for Measurement, Control, and Laboratory Use), IEC 61557-2 (Insulation Resistance Measuring Devices), and EN 61326-1 (EMC for Industrial Environments). Its design supports GLP/GMP-aligned documentation practices, including configurable pass/fail thresholds, user-accessible calibration logs, and firmware version traceability.

Software & Data Management

Megger PowerDB™ software serves as the central hub for post-test analysis, integrating MIT525-generated datasets into enterprise-wide asset integrity programs. Raw test files (.mtd) retain full metadata—including operator ID, GPS-tagged location (when paired with Bluetooth-enabled tablets), ambient temperature/humidity inputs, and test sequence timestamps. Trend analysis tools compute rate-of-change metrics for R_1min, PI, and capacitance drift over successive intervals, supporting predictive maintenance scheduling per ISO 18436-2 competency standards. Audit trails comply with FDA 21 CFR Part 11 requirements, featuring electronic signatures, immutable record retention, and role-based access control. Export options include PDF reports (customizable templates), CSV for SCADA integration, and XML for CMMS synchronization (e.g., SAP PM, IBM Maximo).

Applications

• Pre-commissioning acceptance testing of new HV installations per IEEE 902 and IEC 60502-2 protocols.
• Routine thermographic-correlated insulation surveys on distribution transformers and underground feeders.
• Condition-based maintenance of critical rotating equipment in petrochemical, mining, and utility sectors.
• Root-cause analysis of repeated ground-fault events via time-resolved capacitance and polarization decay profiling.
• Verification of cleaning/drying effectiveness after moisture remediation in generator stators or cable terminations.
• Regulatory compliance reporting for NERC PRC-005, EN 50160, and local grid code requirements.

FAQ

Does the MIT525 support automatic ramp voltage testing?
Yes—the MIT525 includes fully programmable ramp test functionality, allowing users to define start/end voltages, step increments, dwell times, and pass/fail criteria per step.
Is temperature compensation available during testing?
Temperature compensation is not applied automatically during live testing; however, recorded temperature data (via optional external probe) can be imported into PowerDB™ for post-test correction per IEEE 43 Annex B algorithms.
Can the MIT525 perform continuity or earth bond testing?
No—the MIT525 is dedicated exclusively to insulation resistance and diagnostic dielectric testing. Continuity and earth bond verification require a separate low-resistance ohmmeter (e.g., Megger DLRO10HD).
What is the calibration interval recommendation?
Megger recommends annual calibration against traceable NIST or UKAS standards, with interim functional checks performed before each critical test campaign using certified reference resistors.
How does the dual-shell design improve field durability beyond standard IP65 ratings?
The inner flame-retardant shell prevents propagation of internal arc faults, while the outer shell absorbs kinetic energy from impacts—validated per MIL-STD-810G Method 516.6 Shock testing—ensuring operational integrity after accidental drops onto concrete surfaces.
