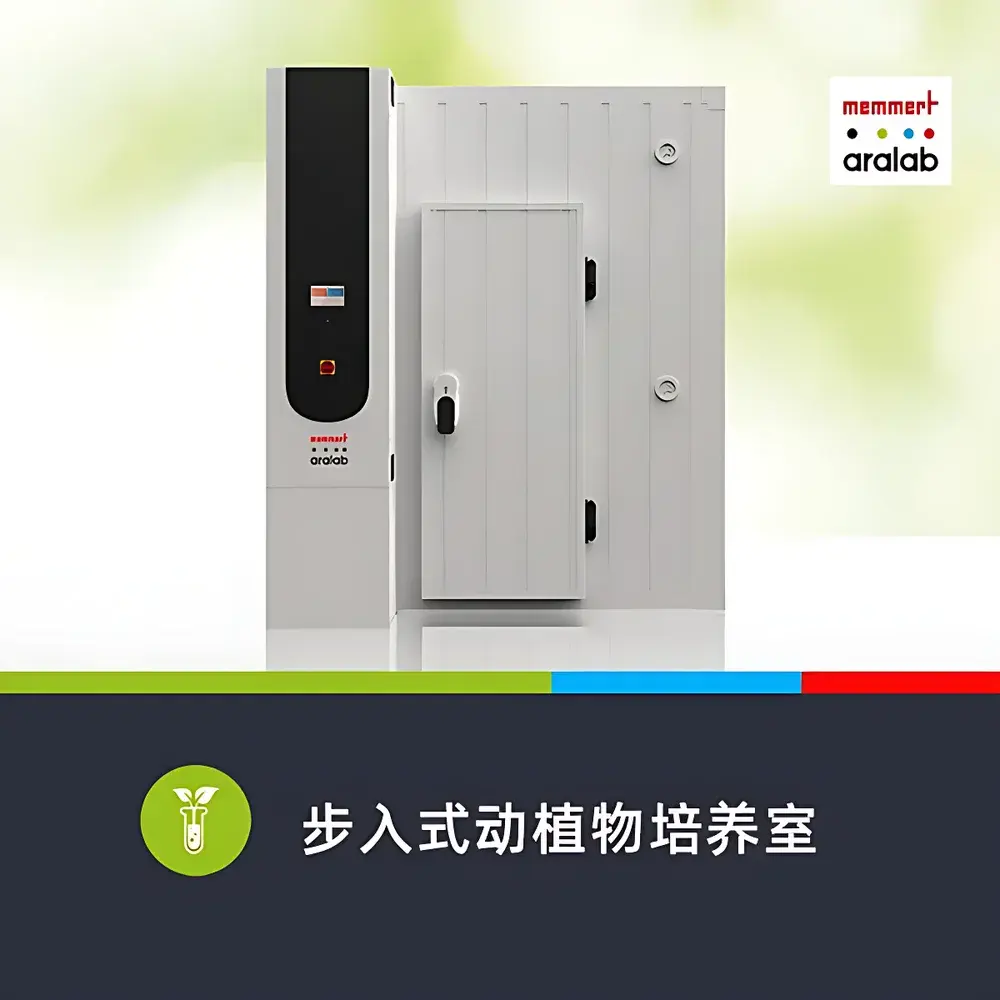

MEMMERT BIO-FITOCLIMA 5000PH Walk-In Plant Growth Chamber

Overview

The MEMMERT BIO-FITOCLIMA 5000PH is a precision-engineered walk-in plant growth chamber designed for long-term, reproducible cultivation of higher plants, algae, fungi, and invertebrates under tightly controlled environmental conditions. It operates on a multi-parameter regulation principle combining active refrigeration/heating, steam-based humidification, forced-air convection with laminar flow distribution, and spectrally tunable LED illumination systems. Unlike standard incubators, the BIO-FITOCLIMA 5000PH integrates ISO 17025-aligned calibration traceability pathways for temperature and humidity sensors, ensuring metrological integrity across extended experimental cycles—critical for longitudinal phenotyping, circadian rhythm studies, or multi-generational breeding programs. Its structural architecture features double-walled insulated panels with vacuum-insulated glazing (VIG) doors, minimizing thermal bridging and enabling stable setpoint maintenance even during frequent door access.

Key Features

• Triple-parameter environmental control: independent regulation of air temperature (±0.3°C uniformity, ±0.1°C stability over 24 h), relative humidity (±2% RH accuracy, dew point referenced), and airflow velocity (adjustable 0.1–0.5 m/s across working volume)
• ClimaPlus® full-color capacitive touchscreen interface with intuitive drag-and-drop programming, supporting up to 99 multi-step protocols with time-scheduled parameter ramps and event-triggered actions
• Modular LED lighting system: interchangeable light modules (white, cool white, red/blue ratio-tunable, UV-A/B optional) with intensity control from 0–1,200 µmol/m²/s (PPFD), calibrated per IEC 62471 photobiological safety standards
• Corrosion-resistant stainless steel shelving (AISI 304), height-adjustable in 25 mm increments, load-rated to 120 kg per shelf, featuring anti-slip perforated surfaces and integrated cable management channels
• Integrated alarm architecture with configurable high/low thresholds for temperature, humidity, light failure, door open duration (>30 s), and CO₂ deviation (when equipped with optional sensor); alerts transmitted via relay output, email (SMTP), or SNMP trap
• Compliance-ready data logging: continuous timestamped recording of all critical parameters at user-defined intervals (1 s to 60 min), stored internally (≥1 year at 1-min resolution) and exportable as CSV or PDF reports with digital signature support

Sample Compatibility & Compliance

The BIO-FITOCLIMA 5000PH accommodates heterogeneous biological samples ranging from Petri dishes and Magenta boxes to hydroponic trays, insect rearing cages, and tissue culture bioreactors. Its internal geometry supports ISO/IEC 17025-compliant validation protocols—including IQ/OQ/PQ documentation templates provided by MEMMERT—and meets key regulatory expectations for GLP and GMP environments. The chamber complies with EN 61000-6-3 (EMC emissions), EN 61000-6-2 (immunity), and UL 61010-1 (safety). Optional accessories include CO₂ monitoring (0–2,000 ppm, NDIR), ethylene scrubbers for fruit ripening studies, and validated HEPA filtration (ISO Class 5) for sterile plant propagation workflows. All firmware and software components are designed to support FDA 21 CFR Part 11 compliance when paired with MEMMERT’s ClimaSuite™ audit trail module.

Software & Data Management

ClimaPlus® firmware enables local and remote configuration via Ethernet or Wi-Fi (WPA2-Enterprise supported). Data export adheres to FAIR principles (Findable, Accessible, Interoperable, Reusable), with native compatibility for LabArchives, Benchling, and ELN platforms through RESTful API endpoints. Historical datasets retain full metadata—including operator ID, protocol version, calibration certificate IDs, and environmental deviation flags—enabling traceable root-cause analysis in case of experimental drift. Audit trails record every parameter change, user login/logout, alarm acknowledgment, and firmware update with SHA-256 hashing for tamper-evident integrity verification.

Applications

• Controlled-environment phenotyping of Arabidopsis thaliana, rice, maize, and other model or crop species across developmental stages
• In vitro propagation and micropropagation of orchids, potatoes, and medicinal plants under defined photoperiod/humidity regimes
• Algal biomass production optimization under variable light spectra and CO₂ enrichment conditions
• Insect colony maintenance (Drosophila, Tribolium, Aedes) with precise thermoperiod synchronization for developmental staging
• Seed germination assays compliant with ISTA and OECD seed testing guidelines
• Long-term ecophysiological stress experiments (drought, heat, chilling) with concurrent gas exchange monitoring integration

FAQ

What is the standard calibration interval recommended for the BIO-FITOCLIMA 5000PH?

MEMMERT recommends annual factory recalibration of temperature and humidity sensors using NIST-traceable references; in-house verification can be performed quarterly using certified reference hygrometers and PRT probes.
Can the chamber be validated for GxP-regulated studies?

Yes—full IQ/OQ/PQ documentation packages, including test scripts, acceptance criteria, and electronic signatures, are available upon request and align with ASTM E2500 and EU Annex 15 requirements.
Is remote monitoring supported without on-site IT infrastructure?

The unit includes embedded cellular (LTE-M) connectivity as an optional add-on, enabling secure cloud-based access and alarm notifications without reliance on local network configuration.
How is light uniformity ensured across the entire working volume?

Each LED module undergoes beam profiling per CIE 127:2007; fixtures are arranged in a hexagonal grid pattern with optical diffusers to achieve ≥90% spatial uniformity (±10% PPFD variation) at shelf level.
What power supply requirements apply for full operational load?

The system operates on 400 V AC, 3-phase, 50/60 Hz, with peak demand of 18 kVA; dedicated grounding and voltage stabilization are mandatory for humidity control stability.
