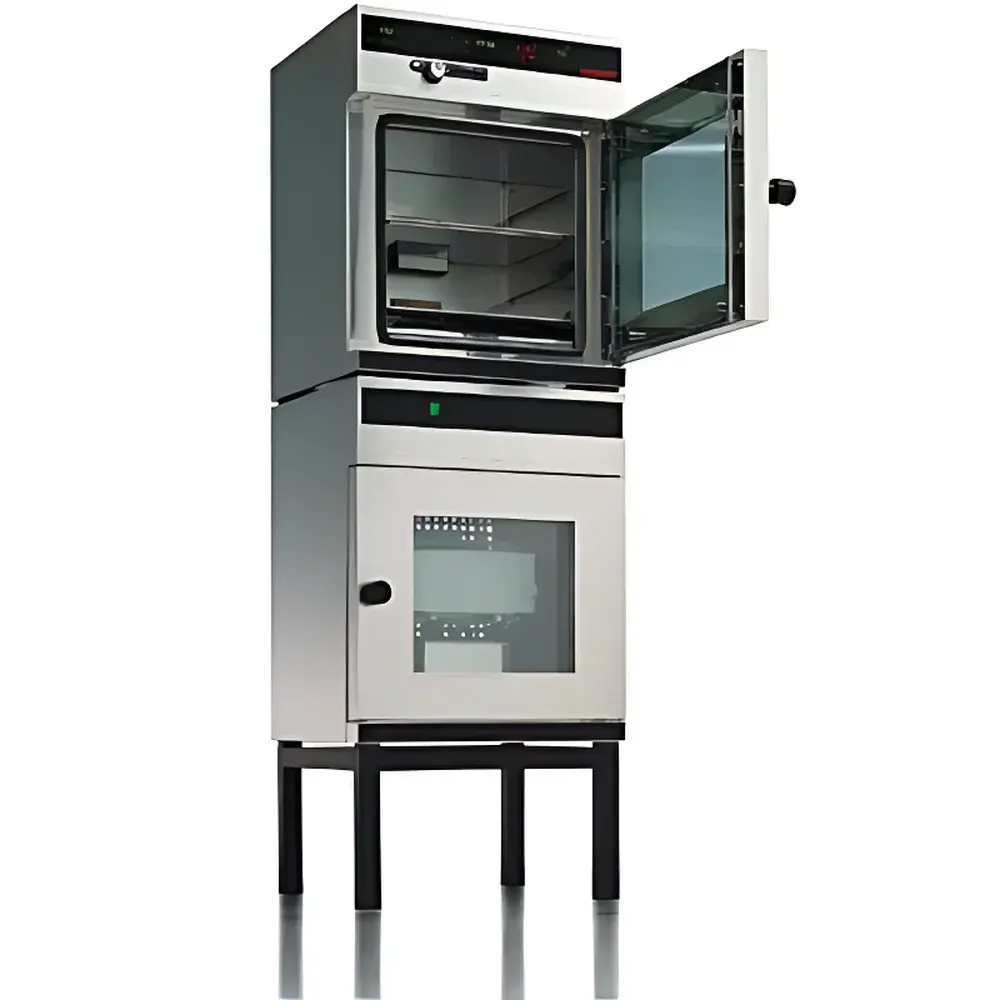

MEMMERT VO400 Vacuum Drying Oven

Overview

The MEMMERT VO400 Vacuum Drying Oven is an engineered solution for precise, reproducible moisture removal and thermal treatment under controlled reduced-pressure conditions. Designed and manufactured in Germany to DIN EN ISO 9001 standards, it employs a fundamentally distinct thermal architecture compared to conventional externally heated vacuum ovens. Rather than relying on jacket-based conduction or ambient chamber heating, the VO400 integrates high-efficiency heating elements directly onto the rear surface of each stainless steel shelf—minimizing thermal path length and eliminating heat loss through insulation or air gaps. This internal radiant plate heating system, combined with gentle forced convection, enables rapid, uniform energy transfer to samples placed directly on the shelves. The oven operates across a validated temperature range of +20 °C to +200 °C under vacuum levels programmable from 5 mbar to 1100 mbar, making it suitable for applications requiring solvent removal, polymer curing, powder drying, or thermal desorption without oxidative degradation.

Key Features

• MLC (Multi-Level Control) architecture with individual Pt100 Class A (4-wire) sensors mounted beneath each shelf—enabling direct, real-time measurement and closed-loop regulation of sample-contact temperature
• Electropolished stainless steel chamber (material 1.4404 / ASTM 316L), deep-drawn and passivated for chemical resistance, low particle shedding, and ease of cleaning
• Digital electromagnetic vacuum control with dual programmable gas inlets (air and inert gas), supporting automated pressure ramping, hold steps, and cyclic vacuum/vent sequences
• Integrated drying process logic: simultaneous coordination of temperature profiles and vacuum trajectories to accelerate moisture diffusion kinetics while preventing crust formation or bumping
• Microprocessor-based controller with diagnostic self-test, audible alarm, and visual fault indication; supports up to 40 user-defined temperature/vacuum programs (each with up to 999 segments)
• Safety-certified dual overtemperature protection: electronic Automatic Setpoint Following (ASF) with independent mechanical temperature limiter (TB), plus shelf-specific Multi-Level Overheat Protection (MLOP)
• Spring-loaded safety glass door with silicone ring gasket and ESG (toughened safety glass) inner pane—ensuring operator visibility and integrity during vacuum operation

Sample Compatibility & Compliance

The VO400 accommodates a broad spectrum of sample formats—including Petri dishes, crucibles, glass vials, metal trays, and custom fixtures—within its 49 L electropolished chamber. Its design complies with key regulatory frameworks governing laboratory equipment: pressure vessel construction adheres to PED 2014/68/EU; electrical safety conforms to IEC 61010-1; and materials meet USP requirements for pharmaceutical contact surfaces. While not intrinsically rated for explosive atmospheres, its inert gas inlet option (1.4571 / ASTM 316Ti tubing) permits operation under nitrogen or argon for oxygen-sensitive materials. The system supports GLP/GMP workflows via optional MEMoryCard XL data logging and PC-based programming using free MEMcontrol software—enabling full audit trails, electronic signatures, and export of time-stamped temperature/vacuum datasets compliant with FDA 21 CFR Part 11 requirements when paired with appropriate IT infrastructure.

Software & Data Management

Control and documentation are executed via the built-in high-resolution color display and tactile keypad interface, or remotely via MEMcontrol software (Windows-compatible, no license fee). The controller stores complete program logs—including setpoints, actual values, alarms, and timestamps—with retention for all active cycles. Data export is supported in CSV format for integration into LIMS or statistical process control platforms. Optional MEMoryCard XL provides portable program transfer and encrypted long-term storage (up to 10,000 hours of continuous recording). All firmware updates are distributed digitally by MEMMERT and verified via cryptographic signature. The system maintains a non-volatile error memory with timestamped event history, accessible for root-cause analysis during quality audits.

Applications

• Pharmaceutical stability testing per ICH Q1 guidelines, including accelerated degradation studies under controlled humidity and vacuum
• Drying of hygroscopic APIs and excipients without thermal decomposition or polymorphic transition
• Moisture content determination in accordance with ASTM E1868 and ISO 554
• Curing of adhesives, encapsulants, and composite pre-pregs under inert atmosphere
• Preparation of reference standards and calibration materials requiring residue-free dehydration
• Thermal conditioning of sensors, MEMS devices, and optical components prior to hermetic sealing
• Removal of low-boiling solvents from nanomaterial dispersions and catalyst precursors

FAQ

What vacuum level can the VO400 achieve, and how is it controlled?
The VO400 achieves a base pressure of ≤ 0.01 mbar using an optional external vacuum pump (not included); its internal electromagnetic valve enables precise digital regulation between 5 mbar and 1100 mbar.
Is the temperature uniformity validated per DIN 12880?
Yes—temperature stability is specified as ≤ ±0.3 K per DIN 12880 at steady state; uniformity across shelf surface at 160 °C / 50 mbar is ≤ ±5 K, verified using calibrated PT100 probes.
Can the VO400 be integrated into a centralized lab automation system?
It supports RS485 Modbus RTU communication for basic status and setpoint exchange; full integration with SCADA or MES requires third-party middleware due to proprietary protocol layers.
Does the VO400 comply with FDA 21 CFR Part 11 for electronic records?
The hardware and firmware support ALCOA+ principles; Part 11 compliance depends on site-specific validation of the complete ecosystem—including MEMcontrol software configuration, network authentication, and audit trail retention policies.
What maintenance is required for long-term vacuum performance?
Routine inspection of the silicone door seal and periodic cleaning of the vacuum sensor port are recommended; the electromagnetic valve requires no scheduled maintenance but should be verified annually against a traceable pressure standard.
