Metler Toledo E4 XLS+ Single-Channel Electronic Pipette

Overview

The Mettler Toledo E4 XLS+ Single-Channel Electronic Pipette is a high-precision, GLP/GMP-compliant liquid handling instrument engineered for reproducible volumetric delivery across life science, pharmaceutical, and clinical laboratory workflows. Built on Rainin’s proven LTS (Low Retention Tip System) platform and powered by an embedded 4,000-step microstepping motor, the E4 XLS+ delivers traceable, operator-independent pipetting performance through closed-loop piston control. Unlike mechanical or semi-automated alternatives, its onboard microprocessor governs every aspect of aspiration, dwell, dispensing, and tip ejection — ensuring consistent plunger displacement velocity and distance regardless of ambient temperature, user fatigue, or glove thickness. The device operates on a fundamental principle of positive displacement via calibrated air displacement, with real-time zero-point recalibration executed automatically after each dispense cycle to compensate for thermal drift and seal wear. Designed for ISO/IEC 17025-accredited labs and FDA-regulated environments, it supports full traceability from user authentication to service history — meeting core requirements of 21 CFR Part 11 for electronic records and signatures when integrated with validated LHS software.

Key Features

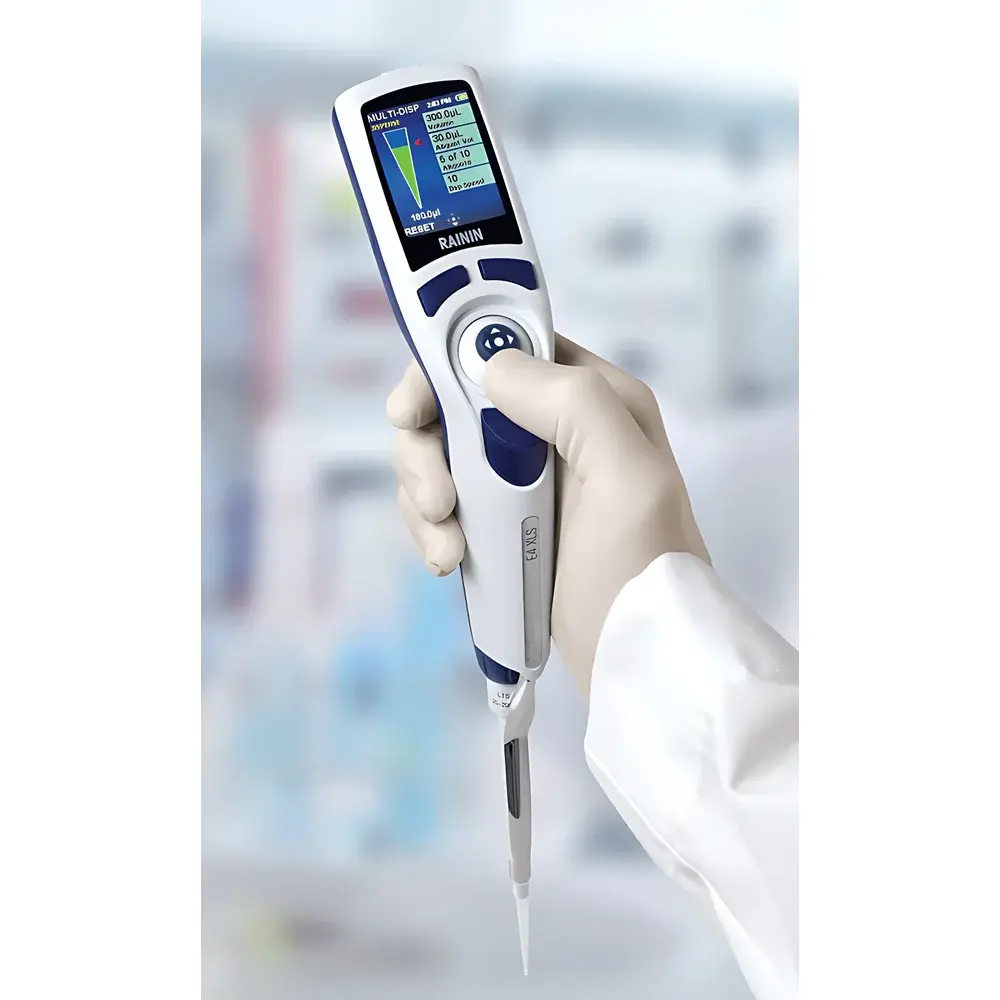

• Ergonomic lightweight design (≤125 g) optimized for ambidextrous use, even with nitrile or latex gloves — featuring contoured finger hooks and ultra-low tip ejection force (0.6 kg for LTS tips).

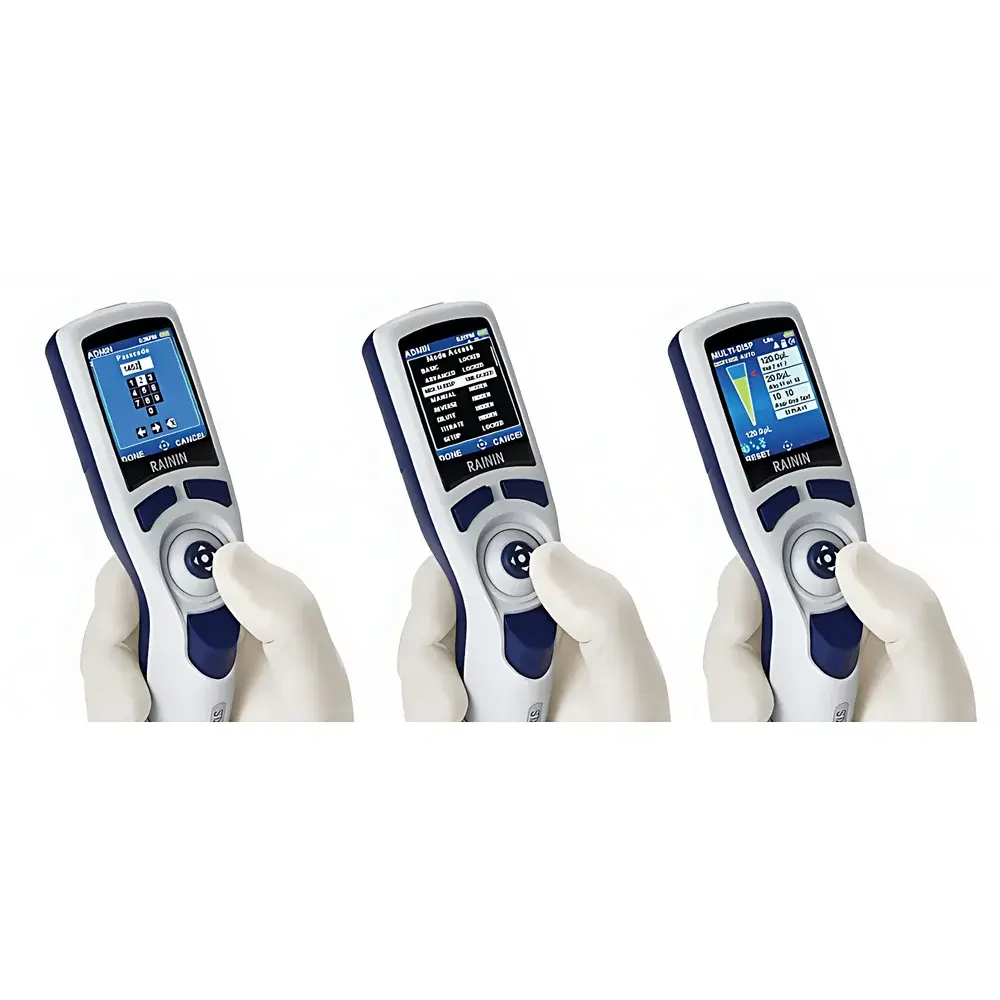

• Full-color high-resolution display with intuitive joystick navigation and rotary dial for rapid program selection, parameter adjustment, and real-time feedback.

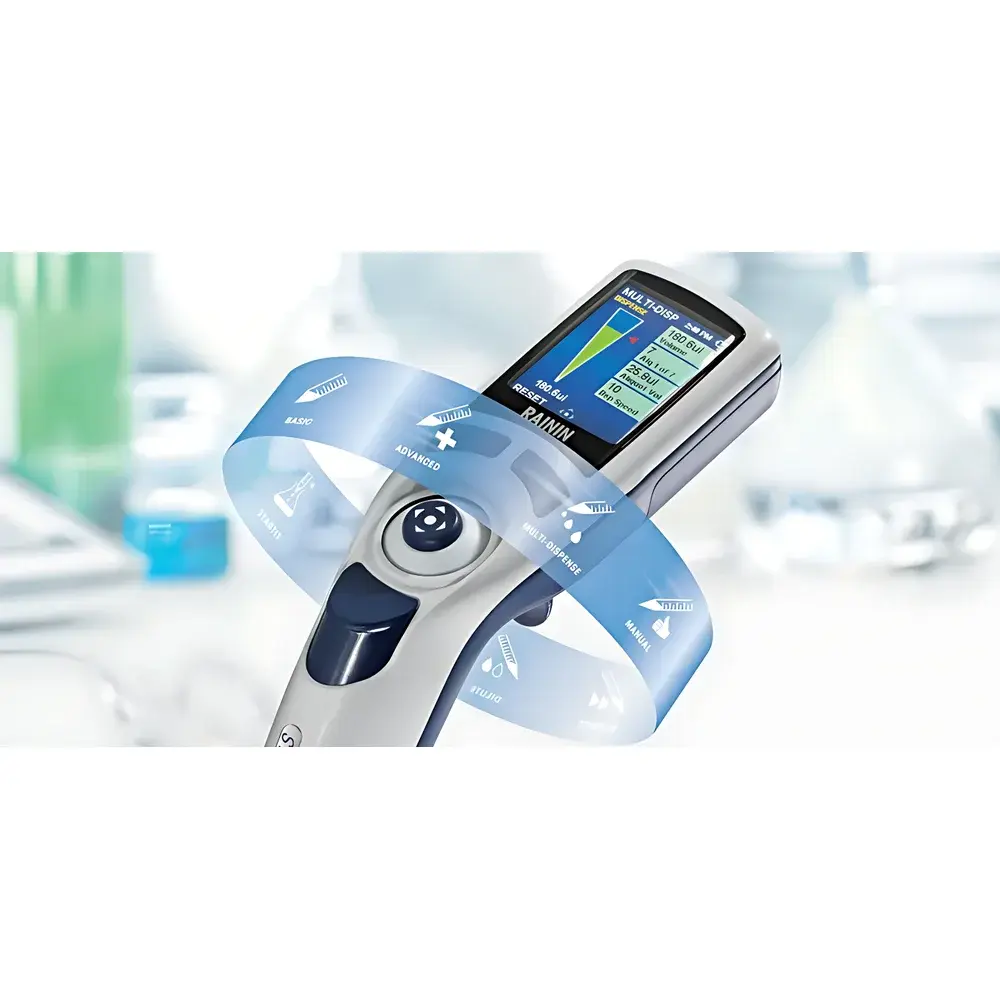

• Onboard memory stores up to 99 customizable protocols — including manual mode, continuous dispensing, repeat dispensing, mixing, and auto-count cycles — all accessible without external software.
• Pre-installed PureSpeed™ functionality enables rapid, gentle processing of sensitive biomolecules (e.g., proteins, oligonucleotides) when paired with Rainin PureSpeed filter tips — reducing shear stress and carryover in purification workflows.
• Password-protected configuration lock prevents unauthorized modification of volume, speed, or protocol parameters — enforcing SOP adherence and minimizing procedural deviation.
• Tamper-proof internal logging captures service alerts, calibration events, total actuation cycles, and user access history — exportable as CSV for audit review per GLP/GMP documentation standards.

Sample Compatibility & Compliance

The E4 XLS+ is compatible with all standard conical-tip formats conforming to ISO 8655-2:2022 specifications, with full functional support for Rainin LTS and filtered PureSpeed tips (0.1–1000 µL range). Its air-displacement architecture ensures reliable handling of aqueous buffers, cell lysates, viscous glycerol solutions (up to 50% v/v), and low-surface-tension solvents (e.g., ethanol, DMSO) when operated within defined speed and immersion depth parameters. The instrument meets ISO 8655-6:2022 for electronic pipette verification and is designed to support routine calibration against NIST-traceable gravimetric standards. Regulatory compliance includes alignment with USP Analytical Instrument Qualification, ASTM E2758-18 for pipette performance testing, and ICH Q7 Annex 11 principles for computerized system validation when deployed with validated LHS software.

Software & Data Management

The E4 XLS+ operates autonomously but integrates seamlessly with Rainin Liquid Handling Suite (LHS) — a validated, 21 CFR Part 11-compliant desktop application supporting method import/export, remote firmware updates, and centralized fleet management. All onboard settings — including user profiles, protocol libraries, and service logs — are encrypted and exportable in timestamped, digitally signed CSV format. Audit trail functionality records every configuration change with user ID, timestamp, and prior/post values — enabling full reconstruction of instrument state for regulatory inspections. No cloud dependency is required; data residency remains under lab IT control. Firmware updates preserve existing calibration certificates and do not invalidate prior IQ/OQ documentation when performed per vendor-supplied change control procedures.

Applications

• High-throughput qPCR and RT-PCR setup requiring precise sub-microliter dispensing (0.5–10 µL) with minimal inter-operator variability.
• Cell culture passaging and reagent dilution where consistency in viscous media (e.g., Matrigel, methylcellulose) demands programmable aspiration/dispense speeds.
• Biopharmaceutical QC workflows involving residual DNA quantification, endotoxin assays, and potency testing — where GLP-aligned traceability is mandatory.
• NGS library preparation steps including tagmentation, adapter ligation, and size-selection cleanup — benefiting from PureSpeed tip compatibility and low carryover performance.
• Reference standard preparation in metrology labs performing ISO/IEC 17025-compliant volumetric verification of secondary standards.

FAQ

Does the E4 XLS+ require annual recalibration to maintain ISO 8655 compliance?
Yes — while the device performs automatic zero-point correction after each dispense, periodic full-volume-range verification using gravimetric methods per ISO 8655-6 is required annually (or after 10,000 cycles, whichever occurs first). Rainin-certified service engineers provide documented calibration certificates traceable to NIST standards.
Can the E4 XLS+ be connected to a laboratory information management system (LIMS)?
Direct LIMS integration is not native, but CSV-formatted audit logs and protocol exports can be ingested via middleware or custom API wrappers developed under GxP-compliant change control protocols.
Is the battery replaceable by the end user?
No — the sealed Li-ion battery is field-replaceable only by Rainin-authorized service centers to preserve IP rating and calibration integrity. Battery health monitoring is displayed in real time on the main screen.
What happens if the password is lost?
A master recovery key is provided with the original purchase documentation. In absence of this key, factory reset requires physical return to Rainin service for secure credential restoration under documented chain-of-custody procedures.
Are non-Rainin tips supported?
Third-party tips may be physically compatible but are not validated for accuracy, leakage, or LTS seal integrity. Use of non-LTS tips voids the manufacturer’s accuracy warranty and compromises GLP audit readiness.
