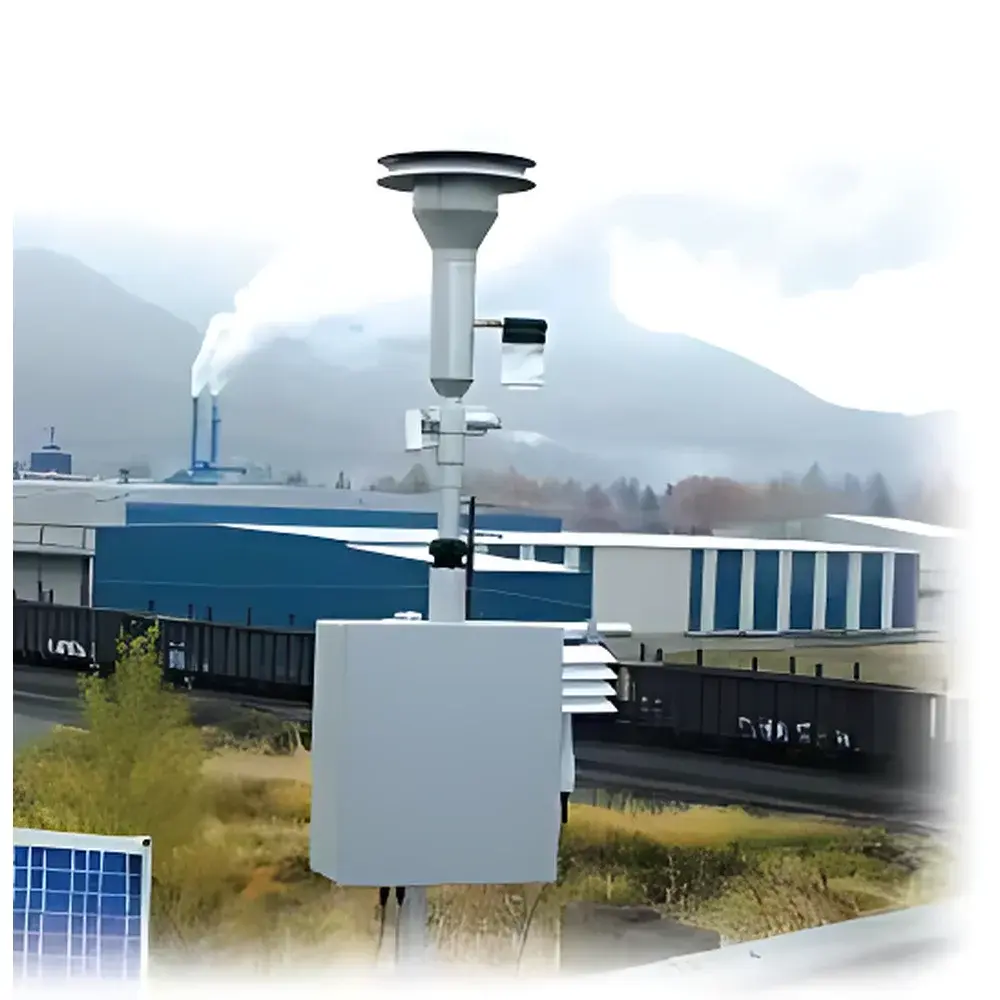

Metone E-BAM1020 Beta Attenuation Atmospheric Particulate Matter Monitor

Overview

The Metone E-BAM1020 is a field-deployable, beta attenuation-based atmospheric particulate matter monitor engineered for continuous, real-time measurement of PM₁₀ and PM₂.₅ mass concentrations in ambient air. It operates on the well-established principle of beta-ray absorption: airborne particles are collected onto a moving filter tape; a beta radiation source (typically ¹⁴C) emits electrons through the loaded filter, and the attenuation of the beam—proportional to particle mass—is detected by a scintillation counter. This physical measurement eliminates reliance on optical proxies or empirical calibrations, delivering direct gravimetric-equivalent concentration data traceable to NIST standards. Designed for regulatory-grade environmental monitoring, the E-BAM1020 meets U.S. EPA’s stringent requirements for Federal Equivalent Methods (FEM), holding official EQPM certification (EQPM-0798-122) under 40 CFR Part 53. Its robust architecture supports unattended operation across diverse climatic conditions—from arid deserts to high-humidity coastal zones—without requiring climate-controlled shelters.

Key Features

• Beta attenuation measurement technology providing gravimetrically traceable, reference-grade PM mass data without optical assumptions or humidity-dependent corrections
• Integrated multi-stage inlet system supporting interchangeable TSP, PM₁₀, PM₂.₅, and PM₁ sampling heads—each meeting ISO 25242 and EPA-defined aerodynamic cut-points
• Active flow control with dual feedback: thermal mass flow sensor and absolute pressure transducer, maintaining volumetric flow stability within ±5% over temperature and barometric variations
• Real-time data acquisition: particle mass concentration updated every second; minute-averaged values logged automatically with embedded time stamping and UTC synchronization
• Flexible power architecture: operable via AC mains, DC input (12–24 V), or hybrid solar-battery configuration for remote, off-grid deployment up to 30 days without maintenance
• IP65-rated enclosure with corrosion-resistant aluminum housing and sealed electronics, rated for continuous outdoor exposure per IEC 60529

Sample Compatibility & Compliance

The E-BAM1020 collects ambient aerosols onto a precision-calibrated glass-fiber filter tape, preserving semi-volatile species—including ammonium nitrate and low-volatility organic compounds—that may otherwise evaporate during heated filter-based methods (e.g., TEOM). This enables accurate quantification of total fine particulate mass under ambient temperature and relative humidity conditions—critical for epidemiological studies and regulatory compliance reporting. The instrument conforms to U.S. EPA Reference Method equivalency criteria for PM₂.₅ (40 CFR 53.30–53.35), including precision (±5% coefficient of variation), accuracy (±10% bias vs. reference method), and detection limit (<5 µg/m³). It also supports GLP-aligned audit trails and meets data integrity requirements under 21 CFR Part 11 when paired with compliant data acquisition software.

Software & Data Management

The E-BAM1020 communicates via RS-232, RS-485, or optional Ethernet interface, outputting ASCII-formatted data streams compatible with industry-standard SCADA platforms (e.g., Ignition, Wonderware) and EPA AIRNow ingestion protocols. Metone’s BAMView™ desktop application provides local configuration, calibration management, diagnostic logging, and automated report generation (PDF/CSV) compliant with EPA QA Handbook Volume II. All raw beta counts, flow parameters, temperature, pressure, and tape position are stored onboard with 30-day buffer memory. Remote firmware updates and parameter reconfiguration are supported via secure HTTPS API, enabling centralized fleet management across distributed monitoring networks.

Applications

• Ambient air quality monitoring networks operated by national and municipal environmental agencies
• Compliance verification at industrial fenceline locations subject to NAAQS or EU Directive 2008/50/EC
• Source apportionment studies requiring speciated PM₂.₅ mass inputs for receptor modeling (e.g., PMF, CMB)
• Long-term health cohort studies where exposure assessment demands high temporal resolution and low detection limits
• Calibration and co-location validation of lower-cost optical sensors (e.g., PMS5003, Alphasense OPC-N3)
• Mobile monitoring deployments on vehicles or UAV-mounted platforms using its compact footprint (38 × 33 × 22 cm) and low power draw (<12 W avg)

FAQ

Does the E-BAM1020 require routine filter tape replacement? How often?

Yes—filter tape is consumed during operation. Standard spools support 30 days of continuous 1-hour sampling; extended-life tapes are available for 60-day deployments.
Can it measure PM₁ or TSP without hardware modification?

Yes. Swappable inlet assemblies—certified to ISO 25242 cut-point tolerances—are field-interchangeable without tools or recalibration.
Is the beta source licensed? What is its half-life?

The ¹⁴C source is exempt from NRC licensing under 10 CFR 30.18 due to activity level (<185 kBq); half-life is 5730 years, ensuring stable output over instrument lifetime.
How does it handle high-humidity environments?

It incorporates real-time dew point compensation and dynamic flow correction algorithms validated per EPA guidance for humidified air (<95% RH).
What calibration standards are supported?

NIST-traceable gravimetric calibration using certified test dusts (e.g., Arizona Road Dust, A1 Ultrafine) and dynamic aerosol generators (e.g., TSI 3450) per ISO 12103-1.
