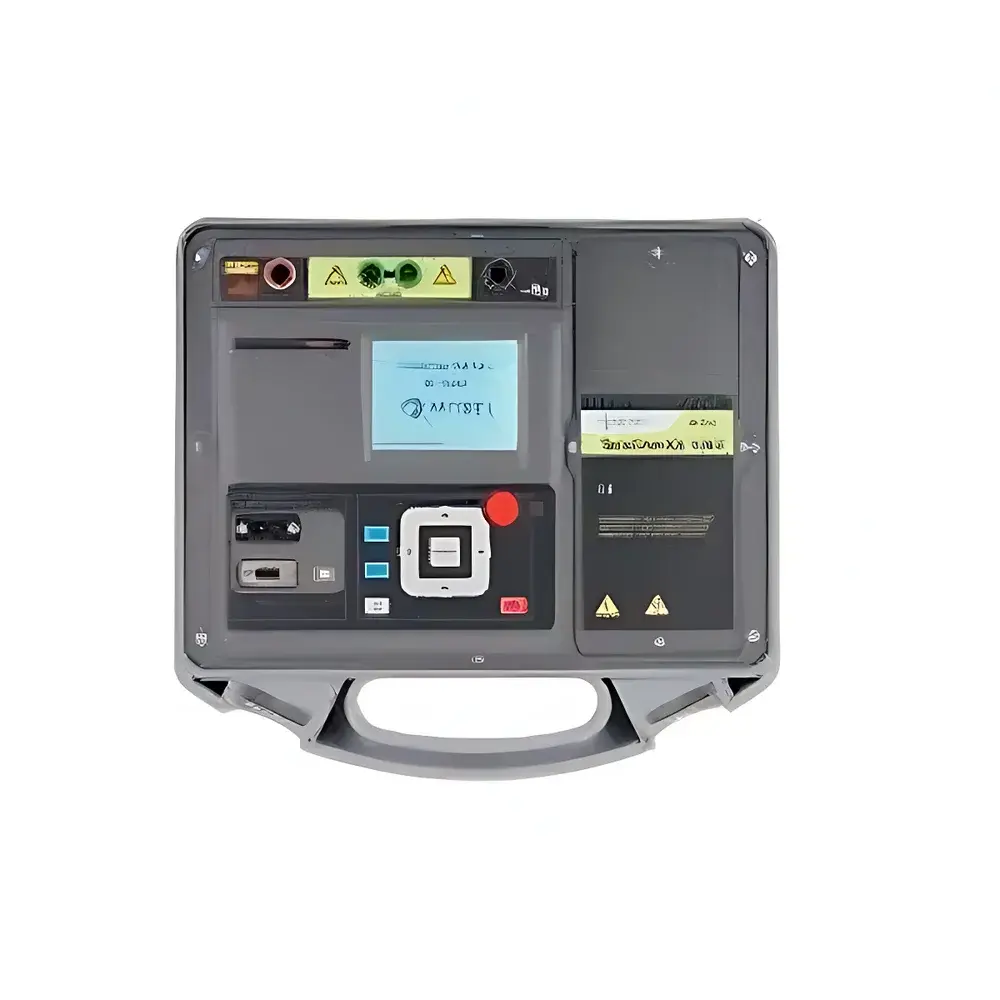

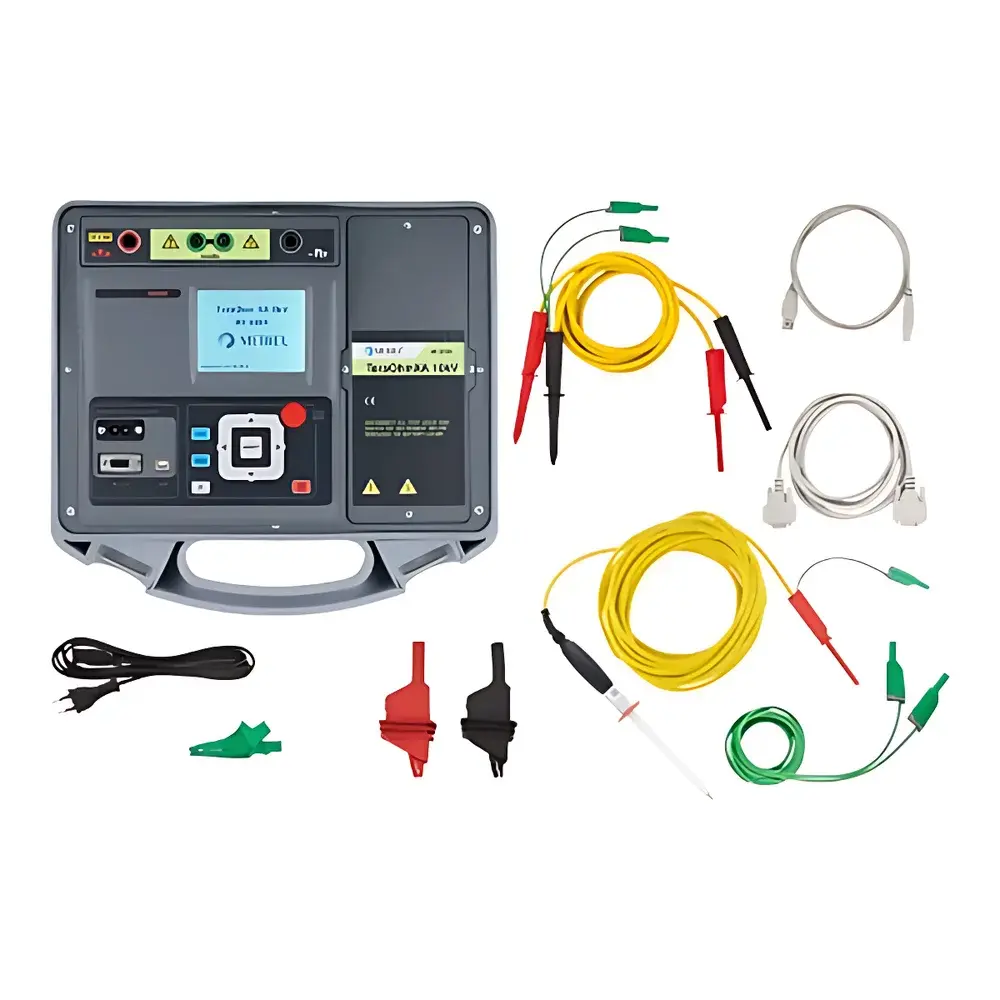

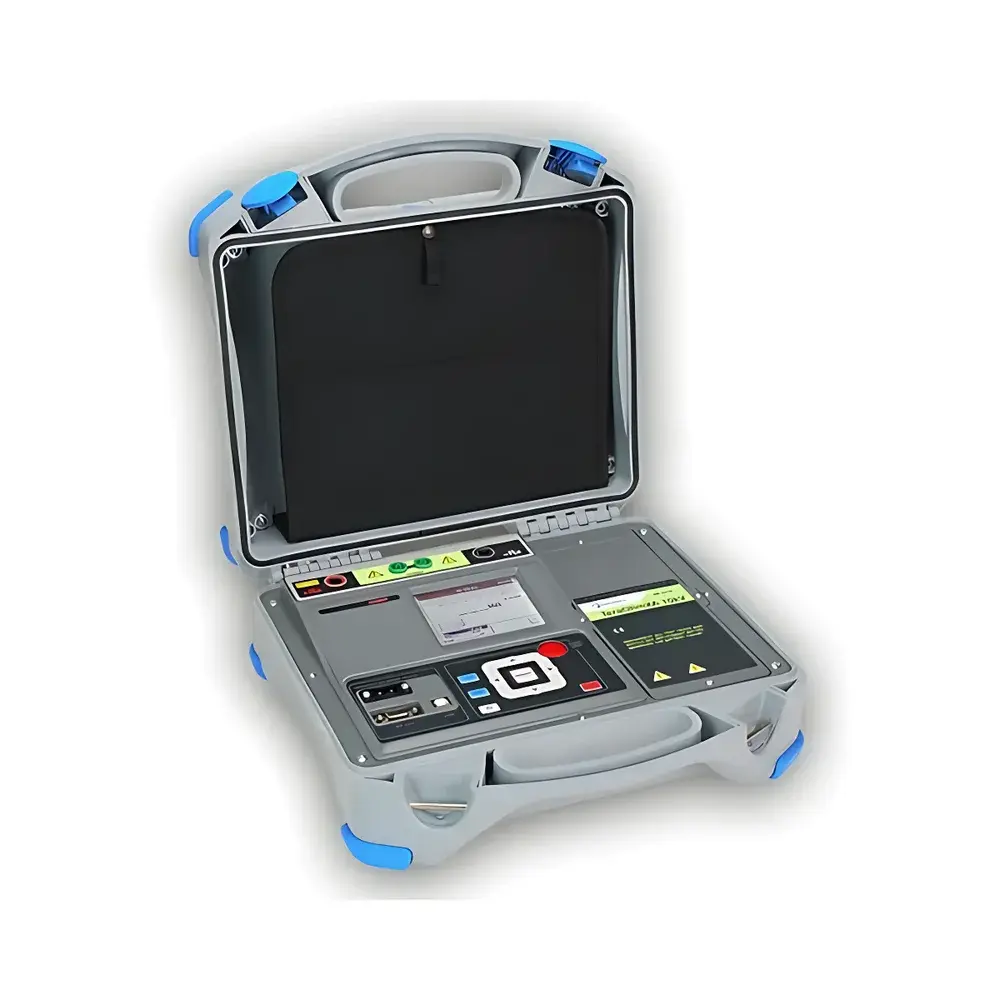

Metrel MI3210 High-Power Digital Megohmmeter

Overview

The Metrel MI3210 is a high-power, portable digital megohmmeter engineered for precision insulation resistance diagnostics in demanding industrial and utility environments. Operating on the fundamental principle of applying a stable, user-selectable DC test voltage (50 V to 10 kV) and measuring the resulting leakage current to calculate resistance via Ohm’s Law (R = V/I), the MI3210 delivers traceable, repeatable measurements across an extended range—from 10 kΩ up to 20 TΩ. Its robust architecture integrates high-voltage generation with real-time capacitive load management, enabling rapid charging (<3 s/µF) and safe automatic discharge (<0.25 s/µF) of tested assets—critical for transformer windings, HV cables, rotating machinery, and surge protection devices. Designed for field resilience, the instrument meets IP65 ingress protection and CAT IV / 600 V safety classification, ensuring operational integrity under dust-laden, humid, or transient-rich conditions typical of substations, power plants, and manufacturing facilities.

Key Features

• True 10 kV DC high-voltage output with programmable step-voltage testing (50 V steps up to 1 kV; 100 V steps from 1–10 kV), supporting standardized diagnostic protocols including Polarization Index (PI), Dielectric Absorption Ratio (DAR), and Dielectric Discharge (DD).
• Dual power operation: rechargeable sealed lead-acid battery (LC-R123R4PG) and universal AC adapter—enabling uninterrupted 4-hour runtime at full 10 kV output.
• Integrated capacitance measurement (±5% reading + 3 digits) and true RMS AC/DC voltage (5 V–500 V) and frequency (10 Hz–500 Hz) monitoring—eliminating the need for auxiliary meters during comprehensive asset assessment.
• Auto-discharge circuitry with terminal protection ensures personnel safety and prevents residual charge hazards post-test, compliant with IEC 61010-2-033 requirements for HV equipment.
• High electromagnetic immunity (per EN 61326 Class A) and adaptive noise rejection algorithms maintain measurement fidelity in electrically noisy settings such as switchyards and variable-frequency drive installations.
• Graphical 320 × 240 backlit LCD display supports real-time trend visualization of insulation resistance vs. time/voltage, facilitating immediate interpretation of dielectric behavior.

Sample Compatibility & Compliance

The MI3210 is validated for routine and diagnostic testing of high-voltage insulation systems including power transformers (winding-to-winding, winding-to-ground), extruded and PILC cables, motor/generator stator windings, bushings, surge arresters, and HV switchgear. Its test methodology aligns with international standards governing electrical safety and condition assessment: IEC/EN 61557-2 (insulation resistance testers), IEC 60204-1 (machine safety), IEEE 43 (rotating machinery), and ASTM D257 (solid insulating materials). The device satisfies regulatory frameworks for laboratory and field use—including GLP-compliant data integrity when paired with HVLink PRO software—and supports audit-ready documentation per FDA 21 CFR Part 11 requirements through secure electronic signatures and immutable test logs.

Software & Data Management

HVLink PRO PC software provides full instrument control, automated test sequencing, and advanced reporting capabilities. Users can define custom test templates—including multi-step voltage ramps, timed hold periods, and pass/fail thresholds—and export results in CSV, PDF, or XML formats for integration into CMMS or ERP platforms. All measurements are timestamped, tagged with operator ID and GPS metadata (when enabled), and stored with full audit trail functionality—including user login history, parameter changes, and calibration event logging. USB 2.0 and RS232 interfaces support legacy system compatibility, while Bluetooth 4.0 (115 kbps) enables wireless synchronization with mobile tablets for paperless field workflows. Internal 4 MB memory retains >10,000 complete test records with graphical waveforms.

Applications

• Pre-commissioning and periodic maintenance of transmission and distribution infrastructure—including GIS, cable joints, and underground feeders.
• Condition-based assessment of aging assets in petrochemical, mining, and rail traction systems where environmental stress accelerates insulation degradation.
• Quality assurance in HV equipment manufacturing, verifying dielectric integrity before shipment per IEC 60076 and IEC 60840 specifications.
• Fault isolation in complex grounding networks and lightning protection systems using step-voltage analysis and time-resolved discharge profiling.
• Research and development of novel insulating materials, where high-resolution R(t) curves inform dielectric relaxation modeling and Arrhenius lifetime projections.

FAQ

What safety standards does the MI3210 comply with?
The instrument conforms to EN 61010-1 (general safety), EN 61010-2-030 (hand-held probes), EN 61010-2-033 (HV test equipment), and EN 61010-031 (accessories), with CAT IV / 600 V overvoltage category rating.
Can the MI3210 perform dielectric absorption ratio (DAR) tests?
Yes—it supports automated DAR (60 s / 30 s), PI (10 min / 1 min), and DD (discharge decay) calculations with configurable timing intervals and pass/fail evaluation against user-defined thresholds.
Is battery replacement user-serviceable?
The LC-R123R4PG sealed lead-acid battery is field-replaceable without tools; full replacement kits—including charger and mounting hardware—are available under Metrel service part number 9000-0021.
Does the instrument support third-party calibration verification?
Yes—traceable calibration certificates are issued per ISO/IEC 17025 by accredited labs; internal self-test routines verify HV generator linearity, meter accuracy, and discharge circuit response prior to each test sequence.
How is data integrity ensured during wireless transfer?
Bluetooth communication employs AES-128 encryption; all transmitted records include SHA-256 checksums and are appended with digital signatures validated against the instrument’s embedded certificate authority.
