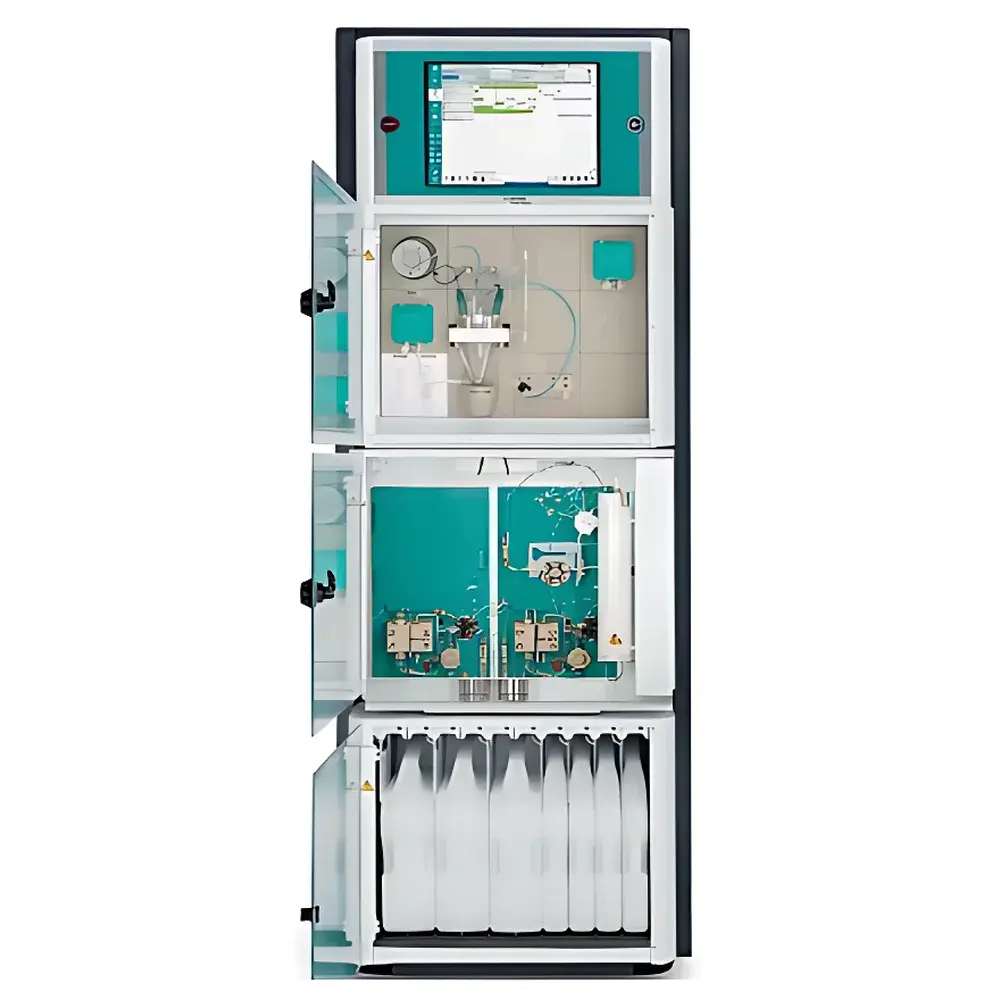

Metrohm 2060 Online Ion Chromatography Process Analyzer

Overview

The Metrohm 2060 Online Ion Chromatography Process Analyzer is a fully integrated, industrial-grade ion chromatography (IC) system engineered for continuous, unattended monitoring of ionic species in aqueous process streams. Based on the proven analytical architecture of Metrohm’s laboratory IC platforms—such as the 940 Professional IC and 930 Compact IC—and adapted for harsh plant-floor environments, the 2060 leverages suppressed conductivity detection with electrolytically generated eluents to deliver trace-level quantification (down to sub-ng/L) through robust, long-term baseline stability. Its core measurement principle relies on high-resolution anion/cation separation via ion-exchange chromatography, followed by post-column suppression and conductivity detection—enabling selective, interference-resistant analysis of inorganic anions (e.g., Cl⁻, NO₃⁻, SO₄²⁻), cations (e.g., Na⁺, NH₄⁺, Ca²⁺), and low-molecular-weight organic acids (e.g., formate, acetate) across concentration ranges spanning nine orders of magnitude—from ng/L to percent-level.

Key Features

• IP65-rated enclosure certified for installation in industrial control rooms, utility corridors, and outdoor shelters—ensuring resistance to dust ingress and water splashing under operational conditions.
• Modular hardware architecture comprising up to nine configurable functional units: sample introduction manifold, inline filtration, dilution module, matrix elimination cartridge, electrolytic eluent generator (EG), separation column oven, conductivity detector, suppressor, and waste management unit.
• Integrated Metrohm Inline Sample Preparation (ISP) system enabling direct injection of raw process water, wastewater, boiler feedwater, or aggressive plating baths—eliminating manual pretreatment and reducing operator intervention.
• Electrolytic eluent generation technology providing precise, on-demand eluent synthesis (e.g., KOH for anion analysis; MSA for cation analysis) with programmable concentration gradients—ensuring superior baseline reproducibility and eliminating eluent preparation errors.
• Native compatibility with ELGA PURELAB® flex 5/6 ultra-pure water systems for pressure-free, low-maintenance eluent and rinse water supply—reducing pump wear, minimizing consumable replacement frequency, and enhancing long-term operational reliability.
• Dual-channel configuration option supporting parallel or sequential analysis of two independent sample streams—ideal for comparative monitoring (e.g., influent vs. effluent) or redundant verification of critical parameters.

Sample Compatibility & Compliance

The 2060 IC accommodates a broad spectrum of real-world aqueous matrices without prior dilution or derivatization—including ultrapure water (UPW) from semiconductor fab utilities, condensate from thermal power plants, flue gas desulfurization (FGD) scrubber solutions, electroplating baths (e.g., acidic CuSO₄, NiSO₄), municipal wastewater influents/effluents, and pharmaceutical process rinse waters. All configurations comply with ISO/IEC 17025 method validation requirements and support full auditability per FDA 21 CFR Part 11 when operated with MagIC Net™ software. Built-in hardware-level security controls (user role management, electronic signatures, immutable audit trails) facilitate compliance with GMP/GLP-regulated environments—particularly in pharmaceutical water system qualification (USP , EP 2.2.44) and power industry standards (ASTM D4582, IAPWS TR-10).

Software & Data Management

MagIC Net™ v4.x serves as the embedded control, acquisition, and reporting platform—designed specifically for regulated industrial deployment. Its graphical time-programming interface visualizes analytical sequences as intuitive, drag-and-drop timelines—allowing users to define sampling intervals, calibration cycles, system flushes, and diagnostic routines with second-level precision. Real-time alarm logic supports configurable thresholds for peak area deviation, retention time drift, pressure anomalies, or detector signal saturation—with event notifications transmitted via Modbus TCP/IP or discrete 24 VDC I/O to DCS/SCADA systems. All raw data, method files, audit logs, and electronic signatures are stored in encrypted, tamper-evident databases compliant with ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available).

Applications

• Power Generation: Continuous monitoring of chloride, sulfate, and silica in boiler feedwater and steam condensate to prevent corrosion and turbine fouling per IAPWS guidelines.
• Semiconductor Manufacturing: Trace anion analysis in UPW loops at fab tool inlets—meeting SEMI F63 purity specifications for Cl⁻, NO₃⁻, and SO₄²⁻ at sub-ppt levels.
• Electroplating & Surface Finishing: In-line quantification of bath additives (e.g., chloride in acid copper baths) and impurity buildup (e.g., Fe³⁺, Ni²⁺) to extend bath life and reduce chemical consumption.
• Environmental & Wastewater Treatment: Automated compliance reporting for EPA Method 300.0/300.1 analytes—including fluoride, nitrite, phosphate, and perchlorate—in municipal and industrial discharge streams.
• Pharmaceutical Water Systems: Routine testing of purified water (PW) and water for injection (WFI) per USP conductivity and TOC correlation protocols—integrated with facility-wide water quality dashboards.

FAQ

Can laboratory-developed IC methods be directly transferred to the 2060 system?
Yes. The 2060 shares identical column chemistries, detector electronics, and fluidic architecture with Metrohm’s benchtop IC platforms—enabling seamless method porting without re-optimization.
What maintenance intervals are recommended for uninterrupted operation?
With EG-based eluent generation and ELGA PURELAB® integration, routine maintenance is limited to quarterly column replacement, biannual suppressor inspection, and annual pump seal evaluation—typically achieving >95% uptime over 12-month periods.
Is remote diagnostics and firmware updates supported?
Yes. The system includes embedded Ethernet connectivity and supports secure remote access via Metrohm Remote Service (MRS) for troubleshooting, parameter adjustment, and validated firmware upgrades.
How many sampling points can be multiplexed without compromising cycle time?
Using the optional 20-port sampling valve and time-scheduled autosampling, up to 20 locations can be monitored with user-defined dwell times—maintaining typical cycle times of ≤15 minutes per point for standard anion/cation dual-loop analysis.
Does the system support custom reporting formats for regulatory submissions?
Yes. MagIC Net™ includes configurable report templates aligned with LIMS interfaces, CSV/Excel export, and PDF generation with embedded digital signatures—fully compliant with EU Annex 11 and FDA data integrity expectations.
