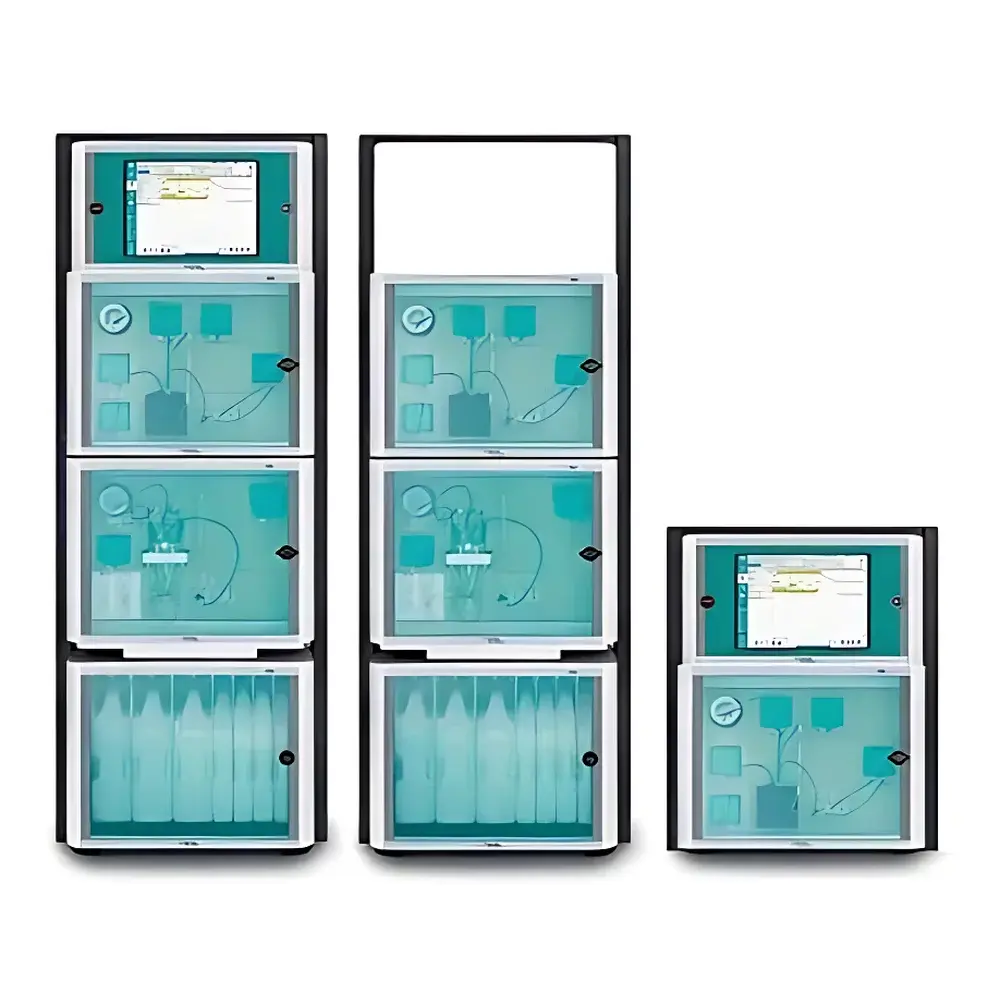

Metrohm 2060 Process Analyzer

Overview

The Metrohm 2060 Process Analyzer is a modular, multi-parameter, multi-stream online analytical platform engineered for continuous, real-time monitoring of critical chemical parameters in industrial process streams and wastewater effluents. Built upon proven wet-chemistry methodologies—including titration, photometry, ion-selective electrode (ISE) measurement, and colorimetric analysis—the 2060 delivers high reproducibility and long-term stability under demanding plant conditions. Unlike fixed-function analyzers, the 2060 adopts a scalable architecture that supports up to four independent wet-chemistry cabinets integrated into a single control and data framework. This enables concurrent analysis of multiple analytes—such as pH, alkalinity, hardness, chloride, nitrate, phosphate, ammonia, COD surrogate, and free/total chlorine—across distinct sample streams without cross-contamination or scheduling conflict. Its design adheres to fundamental principles of process analytical technology (PAT), emphasizing robustness, traceability, and alignment with ICH Q8/Q9/Q10 frameworks for quality-by-design implementation.

Key Features

• Modular cabinet architecture supporting up to four independently configurable wet-chemistry units within one unified platform
• IP66 / NEMA 4-rated enclosure for operation in hazardous, dusty, or high-humidity environments including outdoor installations and process skids
• Graphical time-scheduled programming interface visualizing method execution on an intuitive timeline—enabling precise synchronization of sampling, reagent addition, reaction timing, and detection
• Integrated alarm management system with configurable thresholds; alarms exportable via Modbus TCP/RTU or discrete digital I/O for integration into DCS/SCADA systems
• Support for diverse sample introduction methods: direct line insertion, pressurized loop sampling, peristaltic pumping, and gravity-fed configurations
• Onboard diagnostics including flow verification, reagent level monitoring, valve cycle logging, and photometric cell cleanliness assessment

Sample Compatibility & Compliance

The 2060 accommodates a broad range of sample matrices—from aggressive refinery sour water and high-salinity mine drainage to ultrapure rinse water in semiconductor fabs—through application-specific sample conditioning modules. These include filtration (down to 5 µm), temperature stabilization (±0.5 °C), pH adjustment, degassing, dilution, and UV digestion where required. All wet-chemistry modules comply with ISO/IEC 17025 calibration traceability requirements when operated under documented procedures. The system supports audit-ready operation in regulated environments: full electronic record retention, user access control, change tracking, and optional 21 CFR Part 11-compliant software modules (e.g., tiamo™ Process Edition) are available to meet GLP, GMP, and EPA Method-compliant reporting needs.

Software & Data Management

Control and configuration are performed via tiamo™ Process Software—a dedicated engineering environment built on Microsoft .NET architecture. It provides role-based user permissions, method versioning, electronic signature support, and automated report generation in PDF/CSV formats. Raw sensor data, intermediate calculation steps, and final results are timestamped and stored locally with configurable retention policies; optional OPC UA or MQTT interfaces enable seamless integration with MES, Historian (e.g., OSIsoft PI), or cloud-based analytics platforms. Data integrity is ensured through cyclic redundancy checks (CRC), write-once archival options, and encrypted local database storage. Firmware updates follow a dual-partition boot strategy to guarantee uninterrupted operation during maintenance.

Applications

• Petrochemical & Refining: Continuous monitoring of corrosion inhibitors, H₂S scavenger residuals, naphtha chloride content, and desalter wash water salinity
• Chemical Manufacturing: Real-time control of neutralization endpoints, catalyst poisons (e.g., metal ions), and batch-to-batch consistency in polymerization feedstocks
• Semiconductor Fab Water Loops: Sub-ppb-level monitoring of TOC surrogates, silica, fluoride, and ammonium in UPW distribution systems
• Mining & Hydrometallurgy: On-line determination of copper, cobalt, nickel, and acid concentration in leach solutions and SX/EW electrolytes
• Municipal & Industrial Wastewater: Automated compliance tracking for NH₃-N, PO₄³⁻, NO₃⁻, and total oxidant demand using standardized colorimetric protocols

FAQ

What sample throughput rates does the 2060 support per stream?
Cycle times range from 2–15 minutes depending on chemistry complexity, with typical analysis intervals configurable between 5 and 60 minutes per stream.
Can the 2060 operate unattended for extended periods?
Yes—designed for >30-day maintenance intervals with auto-calibration routines, reagent volume monitoring, and predictive failure alerts based on valve actuation counts and optical path degradation trends.
Is remote diagnostics and firmware update capability available?
Standard Ethernet connectivity supports secure remote access via VPN; firmware updates are validated cryptographically and applied without service interruption.
How is method validation performed for regulatory applications?
tiamo™ Process includes IQ/OQ documentation templates aligned with ASTM D8082 and USP ; validation packages may be executed in collaboration with Metrohm Application Laboratories.
Does the system support hazardous area certifications?
ATEX II 2G Ex db IIB T4 Gb and IECEx certification options are available for Zone 1 installations; custom explosion-proof enclosures can be supplied upon request.
