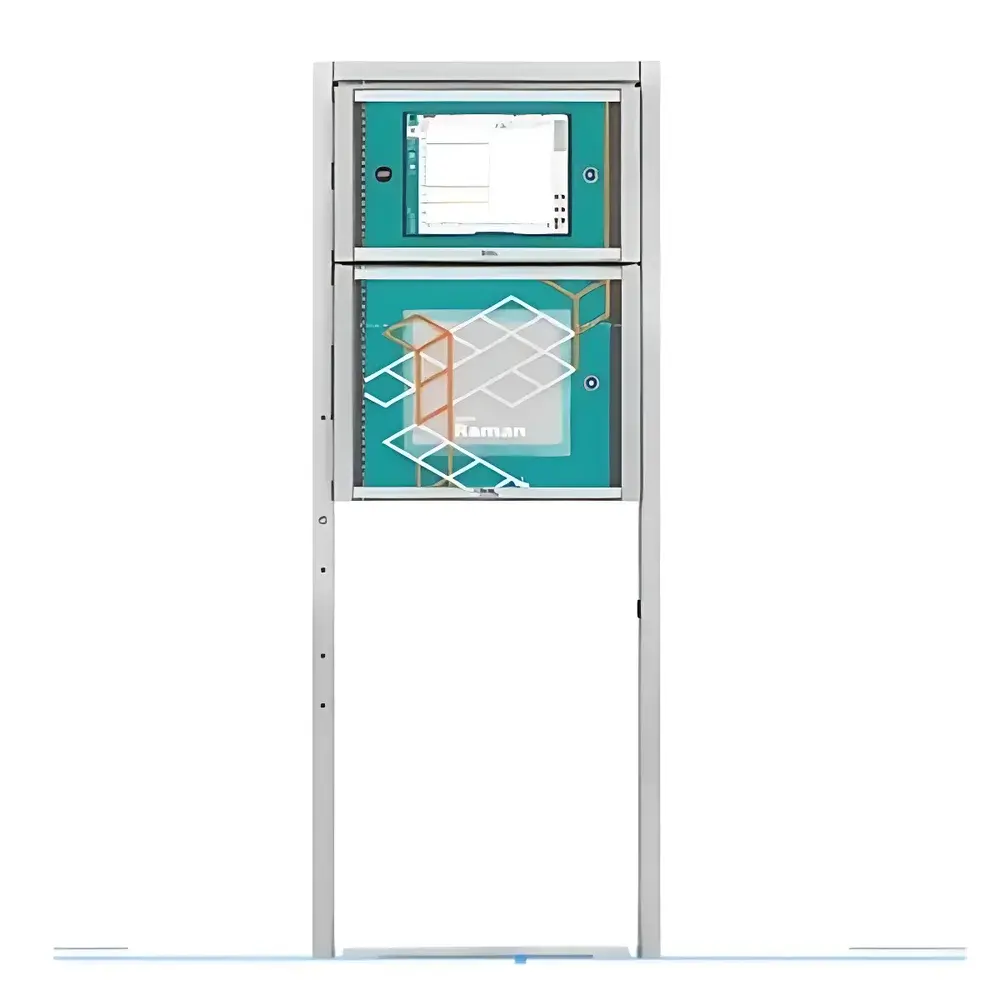

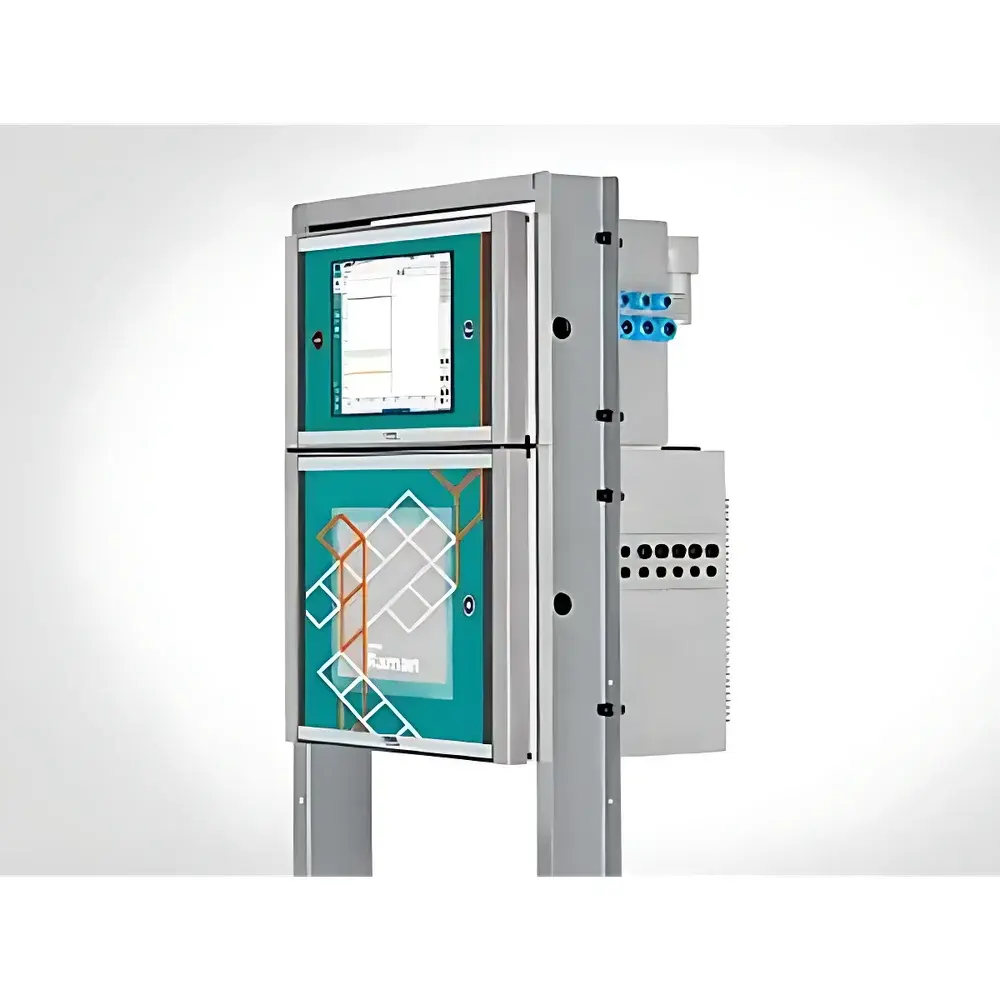

Metrohm 2060 Raman Online Raman Spectrometer

Overview

The Metrohm 2060 Raman Online Raman Spectrometer is an industrial-grade, process-integrated analytical instrument engineered for real-time, non-invasive molecular monitoring in continuous manufacturing environments. Based on the fundamental principle of inelastic light scattering—Raman spectroscopy—the system delivers chemically specific, vibrationally resolved spectral signatures without sample preparation or consumables. Unlike offline lab-based techniques requiring manual sampling and turnaround delays, the 2060 operates directly within production streams via robust fiber-optic probes, enabling second-scale spectral acquisition and quantitative tracking of key analytes, polymorphs, reaction intermediates, and impurity profiles. Its design adheres to the core tenets of Process Analytical Technology (PAT) as defined by FDA Guidance for Industry (2004), supporting Quality by Design (QbD) frameworks through embedded measurement certainty, traceable calibration, and audit-ready data integrity.

Key Features

• Integrated reference channel for automatic, drift-free Raman wavenumber calibration—ensuring long-term spectral reproducibility across shifts and maintenance cycles.
• Thermally stabilized high-throughput spectrometer core, minimizing thermal noise and maintaining consistent spectral line shape under varying ambient conditions.
• Multi-channel multiplexer supporting up to five independent sampling points—enabling parallel monitoring of reactors, mixers, crystallizers, or transfer lines from a single instrument chassis.
• Proprietary real-time fluorescence suppression algorithm—effectively mitigating broad background interference common in pharmaceutical APIs, polymer melts, and biological matrices.
• NEMA 4X / IP66-rated enclosure—certified for deployment in hazardous locations (Class I Div 2, ATEX Zone 2), including areas exposed to corrosive vapors (e.g., HF), exothermic reactions, or high-pressure steam environments.
• 785 nm diode laser source with <±0.02 nm wavelength stability over 1,000 hours—guaranteeing signal-to-noise consistency essential for multivariate calibration transfer between instruments and sites.

Sample Compatibility & Compliance

The 2060 Raman interfaces with process streams via industry-standard sapphire- or quartz-tipped fiber-optic probes (compatible with sanitary tri-clamp, flanged, or immersion configurations). It accommodates liquids, slurries, emulsions, gases, and semi-solids across temperatures from –20 °C to +200 °C and pressures up to 100 bar (dependent on probe selection). All hardware and software comply with IEC 61511 (functional safety for SIS), IEC 62443 (industrial cybersecurity), and support 21 CFR Part 11 compliance when deployed with Vision/IMPACT’s electronic signature, audit trail, and role-based access control modules. Method validation documentation aligns with ASTM E1840 and ISO 17025 requirements for in-process analytical systems.

Software & Data Management

Operation is managed through two complementary applications: Vision (for instrument configuration, real-time visualization, and alarm management) and IMPACT (for chemometric modeling, PLS and PCA method development, and batch trajectory analysis). Both support ALCOA+ data principles—ensuring data is Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, and Available. Raw spectra, processed results, and metadata are stored in vendor-neutral HDF5 format with embedded timestamps, instrument IDs, and environmental telemetry. Data export supports CSV, ASCII, and OPC UA PubSub for seamless integration into DCS, MES, or cloud-based digital twin platforms.

Applications

• Real-time endpoint detection in API crystallization and polymorph control.
• In-line quantification of active ingredient concentration in liquid dosage forms (e.g., injectables, syrups).
• Monitoring of oxidation state changes in redox-sensitive catalysts during hydrogenation.
• Detection of residual solvents (e.g., ethanol, acetone, dichloromethane) in lyophilized product chambers.
• Reaction progress tracking in continuous flow chemistry—including Grignard additions, nitration, and enzymatic hydrolysis.
• Verification of cleaning-in-place (CIP) efficacy via surface adsorbate detection on stainless-steel piping.

FAQ

Does the 2060 Raman require routine optical alignment or lamp replacement?

No—solid-state 785 nm laser and fixed-grating spectrometer architecture eliminate moving parts and consumable light sources, reducing scheduled maintenance to annual verification of spectral calibration and probe window integrity.
Can existing PLS models developed on benchtop Raman systems be transferred to the 2060?

Yes—via IMPACT’s model portability toolkit, which includes spectral resampling, detector response normalization, and probe-specific intensity correction functions validated against NIST-traceable standards.
Is the system compatible with SIL2-certified safety loops?

When integrated with optional safety gateways and configured per IEC 61508, the 2060’s analog output channels (4–20 mA) meet SIL2 requirements for trip signal generation in critical reactor overtemperature or runaway reaction scenarios.
How is data security enforced during remote diagnostics or firmware updates?

All external communication uses TLS 1.2+ encryption; firmware updates require dual-signature authentication and are applied only after hash verification against Metrohm’s secure update repository.
What level of GMP documentation is provided for qualification?

Metrohm supplies full IQ/OQ/PQ protocols aligned with Annex 15, including test scripts, acceptance criteria, and raw execution records—validated on-site with client witness participation.
