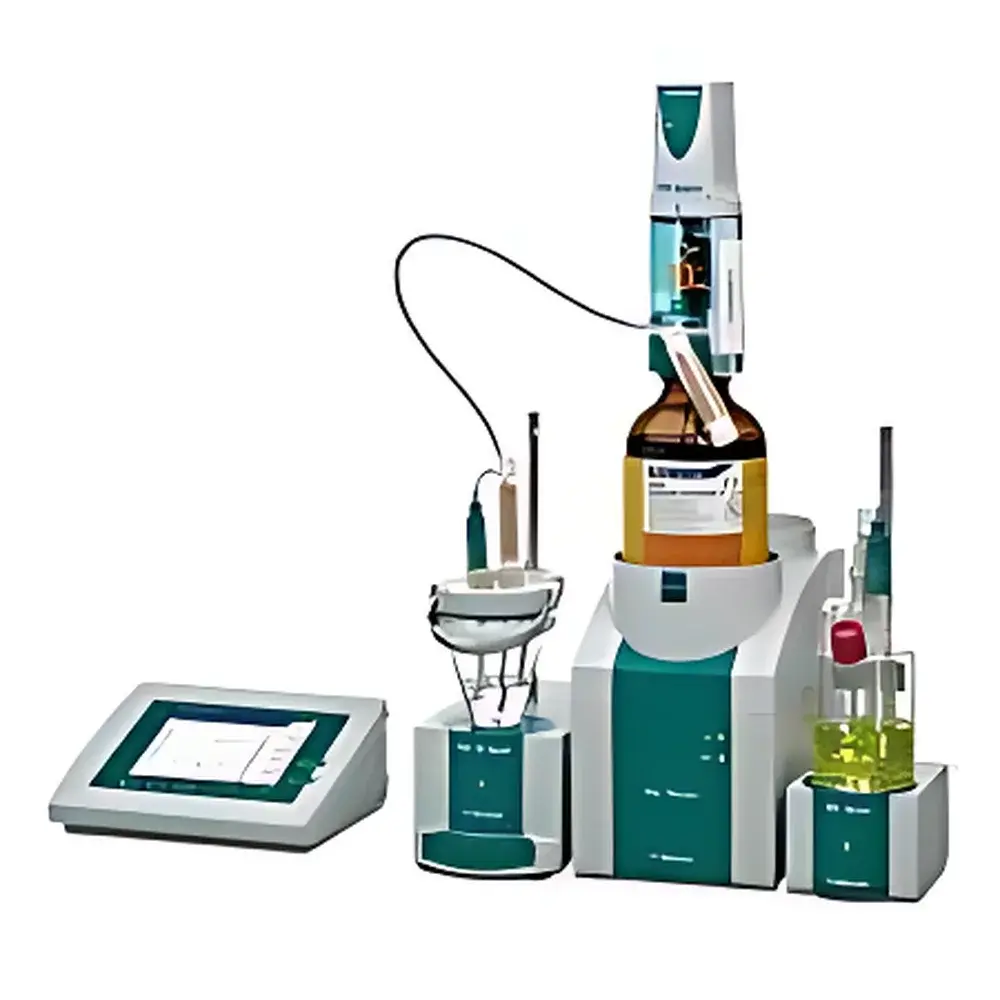

Metrohm 852 Advanced Coulometric/ Volumetric Karl Fischer Titrator

Overview

The Metrohm 852 Advanced Karl Fischer Titrator is a dual-mode analytical platform engineered for precise, reproducible moisture quantification across an exceptionally broad concentration range—from sub-microgram levels (<1 µg H₂O) up to 100% water content. It operates on the electrochemical principle of coulometric titration (for trace-level analysis) and volumetric titration (for higher moisture concentrations), both adhering strictly to the ASTM D6304, ISO 760, and USP standards for Karl Fischer methodology. Unlike single-mode instruments, the 852 integrates both techniques within one unified hardware architecture, eliminating the need for separate instruments or method revalidation when transitioning between low- and high-moisture sample matrices. Its core innovation lies in the patented dead-volume-free burette design and intelligent adaptive endpoint detection, which ensures minimal reagent consumption, high measurement robustness, and compliance-ready audit trails.

Key Features

• True hands-free titration initiation: Detection of sample introduction—via weight change, syringe actuation, or automated sampler signal—triggers titration sequence automatically, eliminating operator-dependent start-button errors and preventing background water interference during pre-equilibration.
• Automated reagent management via MSB (Metrohm Serial Bus) interface: Supports integration with Dosino dispensing units or Multi-dosing modules for unattended reagent replenishment, solvent addition, standard solution dosing, or auxiliary solvent delivery—all without opening the titration cell, thereby minimizing atmospheric moisture ingress and reducing re-equilibration time by up to 40%.
• Intelligent reagent lifecycle monitoring: System initiates reagent replacement based on configurable thresholds—including cumulative reagent volume dispensed, elapsed time since first use, calculated water capacity exhaustion, or drift rate deviation—ensuring consistent stoichiometric validity and traceable reagent history per ICH Q2(R2) and FDA 21 CFR Part 11 requirements.
• Dual-interface operation: Local control via integrated 7-inch capacitive touchscreen with graphical workflow guidance, or remote method development, execution, and data review through tiamo™ software on Windows-based workstations with full GLP/GMP support including electronic signatures, audit trail, and user access levels.
• Bromine number determination capability: Utilizes the same dual platinum electrode pair and glass titration cell; only solvent and titrant chemistry are modified—no additional hardware required—enabling rapid method switching between moisture and bromine index per ASTM D1159 and IP 127 protocols.

Sample Compatibility & Compliance

The 852 accommodates diverse sample types—including hygroscopic solids, viscous oils, polymers, pharmaceutical excipients, and aggressive solvents—through compatibility with optional accessories such as the 874 Oven Sample Heater (for thermally released water), 815 USB Sample Processor (for up to 30-position unattended analysis), and hydrophobic membrane interfaces for gas-phase moisture analysis. All hardware and firmware comply with CE, UL/CSA safety directives and electromagnetic compatibility (EMC) standards. Data integrity features—including immutable audit trail, time-stamped event logging, and role-based user permissions—meet regulatory expectations under FDA 21 CFR Part 11, EU Annex 11, and ISO/IEC 17025 accreditation criteria for testing laboratories.

Software & Data Management

Controlled exclusively by tiamo™ v3.x or later, the 852 supports fully customizable method templates, multi-parameter result reporting (H₂O %, ppm, mg, relative standard deviation), and export to CSV, PDF, or LIMS-compatible XML formats. The software enforces method validation workflows, stores raw titration curves with metadata (electrode potential, current, temperature), and maintains full traceability from raw signal to final report. All data files are digitally signed and encrypted at rest, satisfying ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available).

Applications

The 852 serves critical quality control and R&D functions in regulated environments: moisture verification of lyophilized biologics (USP ), residual solvent quantification in API synthesis, water content specification of lithium battery electrolytes (IEC 62620), polymer drying validation (ISO 15512), and bromine index assessment of petroleum feedstocks. Its dual-mode flexibility enables labs to consolidate multiple legacy titrators into a single validated platform, reducing operational complexity and qualification burden.

FAQ

Can the 852 perform both coulometric and volumetric titrations in a single run?
Yes—tiamo™ allows concurrent method definition and sequential execution of both modes within one analytical sequence, with automatic mode selection based on pre-defined moisture thresholds.
Is method validation support included in tiamo™?
Yes—tiamo™ provides built-in tools for system suitability testing, repeatability assessment, linearity verification, and uncertainty calculation per ISO/IEC 17025 guidelines.
What documentation is provided for regulatory submissions?
Metrohm supplies IQ/OQ/PQ protocol templates, 21 CFR Part 11 readiness reports, and full firmware version traceability documentation upon request.
How does the 852 handle highly viscous or particulate-laden samples?
When paired with the 874 Oven or 815 Sample Processor, the system supports homogenized sample introduction, heated transfer lines, and programmable stirring profiles to ensure representative sampling and complete water release.
Is remote diagnostics available?
Yes—Metrohm ServiceLink enables secure, encrypted remote connection for real-time performance monitoring, firmware updates, and technical support escalation without compromising network security.
